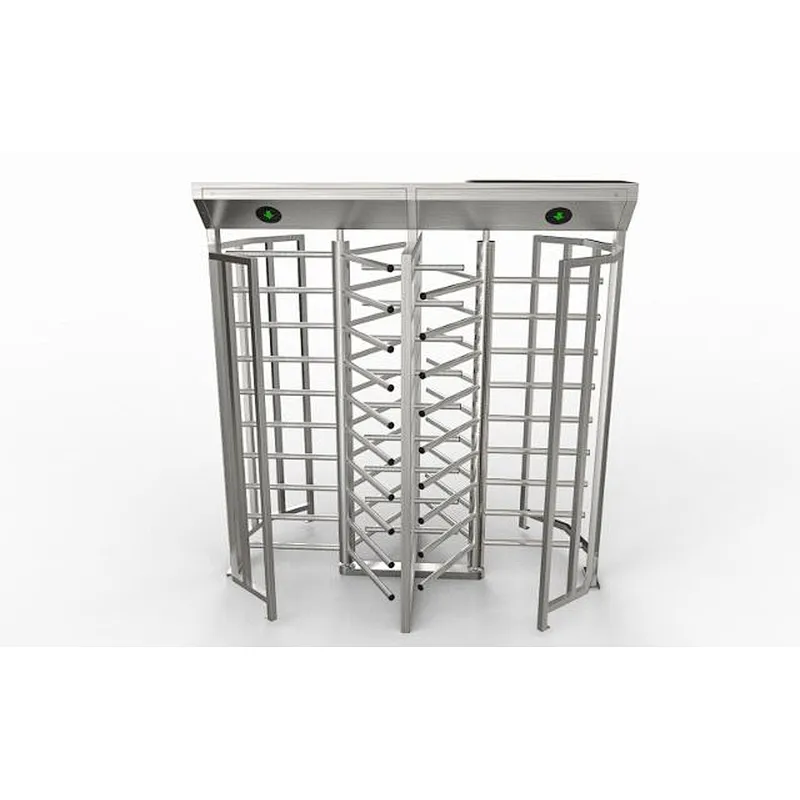

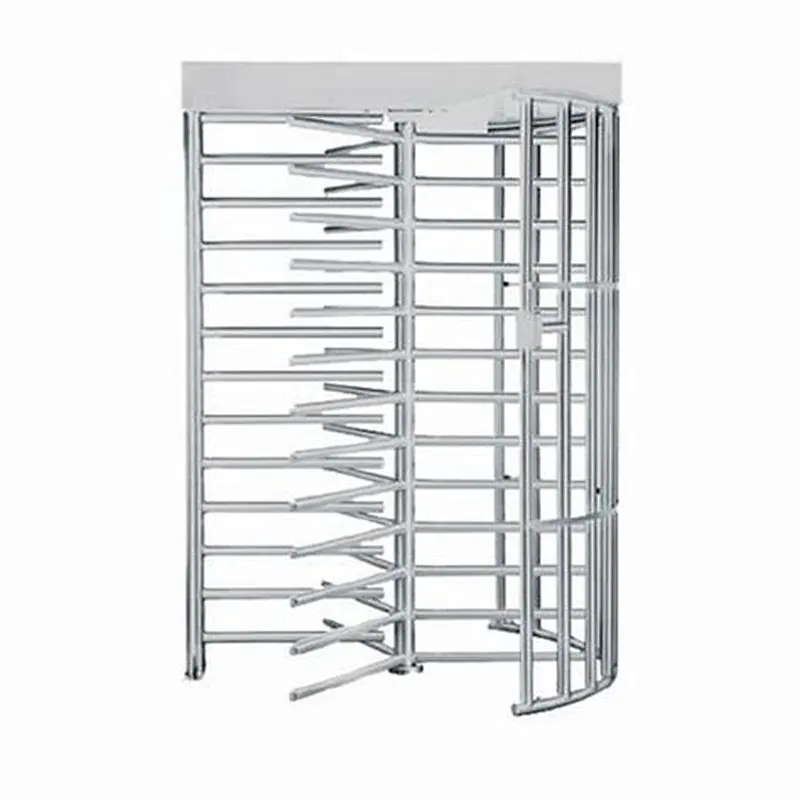

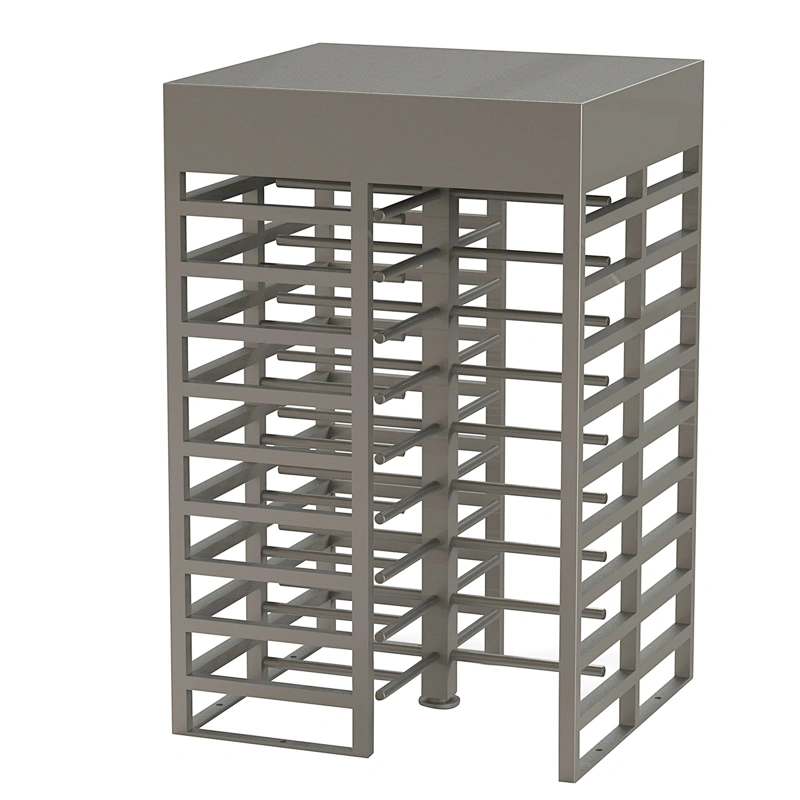

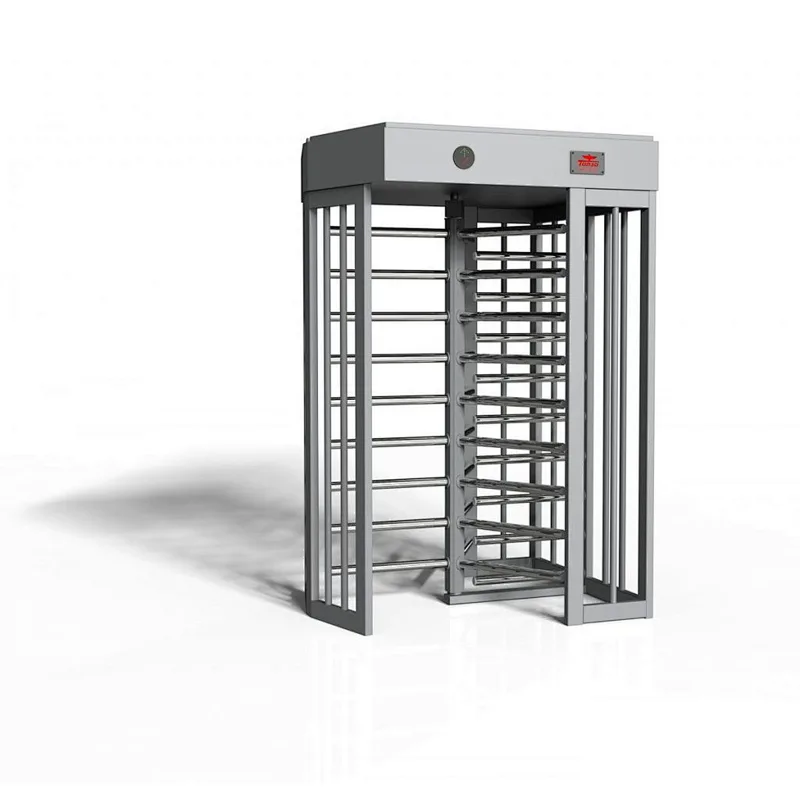

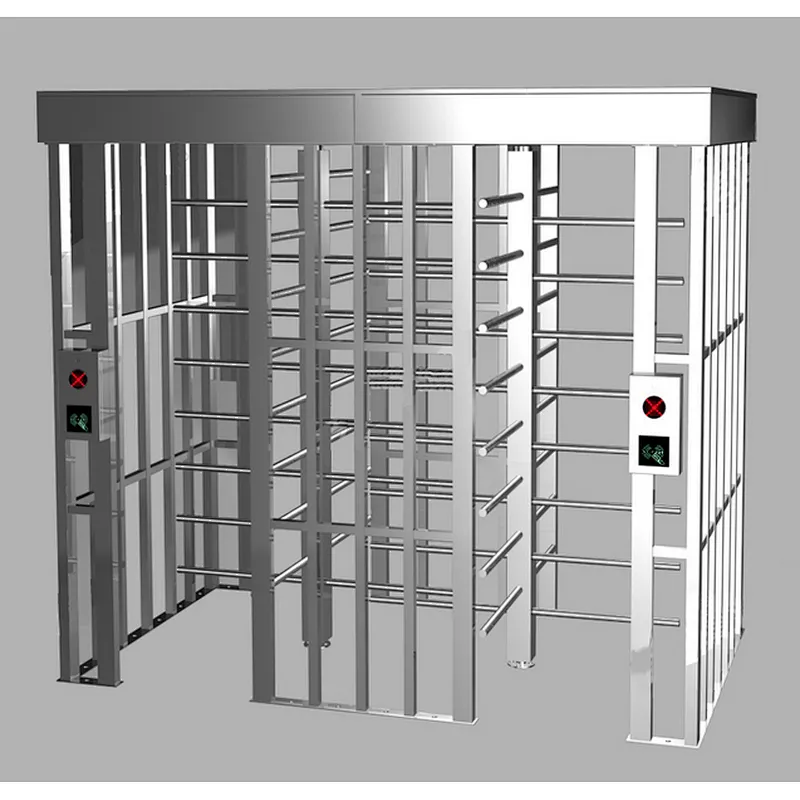

Product pictures:
Turnstiles
Full Height turnstiles are built for rugged indoor or outdoor use and easily integrate with any access control system. Full height turnstiles are often used for employee entryways, and are available in different finishes: Galvanized Steel, Stainless Steel and Powder Coated color. They are built for manual use (entry and/or exiting) without or without key lock controls to vary their use. Electric turnstiles are built to order for card or biometric access for entering (and exiting) or with free exiting (or no exiting). Key Lock overrides offer flexibility.
Full height turnstiles can be single or tandem. A double turnstile (tandem) can be a space saving solution and is often preferred when focusing pedestrian traffic to a single area. Waist high turnstiles are often used in interior or outdoor settings in conjunction with waist high gates for handicap access where required. These are most often built in stainless steel but powder coated cabinets are also available. Portal turnstiles, with floors, rail and wheels for easy storage are also popular for events or temporary installations.
Whether full height or waist high, single or a tandem unit, turnstiles are built in different sizes (footprints) and optional features like indicator lights are often considered.
Features:
1.With LED indicator light.
2. Can be used with access control systems, electronic ticket system, face recognition systems, static tester and other equipment.
3.With anti-reverse function, stop reversed direction.
4. Through the control board's built-in small keyboard, with programmable devices to manage operating status.
5. With automatic reset function, if user does not pass within specified period of time, the system will automatically cancel permission to pass, the reset time is adjustable (from 5 s to 60 s, and default time is 10S).
6. Can be single direction or double direction.
7. Can be remote controlled and managed by computer directly.
8. The size/design of main frame can be customized.
9. Can be adjusted to meet the requirements in different places.
Product parameter:
Product name: | Full height turnstile |

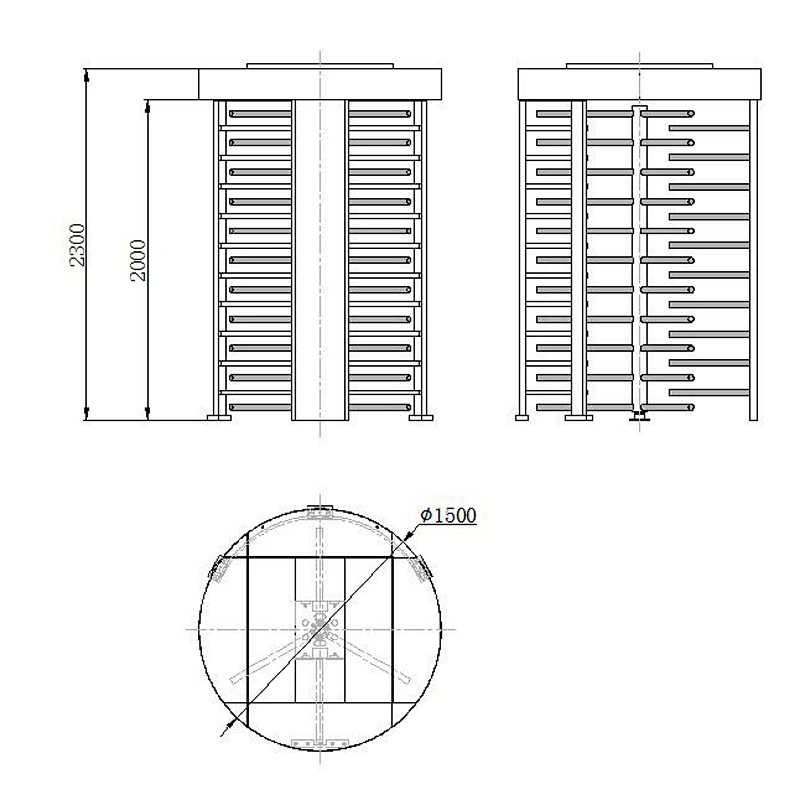

Size: | 2450 * 1500 * 2300 mm |
Communication interface: | Standard RS 485 interface, distance ≤1200m |
Working voltage: | AC220 ±10%V, 50±10%HZ |
Channel width: | 600 mm (Ruglar width) |
Time for opening: | 0.2 second |
Traffic speed: | 30 persons/minute |
Time for reset after power on: | 3 seconds |
Normal life span: | More than 3 million times |
Working direction: | Single direction or double direction |
Working environment: | indoor/outdoor (with rainproof ceiling) |
Working temperature: | -25℃ ~ 70℃ |
Housing material: | Standard 304# stainless steel |
Working humidity: | ≤90% |
Product showcase:
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Team:
Our Factory:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
