- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:AX-Z0061
- Machine core:Full Automatic
- Motor:DC Brushless motor, 50W/24V
- Passing Speed:45persons/min
- Communication Connection:RS485 Communication
- Material:Stainless steel 304,thickness is no less than 1.3 mm
- Running life:5--8 Million(Continuous Opening and Closing Operation)
- Net Weight:20kg
- Gross weight:22kg
- mechanism lock:can not return in the middle
- Feature:24v dc brushless motor

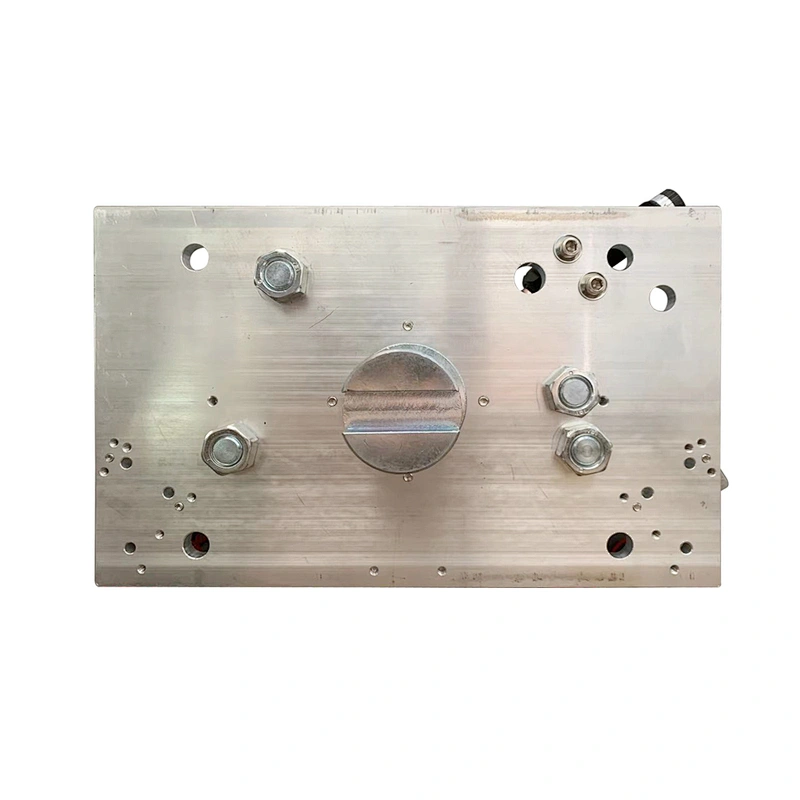

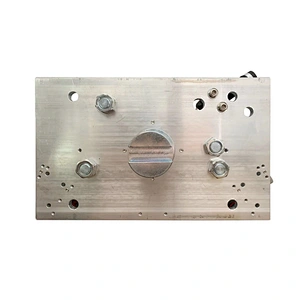

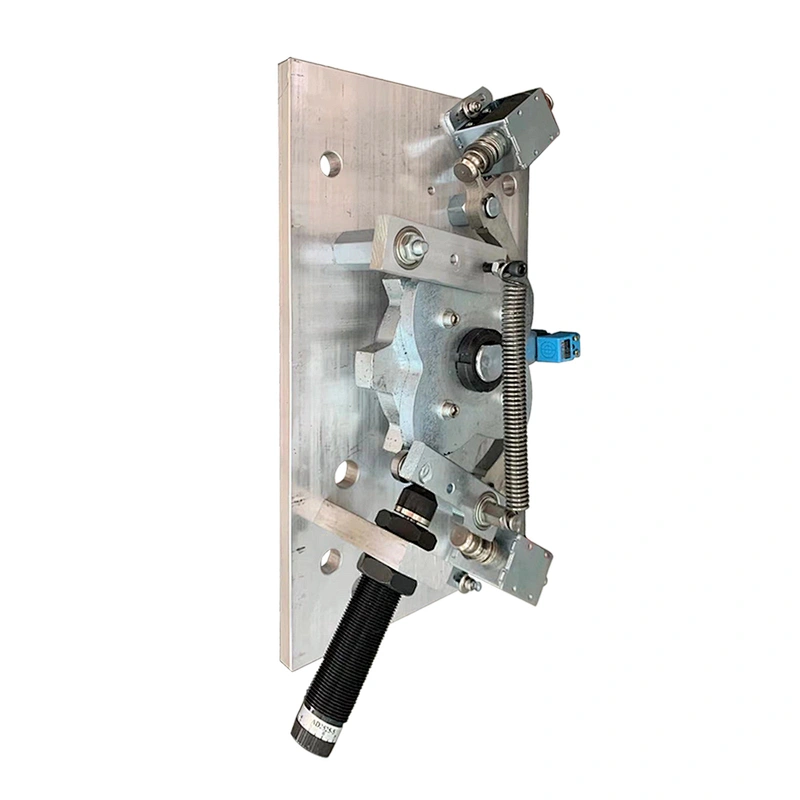

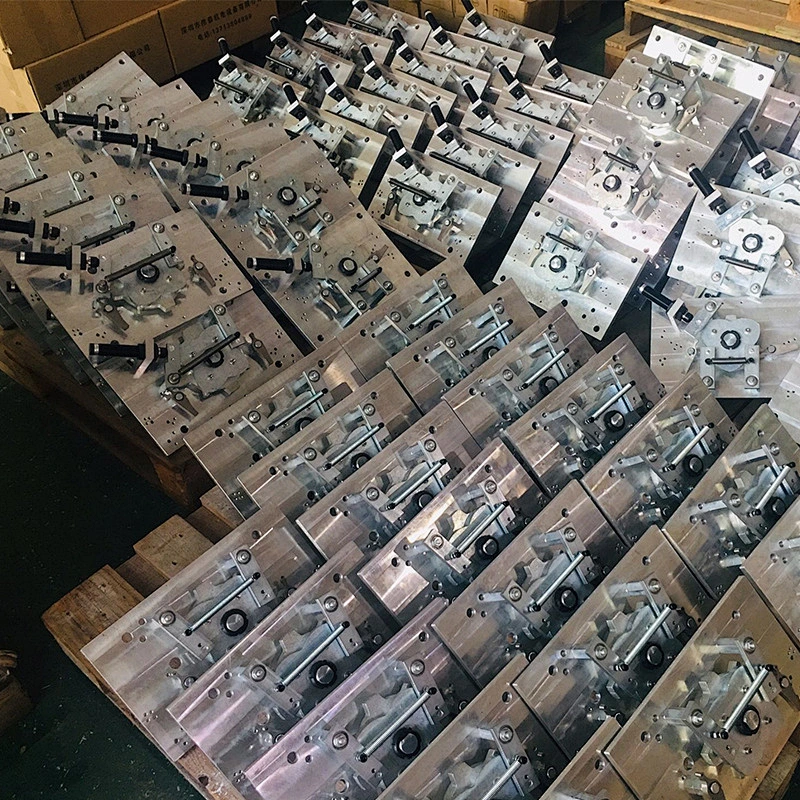

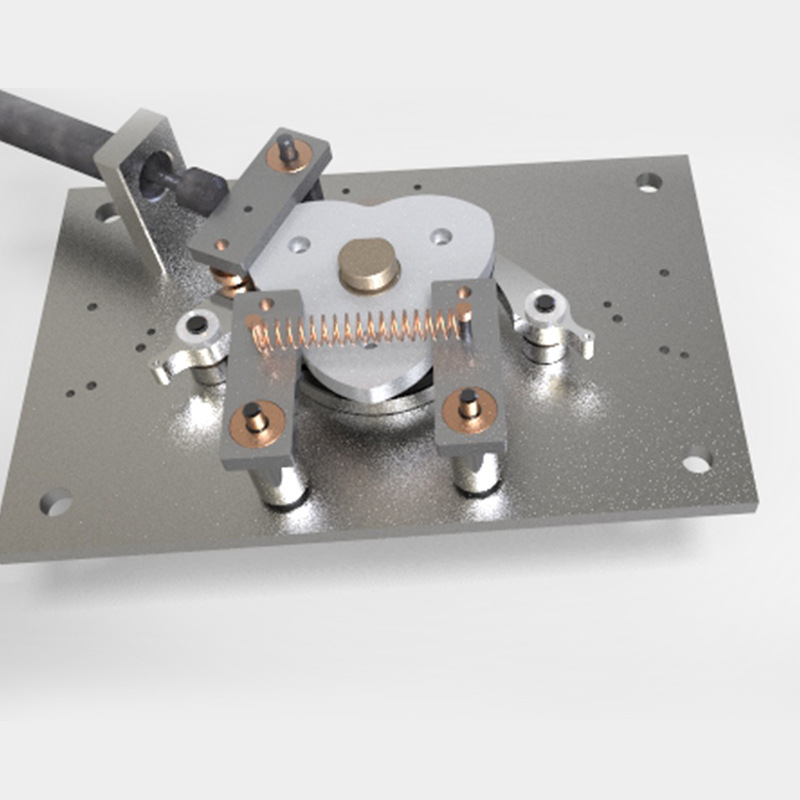

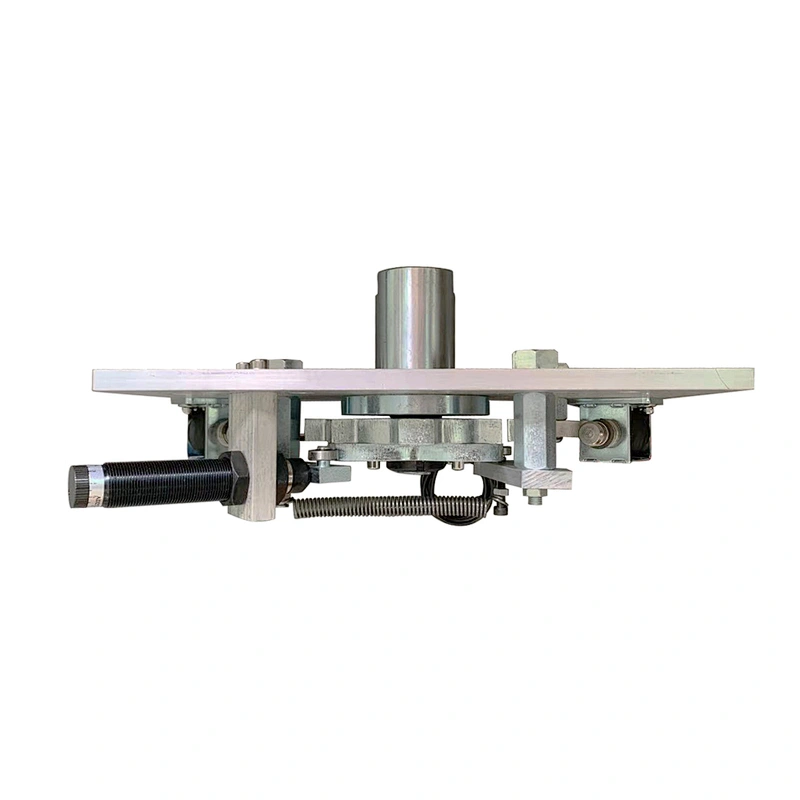

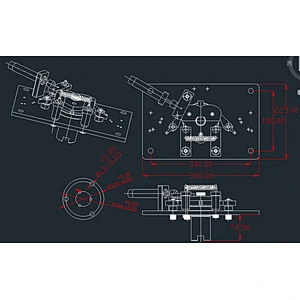

DC24V Brushless Motor Full Automatic Full High Turnstile Mechanism
Technical Parameters
1 | Power | AC220C±10V,50/60HZ; |
2 | Machine core | Full Automatic |
3 | Operating Temperature | -45℃-60℃ |
4 | Relative Humidity | ≤95%, No Condensation |
5 | Passage Width | ≤600mm |
6 | Passing Speed | 45persons/min |
7 | Motor | DC Brushless motor, 30W/24V |
8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
9 | Communication Connection | RS485 Communication |
10 | Material | Stainless steel 304,thickness is no less than 1.3mm |
11 | Communication Distance | 1200M
|
12 | Running life | 5--8 Million(Continuous Opening and Closing Operation) |
13 | Protect level | IP54 |
Features
1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not
7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle
11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate

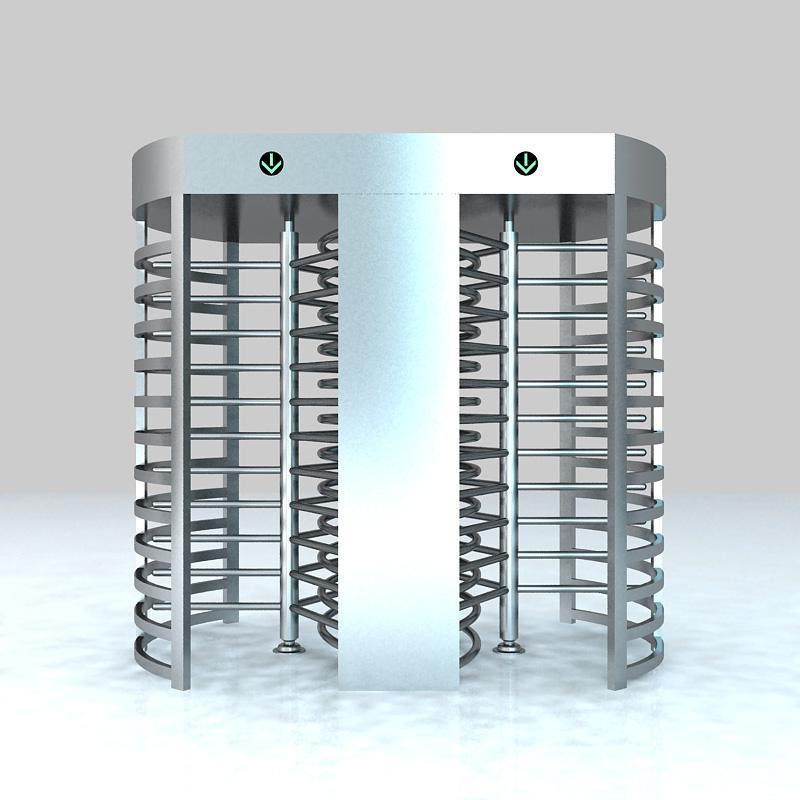

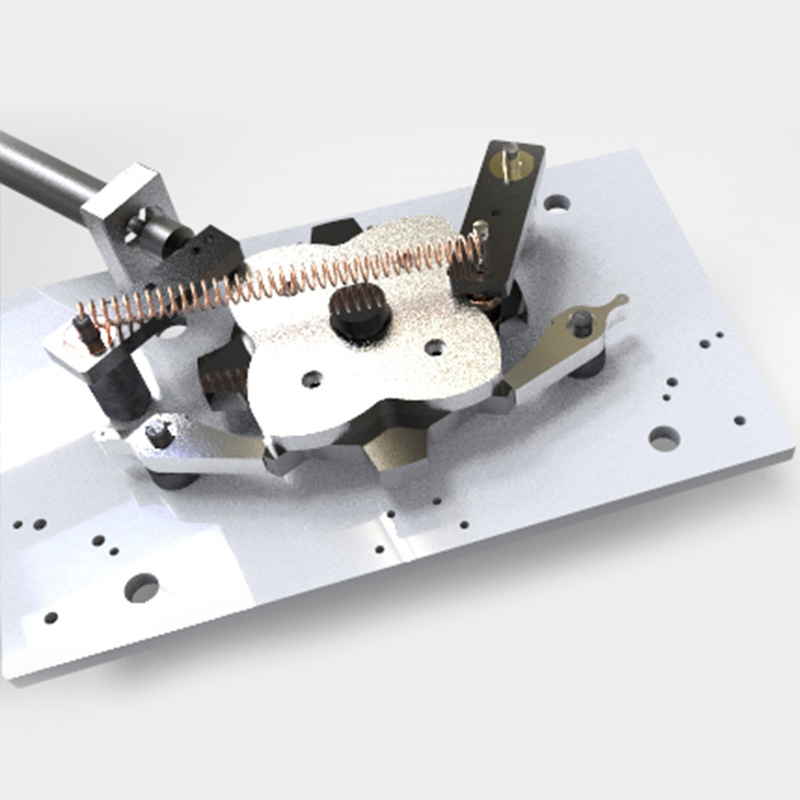

Product showcase:
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
