- Place of Origin:Guangdong, China
- Brand Name:Anxia/OEM/Netural
- Model Number:Full height Turnstile
- Product name:Turnstile Entrance Security Access Control
- Material:304 stainless steel/spray
- Thickness of case:1.2cm
- Thickness on main shaft:2.0cm
- Arm rotation angle:120°
- Arm length:520 mm
- Voltage:220V 50HZ
- Rotation direction:single direction or double directions
- Sensor:FRID reader
- Special Features:Motion Detection

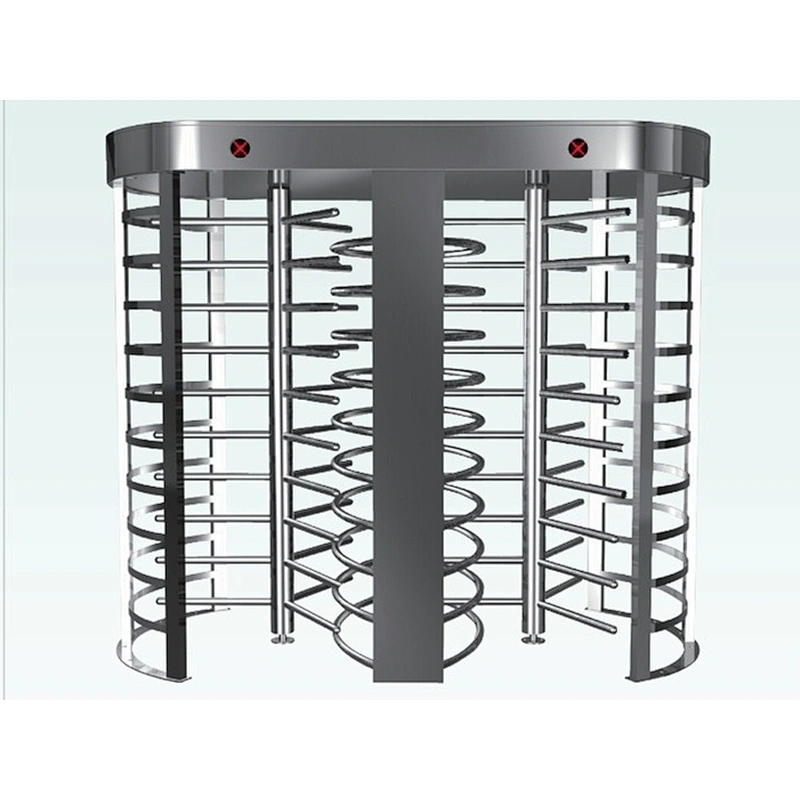

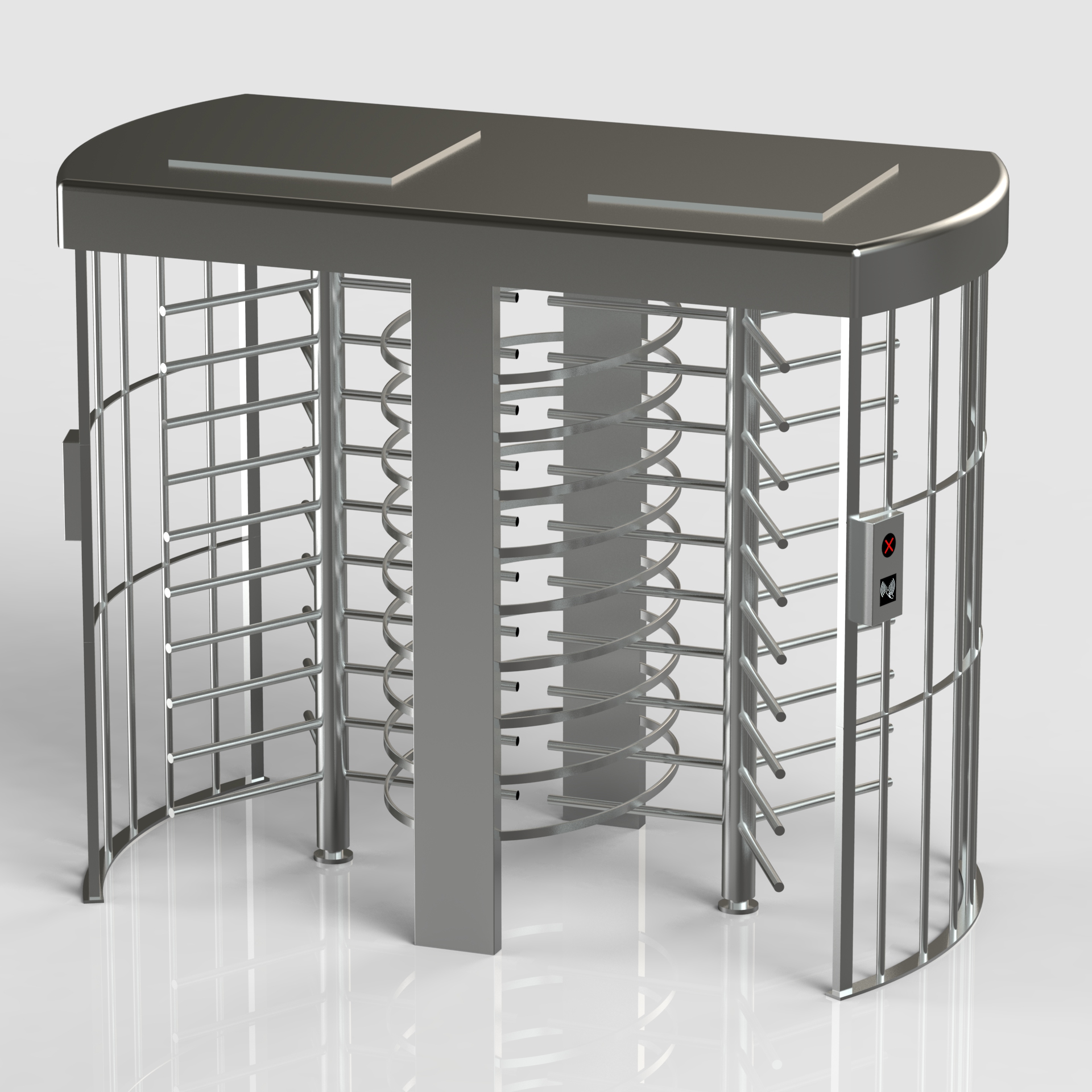

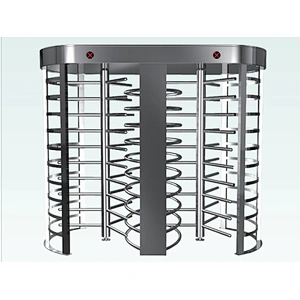

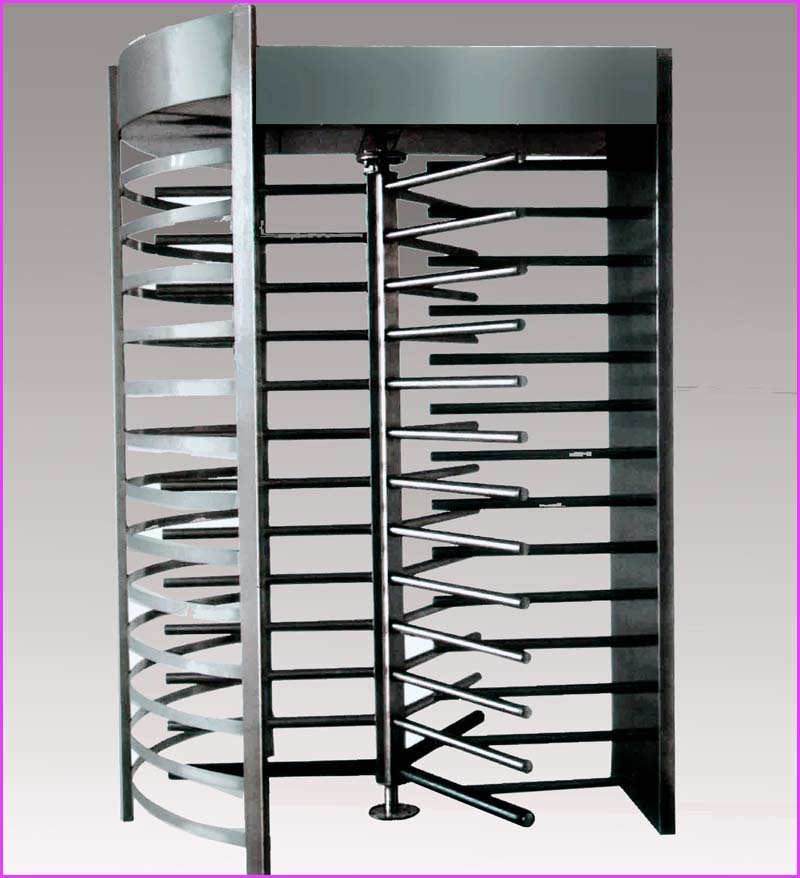

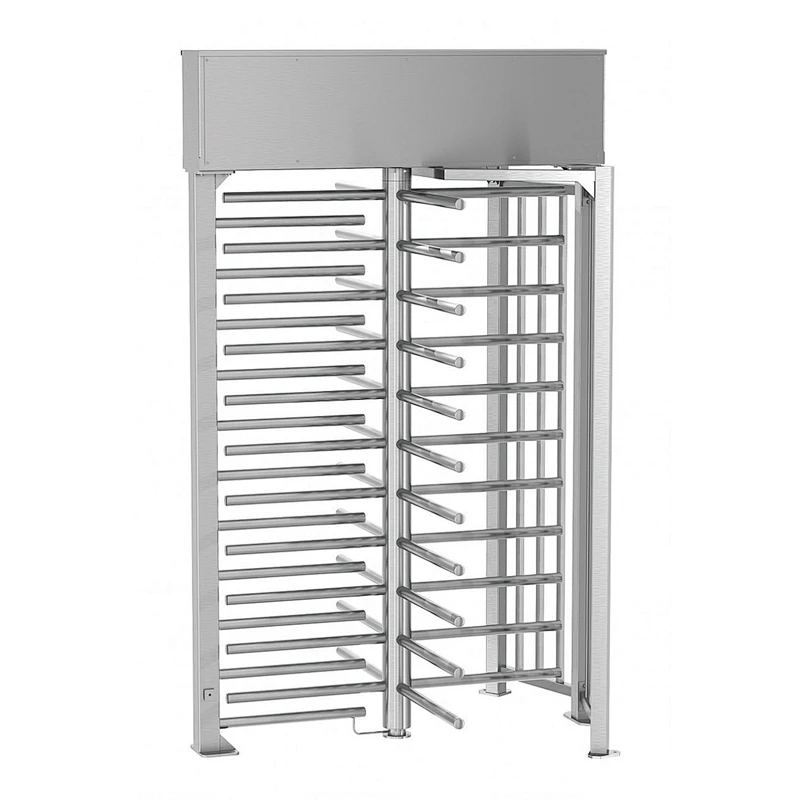

Full Height Turnstile Entrance Security Access Control
High Security Access Full Height Turnstile For Prison Hospital Station Entrance Control
- Full height turnstile is often used for high security access control solutions.
- The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.

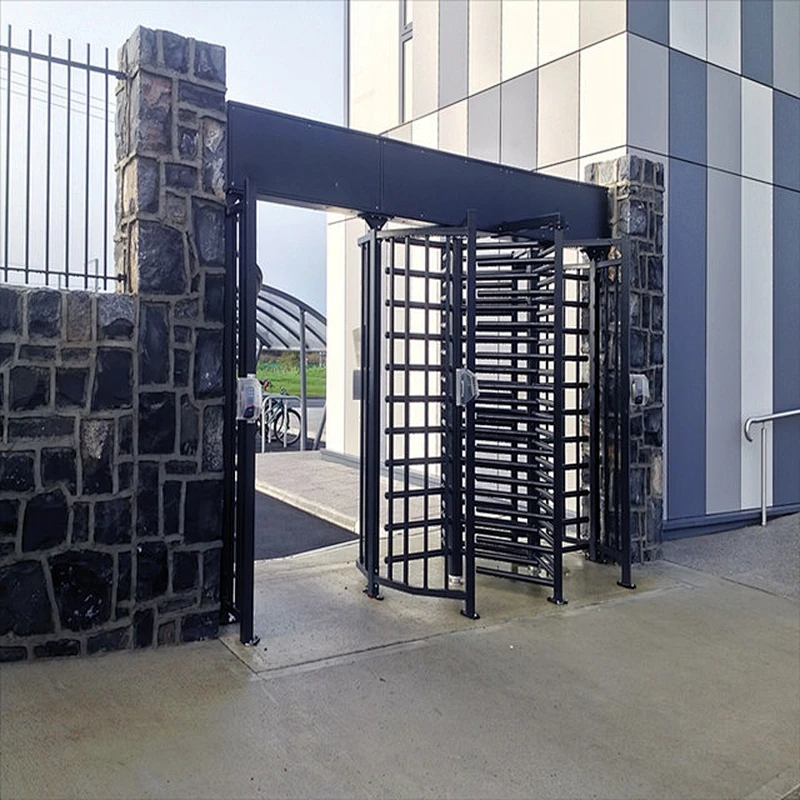

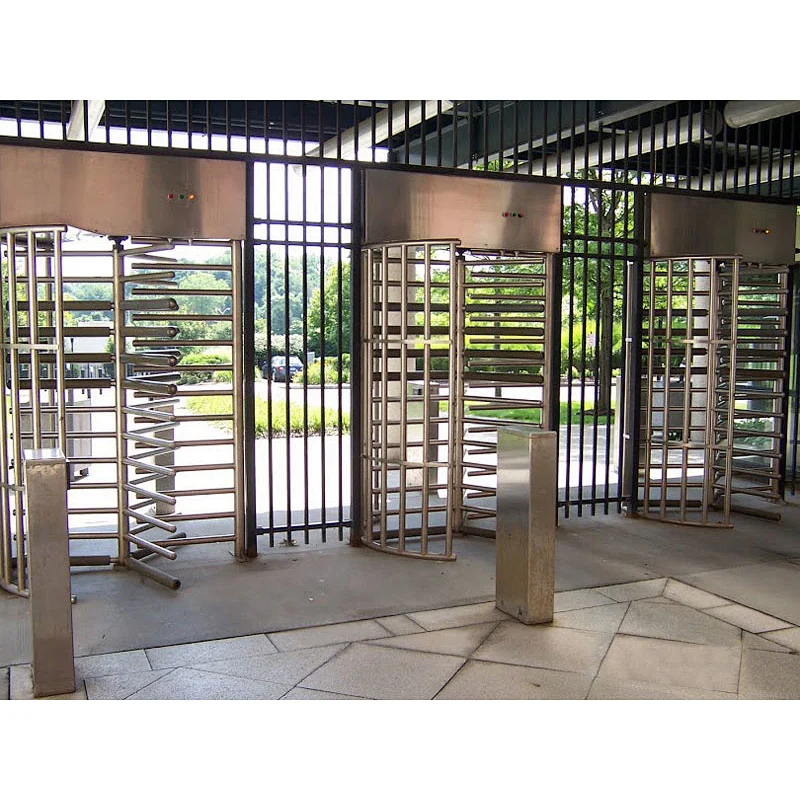

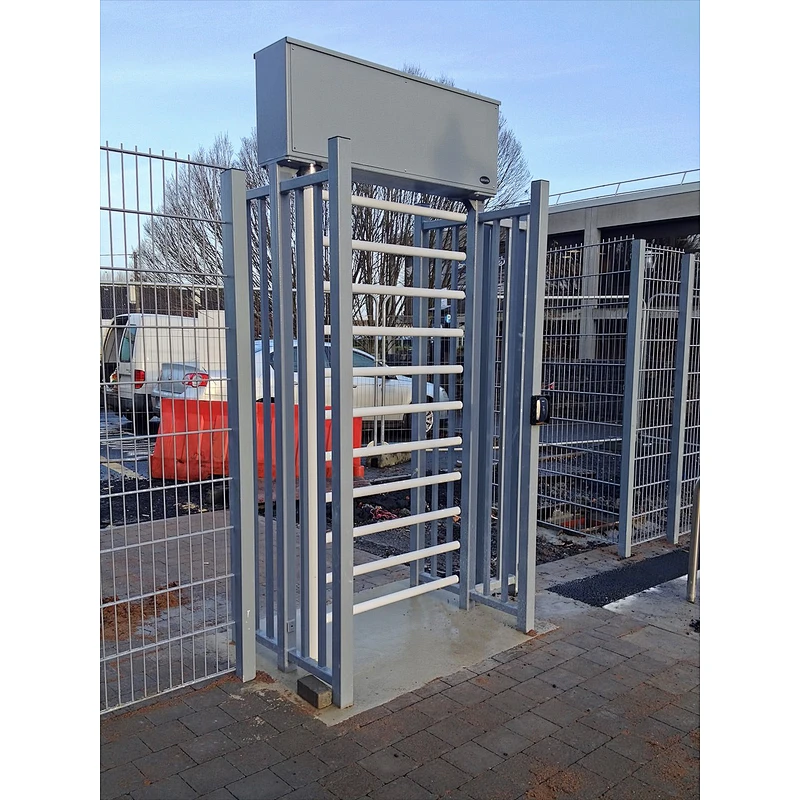

- Full height turnstile is ideal for both indoor and outdoor settings.
- It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint and Biometric device).
- It is very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the power off.
- The whole system runs smoothly, long-life performance, high operation dependability and fast response.
- The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
- Self-test function, when power on, system restoration automatic.
- Dual-bearing device, keeping the gate in balance when there is external force.
- Single directional or Bi-directional is selectable.
- LED indicator.
- Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing time can be set on Full Height Turnstile circuit board.
- When power off, turnstile lane will be free to pass, complying with fire safety requirements.
| Model No. | AX-Z001 |
| Framework Material | 304 Stainless Steel |
| Dimension | 1630*1500*2300mm |
| Net Weight | 260kg |
| Passage Width | 650mm |
| Passing Direction | Single directional / Bi-directional |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W |
| Operation Temperature | -15 °C – 60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor (Shelter) |
| Flow Rate | 35-40 people per minute |
| LED Indicator | Yes |
| Input | Dry contact |
| Emergency | Automatic arm open when power off |
| Communication |

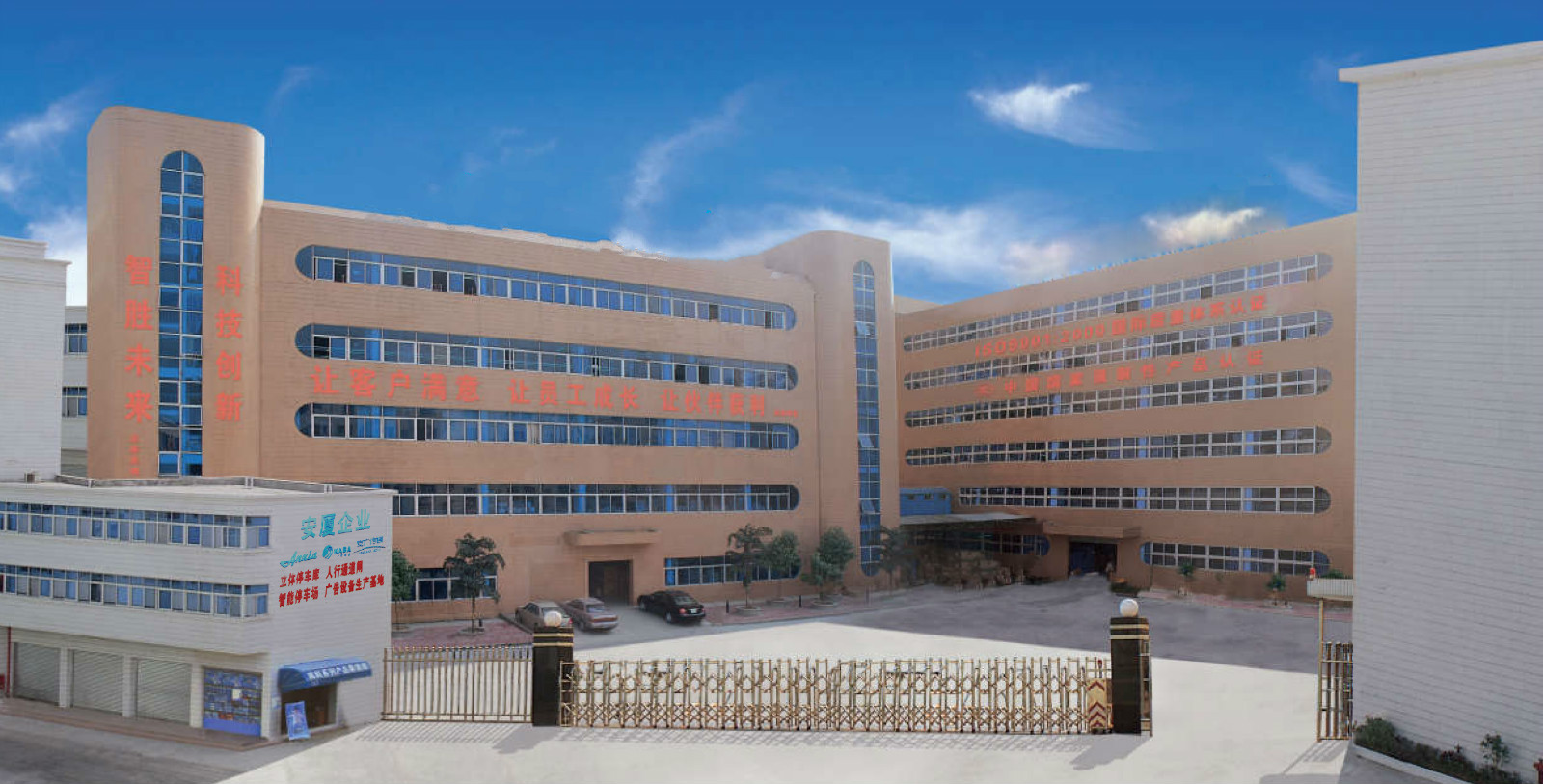

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Certificate of honor:
Exhibition:
Q1. What is your terms of packing?
A: First, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it in standard export wooden case to protect the goods perfectly.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
