- Special Features:Time & Attendance
- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:AXKT RFID Keychain Tag

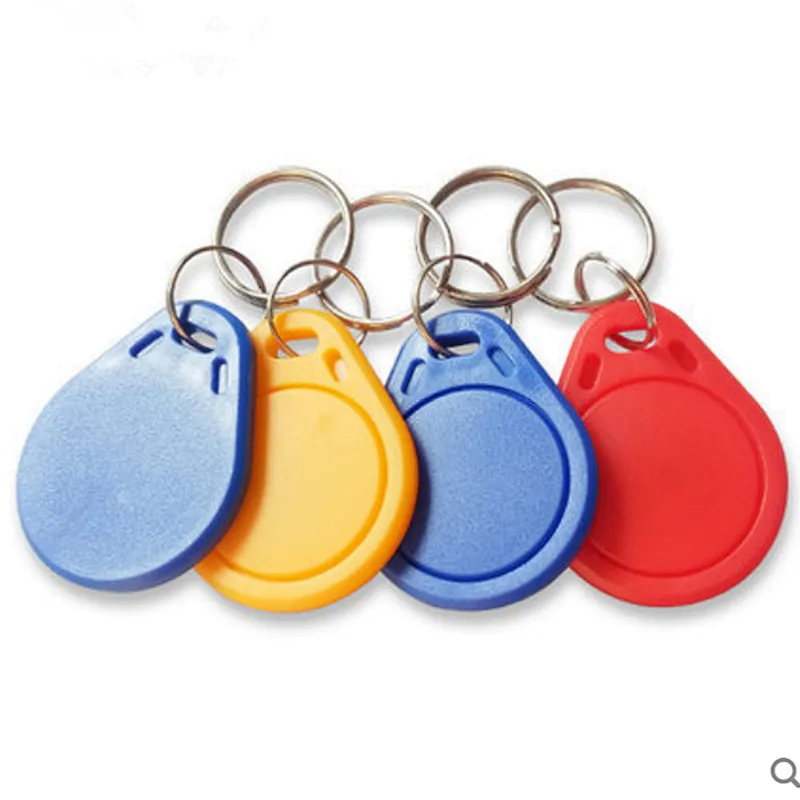

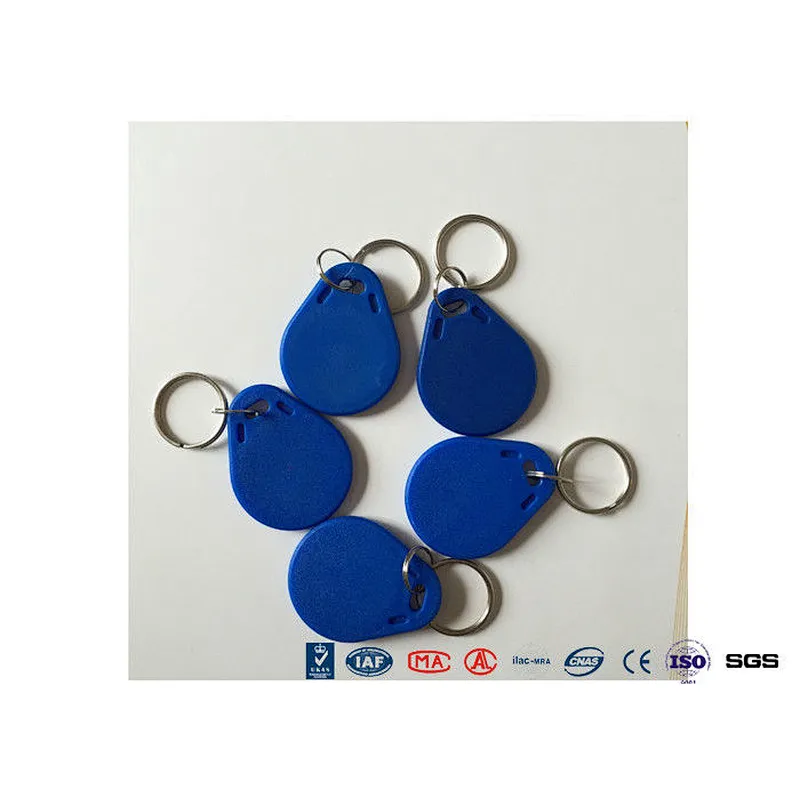

- Product name:RFID Keychain Tag for Turnstile
- Material:ABS
- Application:Office, school, park, airport, Indoor
- OEM/ODM:Supported
- Colour:Black, Blue, Yellow, Red, Grey, Green
- Weight:0.02 kg/set
- Working environment:Indoor Outdoor
- Keyword:Access Control Turnstile RFID tag
- Dimension:L37mmXW30mmXT7.57mm
- Warranty:1 year, 1 Year
- Resolution:1280 X 960
- Certification:ce
- Data Storage Options:Cloud
13.56MHz Leather RFID Keyfob , Leather NFC Keychain Staff Cardfor Access Control
Specifications of RFID TAG/RFID keychain tag
1.Completely water, dust proof
2.Wide applications RoHS certificated green product
3.Factory price and high quality
RFID TAG-RFID keychain tag with different colour and low price ---RFID tag
Application Access Control & Security, Time Attendance, Ticket, Parking and Payment
Club/SPA Membership Management, Rewards
RFID disk tag(125KHZ EM,13.56MHZ /I CODE,Various size and thickness for option)
1.Dia.15/17/18/20/22/25/30/40/50, etc.
RFID disk tag (125KHZ EM,13.56MHZ /I CODE, Various size and thickness for option)
It is designed as a tag for the warehouse management, and identification, RFID disk tag can be install on the pallet, the cartons, the machine etc. To handle harsh warehouse / factory environment, the coin tag is optional with filling epoxy technics. The coin tag would made the tag complete waterproof. RFID tag is also optional with anti-metal layer to mount and working on metal surface.
Key feature:
Material: PVC, ABS
Size: Dia.15/17/18/20/22/25/30/40/50, etc.
Color: Black, White, Yellow, Red, customization
Available IC's:
TK4100 (125 KHz, 64bit, R/O)
EM4200/EM 4102 (125 KHz, 64 bit, R/O)
T5567/T5577 (125 KHz, 330 bit, R/W)
I Code SLI (13.56 MHz, 1024 bit, R/W, ISO 15693 & ISO/IEC 15693)
Other chip upon request
Additional craft:
- Self-adhesive layer(3M)
- Anti-metal layer
- Silk-Screen Printing LOGO
- Laser LOGO and Number

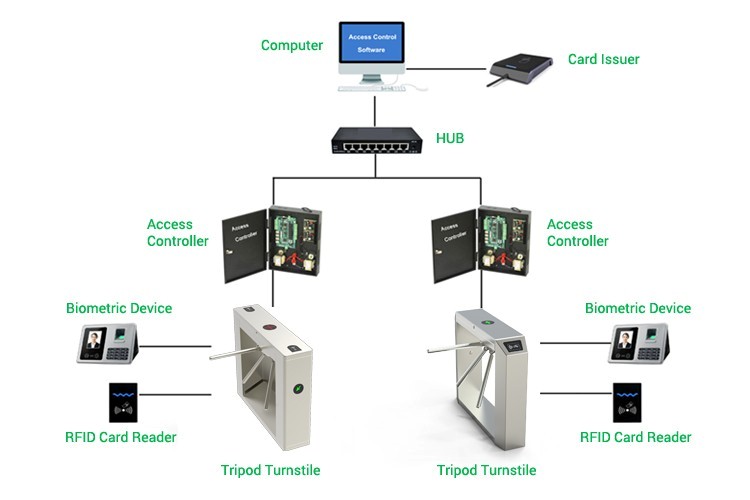

Compatible with These RFID readers
RFID Card Reader connected with controller, available with different interface, RS232, Wiegand 26, RS485, ABA, etc
Proximity card reader connected with PC by USB or RS232 interface
RFID reader module, RS232, Wiegand 26, RS485, ABA, etc.
RFID TAG/RFID keychain tag with turnstile
| Specification of RFID Smart RXK03 Key Fob Tag | |
| Housing Material | ABS |

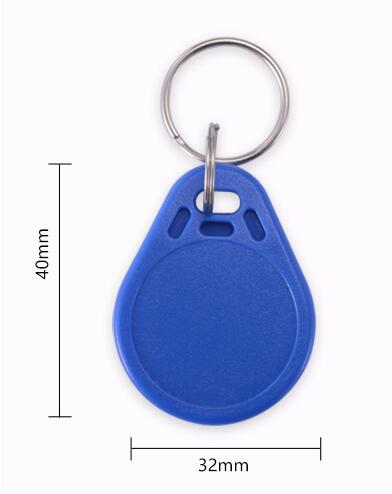

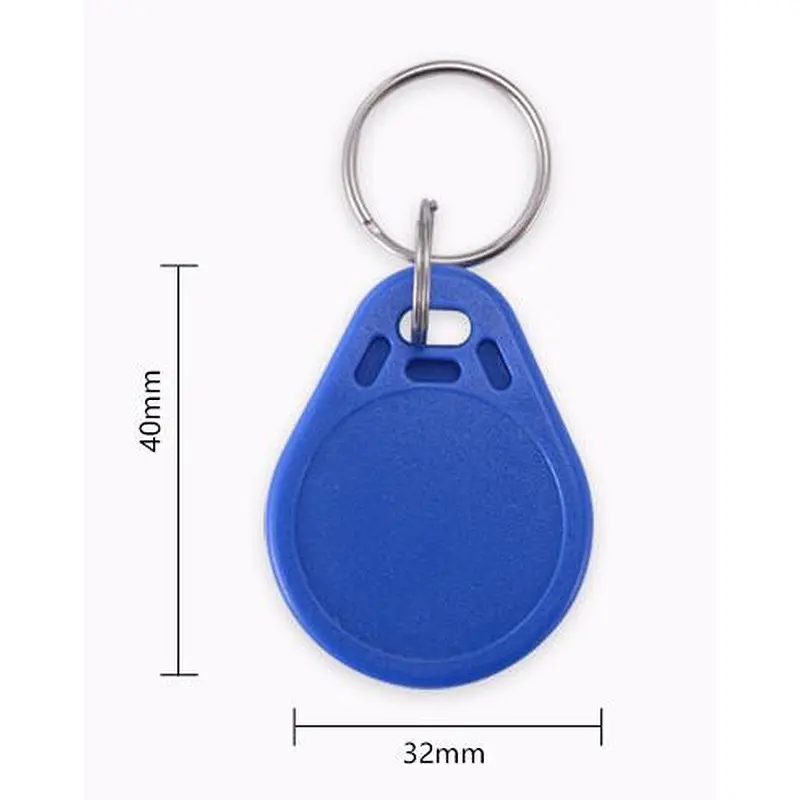

| Dimensions: | L37mm×W30mm×T7.57mm |
| Weight: | NW 5.04g |
| Standard Color: | Black, Blue, Yellow, Red, Grey, Green |
| Printing Method: | Silkscreen Printing |
| Number Printing Options: | Ink Jet Number, Laser Number |
| Other Available Options: | Chip Encoding |
| Temperature | -10oC to +50oC |
| 125KHz Chips: | EM4100 / H4100 / TK4100 / SMC 4001 |
| EM4102 / H4102, EM4200 | |
| EM4205, EM4305, EM4450, EM4550 | |
| T5557 / T5567 / ATA5567 | |
| Hitag1, Hitag2, HitagS | |
| 13.56MHz Chips: | LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048 |
| 1K S50 / MF1 S50, 4K S70 / MF1 S70 | |
| PLUS S 2K, PLUS S 4K, S20 | |
| ULTRALIGHT, ULTRALIGHT C | |
| DESFire, DESFire EV1 8K (MF3 IC D81) | |
| DESFire EV1 4K (MF3 IC D40) | |
| DESFire EV1 4K (MF3 IC D41) | |
| 1K-Compatible / FUDAN 1K / TKS50 | |
| I.CODE SLI SI2 / I.CODE 2, I.CODE 1, LRIS2K, LRI64 | |
| Tag-IT Ti2048, Tag-IT Ti256 | |
| INSIDE Picopass 32KS, INSIDE Picopass 2K | |
| ST SR176, SRI512, SRIS4K | |
| 868MHz / 915MHz Chips: | NXP UCODE EPC Gen 2 |
| Key applications | Public transportation |
| Access management | |
| Event ticketing | |
| Gaming | |
| Identity | |
| Sample Availability: | Free samples are available upon request. |
| Stock Availability: | Large quantities of the best-selling products are normally available in stock and can be shipped immediately. |

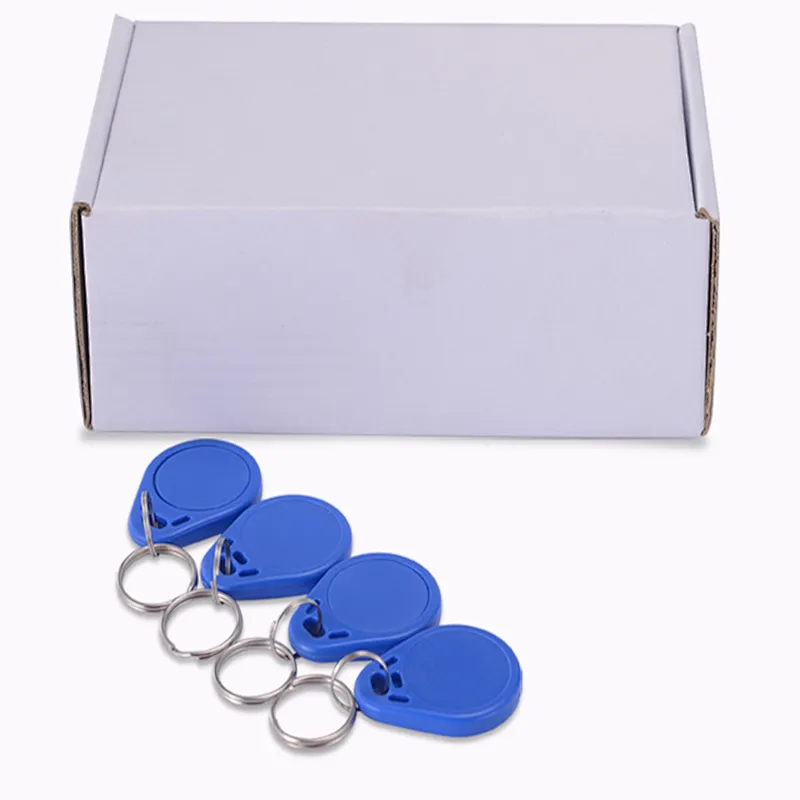

| Packing Details: | 100 pieces per box, 2000 pieces per carton. |
| Carton Size: 50×24×28 cm / 14kg per carton. | |

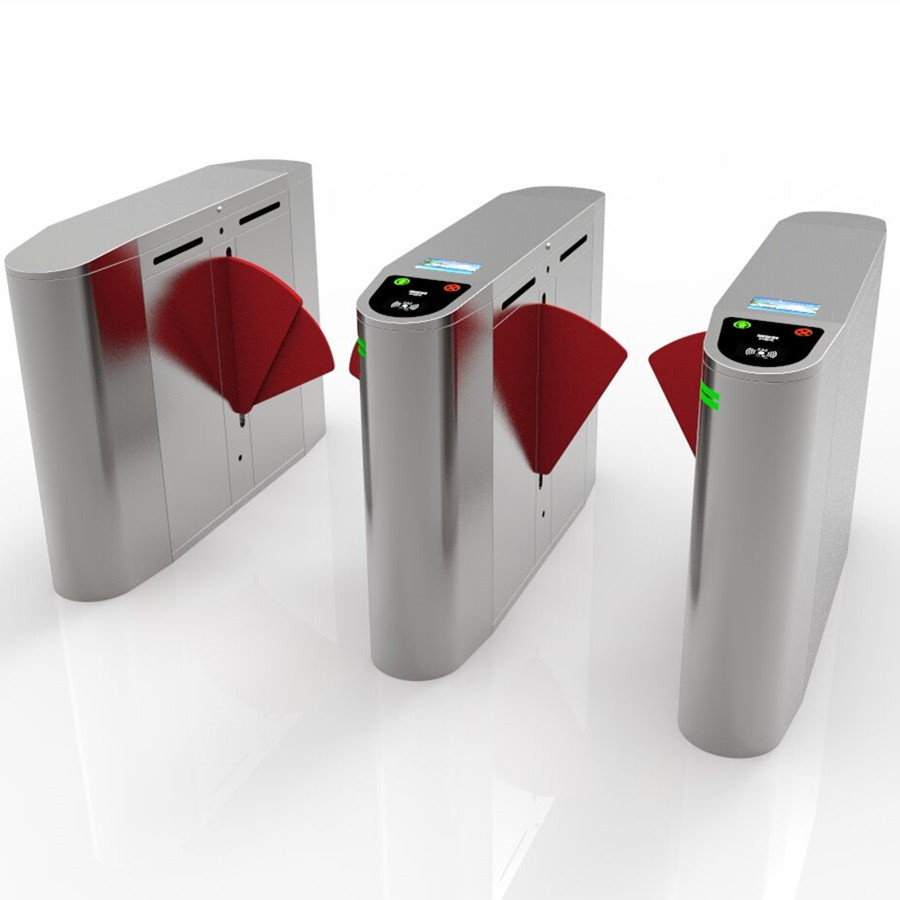

RFID TAG/RFID keychain tag with turnstile:

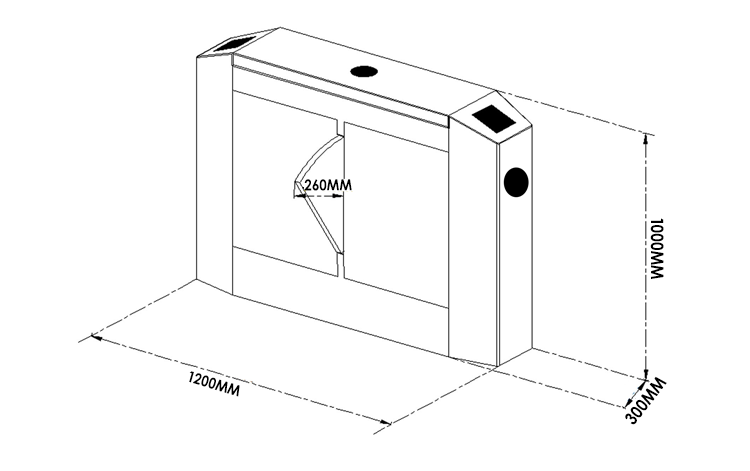

This is an optical turnstile with a stainless steel cabinet. Its smooth and silent acrylic wings retract into the cabinets when a valid ID is presented. Access control software, proximity card/fingerprint/facial recognition reader can be ordered installed in these turnstiles which make them a one-step solution. Or they can connect to any existing access control system.
Each lane is defined by two elliptical cabinets with angel door wings that retract into the units.
Ideal for ADA, 900 mm, or 35.43"wide, and standard passage, 500 mm, or 19.68"wide, it features a rounded-end stainless cabinet, with light indicators on the cabinet lid.An advanced sensor system prevents the angel door wings from closing when a person or object is located in the safety zone.
- Single lane or multiple lane configurations available
- Red/green indicator lights in the top lid of cabinet
- Integrates with access control systems
- Fail-safe, and links to any fire alarm system

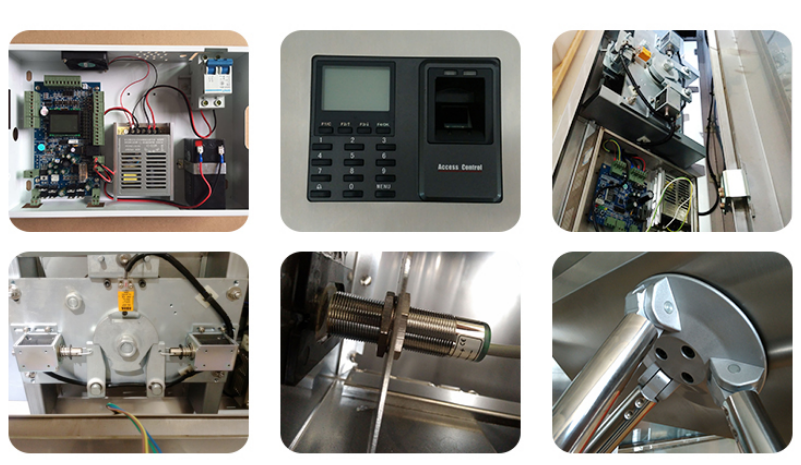

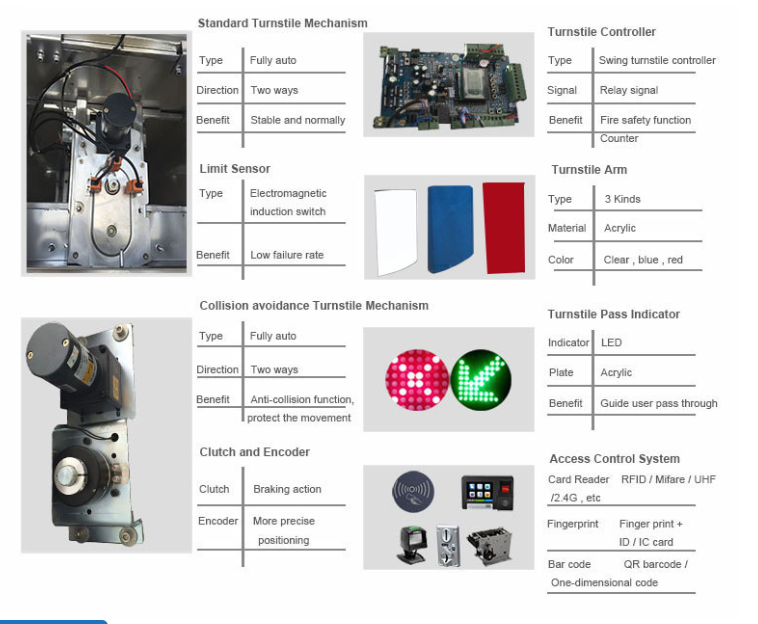

Product details:

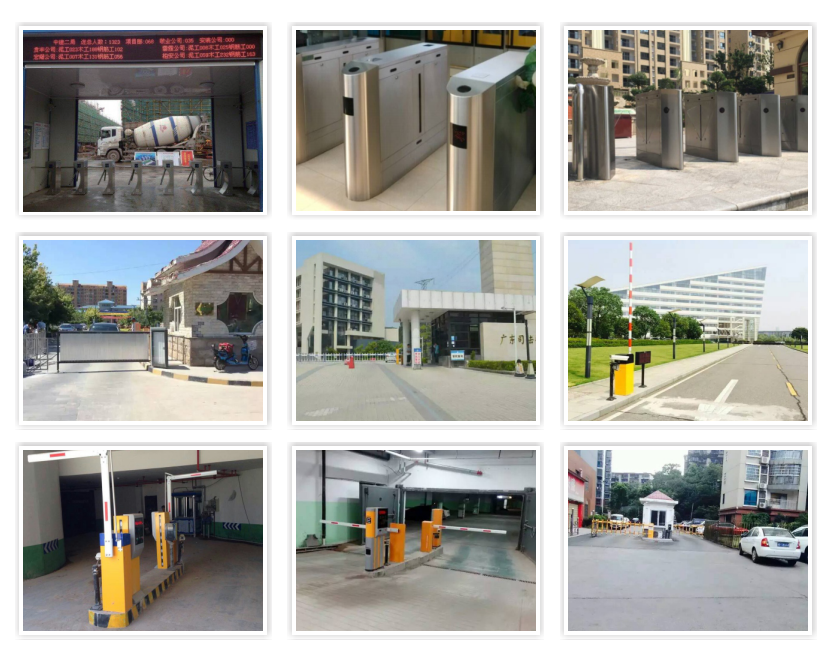

SHENZHEN ANXIA HEAVY INDUSTRIAL CO.,LTD., founded in 2004, is a professional enterprises which engaged in the R&D, large-scale production and sales of high-tech innovative security and protection products around the world. As the pioneer of intelligent security system industry, our team is committed to innovative high quality products and services. Our company’s products covers the intelligent parking lot system, automatic access control system, intelligent turnstile system of dozens of smart products. Our products export to more than 190 countries around the world such as Africa, southeast Asia, the Middle East, Europe and the United States. Welcome to choose us as your long-term partner.
Certificate of honor:
Exhibition:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample order by low charging than order.
Q: What is your terms of payment ?
A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below.
