- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:AX-MH20
- Product Name:QR Coder card Reader
- Material:PC and Tempered glass
- Power supply voltage:DC12V
- Size:86*86*42mm
- Card Type:EM ID Card or MF IC Card
- Reading range:0-6cm(cards) or 0-20cm(QR Code)
- Frequency:125khz or 13.56mhz
- Output:Wiegand or USB
- Current:800mA
- Temperature:-20~70℃

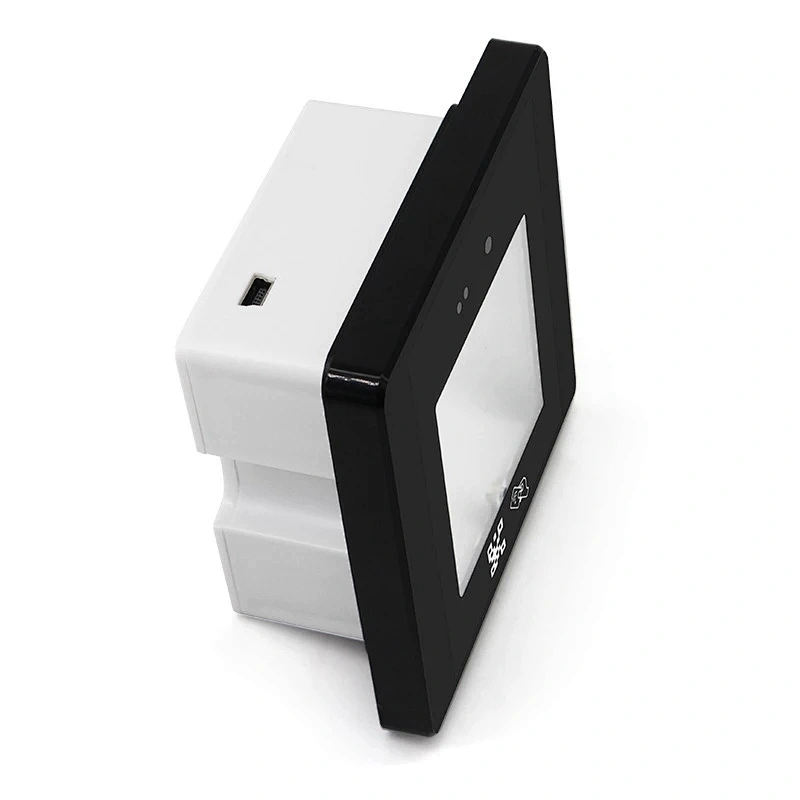

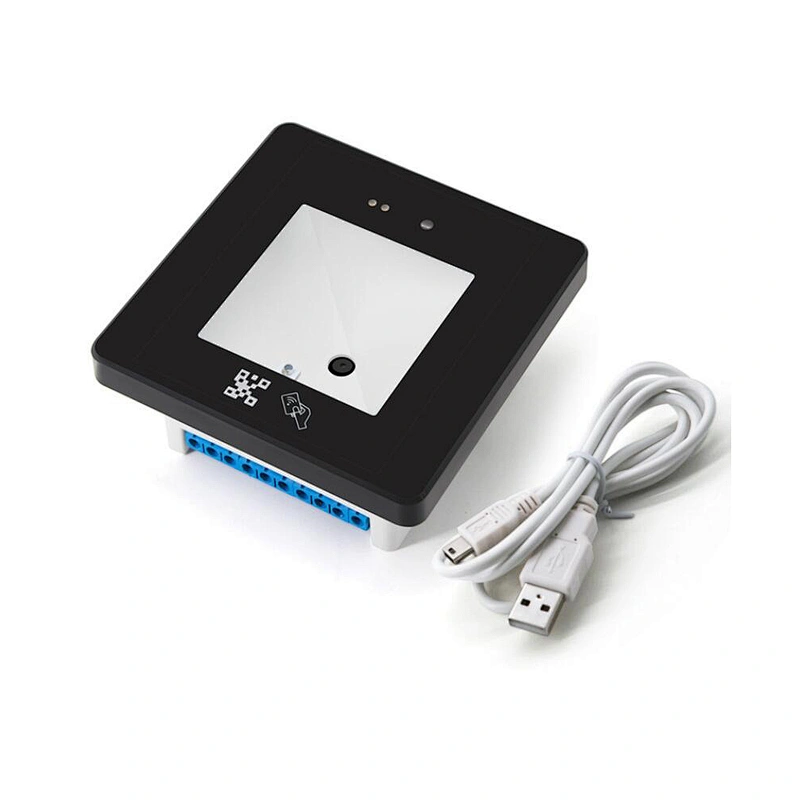

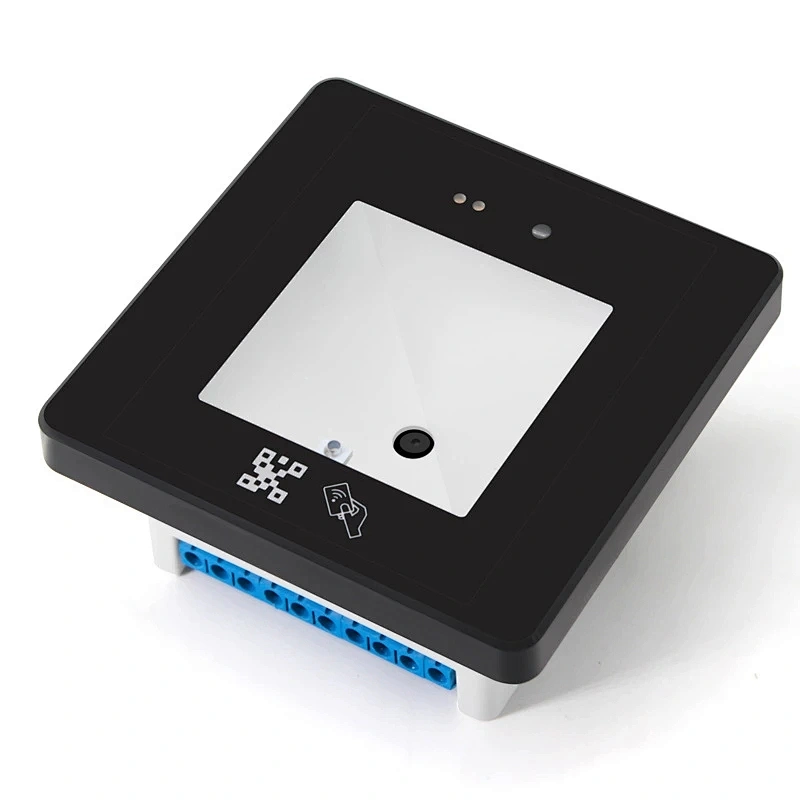

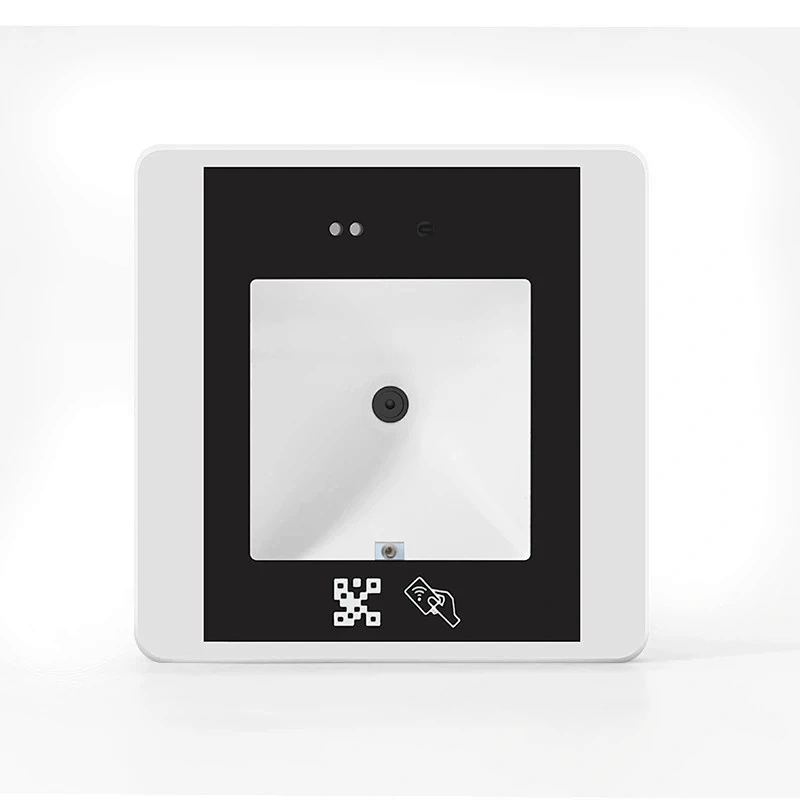

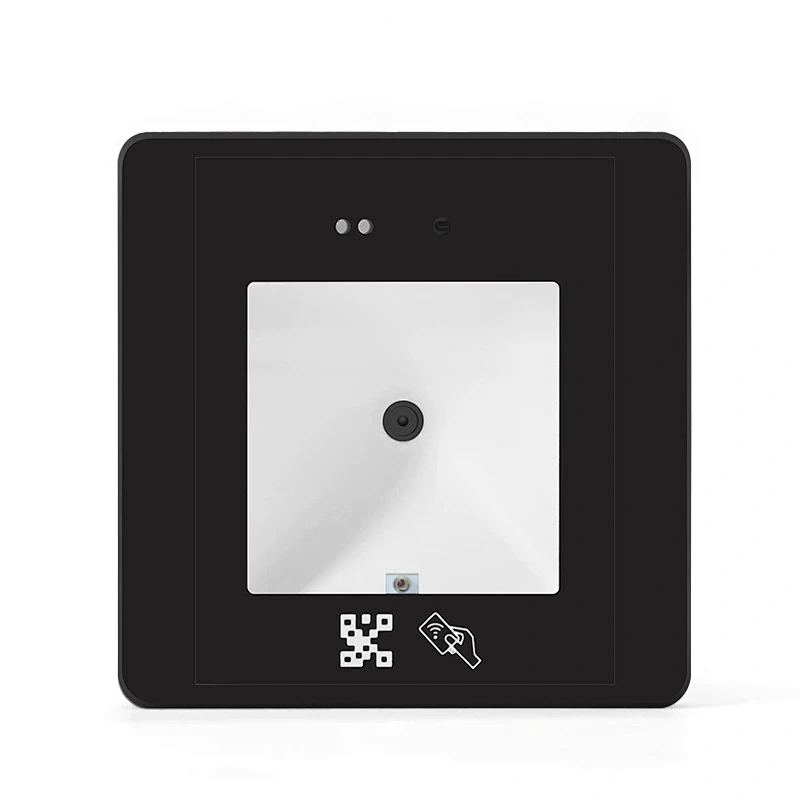

2D QR Code Reader Access Control

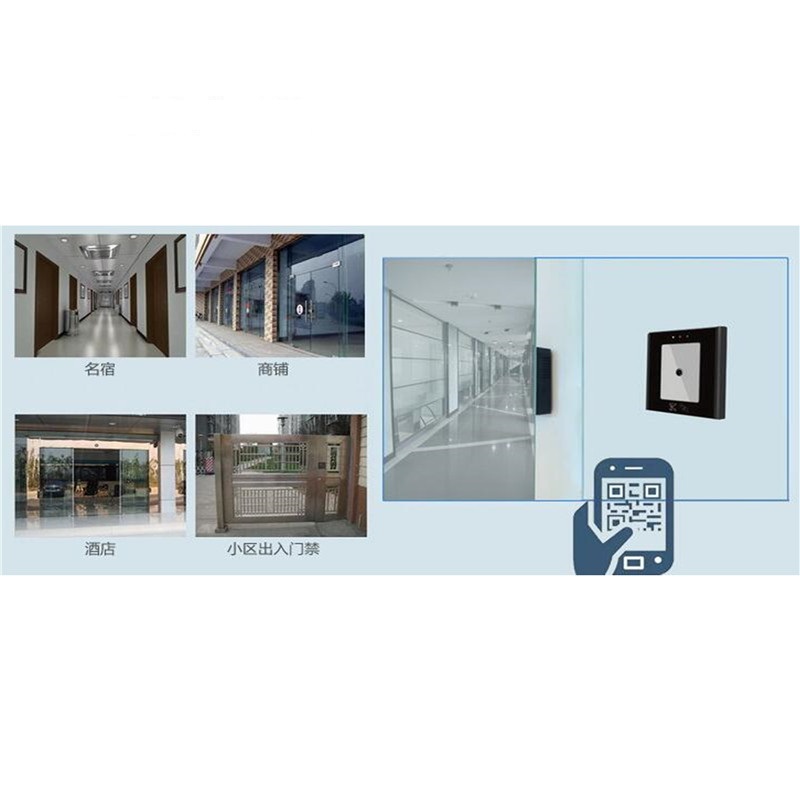

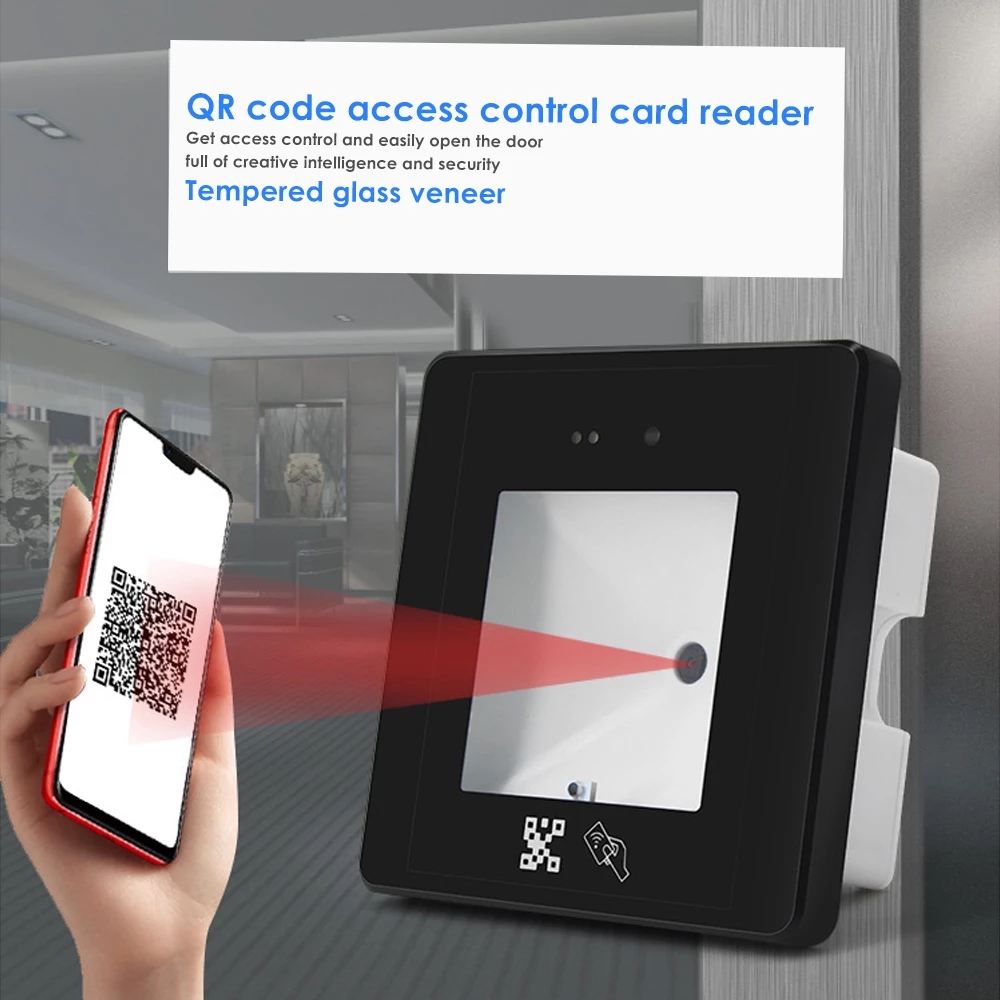

This QR Code Access Card Reader is our new intelligent Access Card Reader that comes with a fast reading speed, high recognition rate, and strong compatibility. It can be connected to any Wiegand input controller and widely used in Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, smart home, etc.
Frequency: 125khz or 13.56M

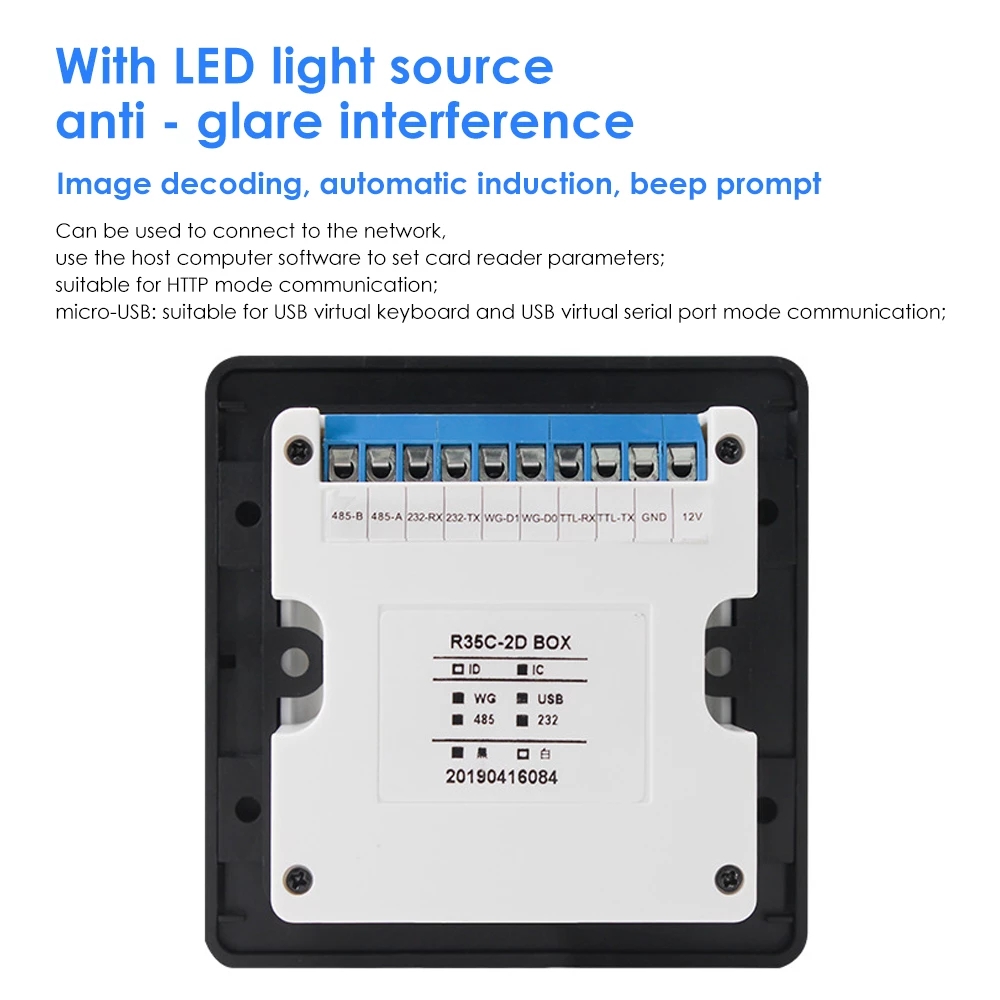

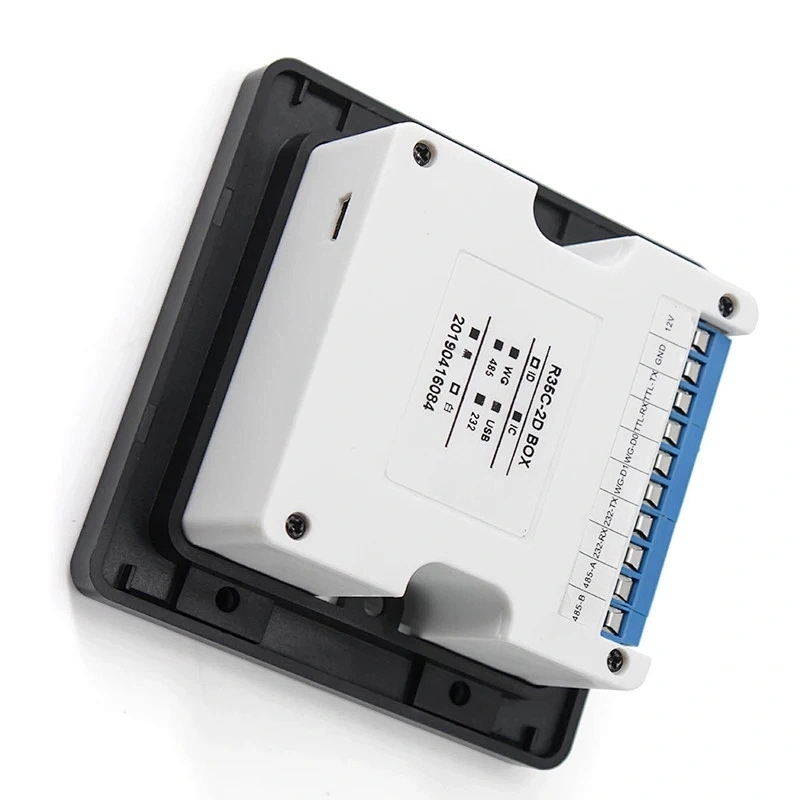

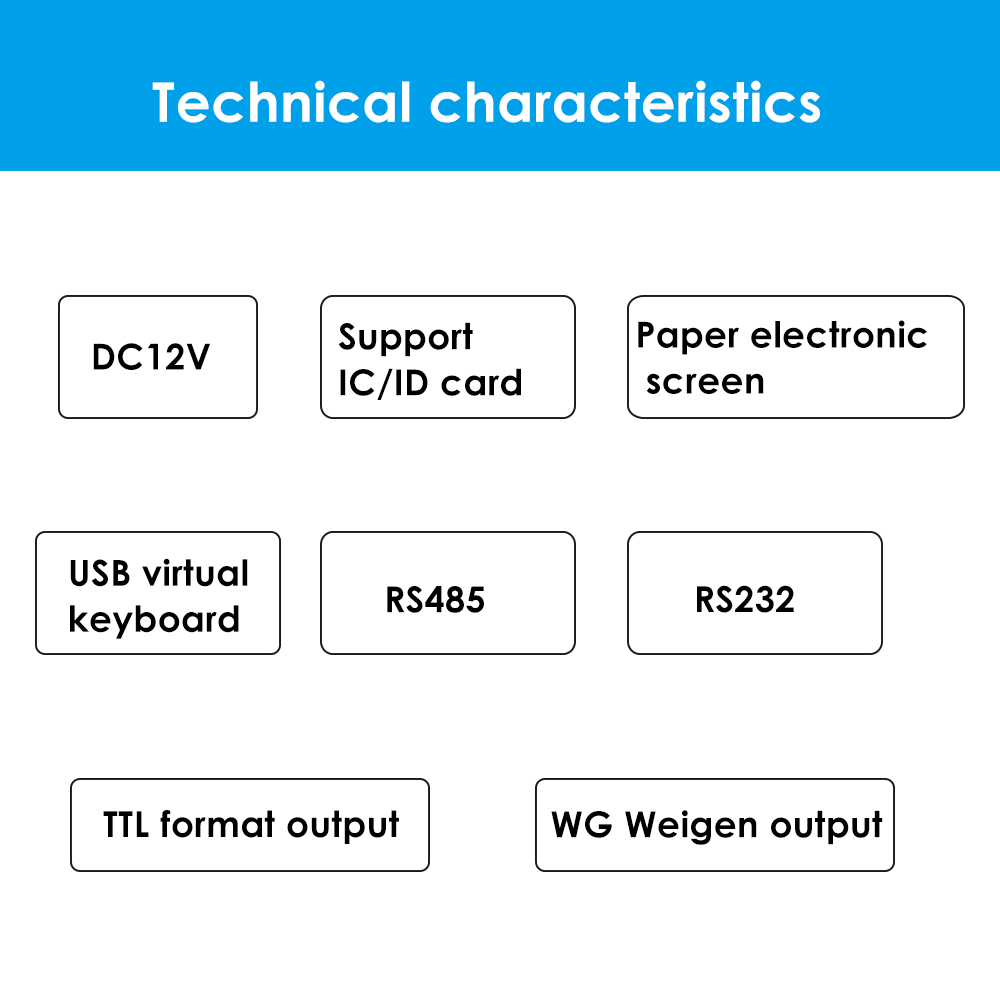

Interface: USB, Wiegand, RS485, RS232, TCP/IP optional
Power Supply: DC12V
Current: 800mA

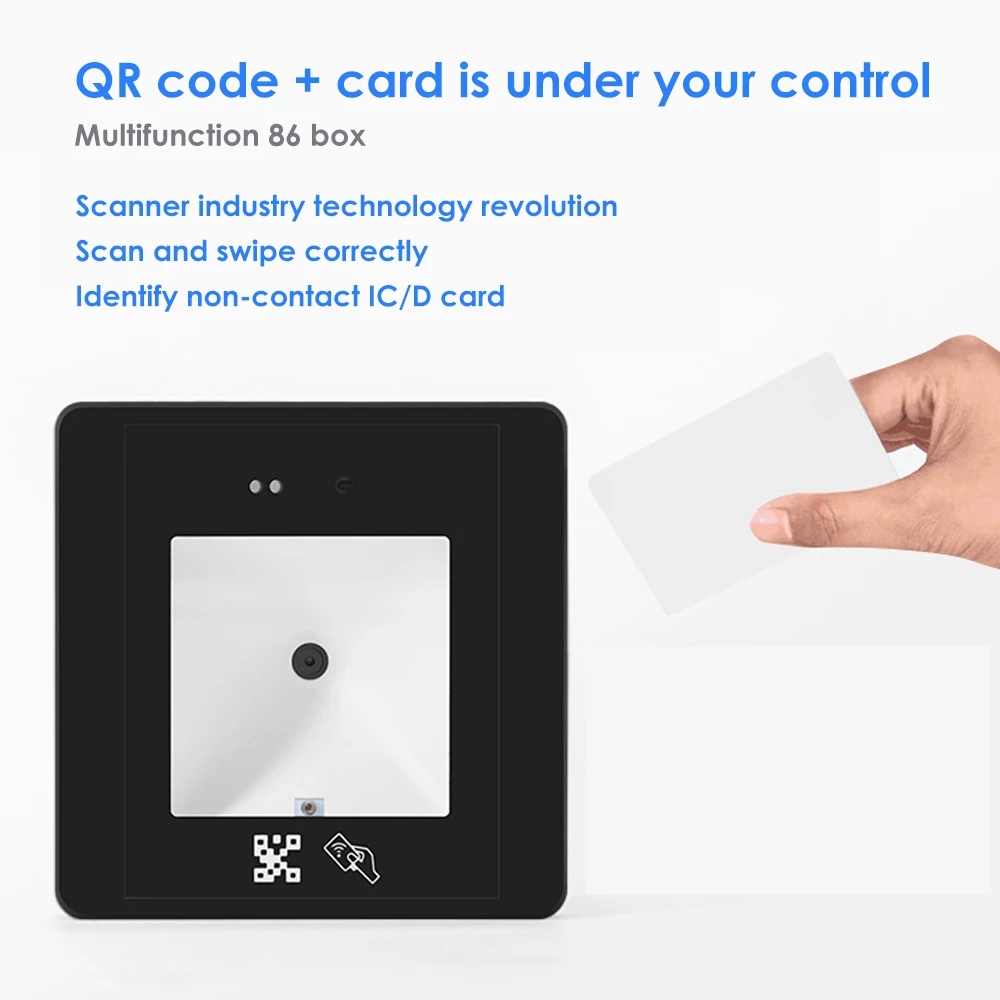

Card Type: EM ID Card or MF IC Card
Reading range: 0-6cm(cards) or 0-20cm(QR Code)
Case:PC Identify panel, tempered glass
Size: 86*86*42mm
Decode Mode: Image decoding
Temperature:-20~70℃ Humidity:10%~90%

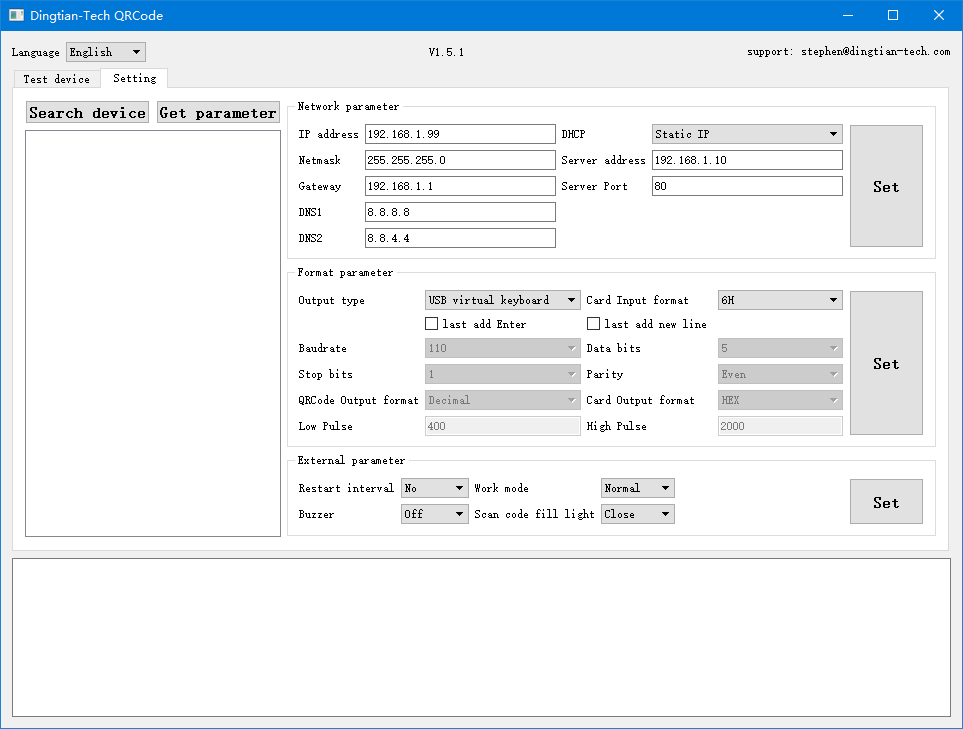

Operating system: Windows(XP/ 7/ 8/ 10), Linux

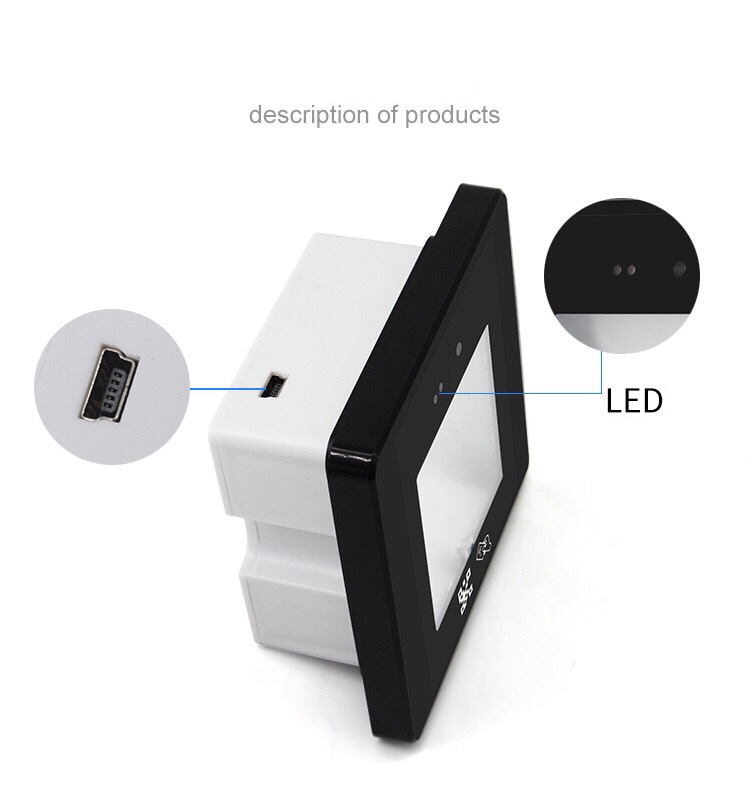

Built-in LED
Indicating status light: Red-Work, Green-Feedback, Light Green-Internet
| Product Name | QR Coder card Reader |
| Interface | USB, Wiegand, RS485, RS232, TCP/IP optional |
| Power Supply | DC12V |
| Card Type | EM ID Card or MF IC Card |
Shenzhen Anxia Heavy Industrial Co., Ltd. was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Certificate of Honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
