- Place of Origin:China
- Brand Name:Anxia
- Model Number:AXSP Access Control Board
- Product Name:Access Control Board For Turnstile Barrier Gate
- Material:Stainless Steel
- Color:Grey
- Communication:TCP/IP and WAN
- Certification:CE
- Application:Access Control System
- Life span:Over 5 years
- Language:Customizable
- Keyword:Access Control Board
- Capacity:20,000100ms

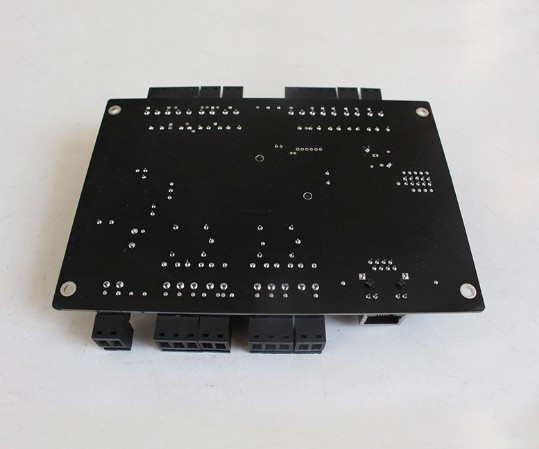

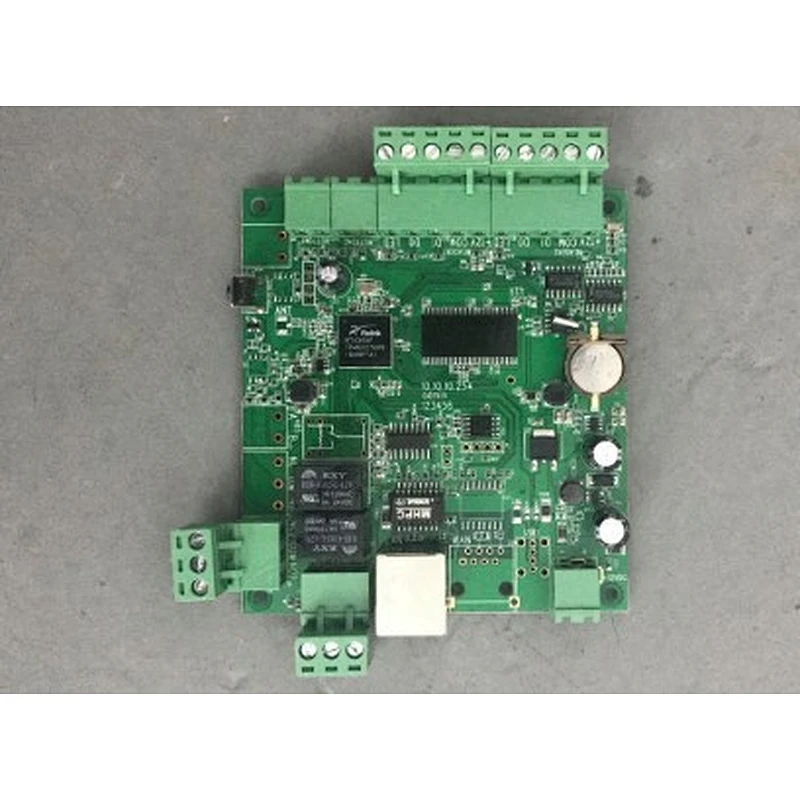

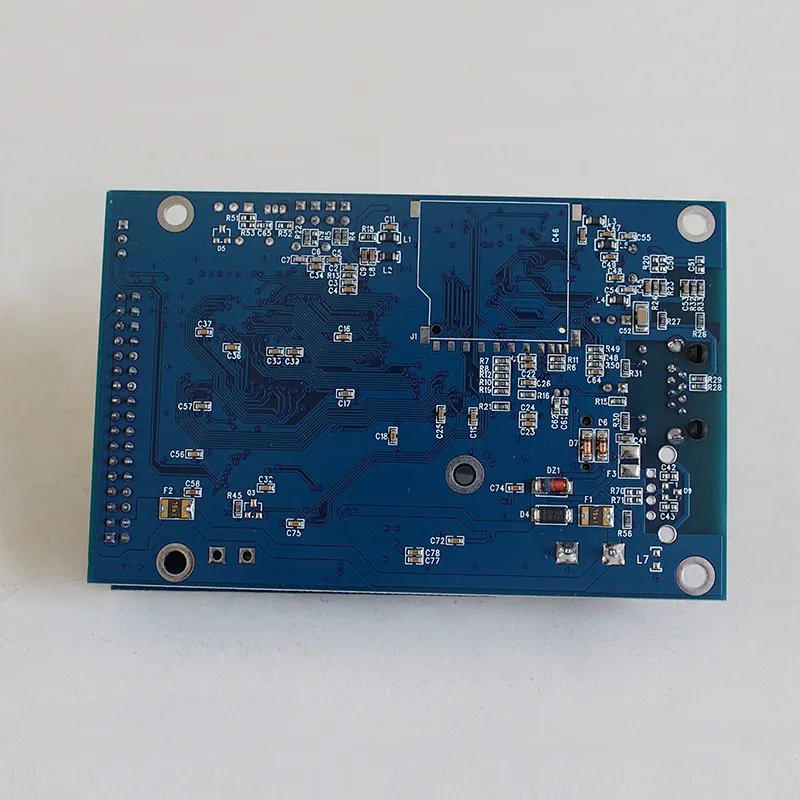

TCP / IP Web Based Security System Access Control Main Board For Turnstile
| Place Of Origin: | China | Brand Name: | RONA |
|---|---|---|---|
| Communication: | TCP/IP + Web Controller | Software Support Data Base: | SQL |
| Description: | 1 Door | Quantity Of Readers: | 2 Readers |
| Input Format Of Reader: | Wiegand 26/34 Bit | English Software Supportable Database: | SQL |

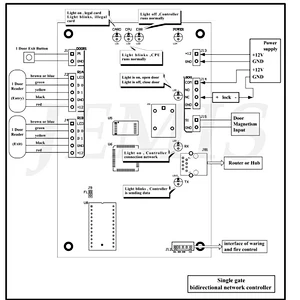

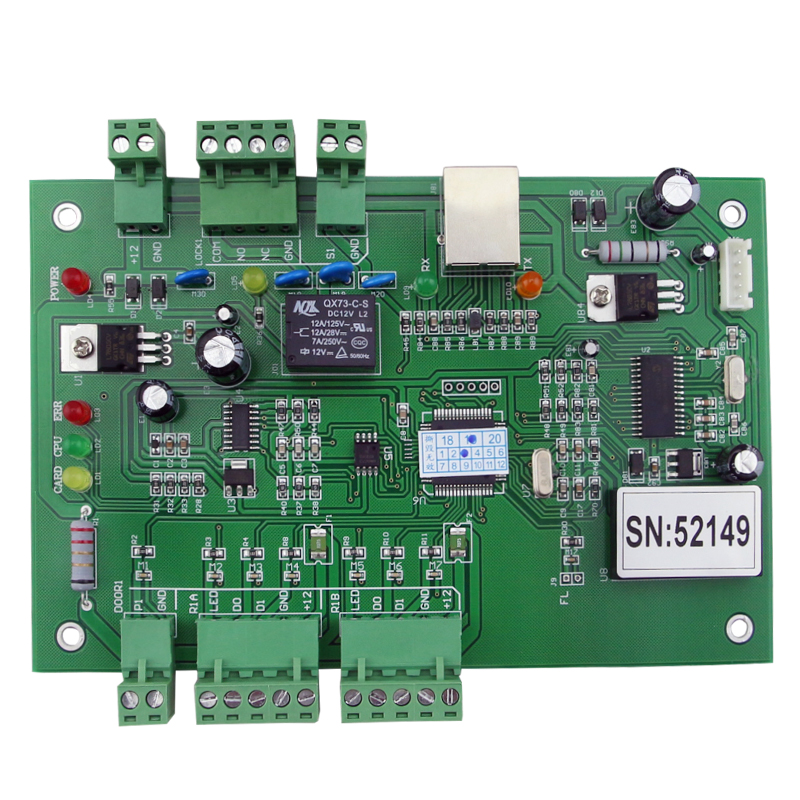

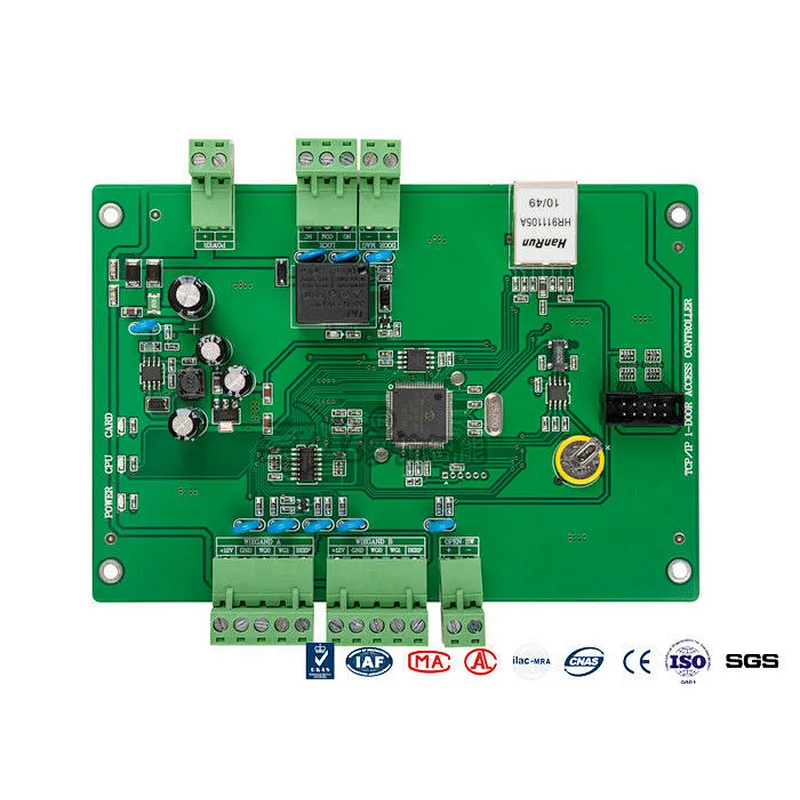

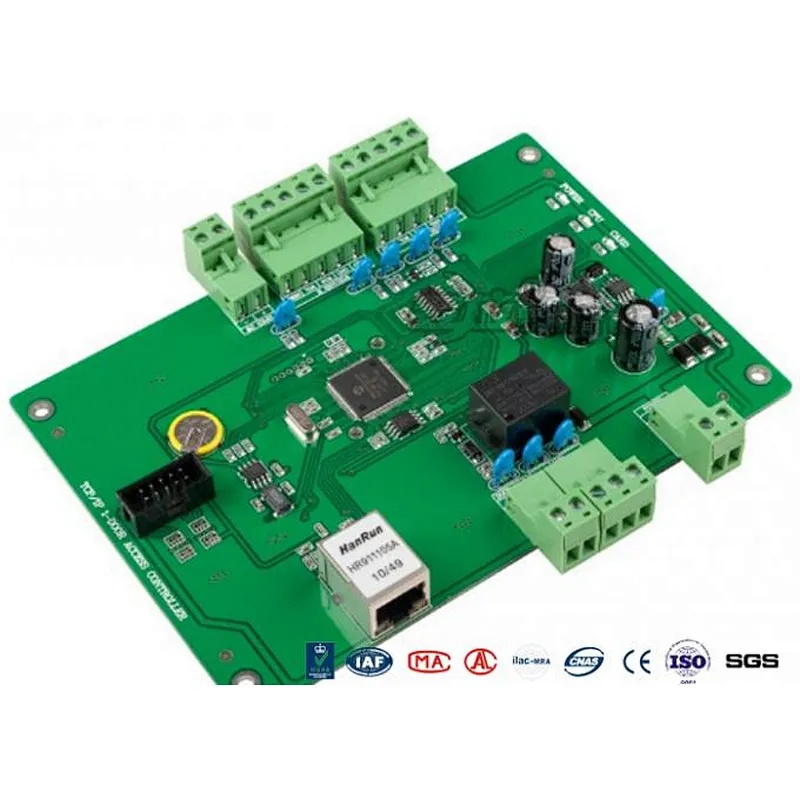

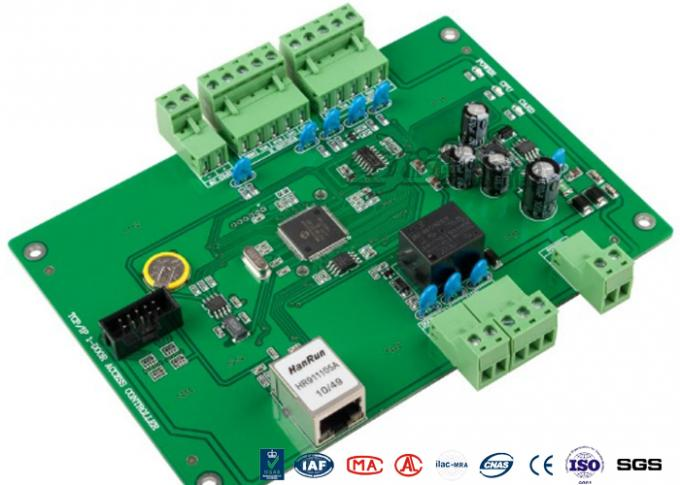

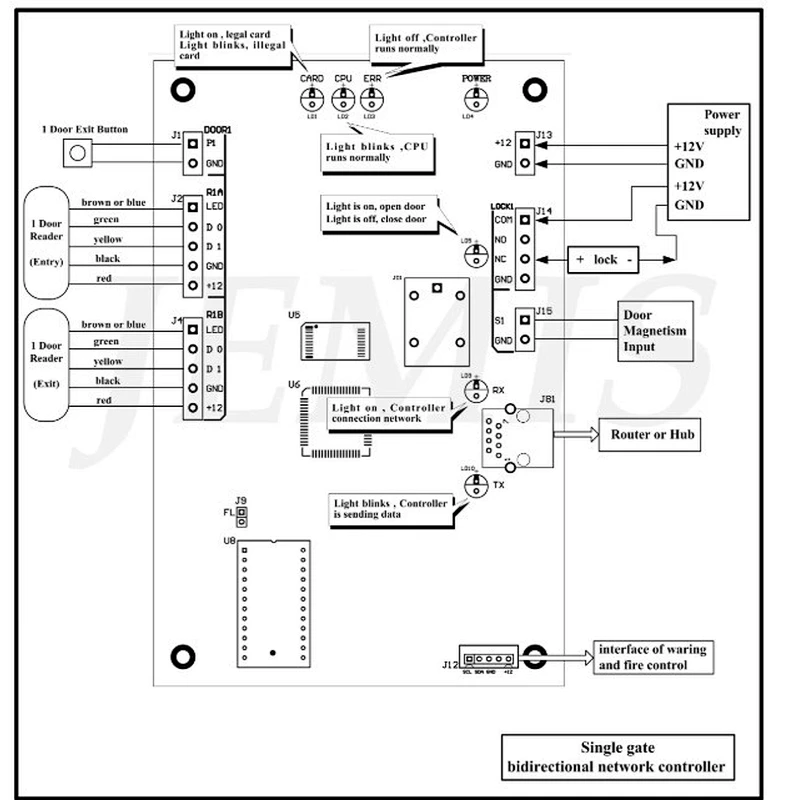

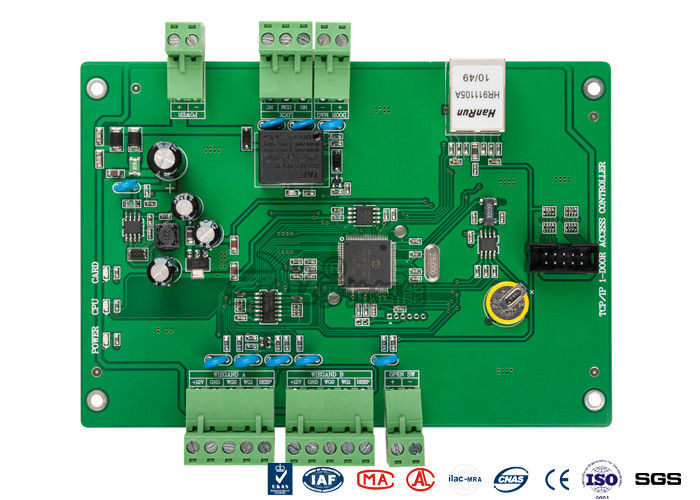

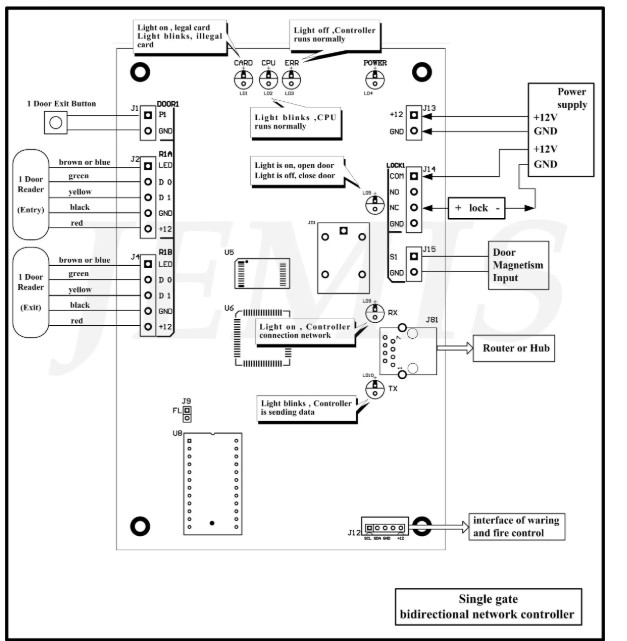

TCP / IP Web Based Single Door Access Control Board For Turnstile Barrier Gate
| Specification | |
| Communication | TCP/IP+Web standalone |
| English database: | SQL |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Quantity of Readers | 1 Pcs |
| Door Controlled | 2 door |
| Description | Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°-70° |
| Operation Humidity | 10-90 % RH ,No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | Depand on network range |
| Collocations | PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton |
| Alarm for long time door open, ilegal break in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware If connected with strengthened expansion board, then is able to Security alarm. |
| Parameter | |
| Conventional Function | Offline operation; |
| real time supervision; | |
| remote unlocking;multi-user supervision; | |
| report form;report can be exported to excel file; | |
| card+password unlocking;alarm for long time unclosing; | |
| alarm for invalid card swiping;alarm for illegal break in; | |
| unlocking at definite time | |
| Professional function | For professional users such as bank,cash house,telecom station, power supply station, prison and plice station interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking; multicard unlocking; emergency double locking; in door population checking;unlocking based on internal and external validation. |
| All-in-one-card management system | nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system. |
| Packing Details for Access control | |
| Unit Size | 160mm x106mm |
| Unit Packing Way | Brown box |
| Unit Packing Size | 273mmx228mmx65mm |
| Accessories | User Manual, warranty card |
Shenzhen Anxia Heavy Industrial Co., Ltd. was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
Q1: Do you have the English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you a copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
