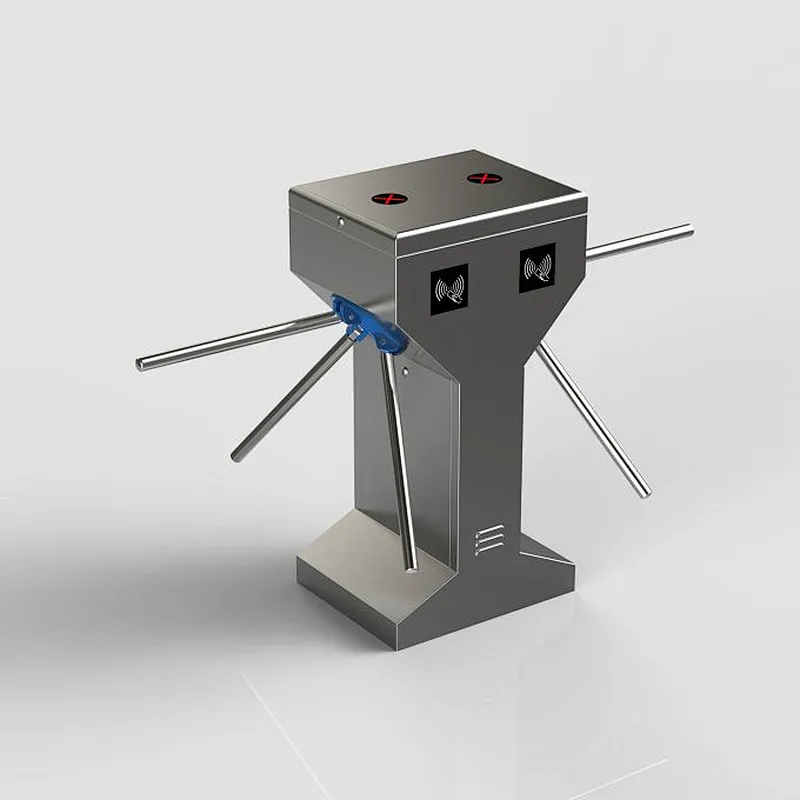

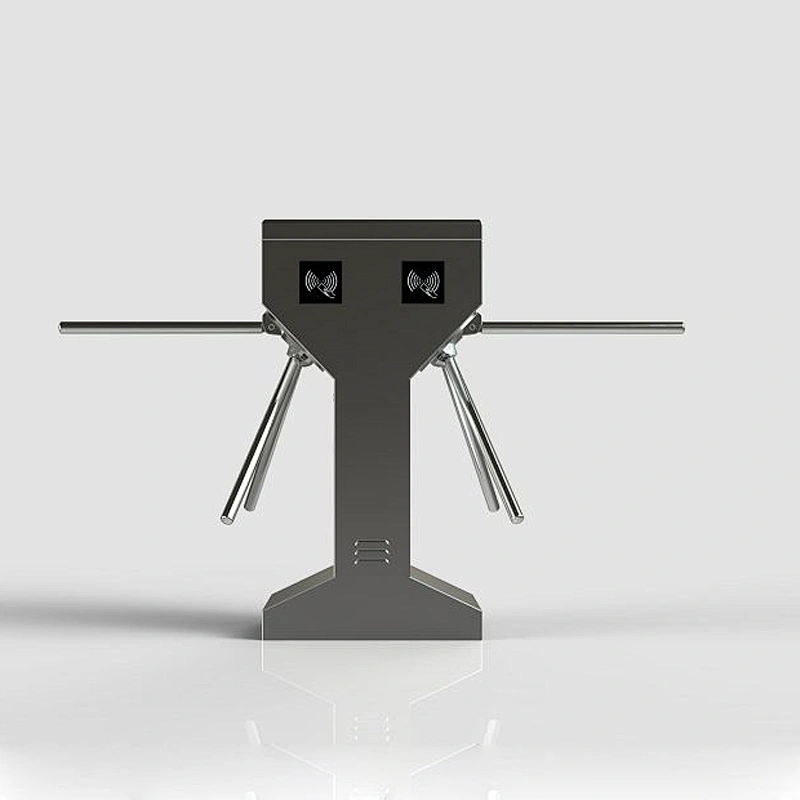

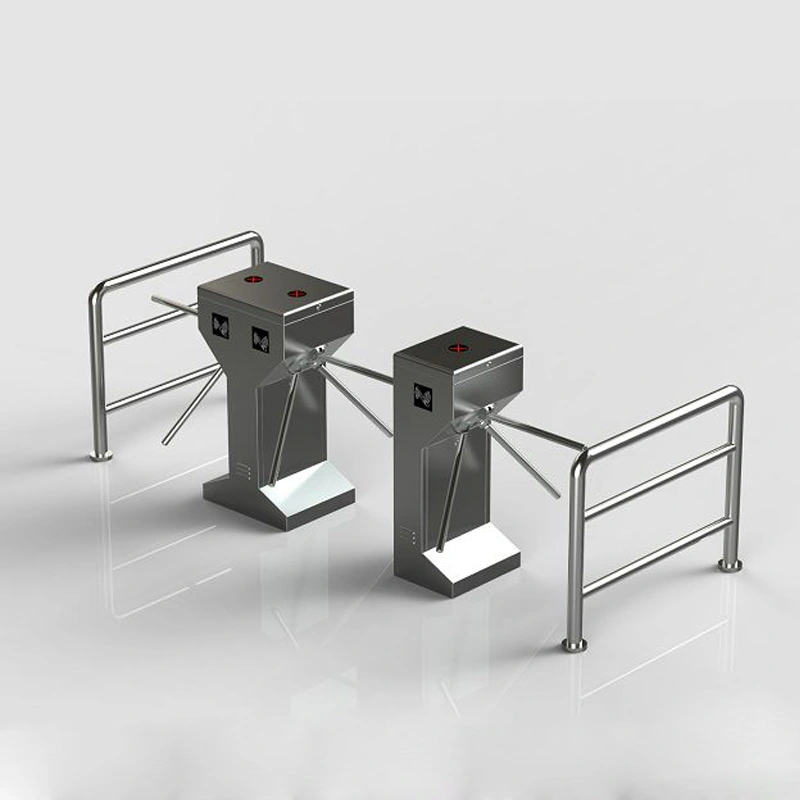

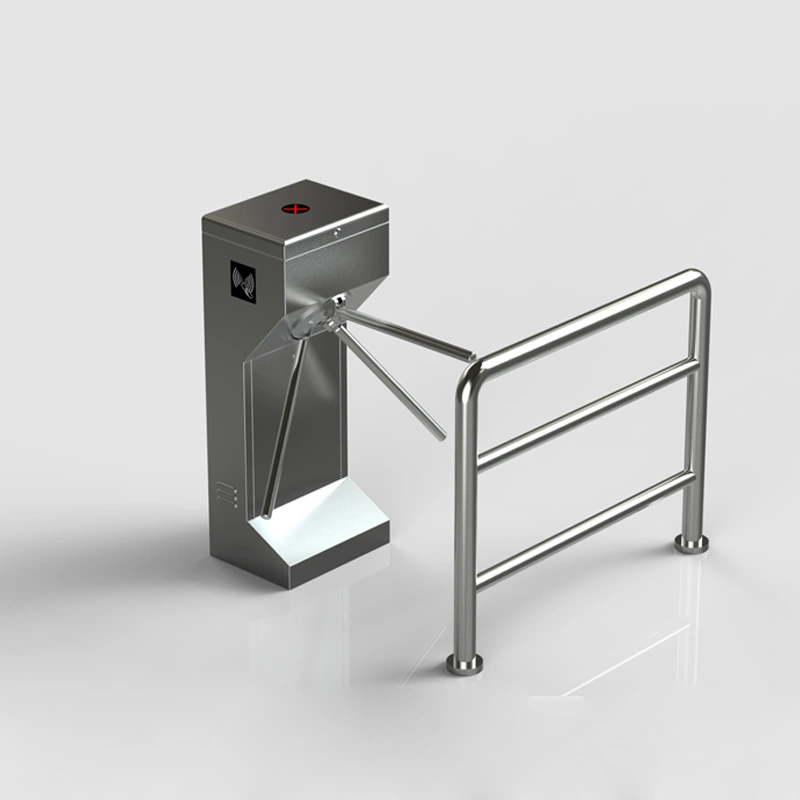

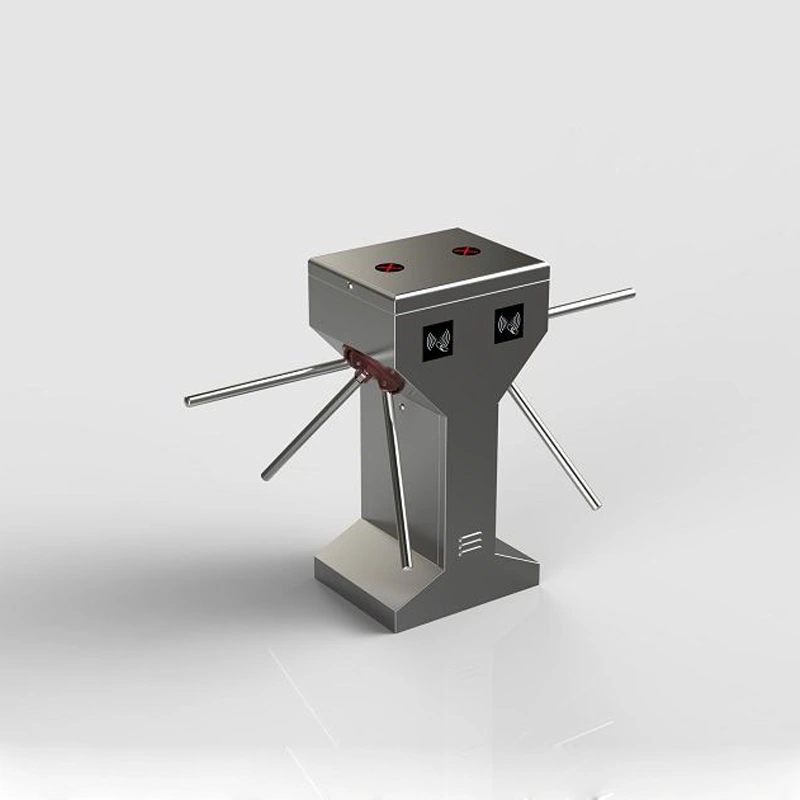

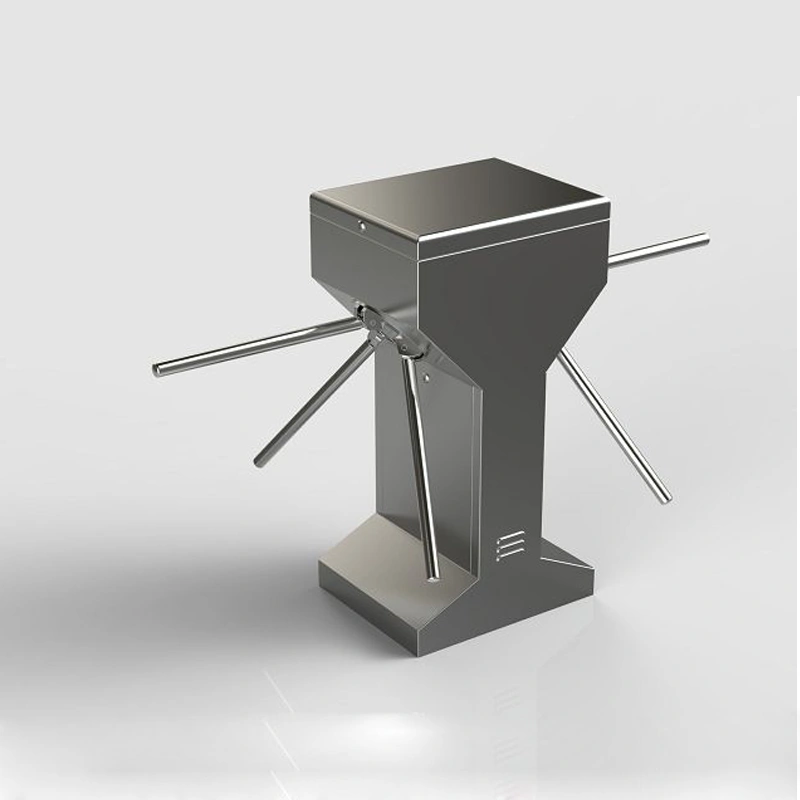

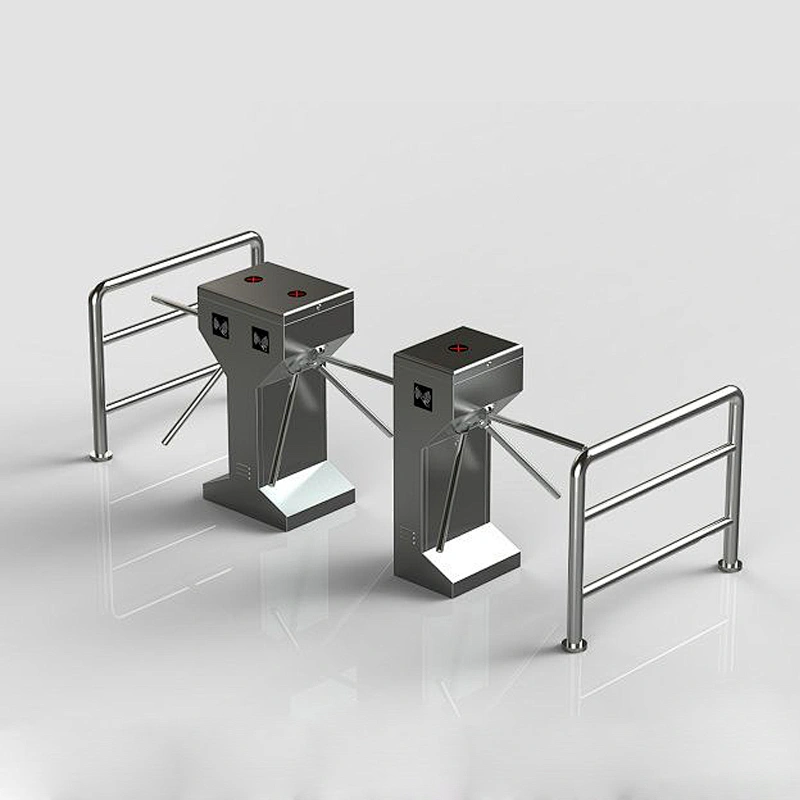

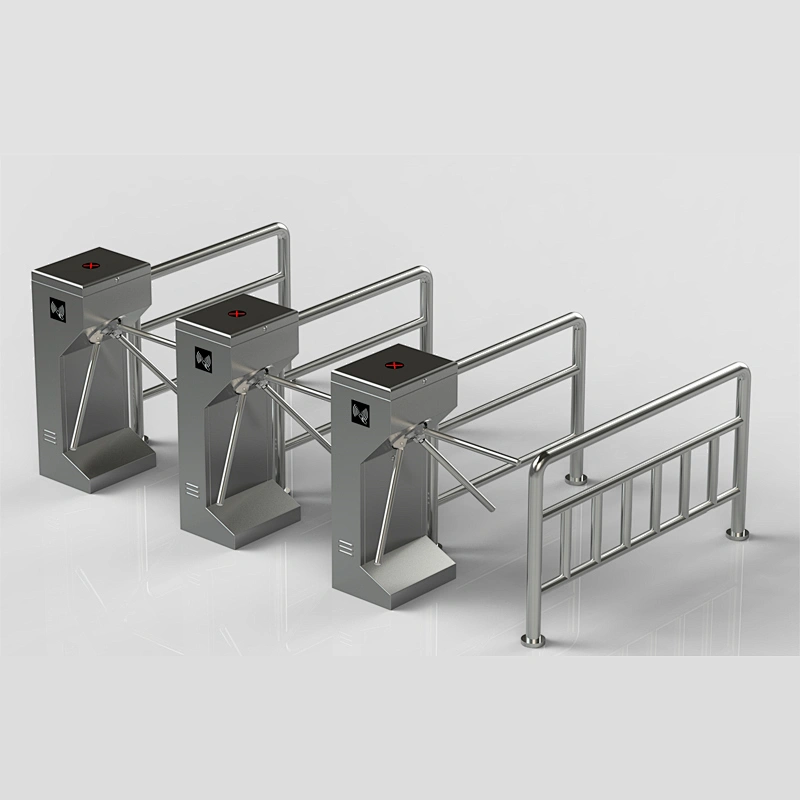

Waist Height Tripod Turnstile with Access Control System

Main Functions and Features of the System
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcedly passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
   A)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
   B)To set up operation mode for passage entry and exit.
   C)To read card with multiple times, the special function meeting the application requirements of a particular site.
   D)To set up the card reading with or without memory.
   E)To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
   F)Setting function humanized for reset of over time passing.
10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.

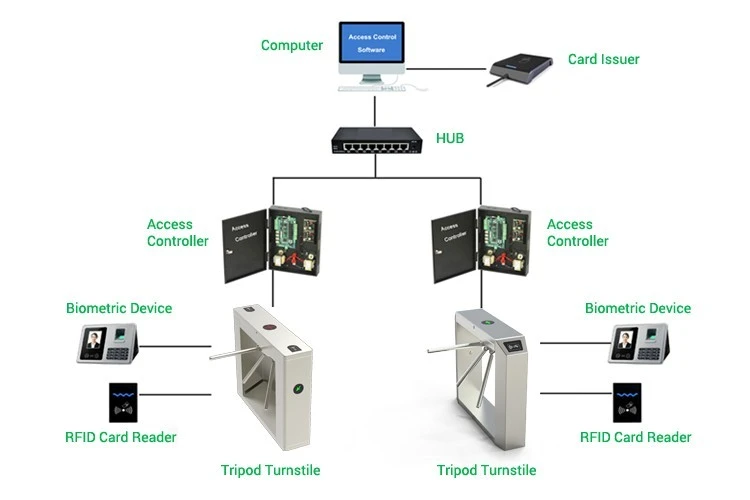

13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
15) Strong system expending capability, available to add new product at any time
16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
17) Resetting automatically. After reading card, if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.

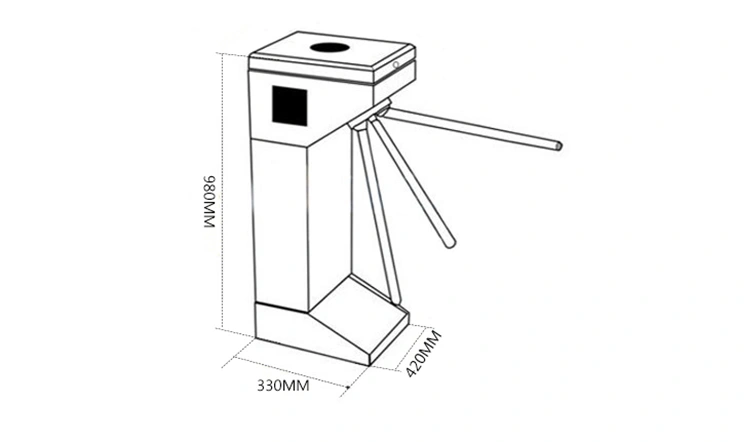

Main Technical Specifications
1) Material: SS304,thickness is no less than 1.5mm
2) Manufacturing Technique: CNC laser cutting
3) Barrier Material: Acrylic glass,  SS304 and so on
4) Gate Opening and Closing time: ≤ 0.4S
5) Passing Speed: Normally open-50persons/min; Normally closed-50persons/min
6) Communication Connection:  RS485 Communication
7) Power: AC220C±10V,50HZ
8) Motor: DC Brushless Motor, 140W/24V
9) Communication Distance: ≤1200M
10) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
11) Infrared Sensors: 9 or 10  Pairs
12) Relative Humidity: <95%
13) Operating Temperature: -15°C-60°C
14) Working environment: indoor and outdoor(added the rain-shed)
15) Color: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like
16) Protection Grade: IP54

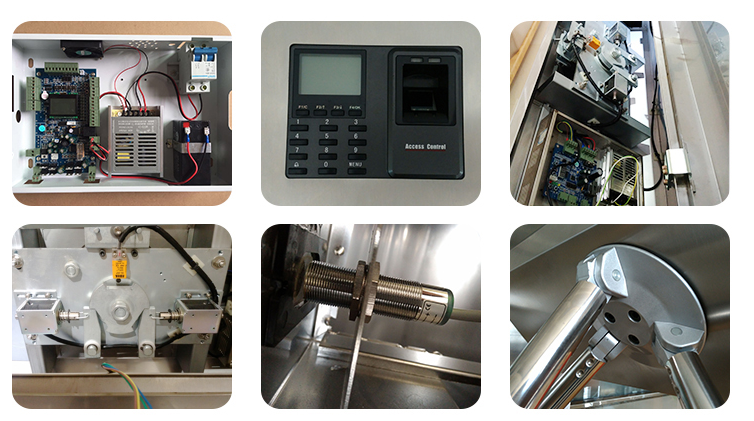

Product details:

1.Provide free technical training, guidance and information of our products and accessories.
2.Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3.We guarantee more than 10 years’service life of our products with 1 years’warranty and life maintenance.
4.Once receive the customer requirements and complaints, we will response within 24 hours.
5.Free maintenance and replacement will be provided if defects result from quality failure of our product.
6.Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7.Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8.Our company will provide perfect after-sale services and technical support.

If you're interested in our buy rfid access control system tripod turnstile gate bridge with fingerprint lock, welcome to buy the cheap equipment made in China from our factory. We are one of the most professional China manufacturers and suppliers in this field. The low price and good service are available.

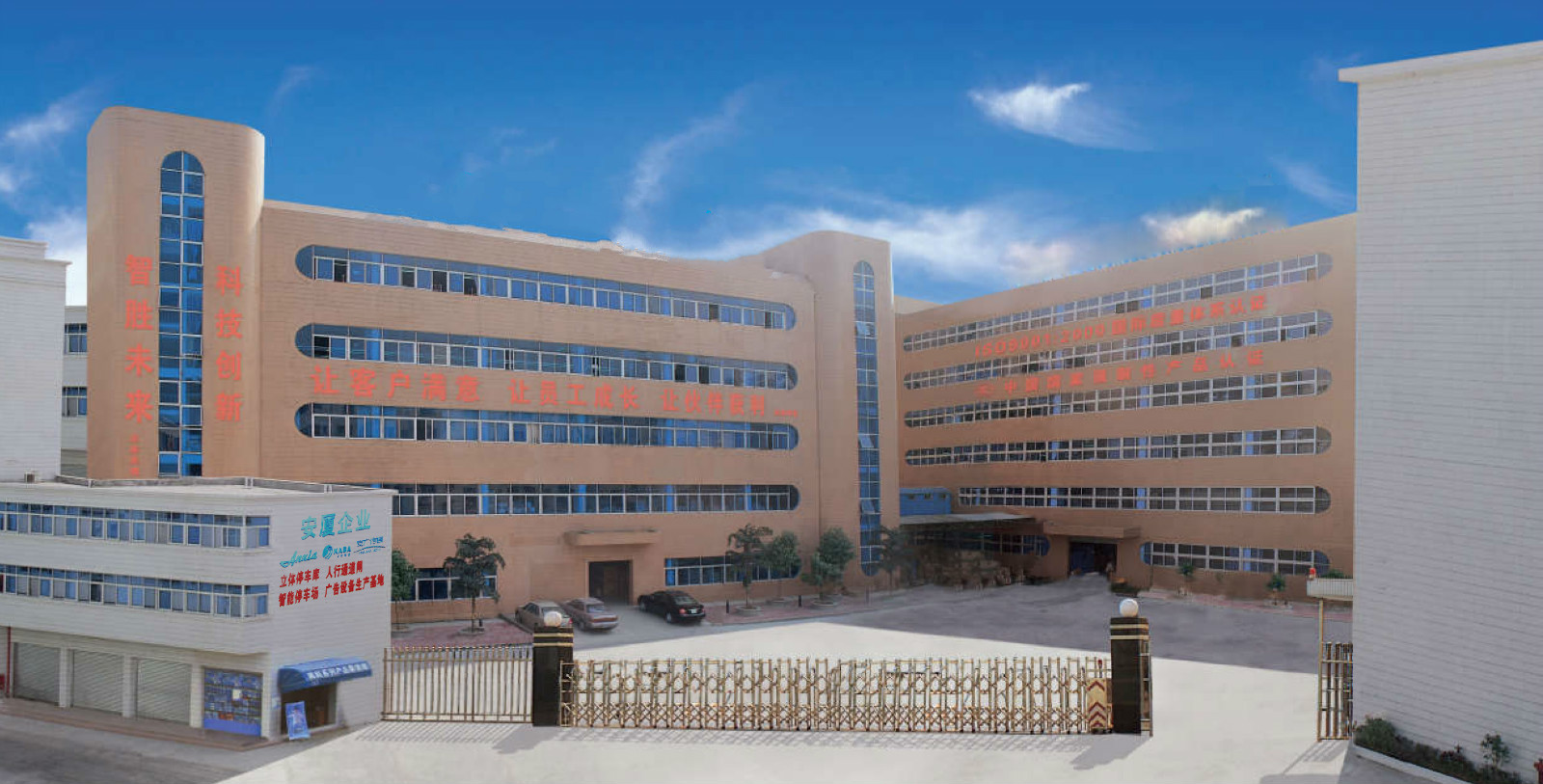

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.

Our Team:

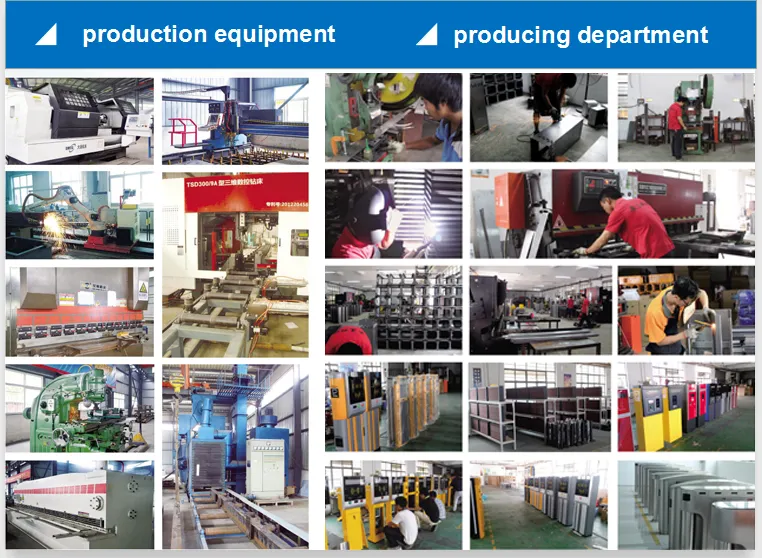

Our Factory:

Certificate of honor:

Exhibition:

Q1: Do you have English language system?

A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.

Q2: Can we connect your access control system with our system?

A:  Yes, we provide SDK and Software development service with connection port.

Q3: Are your turnstile/barrier gates waterproof?

A: Yes, our turnstile/barrier gates have water proof feature.

Q4: Do you have CE and ISO9001 certificate?

A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.

Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q6: How about your warranty?

A: Our products have one year warranty.
