- Products Status:Stock
- Type:Barcode Scanner
- Scan Element Type:CMOS
- Colour Depth:32 Bit
- Interface Type:usb
- Max Paper Size:A4 Size
- Optical Resolution:10 mil
- Scan Speed:300 Scans/sec
- Brand Name:Anxia
- Place of Origin:Guangdong, China
- Light source:White LED
- Ambient Light:0-100000Lux (natual light)
- Scann window:38.3 mm*60.4mm
- Weight:300g
- Scan speed:300 Scans/sec
- Scan Mode:Sense mode
- Image Sensor:752x480 CMOS
- Symbologies:1D&2D Barcodes(PDF417, Data Matrix, QR Code )
- Application:Access control system.
- Certificate:CE approved

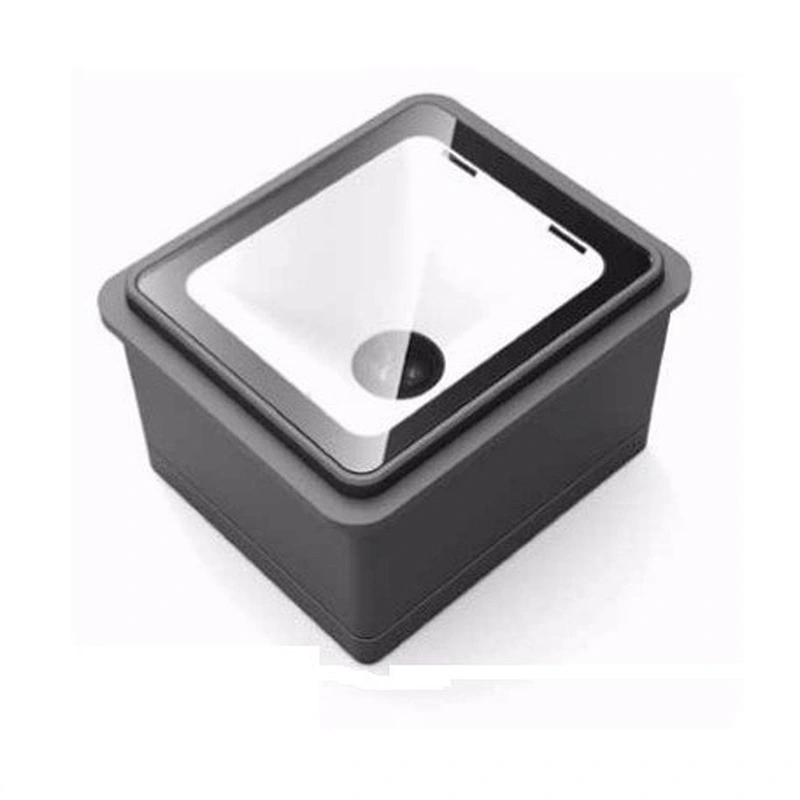

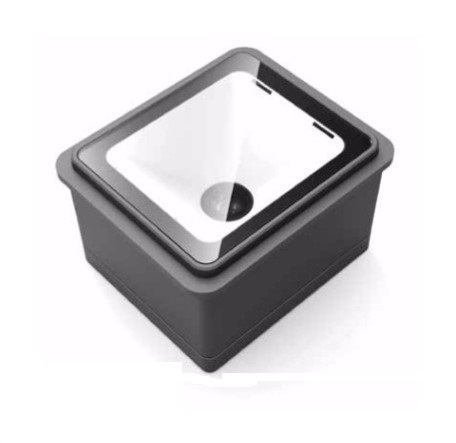

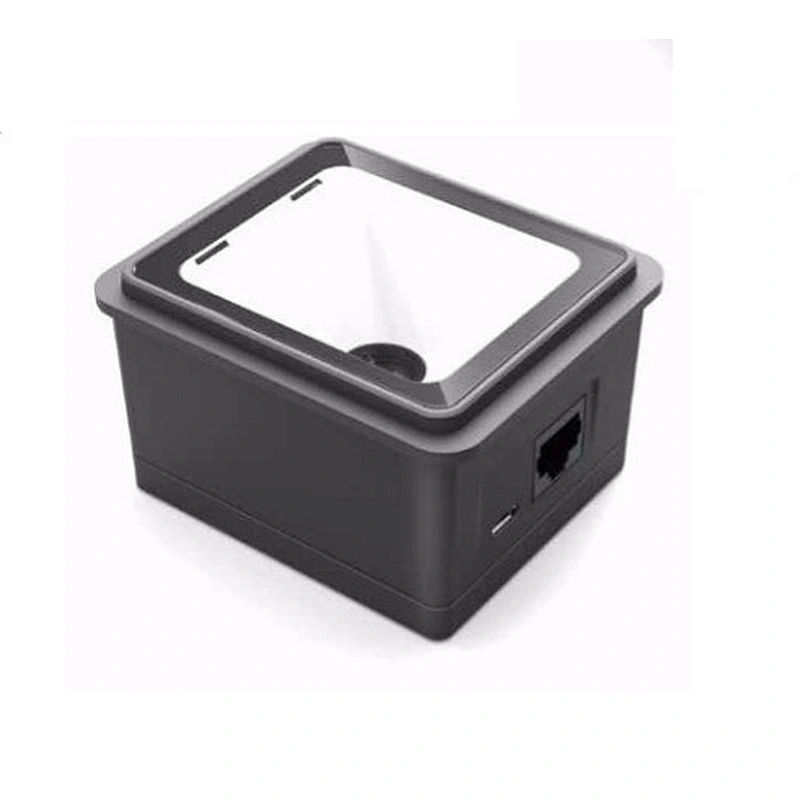

Wiegand Access Control System Qr Code Reader 2D Barcode Scanner

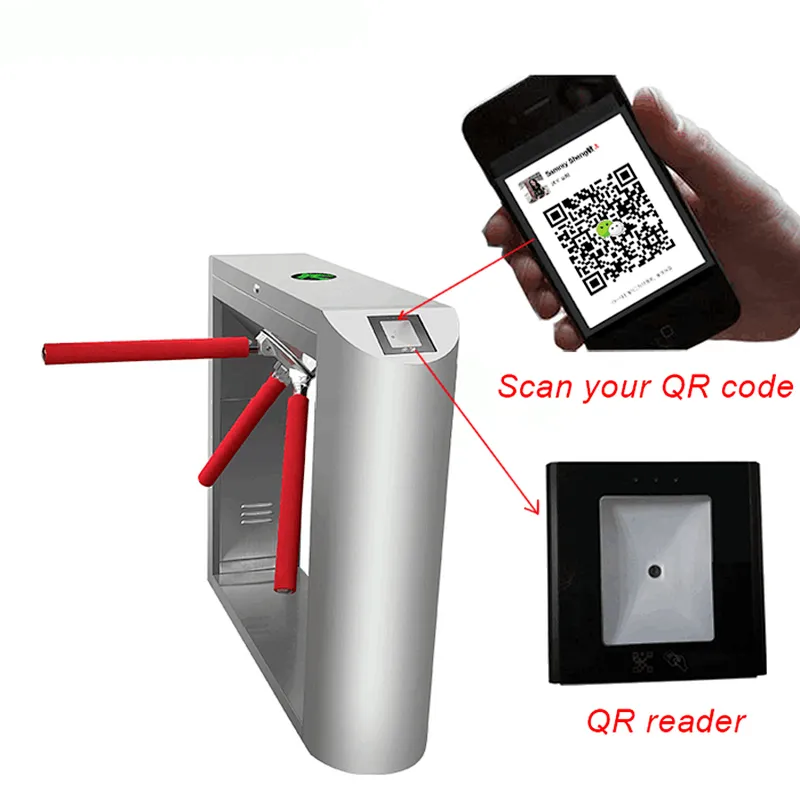

Product Introduction: RD4500R fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.
Compatible OS: Android, Windows, Linux Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.
RD4500R 2d barcode reader boasts the following features:
1. It can read both printed and phone screen 1D/2D barcodes
2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5.Outstanding Power Efficiency
6. The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device

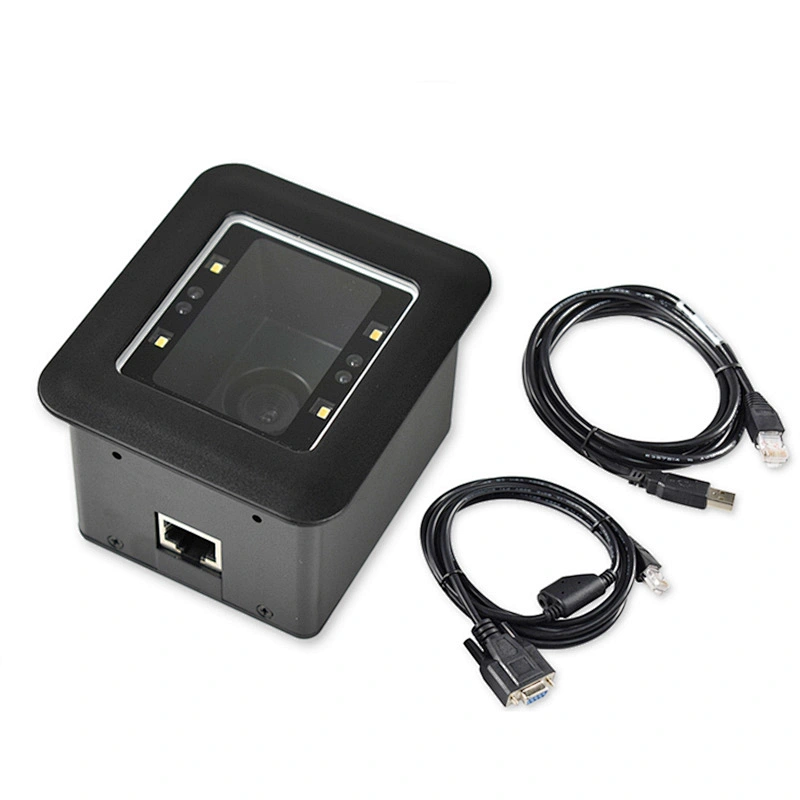

7.USB/RS232 Cable Power Adaptor
Product Specification:
| Product name | Fixed Mount 2D Barcode Scanner |
| Item number | RD4500R |
| Interface | RS232/ USB |
| Image Sensor | 752 x 480CMOS |
| Symbologies | 2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, |
| Precision | 10 mil |
| Light Source | White LED |
| Scan Window | 38.3mm*60.4mm |
| Depth of Field* | 40mm-430mm |
| Print Contrast Signal | ≥ 30% |
| Illumination | 0 ~ 100,000 LUX |
| Power Consumption | 1.75W (max) |
| Power Adaptor | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz |
| Weight | 300g |

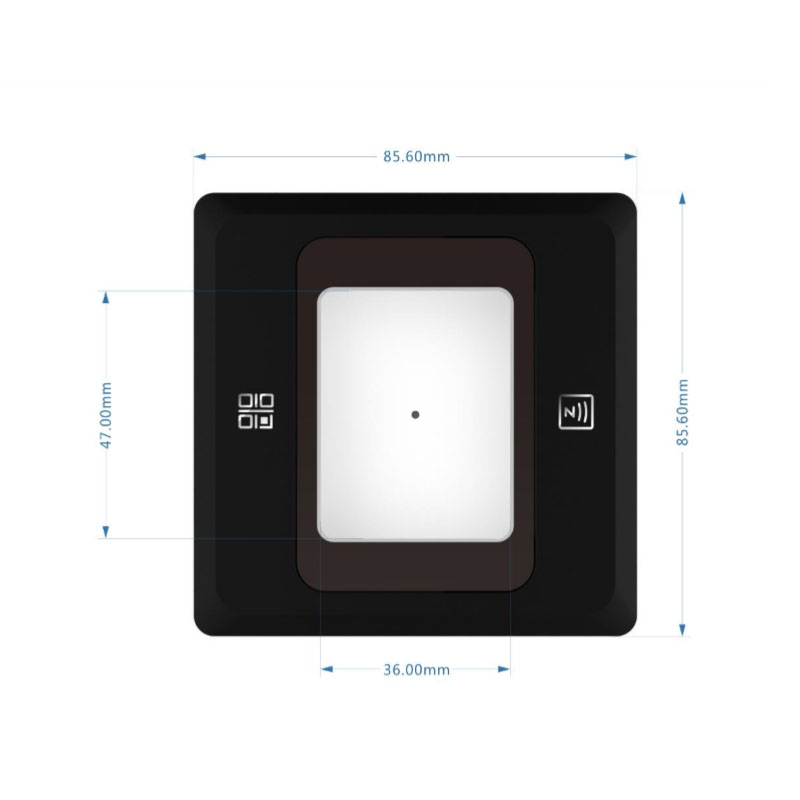

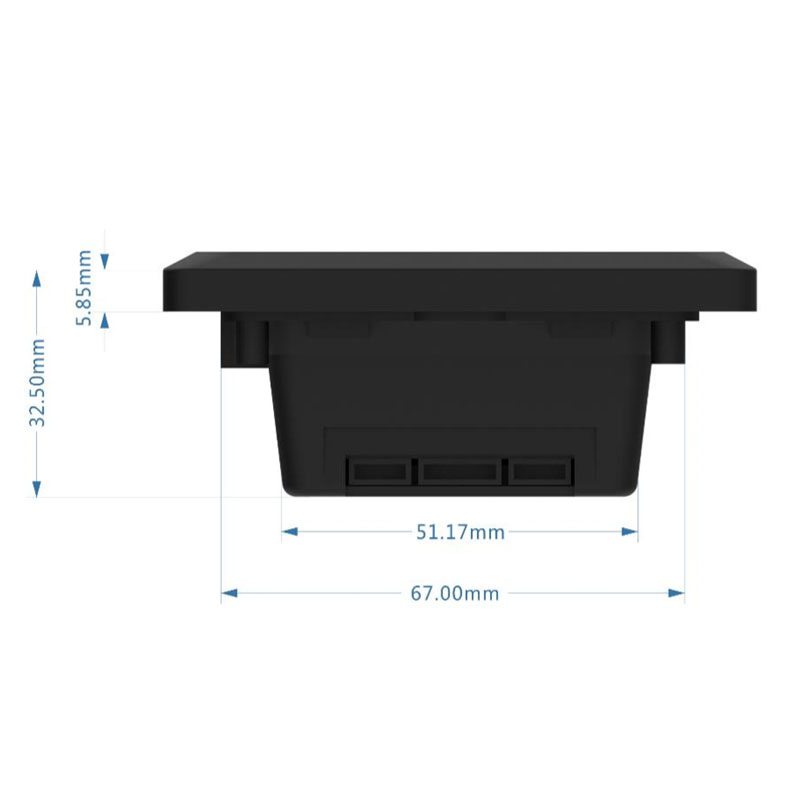

| Dimensions | 82 mm(L) X 72mm (W) X 52mm(H) |
| Notification | Beep |
| Operating Temperature | -10 ℃ to + 50 ℃ |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certification | FCC Part15 Class B, CE EMC Class B |

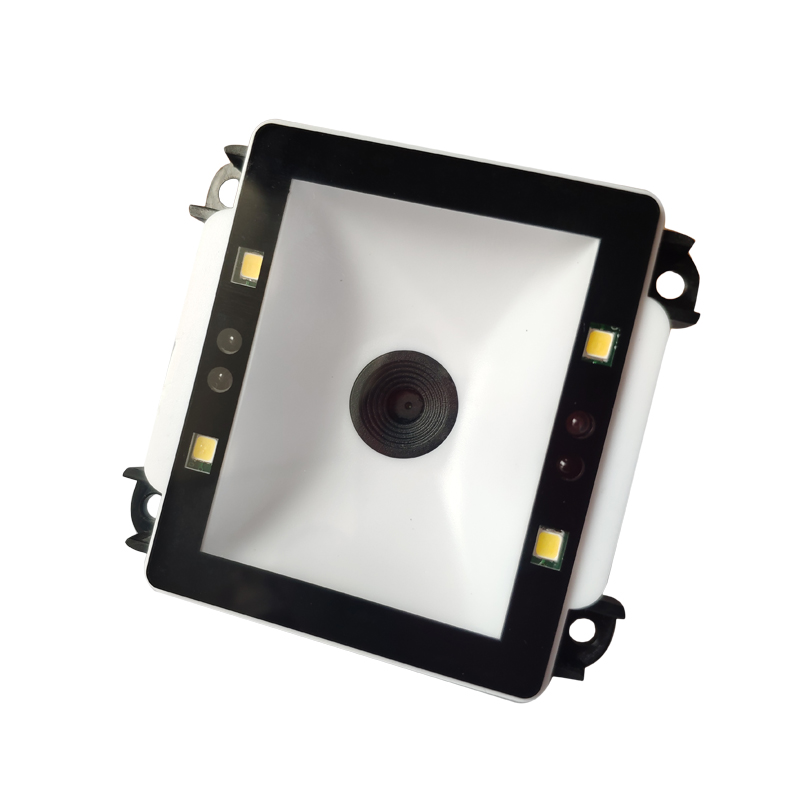

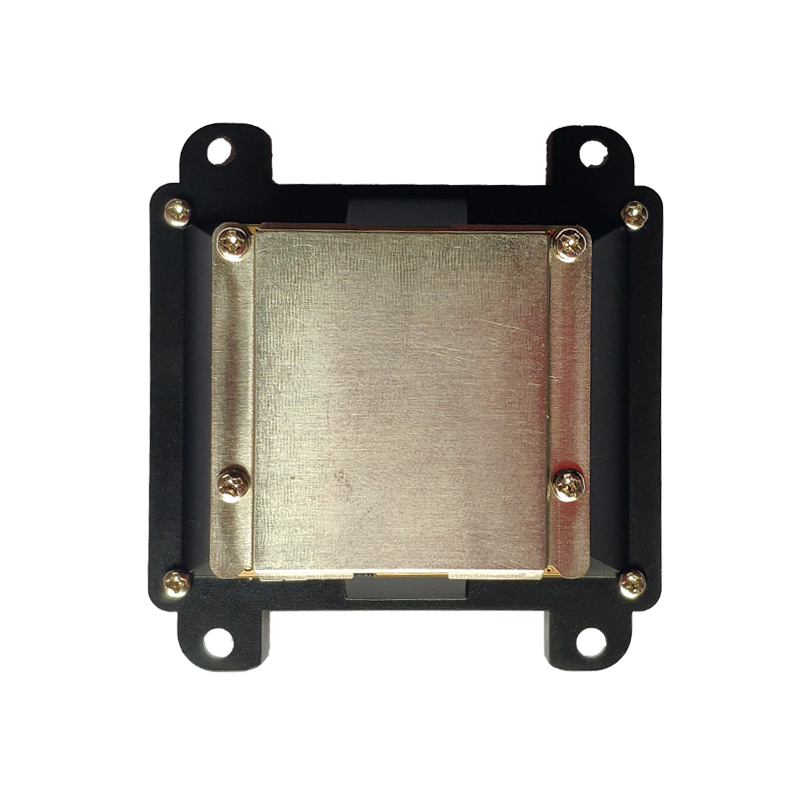

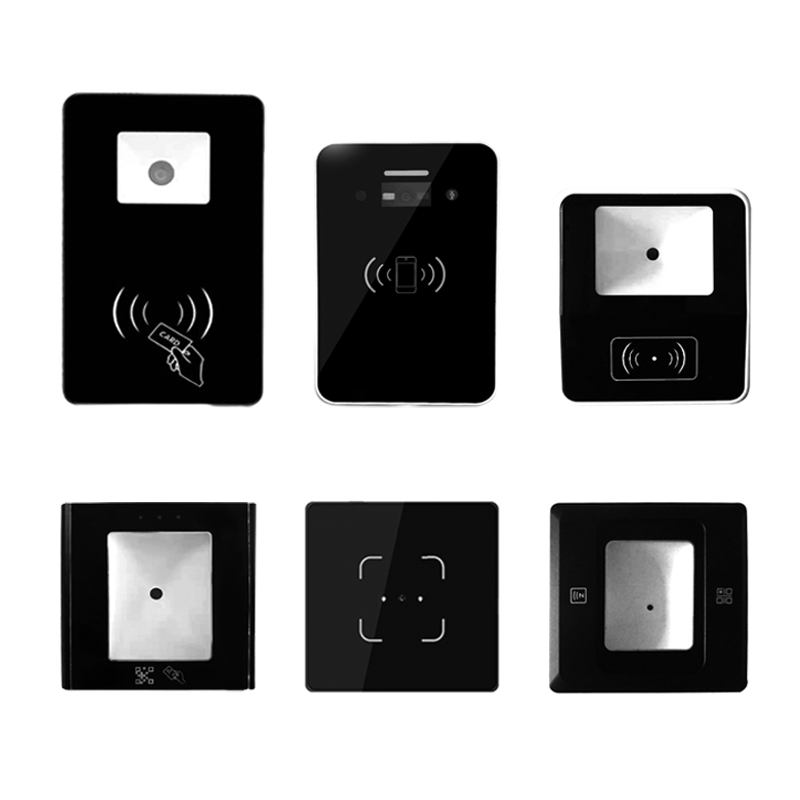

Product pictures:
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over their world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.

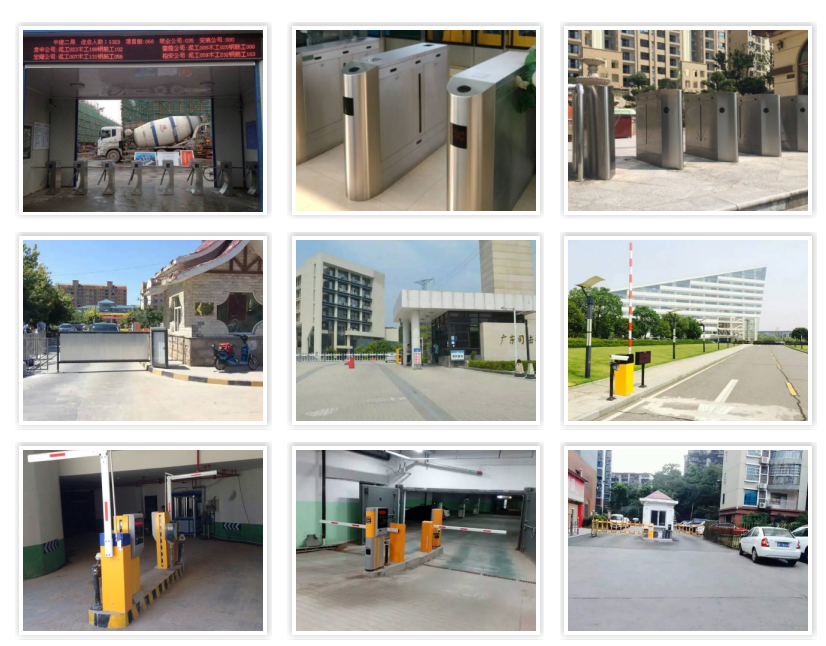

Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have the English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you to copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
