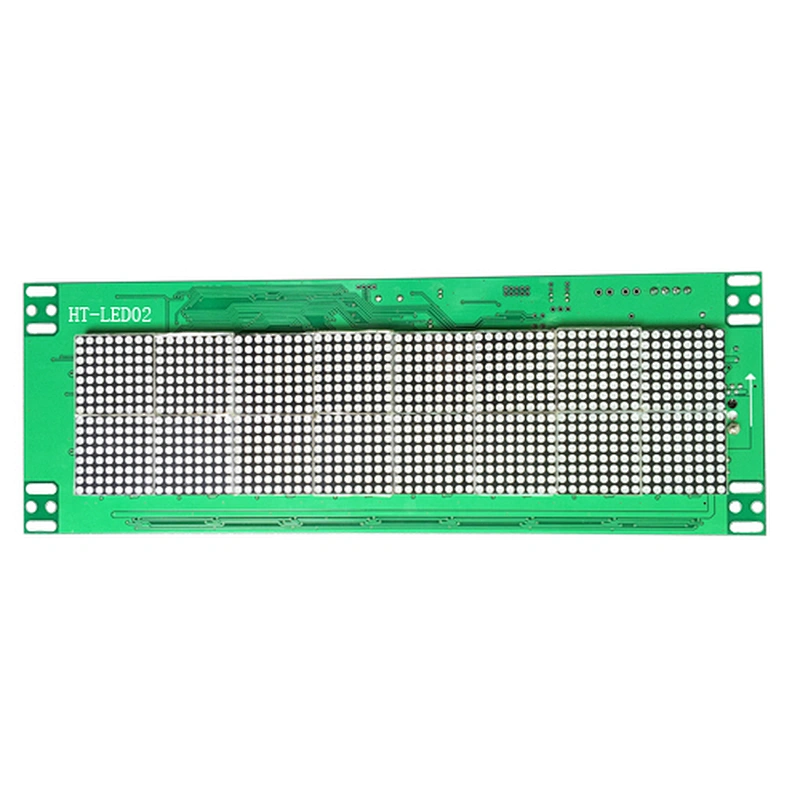

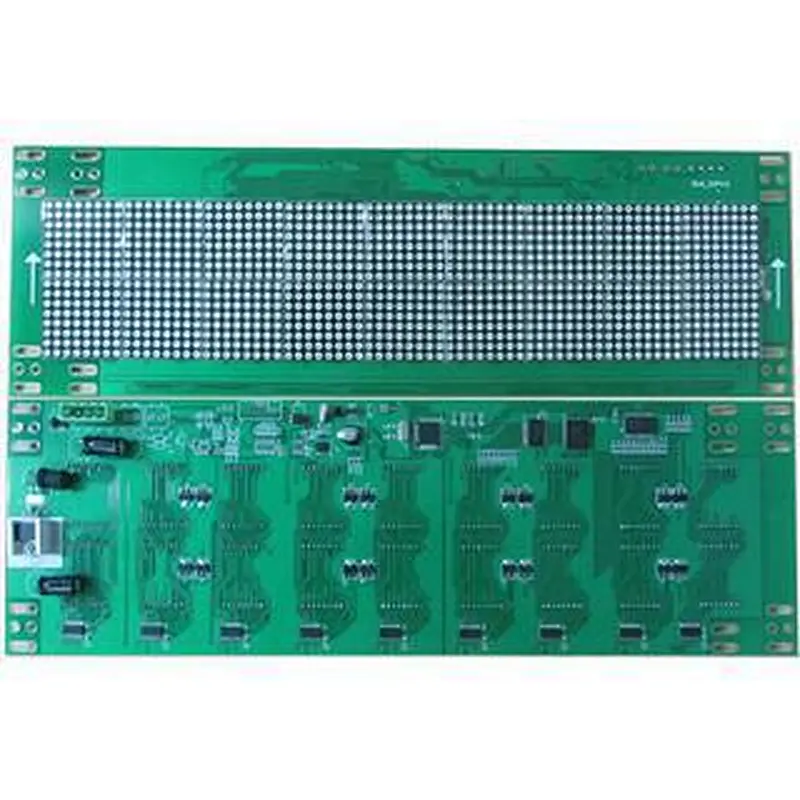

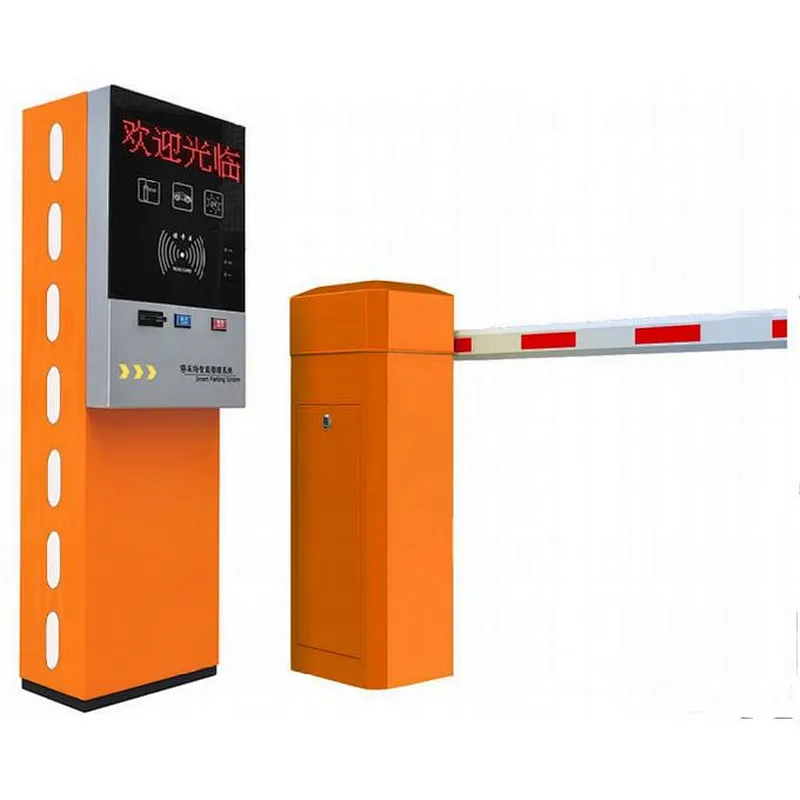

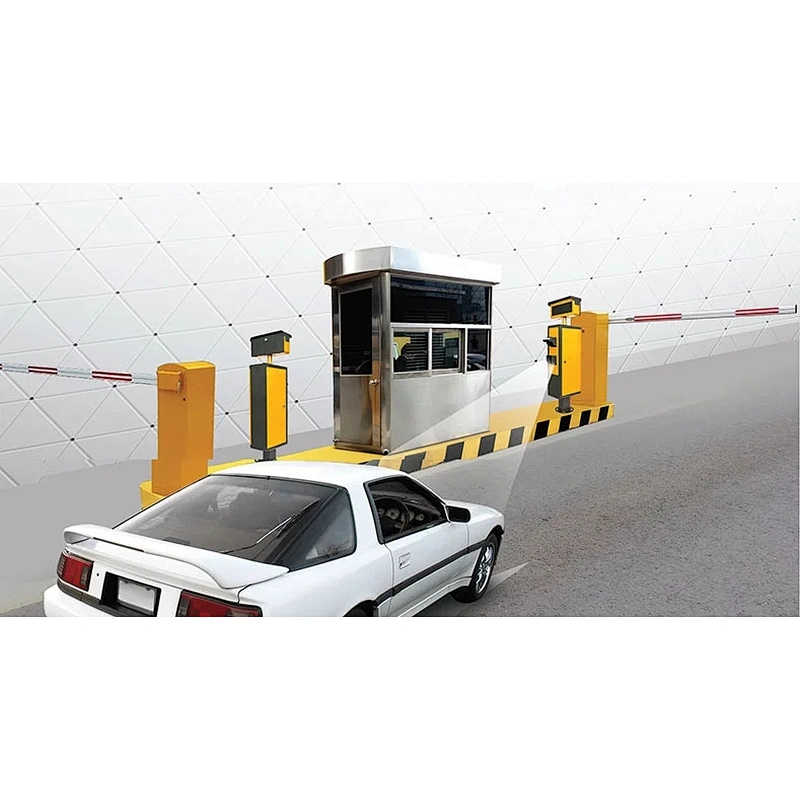

LED Display Screen On The Terminal on Parking Ticket Box Multi-Language

• single color(Red, Amber, Blue, ect.)
• Pixel pitch: 4.75mm
• Pixel of LED: 16 x 64dots
• LED: 8*8 Indoor LED Dot matrix
• Display area size: 304*76mm
• PCB Board size: 348mm*95mm
• Resolution: 44321dots/m2
• LED Brightness: >600cd/m2
• Driver for scaning:1/16
• LED view angle: 120
• LED View Distance: About1- 25m
• Power: 12v
• Max Power: 20w , Low power consumption
• Temperature: -35℃~ +85℃
• Humidity: ≤90~95%
• Weight: 0.3kgs (16*48dots)
• Supports single line
• Application: indoor
• Control mode: synchronization
• Power input: 100 to 240V AC, 60Hz/50Hz
• Communication interface: RS 232/485 / TCP/IP
• Supports multi-language (According to control board which used)
• Different fonts and word size for choice
• 15 speeds adjustable (text display speed can be fast or slow)
• Supports 255 seconds residence time
• Auto brightness adjustable or 1-15 level brightness available
• Supports different display effect such as left shift, down shift, up shift scroll up, scroll down, flash, and flicking
• Real time clock
• Function: they can be used as advertising and decoration for public places such as traffic, bus stops, beer bars, shops, train stations, ports, airports, banks and hotels
• With CD software, user's manual, free SDK

P4.75 LED Dot Matrix display advantage:

1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under direct sunlight.

2)Energy saving: low electric current, high-bright lamps, equipped with PFC switching power supply that save 30% electricity.

3)The brightness can be adjustable to meet the need of changing environment

4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon.

5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6)Error detection and monitoring: it can monitor the inner temperature, voltage, cooling fans etc and error detection automatically.

7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.

8) Steady and reliable system: with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.

9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger

10) Convenient installation and maintenance of display modules

Related products:

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.

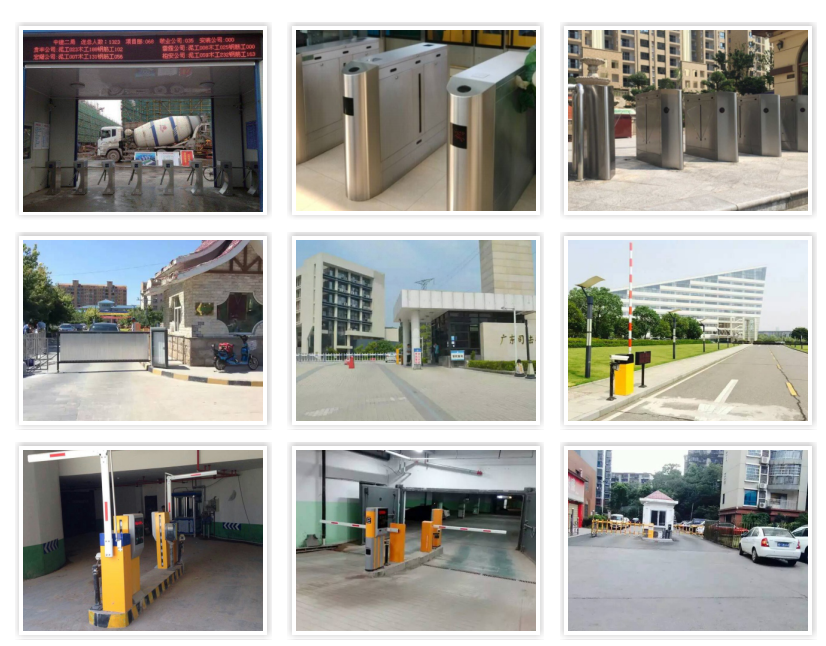

 Our Clients:

Our Clients:

Certificate of honor:

Exhibition:

Q1: Do you have English language system?

A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.

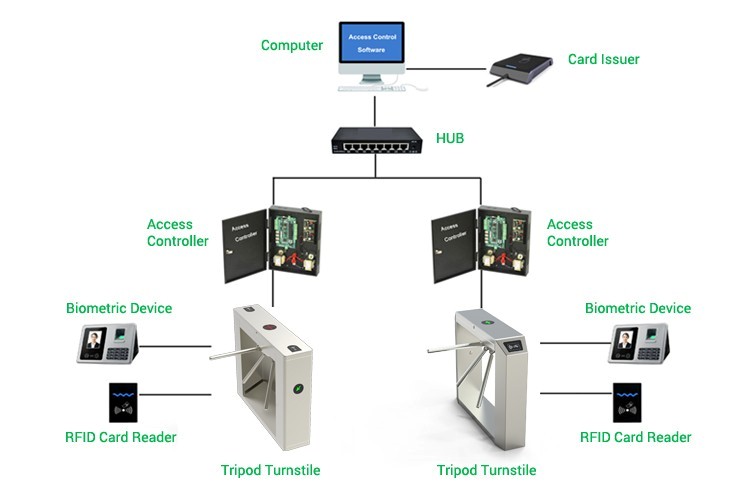

Q2: Can we connect your access control system with our system?

A:  Yes, we provide SDK and Software development service with connection port.

Q3: Are your turnstile/barrier gates waterproof?

A: Yes, our turnstile/barrier gates have water proof feature.

Q4: Do you have CE and ISO9001 certificate?

A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.

Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q6: How about your warranty?

A: Our products have one year warranty.
