- Place of Origin:China
- Brand Name:Anxia
- Model Number:AX-TG003
- Product name:Dual lane tripod turnstile
- Material:304 Stainless Steel
- Power supply:AC220V/110V

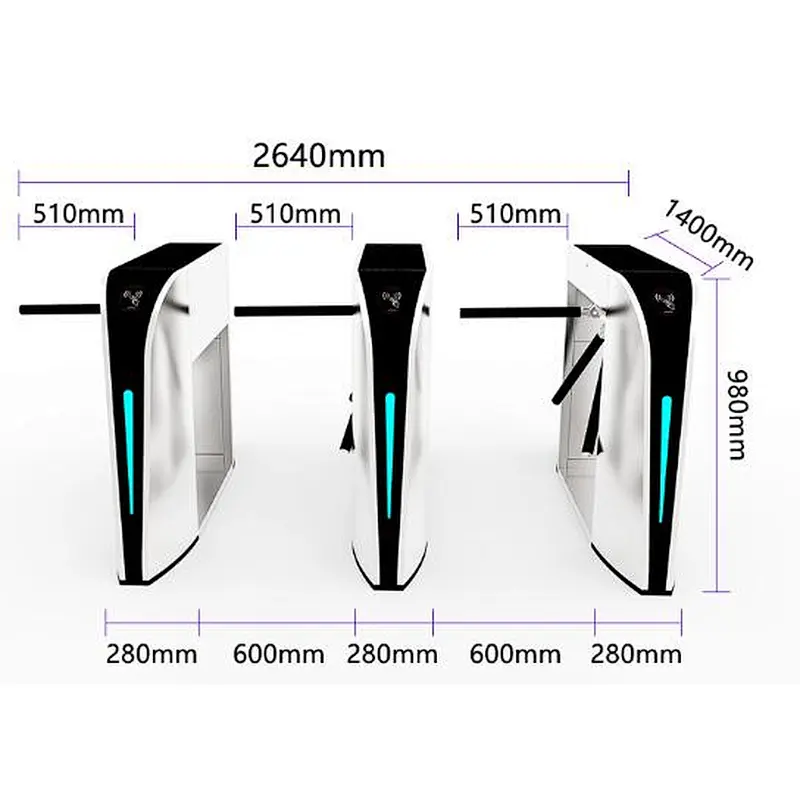

- Dimension:L1200 * W280 * H980mm
- Color:grey
- weight:140kg/2sets
- Transit speed:35 persons/min
- Channel width:less than 600mm
- Certificate:CE Approved
- Warranty:12 Months

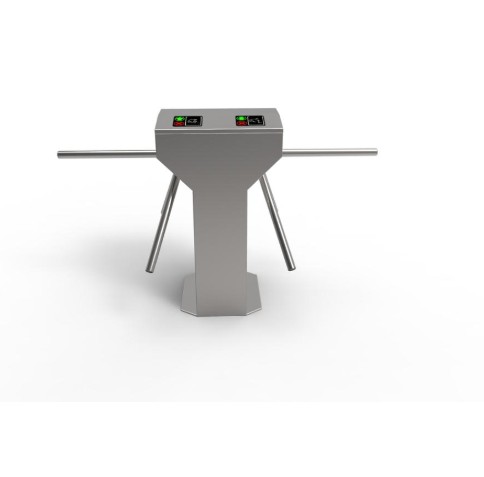

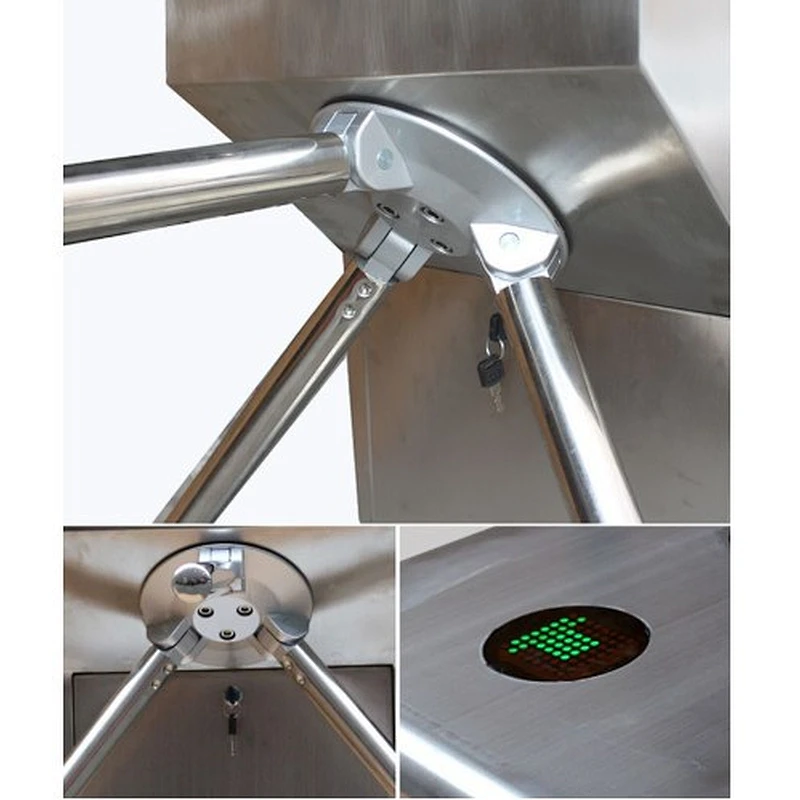

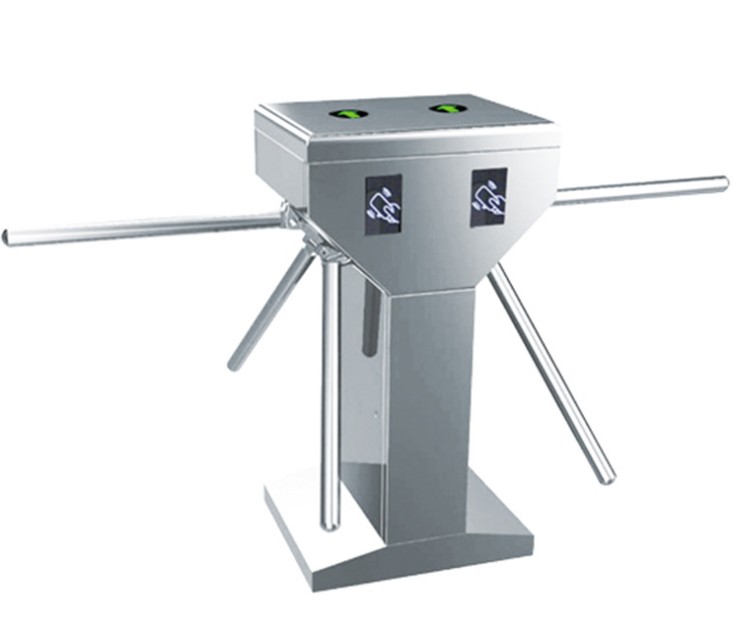

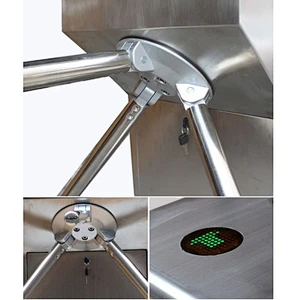

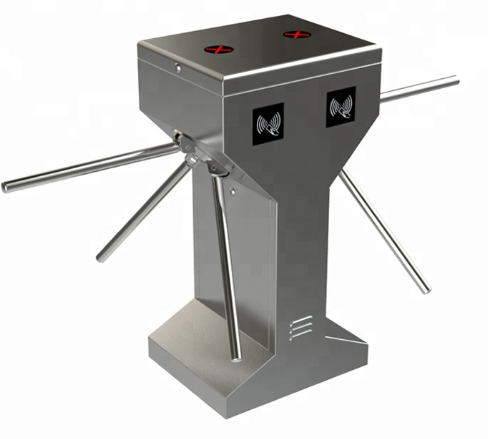

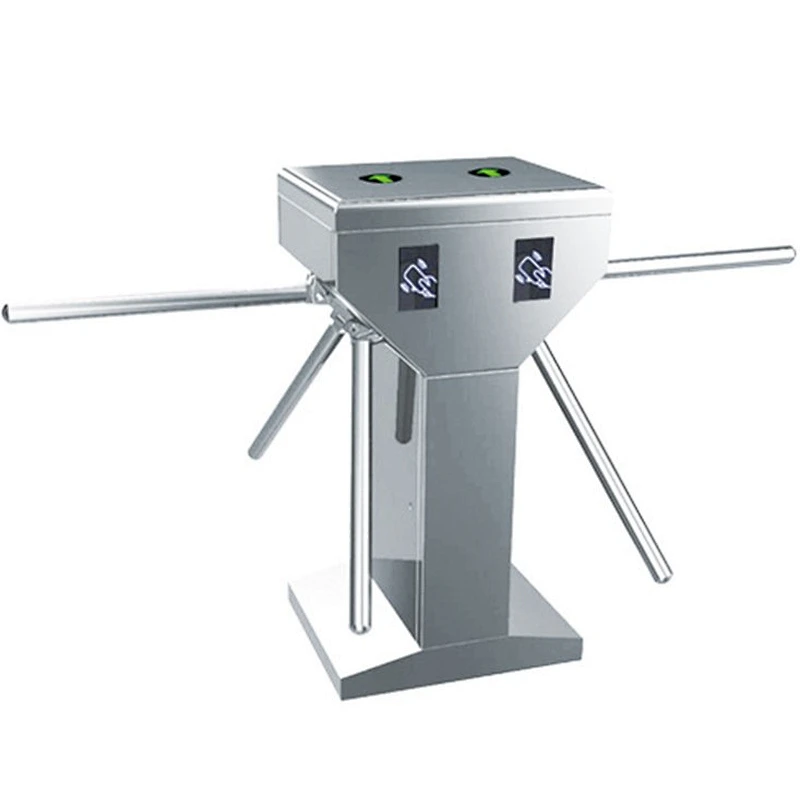

TCP/IP two door access door controllers double tripod turnstile for gym
1. Description

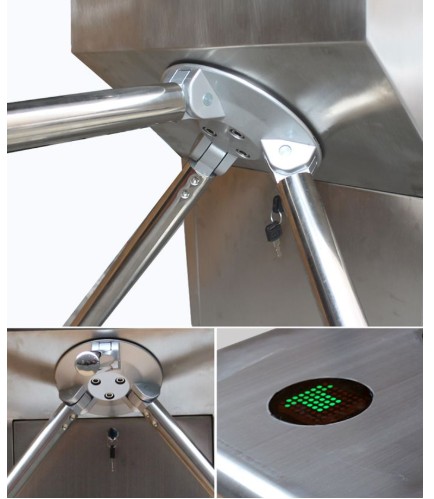

Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
2. Main Functions and Features of the System
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a result, the turnstile is more accurate and reliable for zero point locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read the card in a double way for flow limit, or reading card in a way while barring in the other, or read card in a way while the free passage in the other. Moreover, the operation mode of turnstile may be set up with the built-in small keyboard.
5) It has an automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with various read/write facilities to facilitate the system integration. It is able to realize far end control and management with the help of the administrative computer.
7) It has a function of the reading card with or without memory, and it may be set up with the built-in small keyboard in accordance with the requirements of the users.
8)Counting the passing people number automatically, and with LED display
9)Direction indicator function, showing passing or prohibiting for the people
10)Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds, it will turn again.
13) Self-resetting function, the system will cancel the people passing right when reading the card but not passing, the time can be set.
14) RS485 Communication function
3. Technical Data:
| Item | Automatic bridge three-roller gate tripod turnstile gate | |
| 1 | Power Voltage | AC220V/110V±10% 50HZ/60HZ |
| 2 | Operation Temperature | -25°C to +75°C |
| 3 | Relative Humidity | <90%, no condensation |
| 4 | Access Width | ≤600mm |
| 5 | Passing Speed | ≤40 Persons/min. (IC Card) |
| 6 | Motor | 0.5NM/24V (Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>10ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard |
| 9 | Material | Stainless Steel 304; Thickness is no less than 1.5mm |
| 10 | IP | IP54 |
| 11 | Colour | SSB (US32D) - Stainless Steel Brushed/Power Coating (Optional) |
| 12 | Operation Place | Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit, Attendance, Gateway Guard, Charge Management, Special Access Control, ect. |

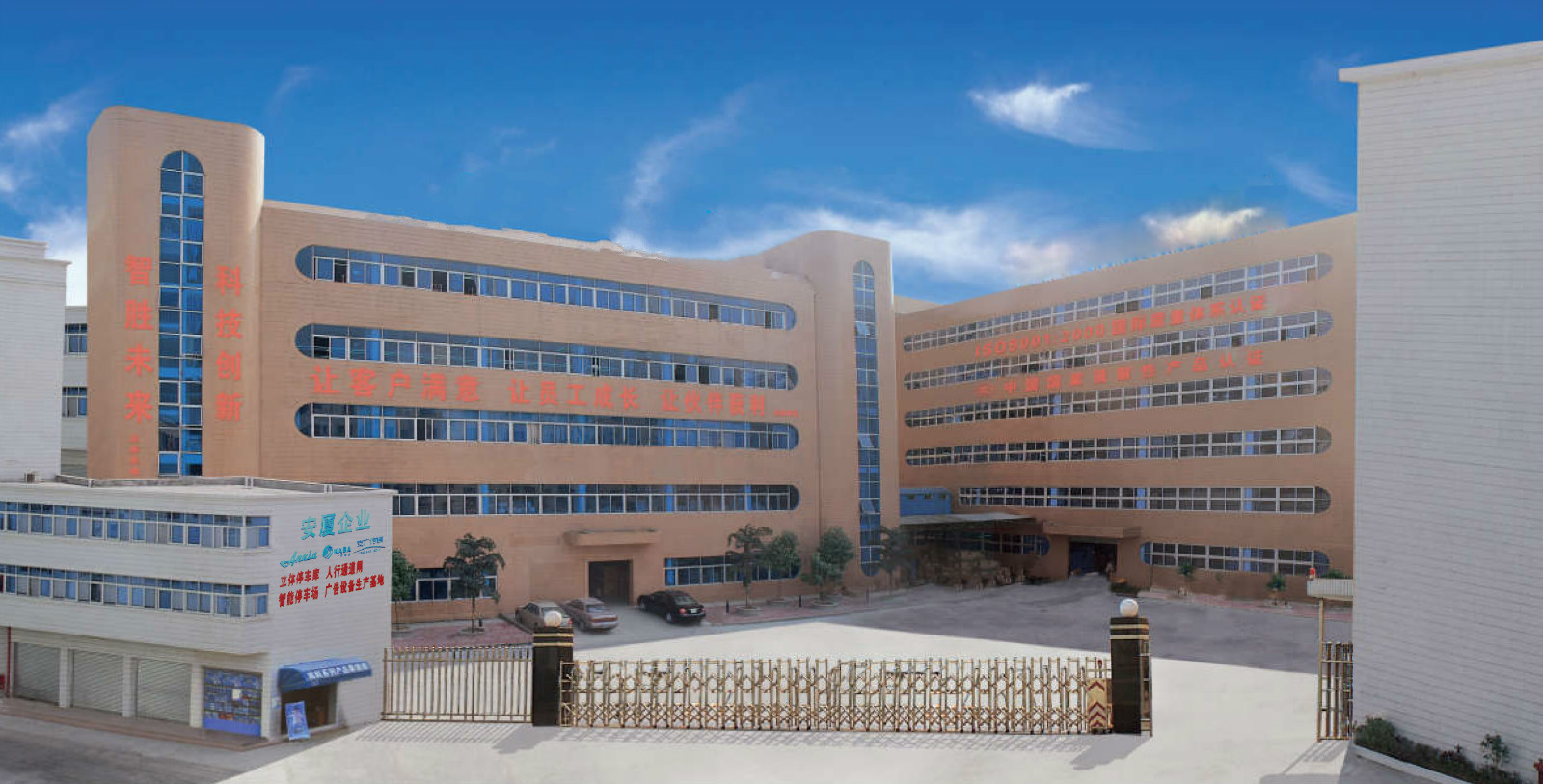

Shenzhen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
Q1: Do you have the English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you a copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
