- Place of Origin:China
- Brand Name:Anxia
- Product Name:RFID Card reader access control
- Brand:Anxia

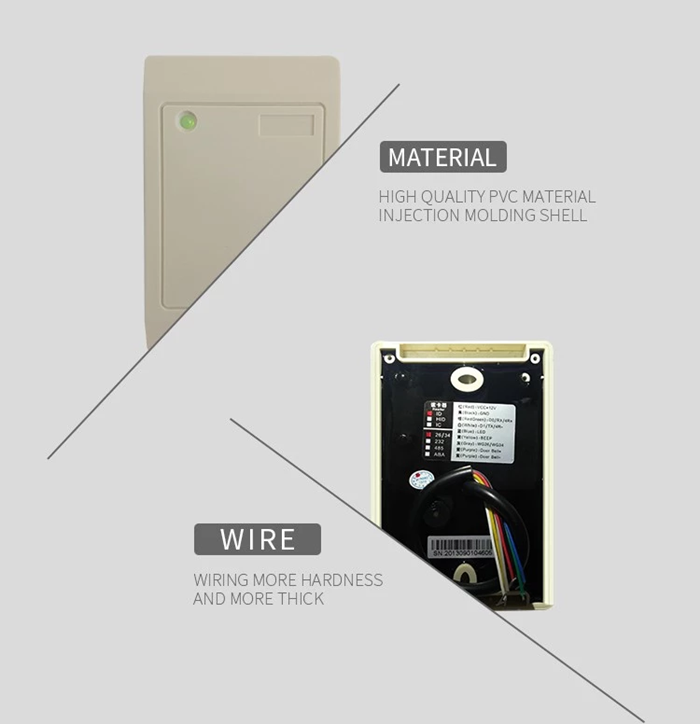

- Material:Plastic

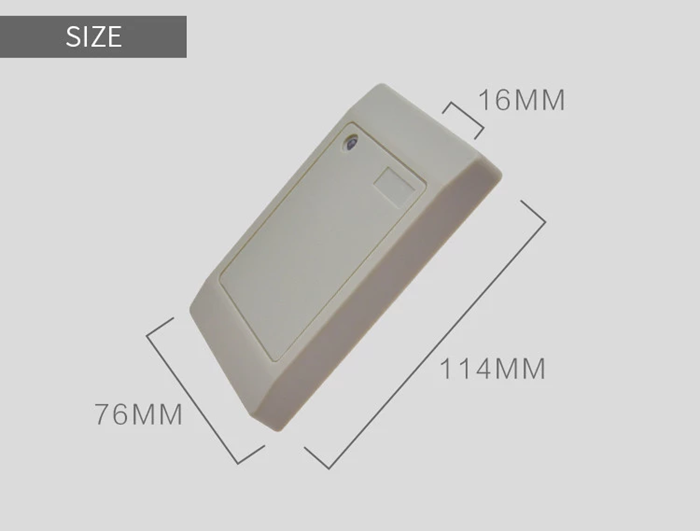

- Size:176x114x16mm
- Reading distance:EM ID Card 6~10 cm MF IC Card 4~8 cm
- Voltage:DC12V
- Interface options:WG26/34
- Reading speed:less than 0.2sec
- Colour:White and black
- Weight:350g

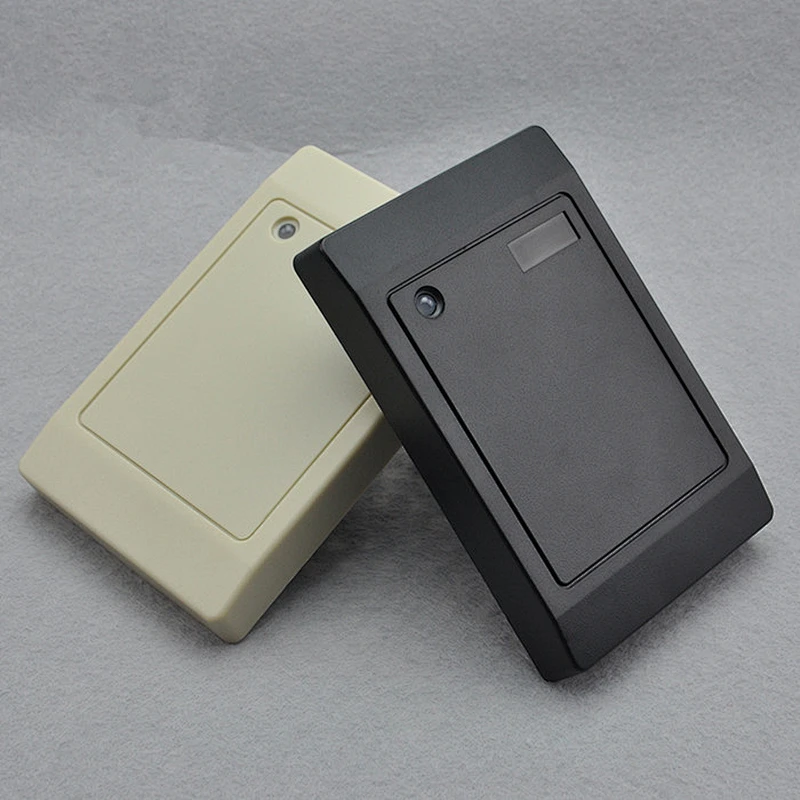

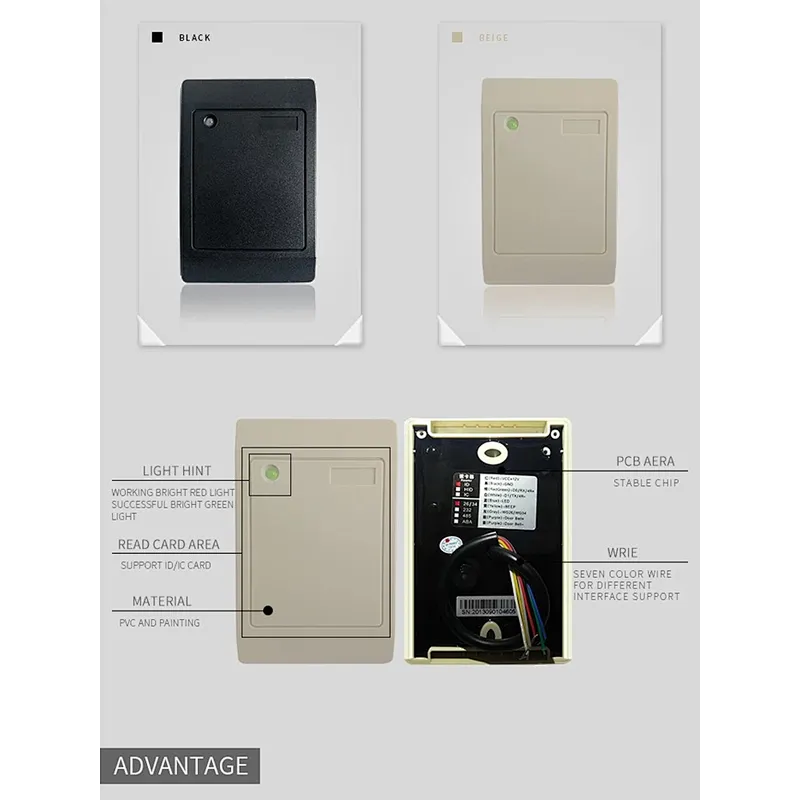

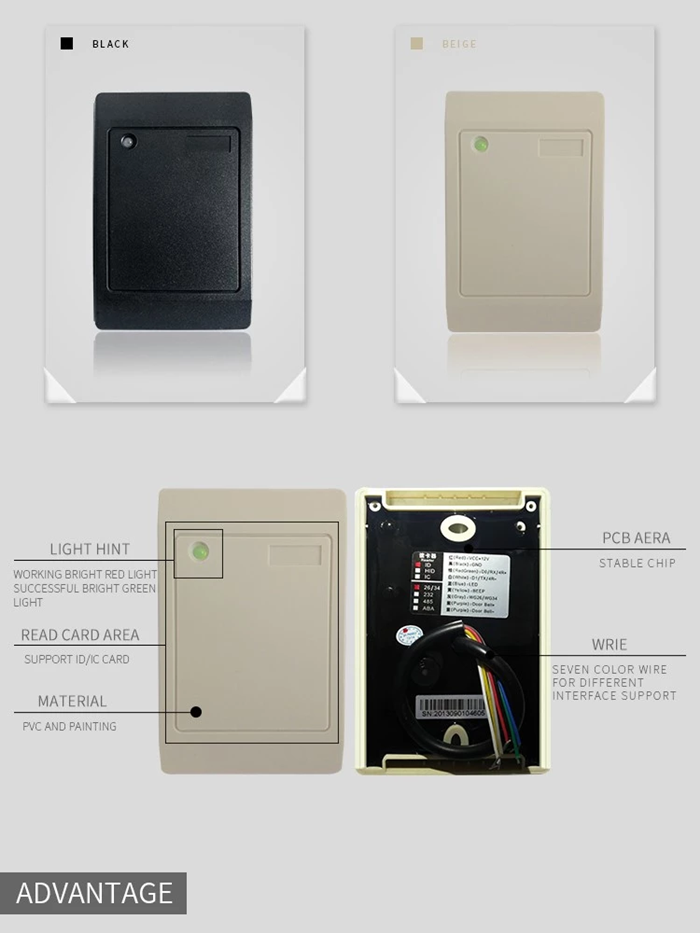

Cheap 125khz 13.56MHZ Read only access control USB interface IC ID Card RFID reader
Technical Specification:
Installation
1. The reader inside the sticker on the position of reader to be installed. According to location Drilling two holes and an Middle outlet hole, in sert rubber plug into the fixed hole.(Note: If you install on the wall, then concealed need to install the 86 embedded box)
2.Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
3.The reader cable through the outlet hole, connected by line instructions,it will panel and rear panel of the screw fixed.
Notice
1. Confirm the electric voltage DC12V and differentiate positive anode and cathode of power supply
2. When external Power is used, suggest to use same power GND with controoller panel.

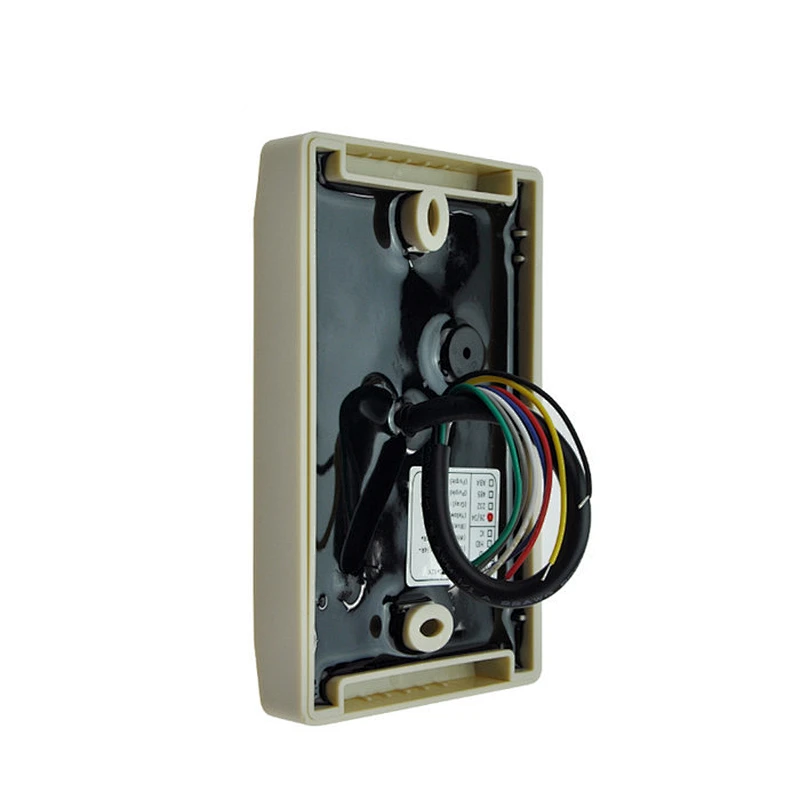

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them,two strands are spare,if no need reader show illegal cards by sound and lightm, SPK,LED wire can not be used, data wire Data 1 Data 0 are twisted pair would be better ,we suggest sectional area are 0.22 square millimeterat least.The length should not exceed 100 meters. Shielded wire connect to GND, over striking and double strand cable will improve reader working performance.

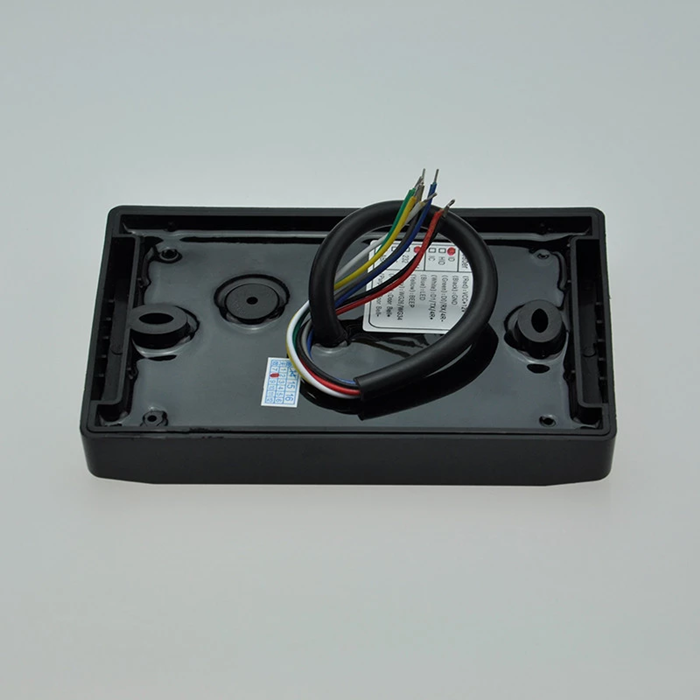

Wire Connection
Application
For access control ,attendance,fees,patrol,card,building on say,parking systems,highways and rfid application.
Advantage
This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability.
1. Normally, we offer UPS/DHL/FEDEX/TNT express with door to door service if the G.W. of goods is less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.
2. If G.W. is over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to the airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the customs clearance and goods transportation. The air shipping is about 2-7 days.
3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service.

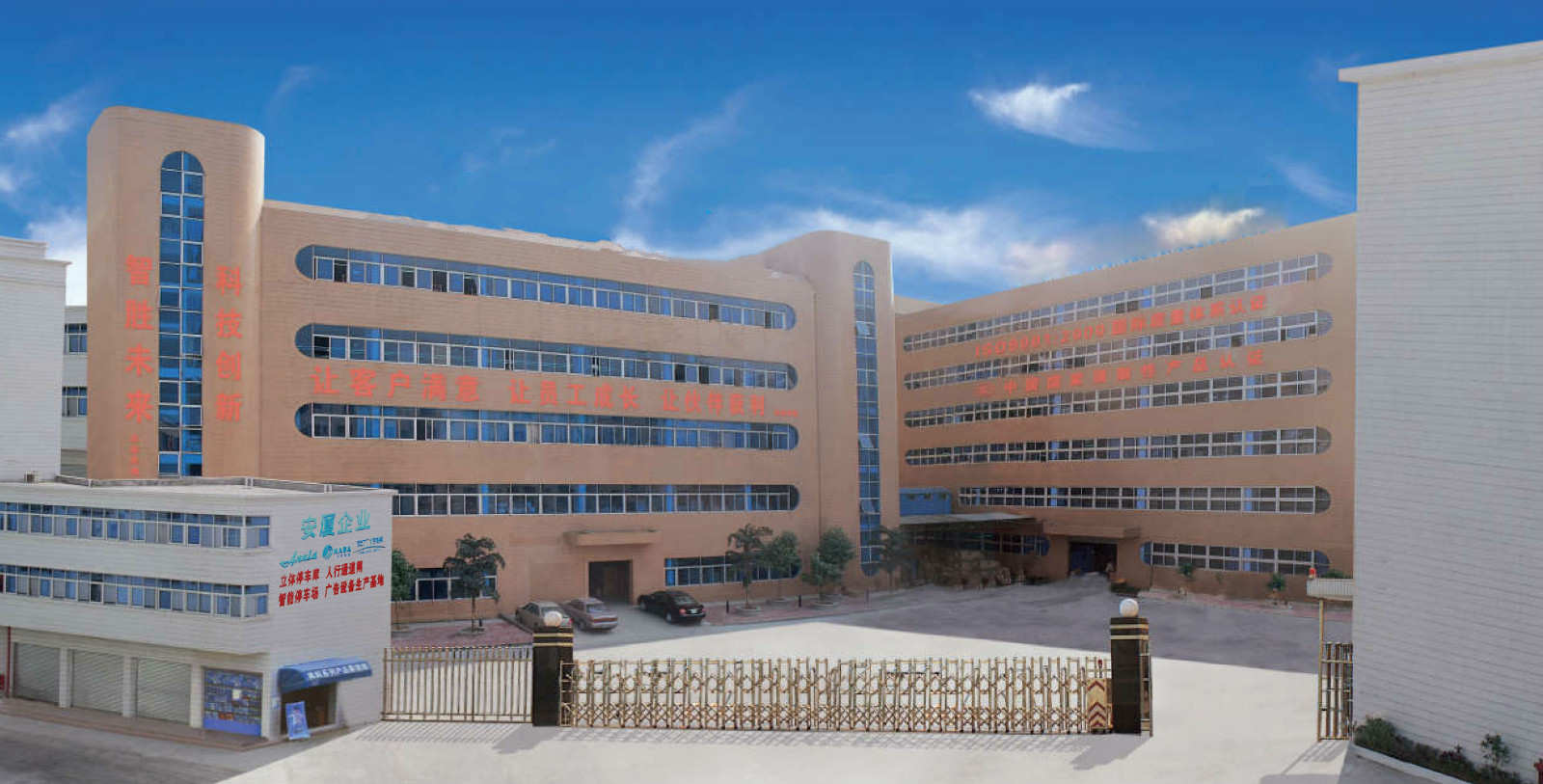

Shenzhen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample order by low charging than order.
Q: What is your terms of payment ?
A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below.
