- Place of Origin:CN;GUA
- Brand Name:Anxia
- Model Number:Automatic Card Dispensing
- Product name:Automatic Kiosk IC Card Dispenser
- Colour:Black
- Application:Vending Machines and Tecketing Machines
- Card Type:Contactless IC Cards(Optional)
- Interface:RS-232/I/O TTL
- Function:Card dispensing/collecting
- Installation:Simple
- Power supply:DC24V 5%
- Weight:2120g
- Warranty:1 year

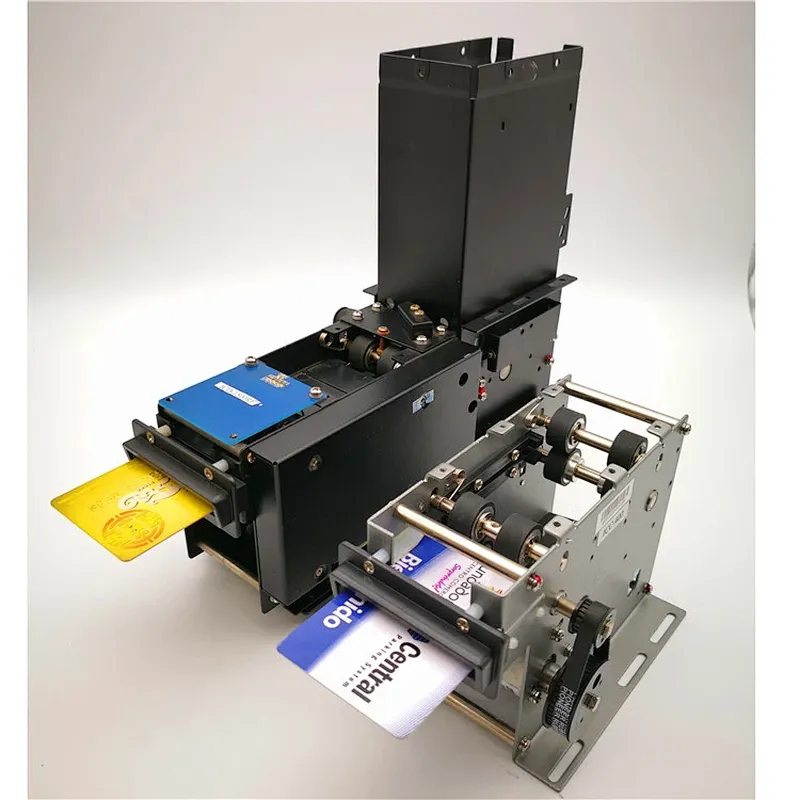

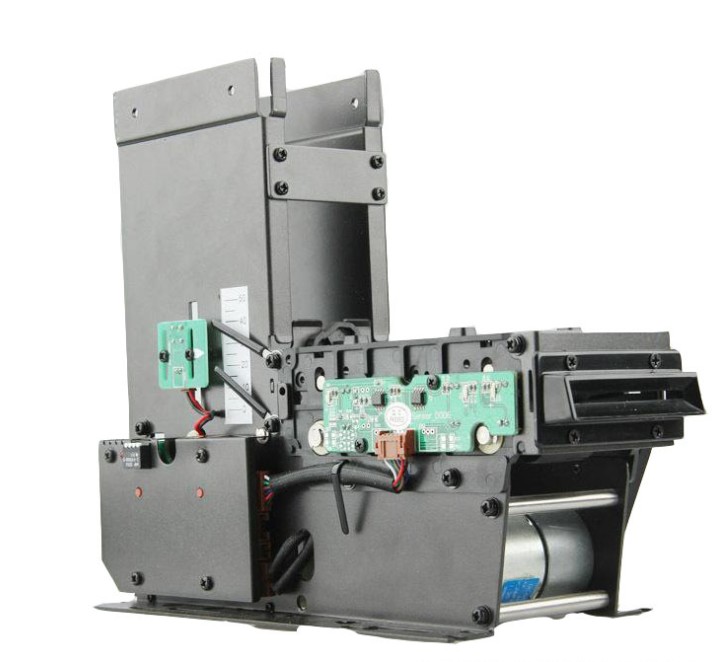

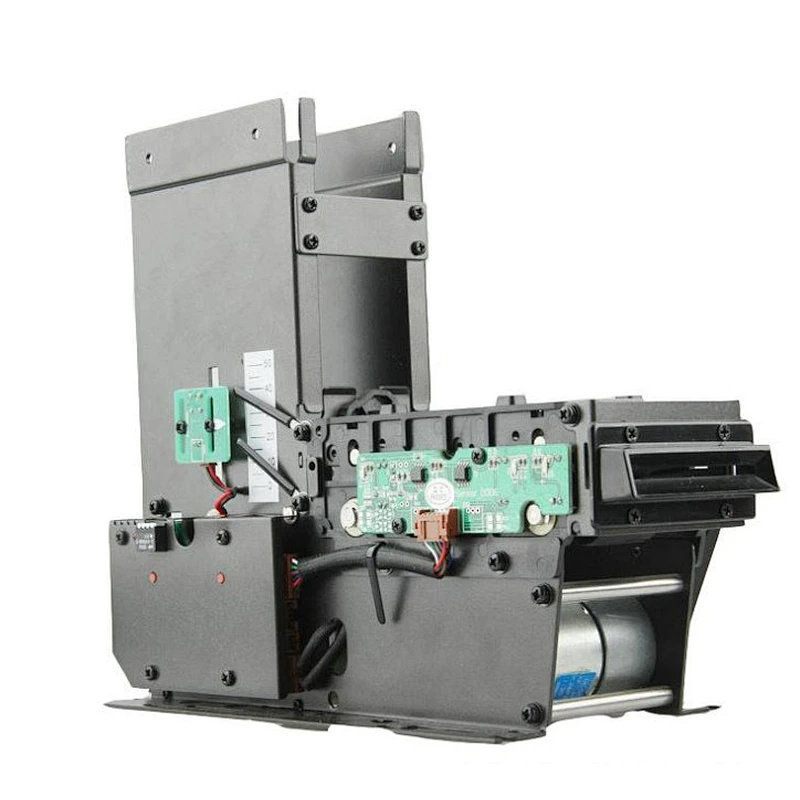

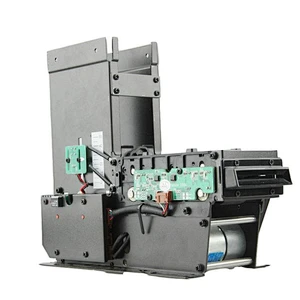

Self-pay Serial Automatic Kiosk IC Card Dispenser
Based on reliable structure design and massive integrated circuit, our automatic card dispenser specially supports automatic card dispensing (collecting) which function controlled card dispensing & collecting and RF card operation. Transmitting power by stepper motor, properties with high speed, high stability, highly reliability and long working lifetime
Features:
*Double motors work alternately to ensure long-term operation, and industrial bearings ensure efficient card release
*All drive components are micro-bearing coupling/wheel mode to minimize motor noise and friction loss
The card sensor uses two reflective photoelectric sensors to prevent false alarms
*Photoelectric isolation, hot plugging, industrial grade chip to ensure high reliability
*Two-wheel transmission to prevent card swing, special rubber for transmission wheel, high temperature resistance, anti-aging
*With certain adaptive ability, it can output error information and automatically stop
*Stainless steel components and special rubber wheels ensure long-term operation with high life
*Full-featured and compact, electroplated/sprayed surface treatment process
Main Features
1. Dispense Mifare Card 13.56MHz card with read and write module or Contact IC card read/write module
2. Unique transfer wheel design for Accurate issuing any card even for concavo-convex character number card
3. Simple, convenient, stable and accurate adjusting kinds of different thickness for issuing different cards
4. Compact size design to save the installation space
5. Reclaim card tank design in rear of machine for easy management
6. Couple of sensor can detect reclaim card tank is full, card tank empty alarm, card position detect etc, can easy distinguish card position and status.
7. High strength and durable engineer plastic card channel make sure RF card read/write steady
8.Industry conceiving, surface dealing with roast paint, well bearable cubing and rotting. Be suitable to all kinds of bad environment, such as high, low, and mush dust, etc.
9. Multi- sensor protect function prevent outer light interference to sensor
10. 24V/2.5A
11. RS-232
Introduce:
F3 card dispenser is an issuing machine that operate with card size based on ISO/IEC 7810 Identification cards: ID-1 size, operate thinckness from 0.2mm to 1.2mm. From history production experience, plus good idea and innovation design accumulated, this dispenser now equips reliable mechanism to make card issued smoothly and last for long life time.

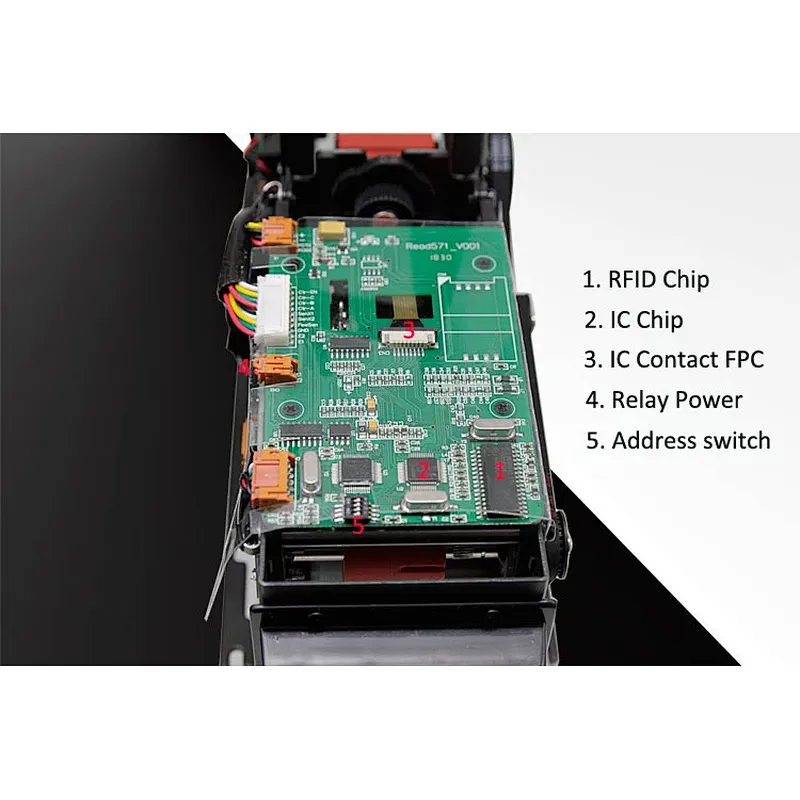

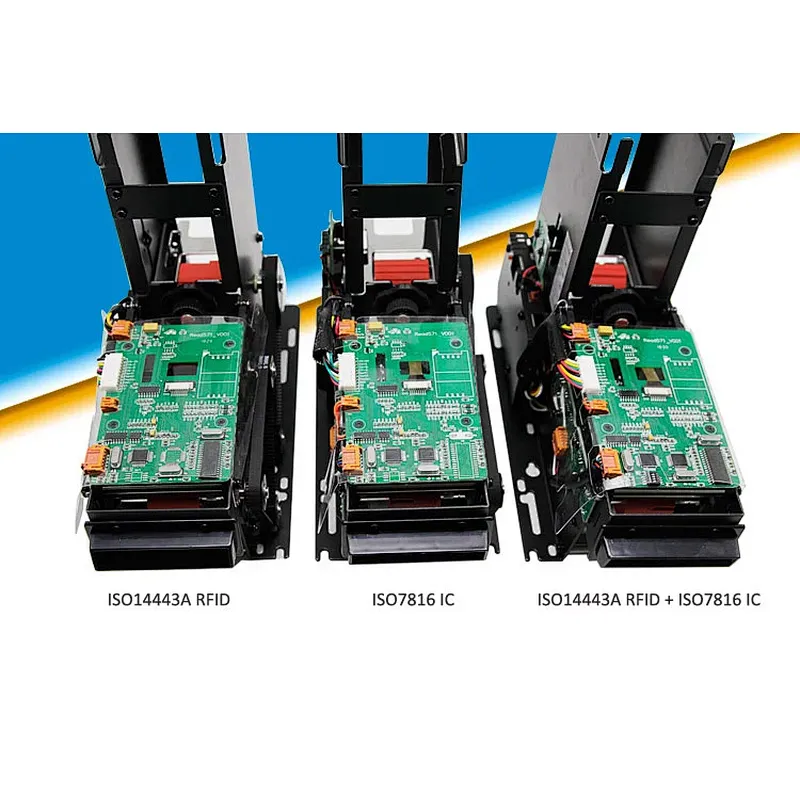

F3 card dispenser can be integrated with ISO14443A RFID reader module that can read and write cards in such
standard, typical card as S50, S70, FM11RF08, NTAG203/210/212/213.
Also, Can be integrated with ISO7816 contact IC card read and write module, operate with those card with contact interface such as SLE4442, 4428, SAM card, SIM card etc...
Or, if necessary, above 2 module integrated together also available, then it support both contactless and contacted cards.
Although it's standard loading card capacity at 150pcs, but it can support max 300pcs for extend requirements. And, for programm design purpose, it can be set card enter from front mount, it can collect invalid card inside to the collect box.

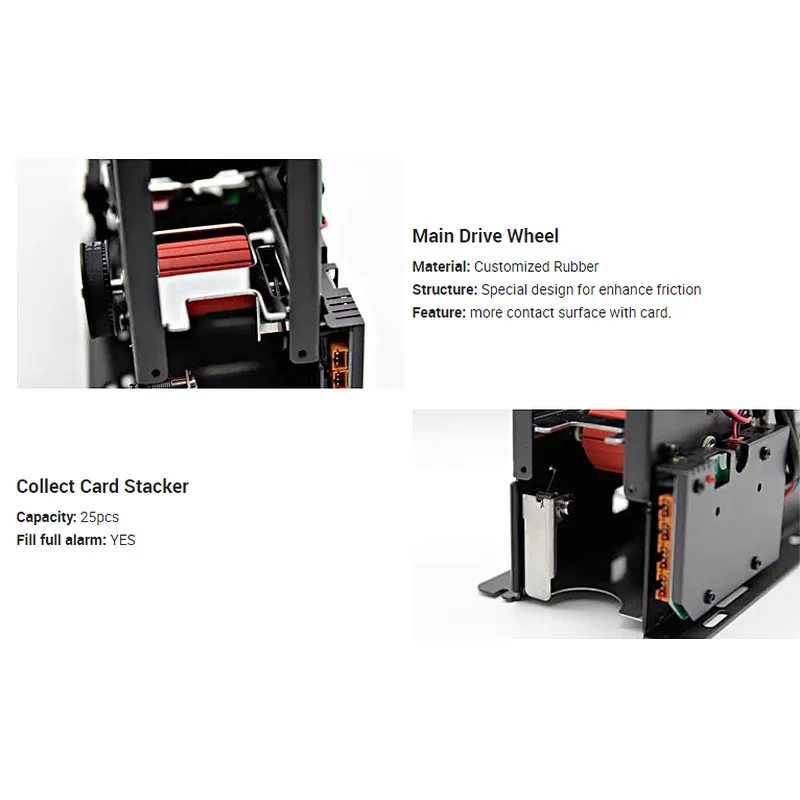

It's rubber wheels made of specially developed materials, with large contact surface and precise structural design, make it increase lifespan, also enhances the friction during issuing card, that to ensure card dispenser working stability .
Application range
* Parking Charge System
*High-speed company charging system
* Attractions Tickets Issued
*Telecom card issuance system
*Power supply voltage: DC24V 10%
*Working current: Static working current: less than 100mA; working current: less than 500mA
*Card issuing speed: up to 0.5 seconds / piece
*Output interface: TTL/RS232
*Mean time between failures: more than 1 million cards issued
*Loading card thickness: ≤2.1mm
*Loading card size: length 85mm × width 55mm
*Maximum loading: 130 sheets (0.8mm thick cards) (in the case of non-cascading cartridges)
*Maximum loading quantity: 400 sheets (0.8mm thick cards) (in the case of cascading cartridges)
*Remaining card detection: 5 to 100 sheets (adjustable)
*Working temperature: work -15 ~ 70 ° C, 0 ~ 90% RH;
*Storage temperature: -30~80°C, 0~95% RH
*Package Weight: 2.0Kg

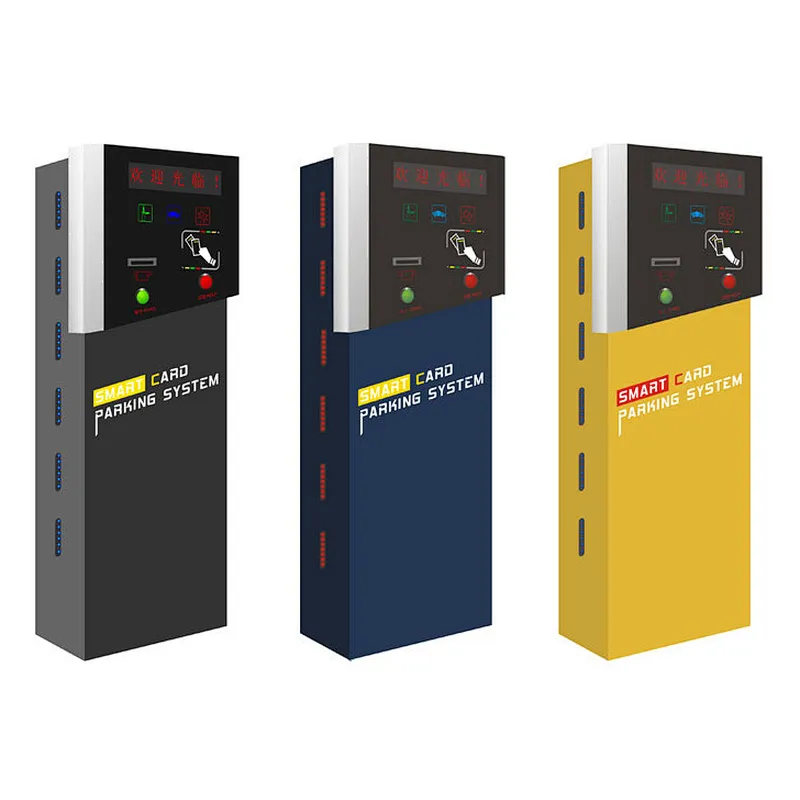

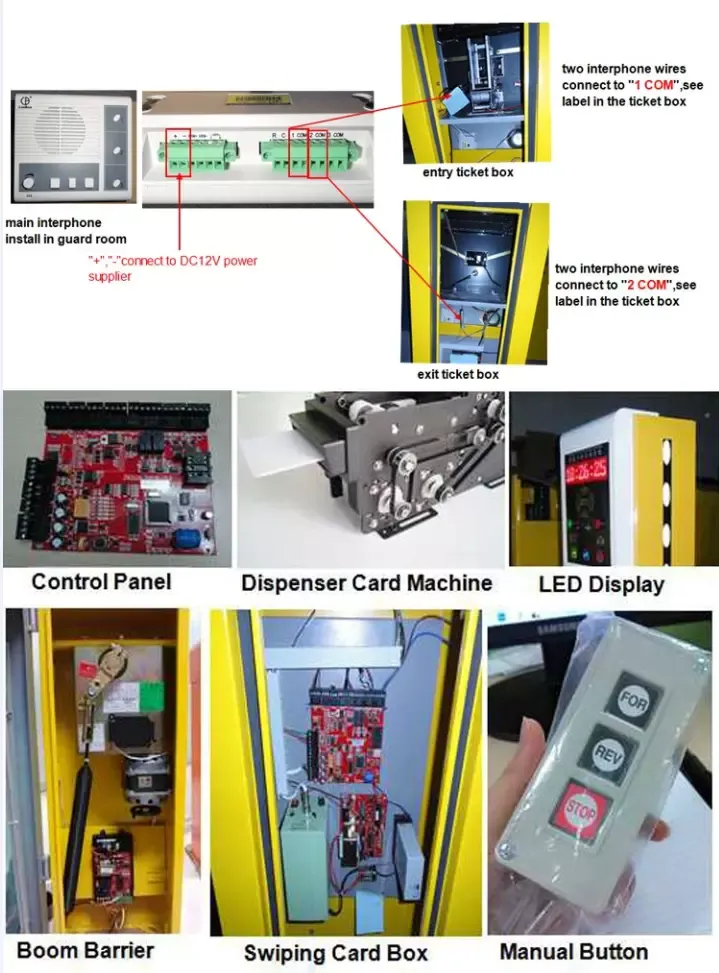

Ticket machine interior view:
Related products:
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.

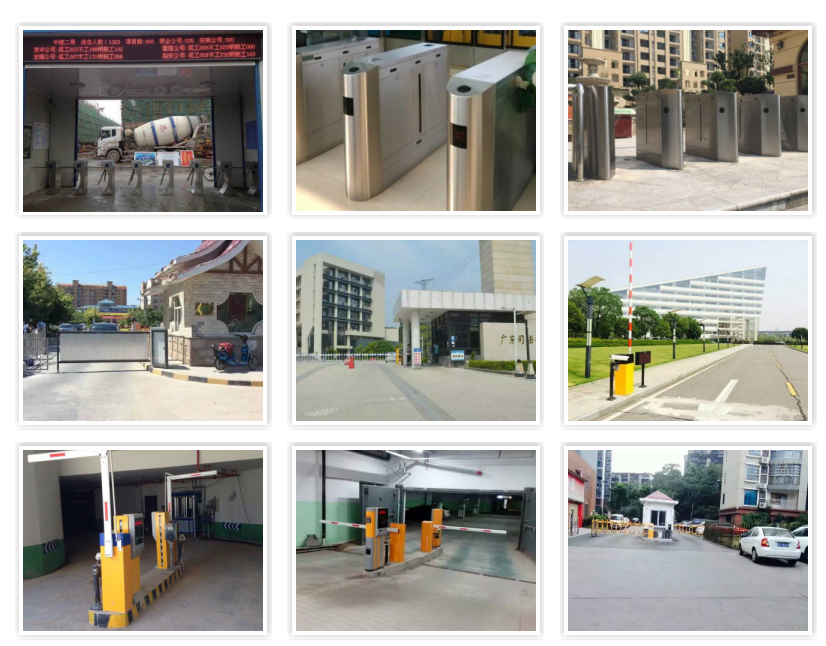

Our Clients:
