- Model Number:AX-052
- Place of Origin:China
- Brand Name:Anxia
- Usage:Position Sensor
- Theory:Ultrasonic Sensor
- Output:Switching Transducer
- Operating Frequency:24GHz
- Transmit Power:≤10mW
- Color:Black Ultrasonic Radar Sensor
- Detected Targets:people/vehicle
- Lateral Detection Width:1m
- Reaction Time:2ms
- Supply Voltage:9~12V DC
- Supply Current:< 0.2A
- Power Consumption:≤2W
- Operating Humidity:0 ~ 95%RH

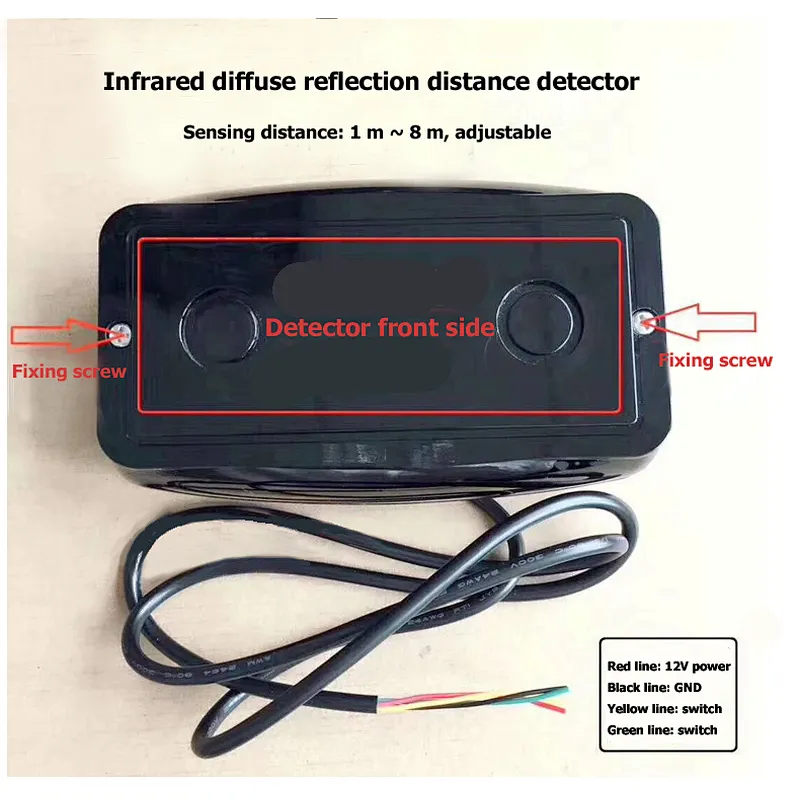

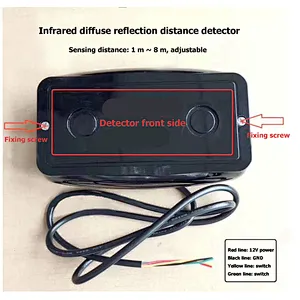

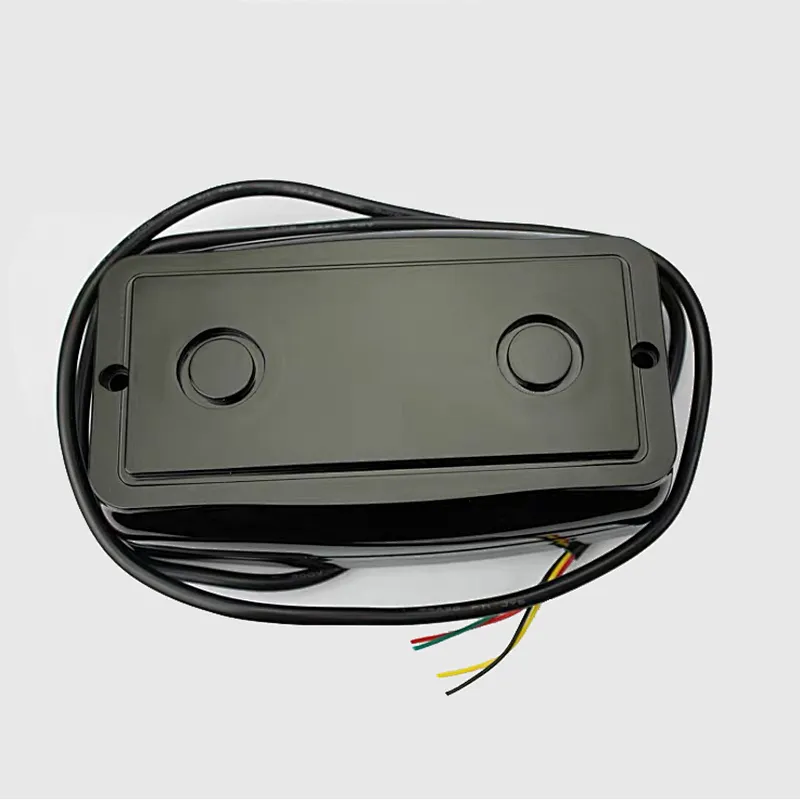

Anxia Boom Barrier Infrared Vehicle Parking Lot Ultrasonic Radar Detector Sensor

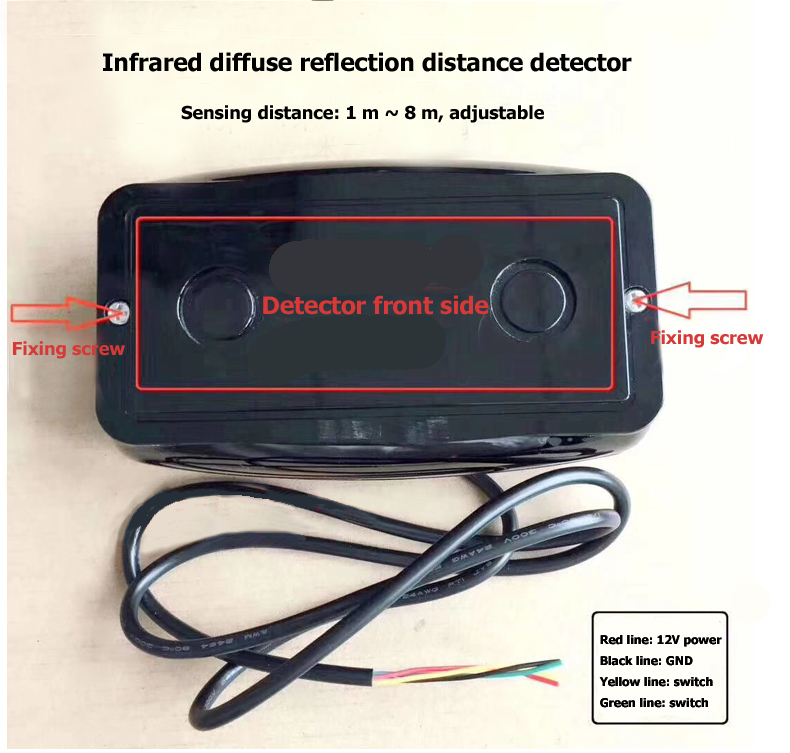

Product pictures:
- High performance radar works in 24GHz ISM Band
- Advanced DSP technology, high accuracy & very low false alarm rate
- Distinguish pedestrians and vehicles sensitively
- Avoid dropping accidents of barrier gate

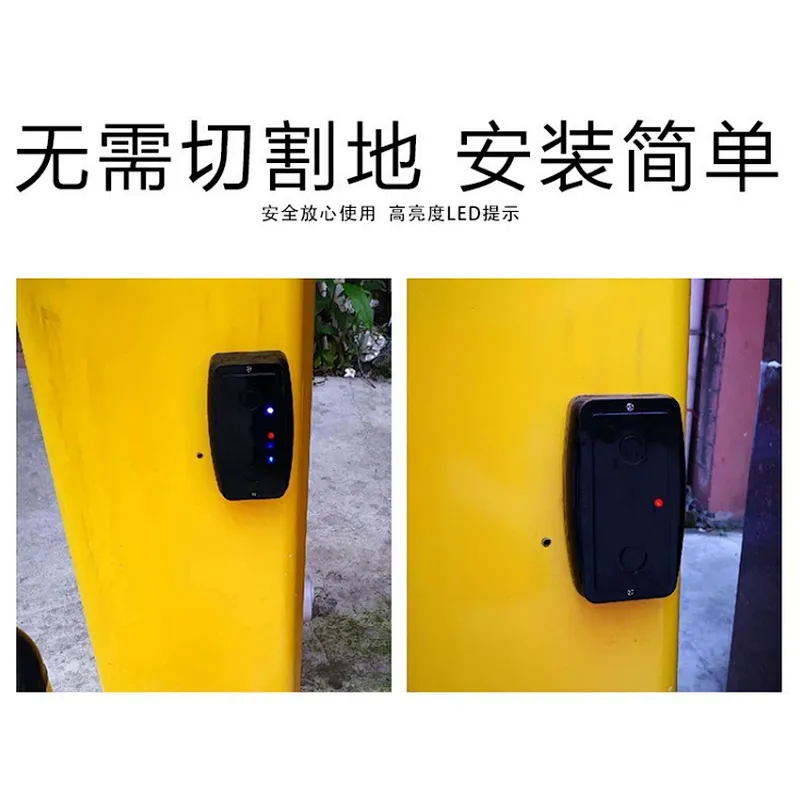

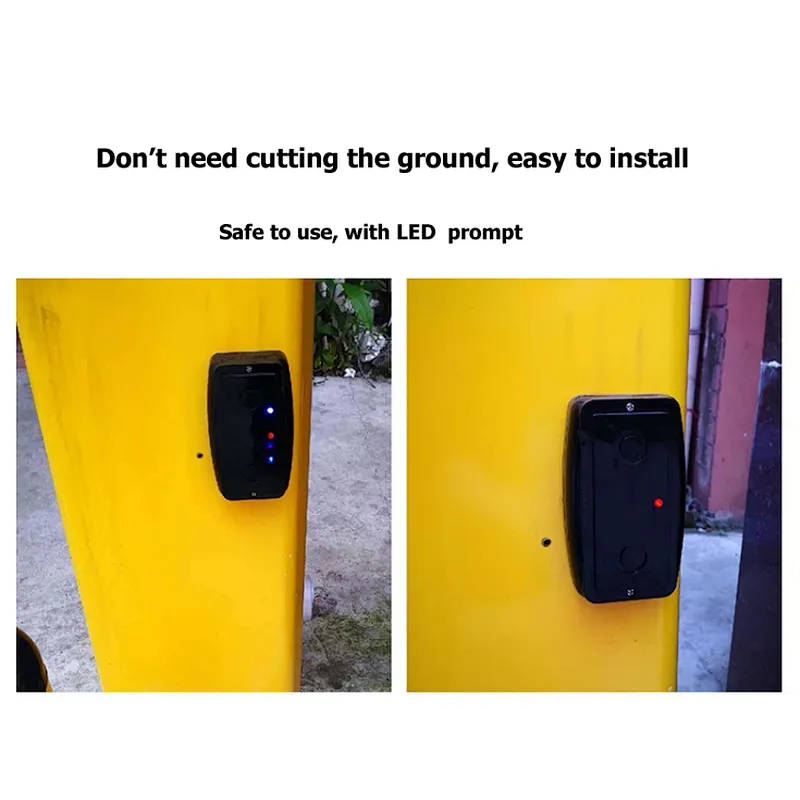

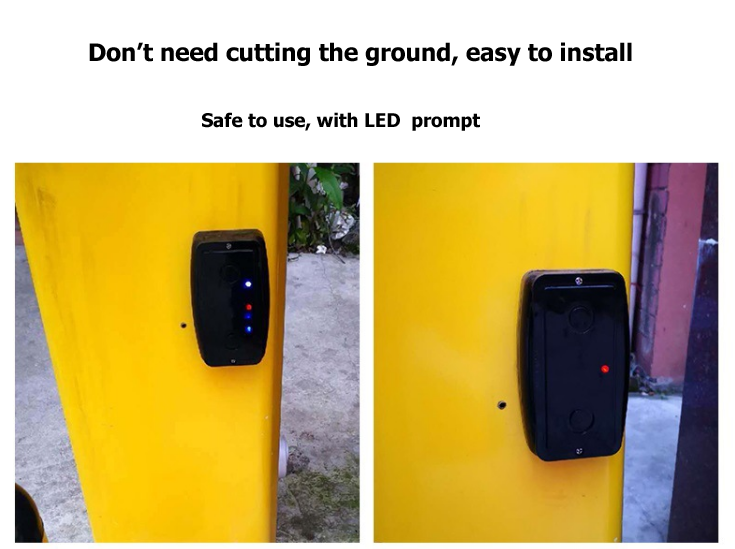

- Simple installation and convenient in maintenance (no pavement damage, easy installation by one person)
| Technical Features | |
| Transmit Power | ≤10mW |
| Modulating Type | FMCW |
| FOV | 34°× 12° |
| Detected Targets | people/vehicle |
| Lateral Detection Width | 1m |

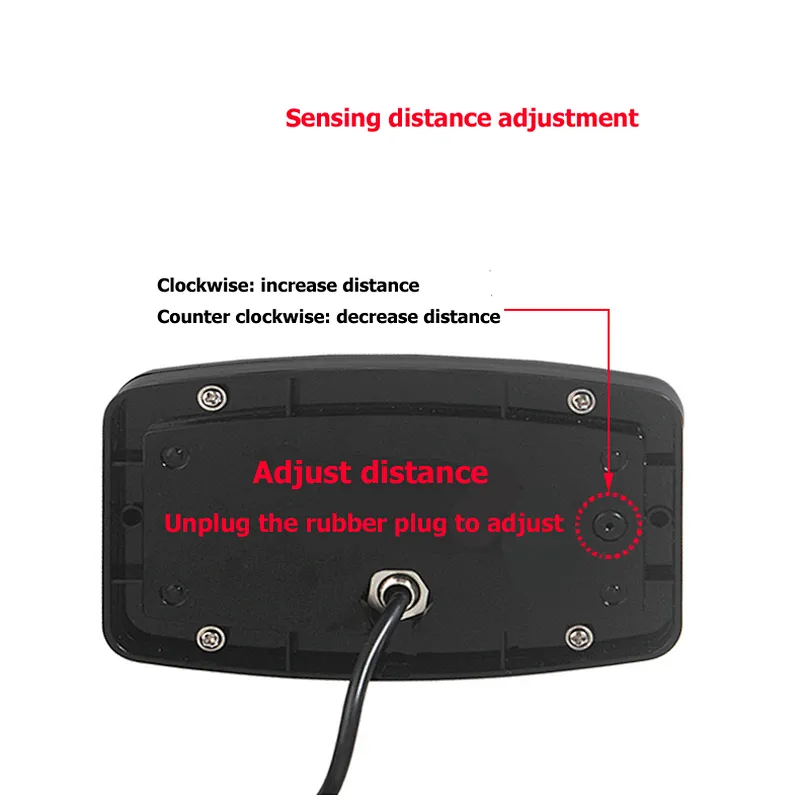

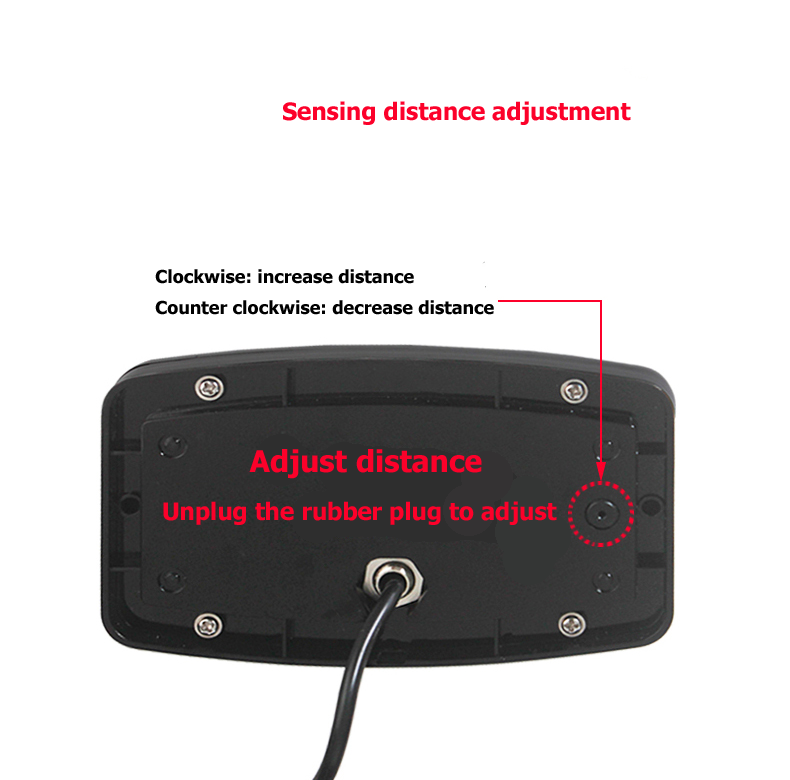

| Active Distance | 6m(adjustable) |
| Reaction Time | 2ms |
| On-line debugging | Serial port |
| On-line upgrade | Serial port |
| Supply Voltage | 9~12V DC |
| Supply Current | ≤0.2A |
| Power Consumption | ≤2W |
| Operating Temperature | -40℃~+85℃ |
| Operating Humidity | 0~95%RH |
| Dimensions(H× W × D) | 136mm*112mm*29mm |
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?

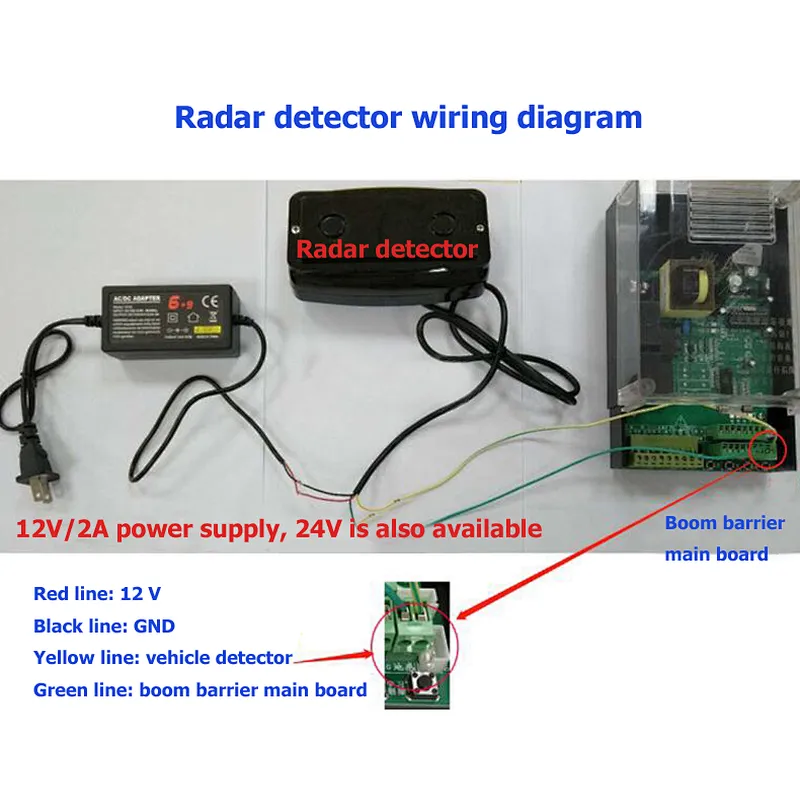

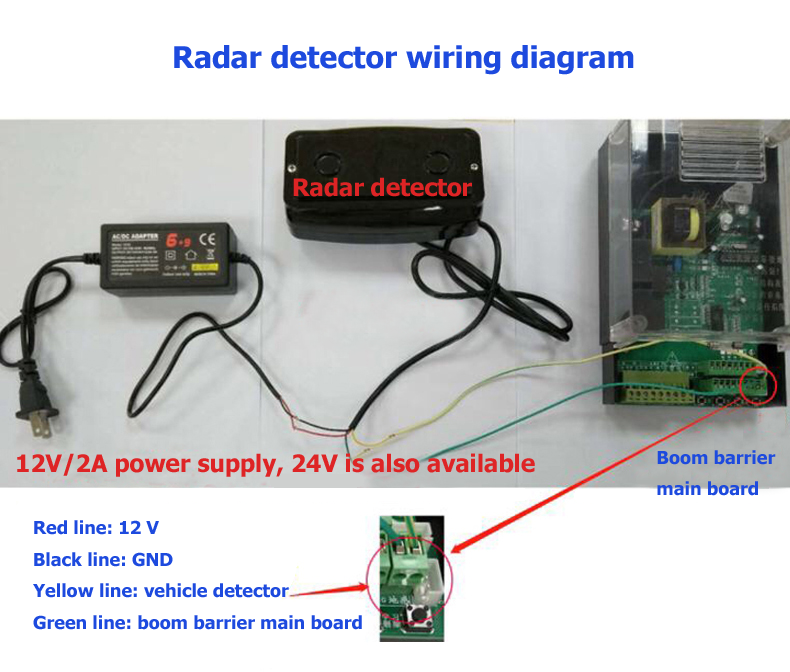

A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
