Access control rfid card 125khz reader /IC reader/ID reader

 Access control rfid card 125khz reader /IC reader/ID reader

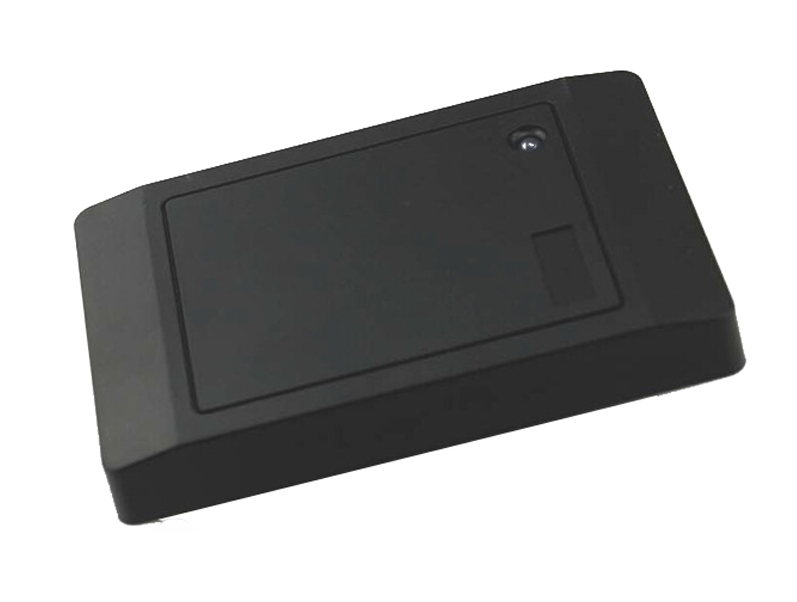

Item Type: black 125khz card reader

Frequency: 125khz

Work output interface: wiegand 26/34, RS232, RS485

Dimension: 73x114x16mm

Working voltage: 9 to 16V standard 12V

Color: Black

Reading range: 2 to 10cm

Less than 0.2 second Response Speed

Less than 0.5 seconds Proximity Time Distance

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

100 Meters Communication Distance

Real Time Data Transfer

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Note: Regarding of the 125khz RS485 reader, there are two type optional.

Wire Connection

Red: DC 5V-16V

Black: GND

Blue: D1

White: D0

Brown: BEEP

Green: LED

Yellow: Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

1. Normally, we offer UPS/DHL/FEDEX/TNT express with door to door service if the G.W. of goods is less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.
2. If G.W. is over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to the airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the customs clearance and goods transportation. The air shipping is about 2-7 days.
3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service.

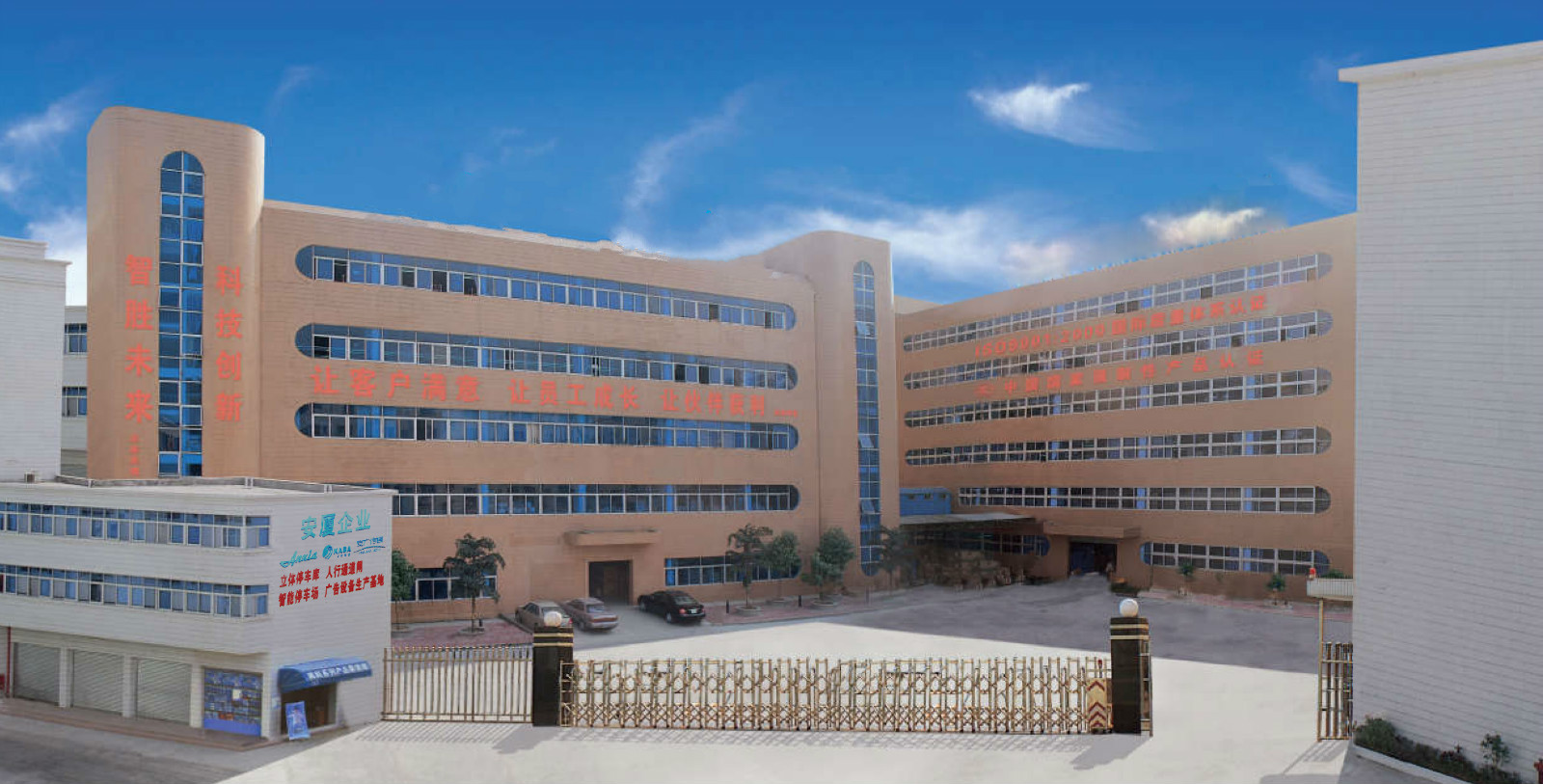

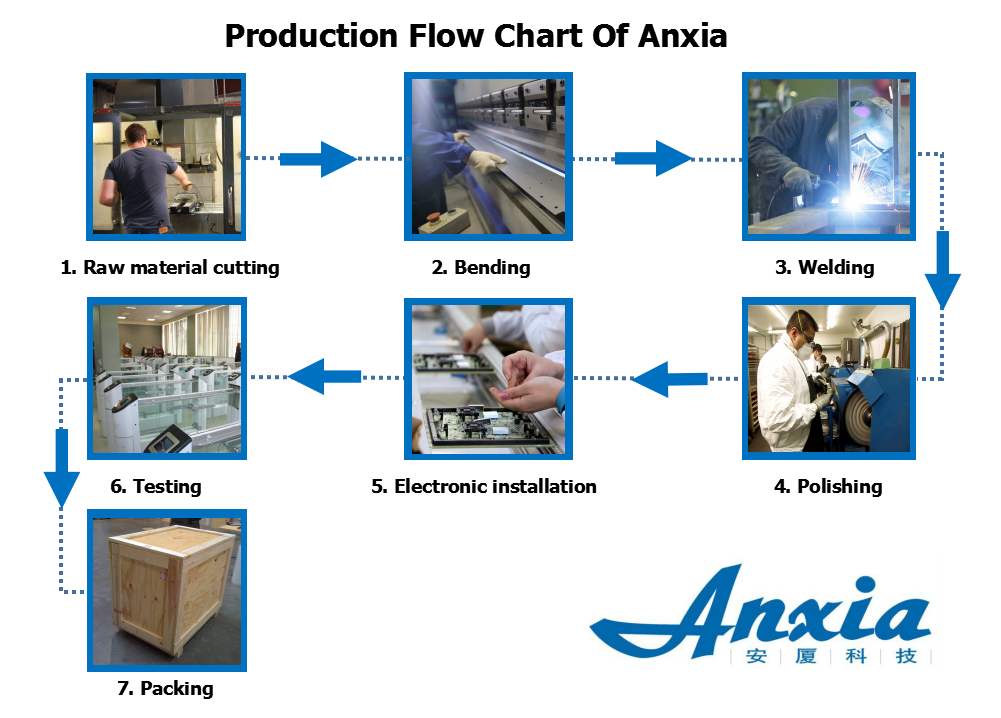

Shenzhen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
