- Special Features:Alarm I/O
- Customized support:Online technical support
- Place of Origin:China
- Brand Name:Anxia
- Model Number:AX-B04
- Product Name:Access Control Board For Turnstile Barrier Gate
- Material:Stainless Steel
- Color:Grey
- Communication:TCP/IP and WAN
- Certification:CE
- Application:Access Control System
- Life span:Over 5 years
- Language:Customizable
- Keyword:Access Control Board
- Capacity:20,000100ms

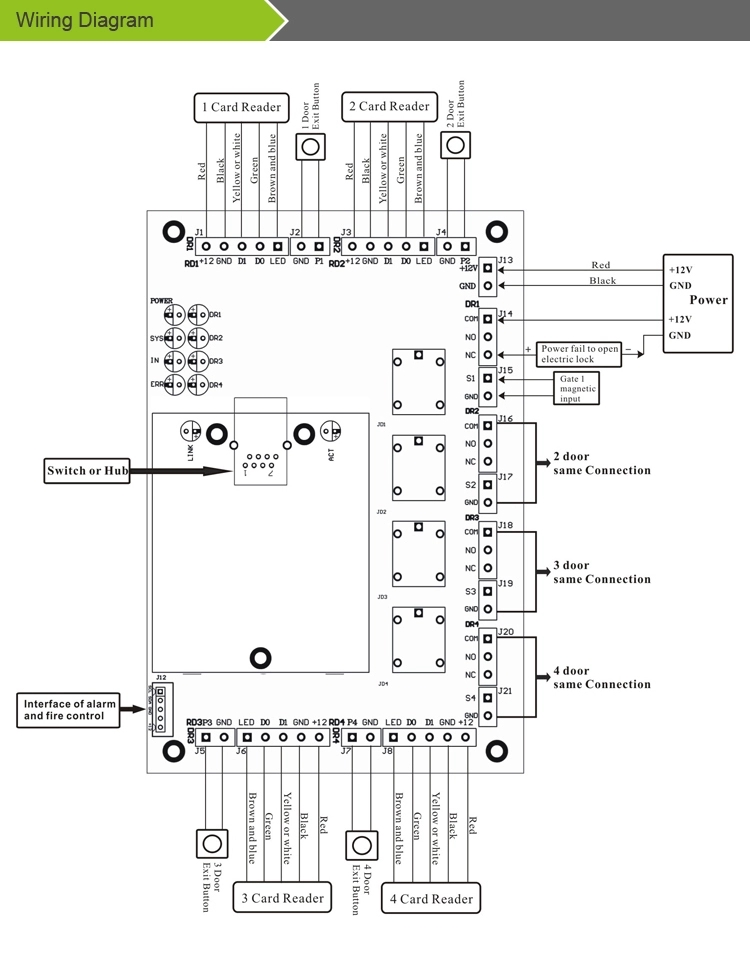

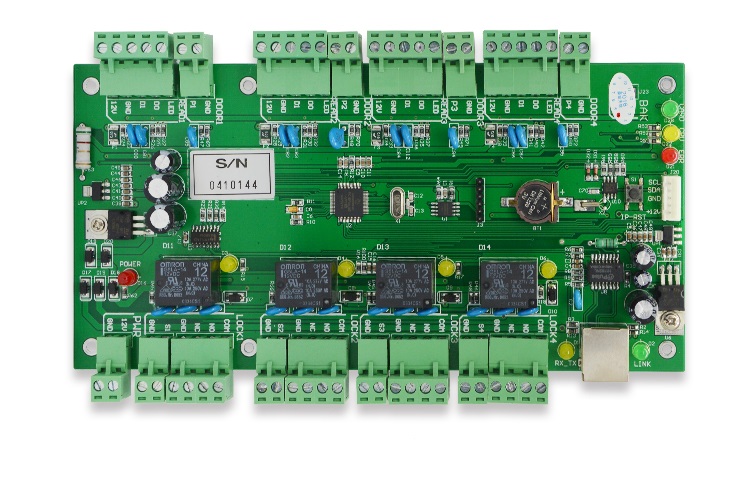

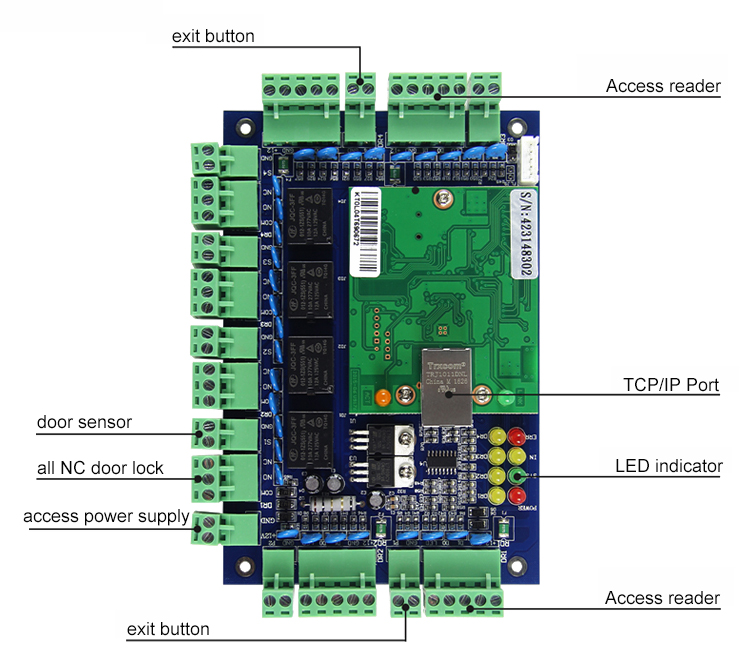

4 Doors TCP/IP Wiegand Access Control Board/Door Access Controller Systey

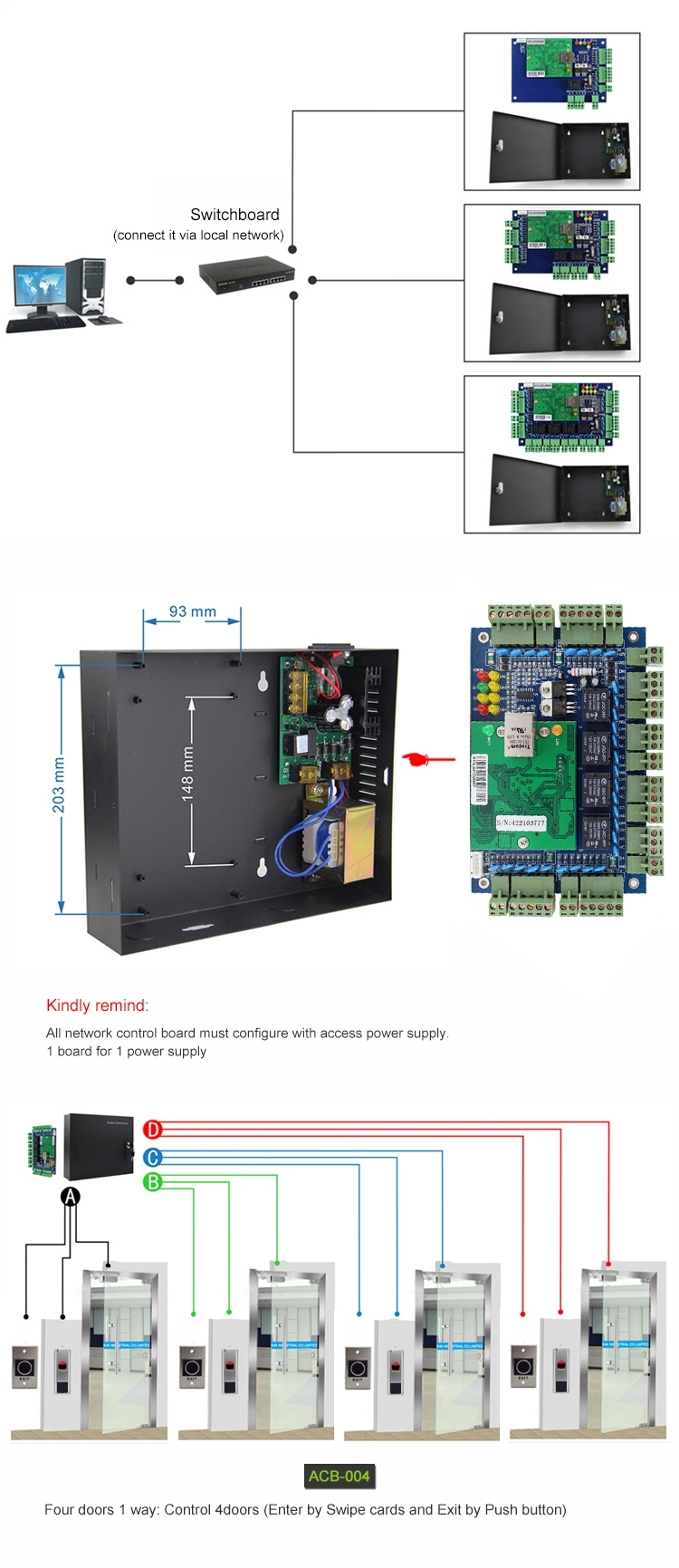

4 door access control panel

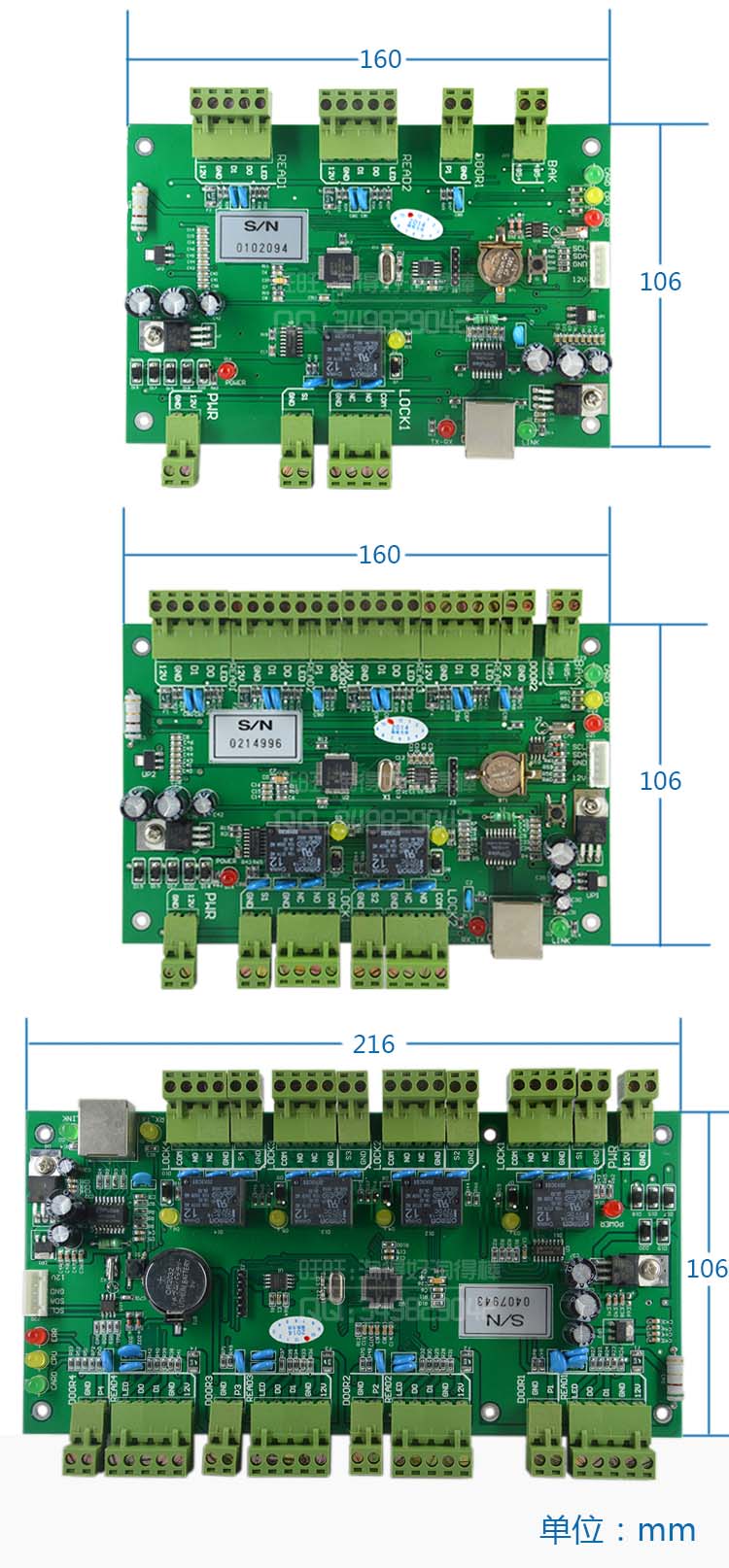

Four-door Network access control board built-in TCP/IP,

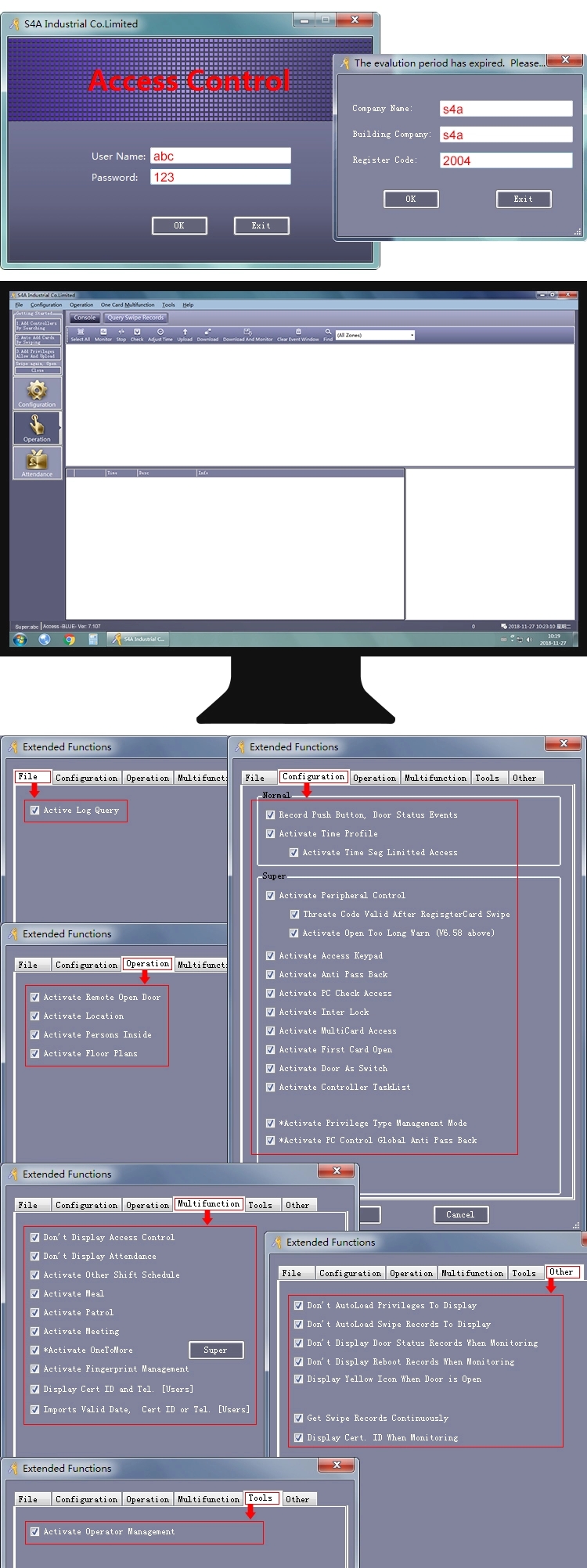

Support APP/4G/Web-server with free software.
| Model | AX-B04 |
| Communication | TCP/IP + Web controller + APP |
| Door control | 4 doors |
| Card Reader | 4 pcs |
| Power Supply | 12VDC; 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) |
| Door opening time extending setting | 1-600 Seconds(adjustable) |
| Max q ' ty of controller | Unlimited |
| Operation Temperature | -40°-70° |
| Operation Humidity | 10-90 % RH ,No Condensation |
| Q ' ty of users | 20,000 Users |
| Q ' ty of Event Buffers(offline) | 100,000 Event Buffers |
| Power interruption protection measure | High Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100M (suggestion distance 80m) |
| Max Distance between Controllers | Depand on network range |
Shenzhen Anxia Heavy Industrial Co., Ltd. was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
Q1: Do you have the English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you a copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
4 Doors TCP/IP Wiegand Access Control Board/Door Access Controller System
4 Doors TCP/IP Wiegand Access Control Board/Door Access Controller System
4 Doors TCP/IP Wiegand Access Control Board/Door Access Controller System
