- Place of Origin:CN;GUA
- Brand Name:Anxia
- Model Number:AX-156 Turnstile IP66
- Material:Stainless Steel Turnstile IP66
- Gross weight:85kg

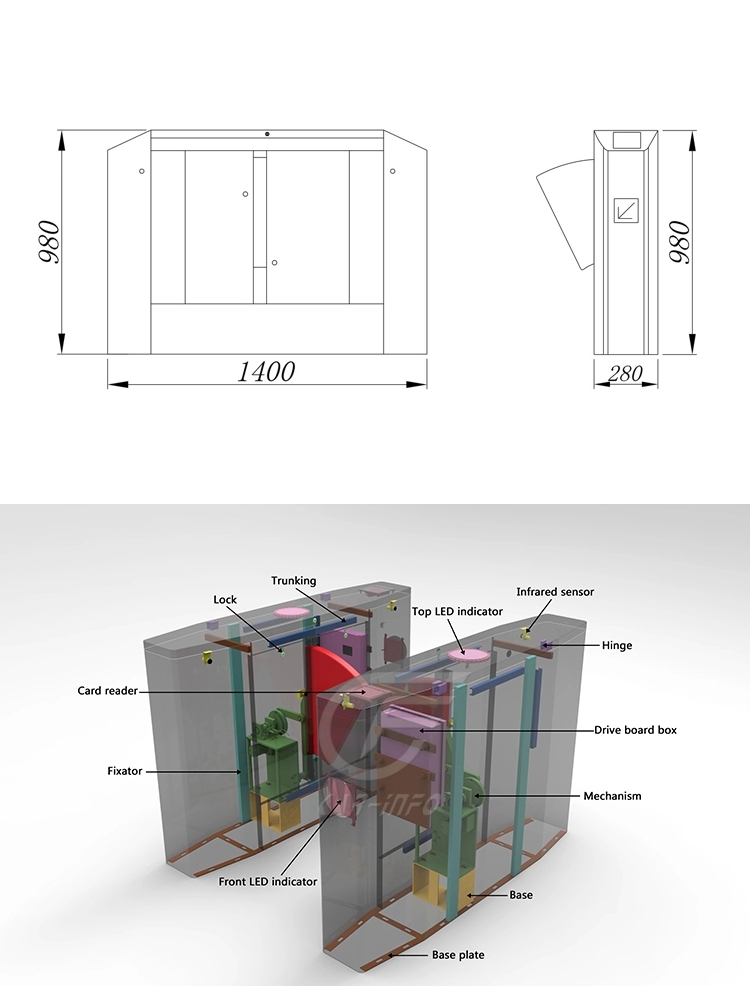

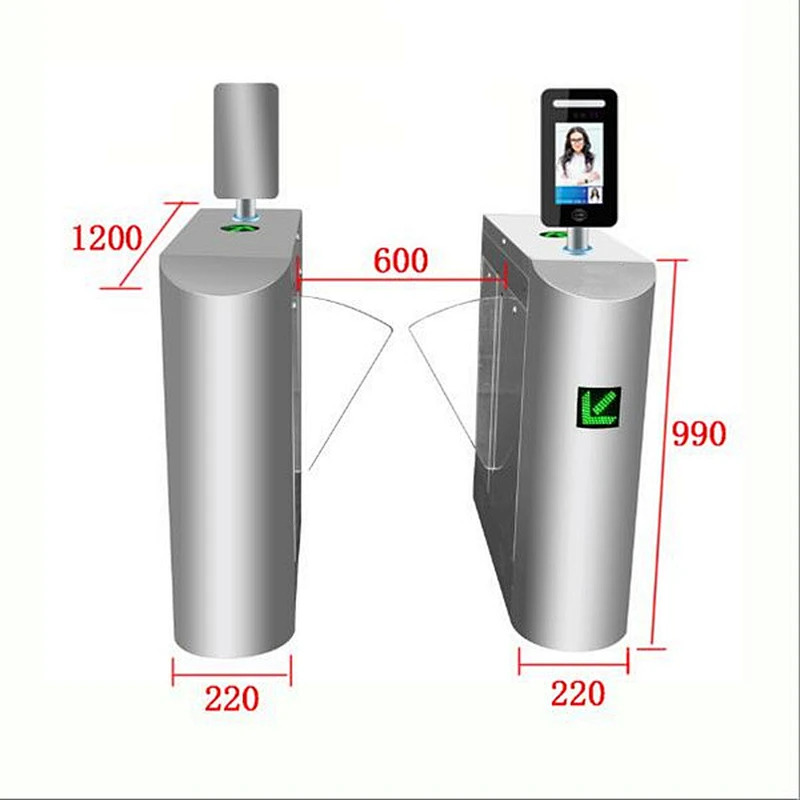

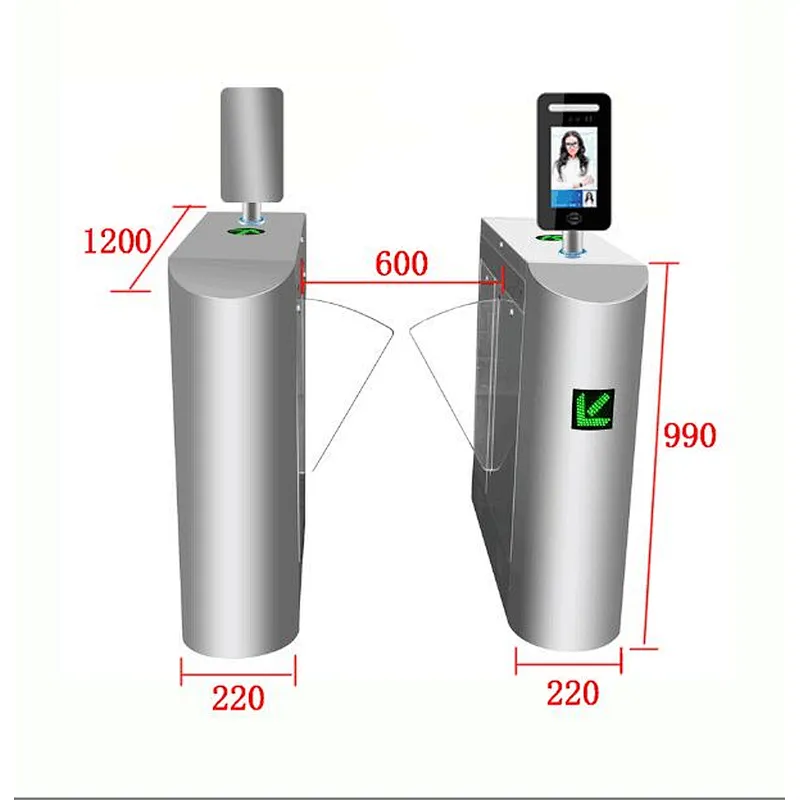

- Size:1380*320*980mm
- Power supply:220V
- Product name:Flap turnstile IP66
- Warranty:1 year
- Housing thickness:1.5 mm
- Temperature:-30℃ ~ 60℃
- Working Temperature:-15°C ~ 50°C
- Working environment:indoor and outdoor

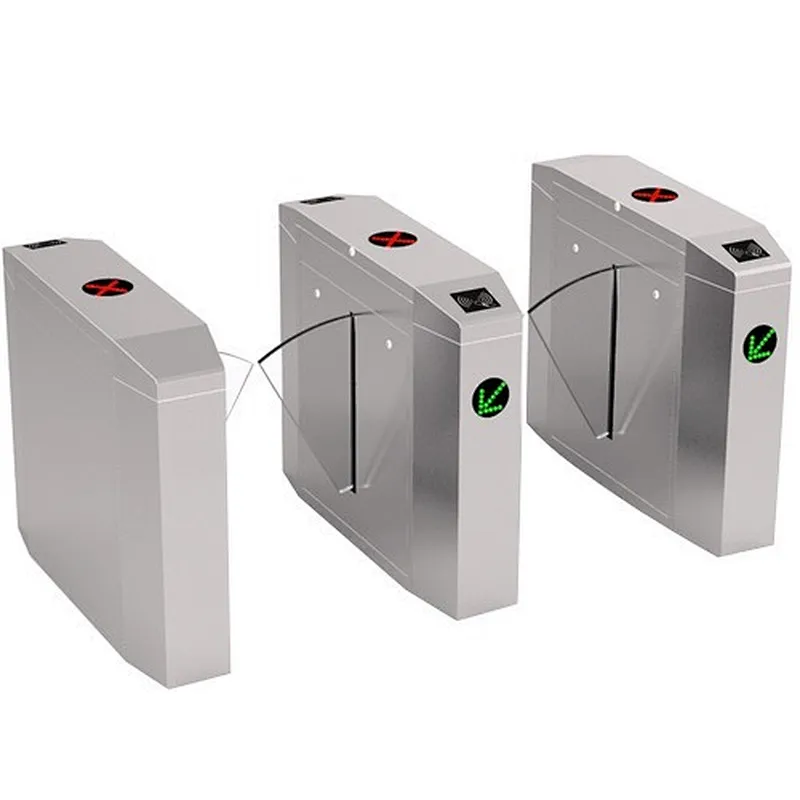

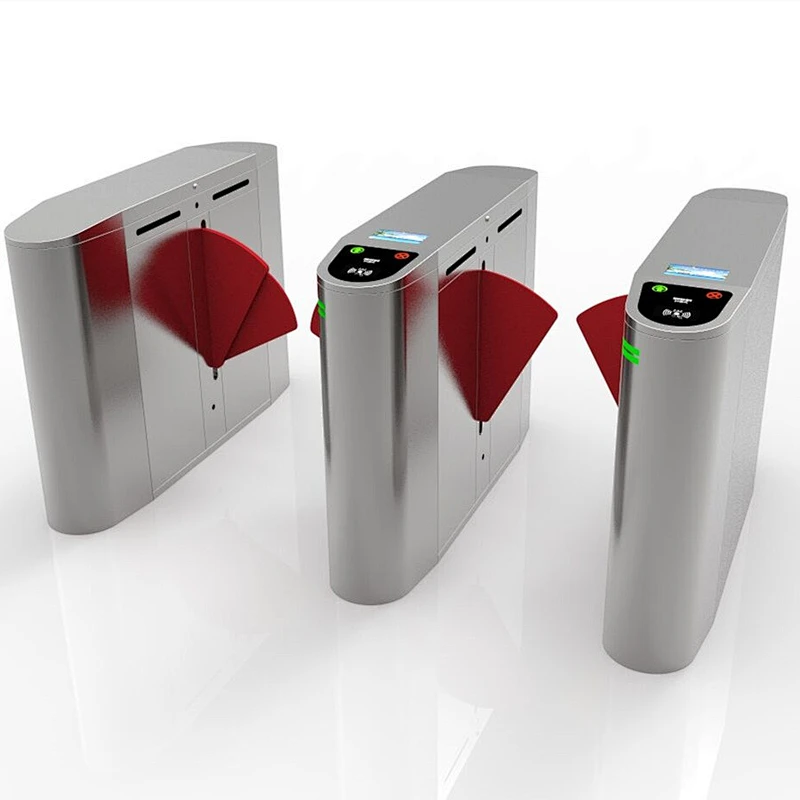

Wholesale OEM ODM Waterproof 0.2s High Speed RFID Swing Gate Turnstile IP66
Main Technical Specifications:

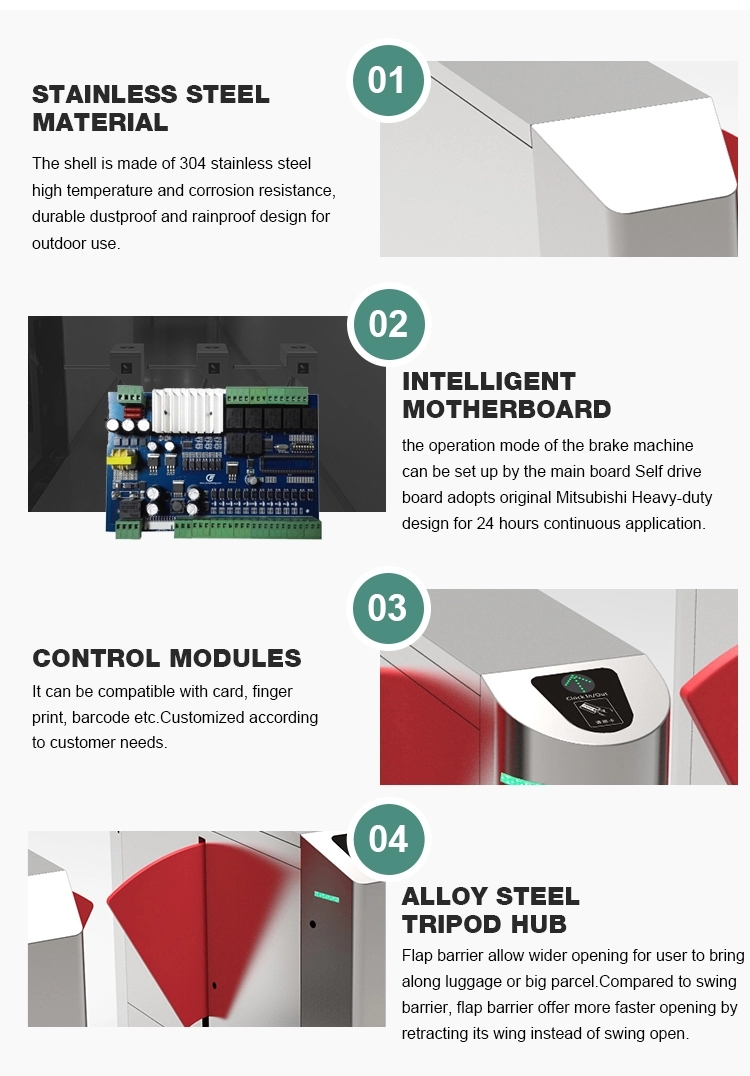

Material | SS304,thickness is no less than 1.5mm |
Manufacturing Technique | CNC laser cutting |
Barrier Material | Acrylic glass, SS304 and so on |
Gate Opening and Closing time | ≤ 0.4S |
Passing Speed | Normally open-50persons/min; Normally closed-50persons/min |
Communication Connection | RS485 Communication |
Power | AC220C±10V,50HZ |
Motor | DC Brushless Motor, 140W/24V |
Communication Distance | ≤1200M |
Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |

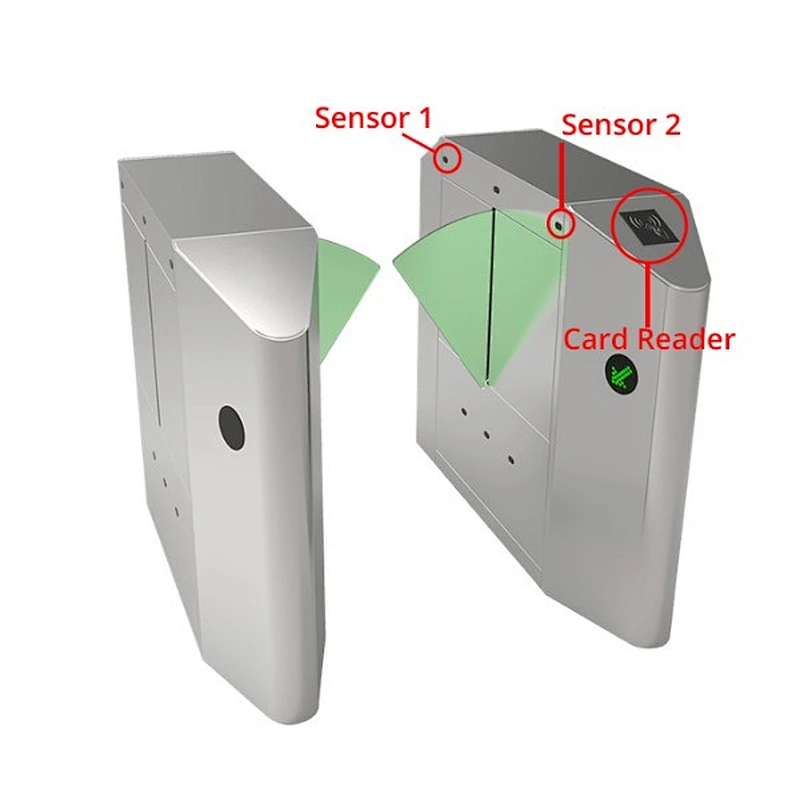

Infrared Sensors | 9 or 10 Pairs |
Relative Humidity | <95%, No Densation |
Operating Temperature | -15°C-60°C |
Working environment | Indoor and outdoor(added the rain-shed) |
Color | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like |
Protection Grade | IP54 |
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
