- Place of Origin:CN
- Brand Name:Anxia
- Product name:Automatic Tire Killer Road Blocker
- Surface treatment:Spray finishing
- Function:Road Safety Barrier
- Use for:Prison, office, school, government, etc.
- Place of Origin:Guangdong, China (Mainland)
- Color:customized
- Weight (Kg):+ 180 kg
- Material:304staineless steel or A3 steel with painting
- Certificate:CE
- Warranty:12 years

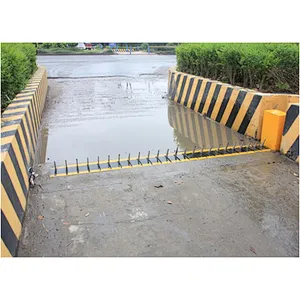

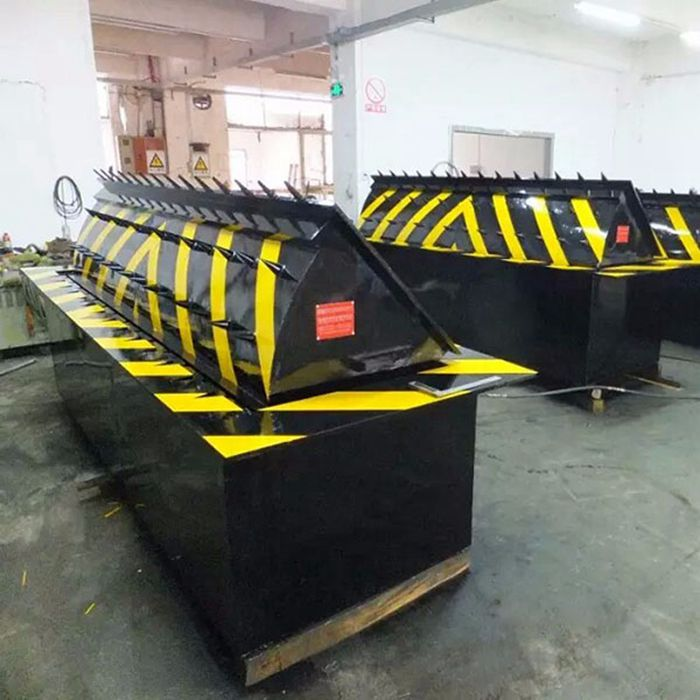

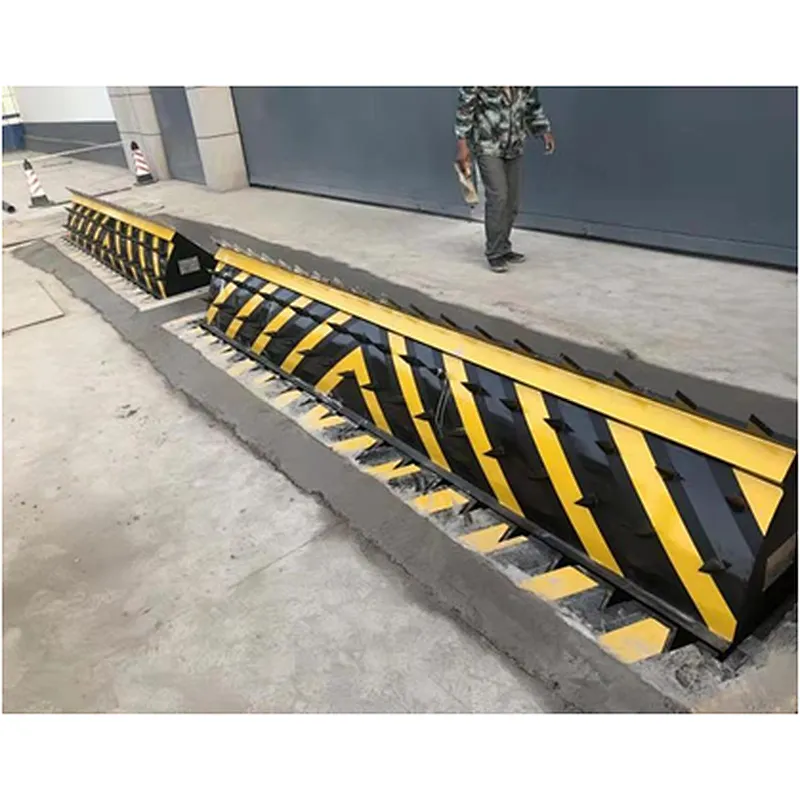

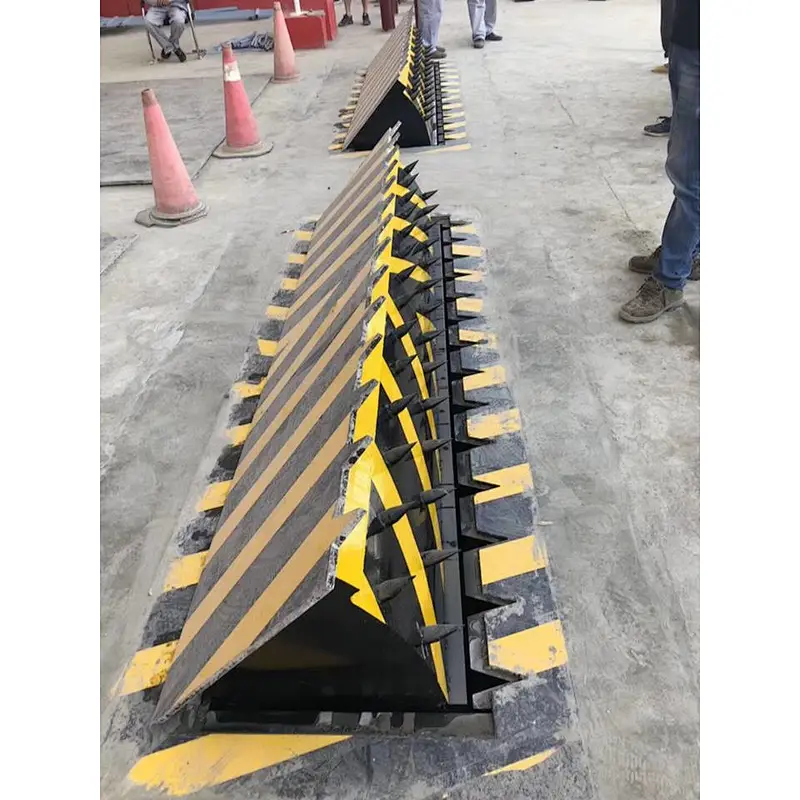

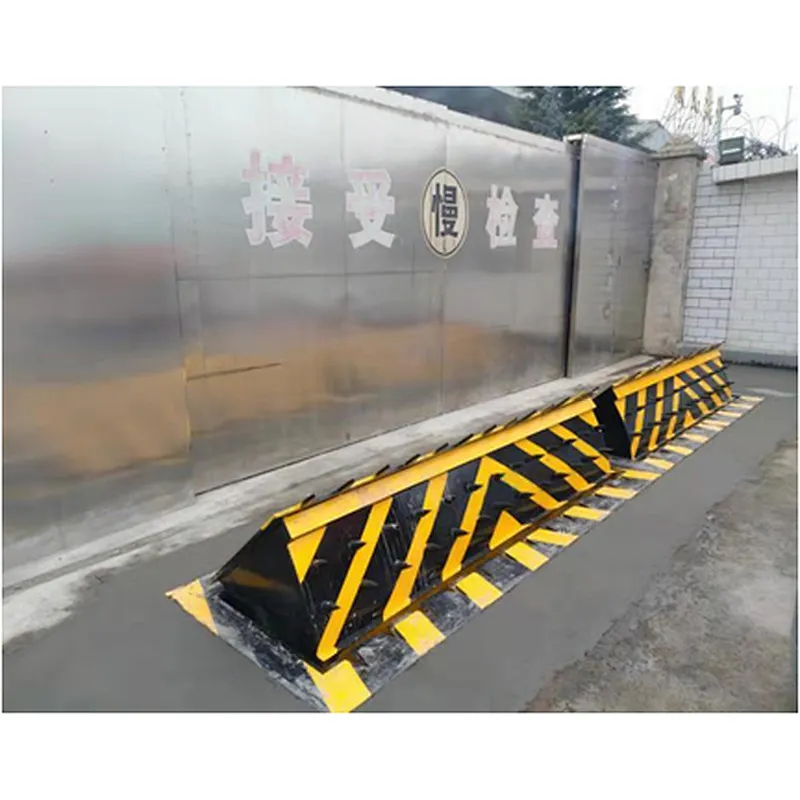

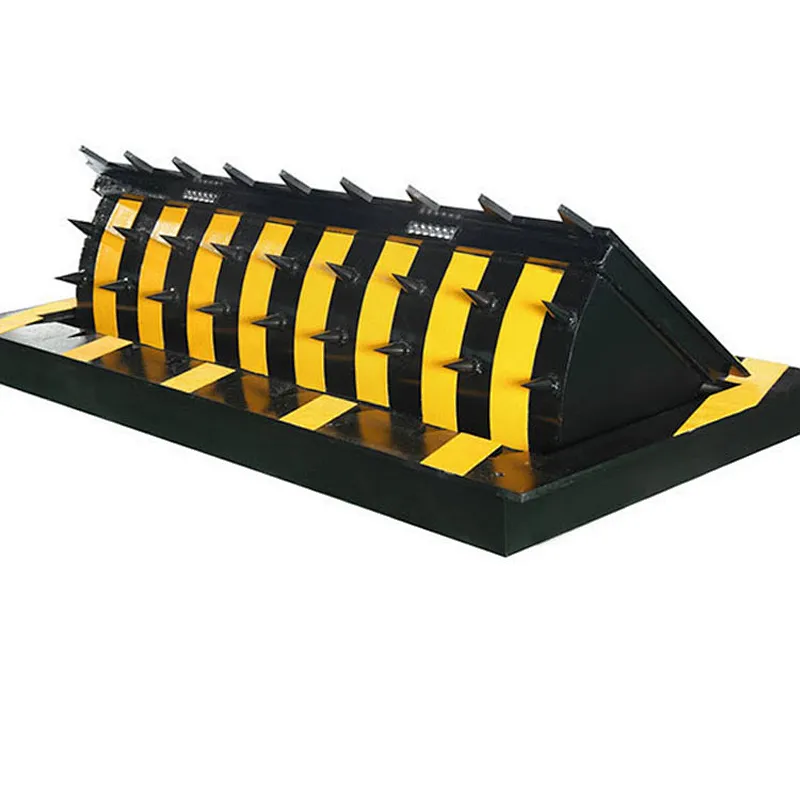

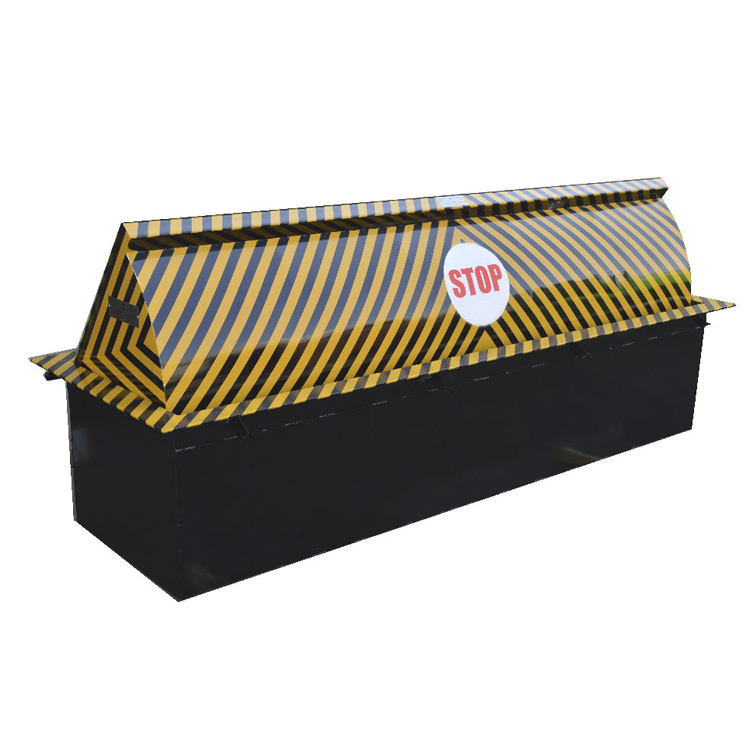

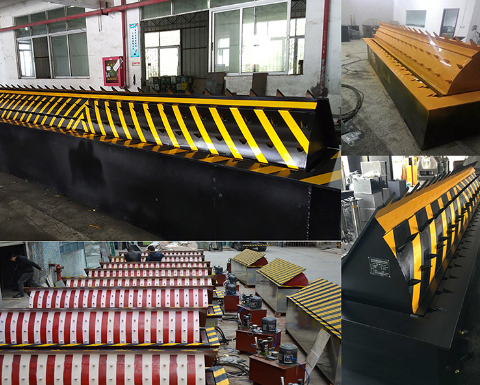

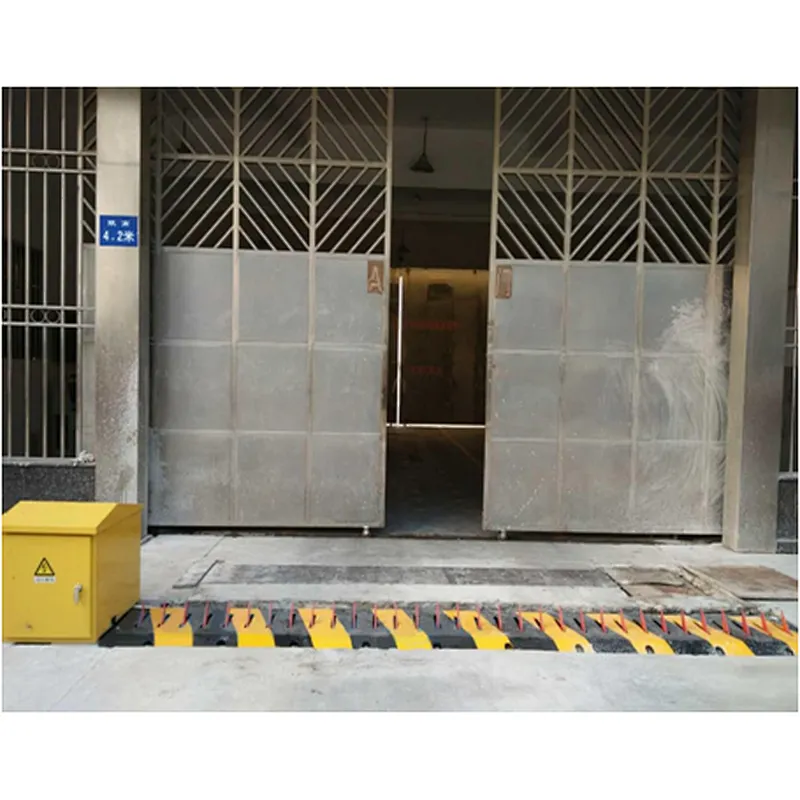

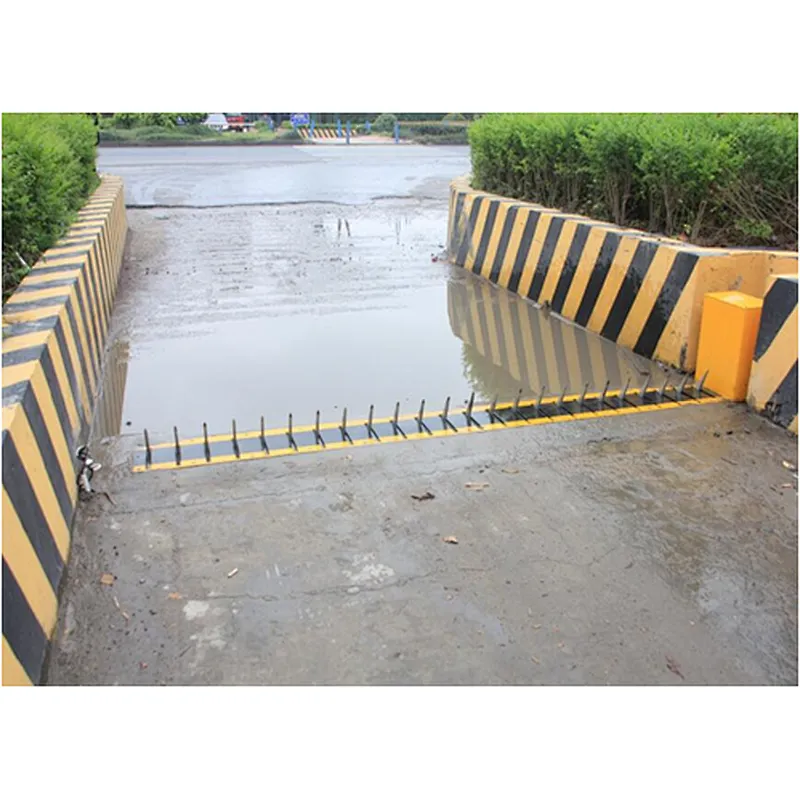

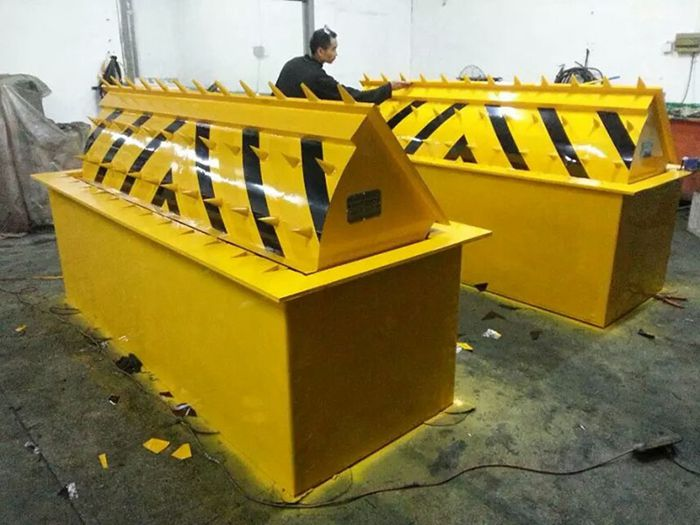

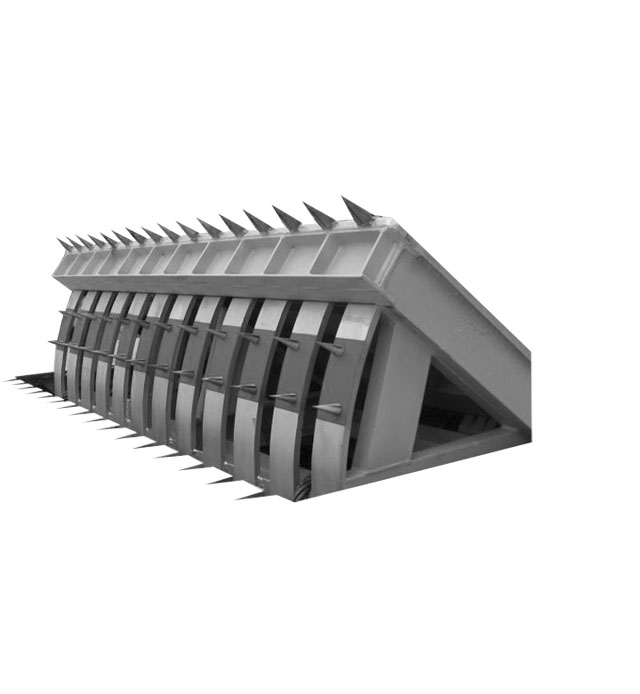

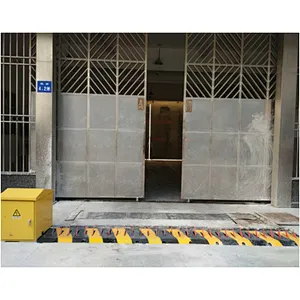

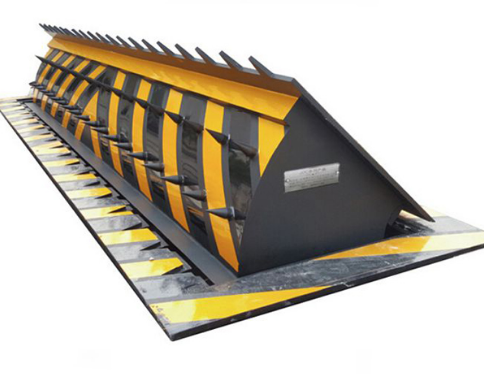

Traffic Road Equipment Access Control Block Automatic Tire Killer Road Blocker

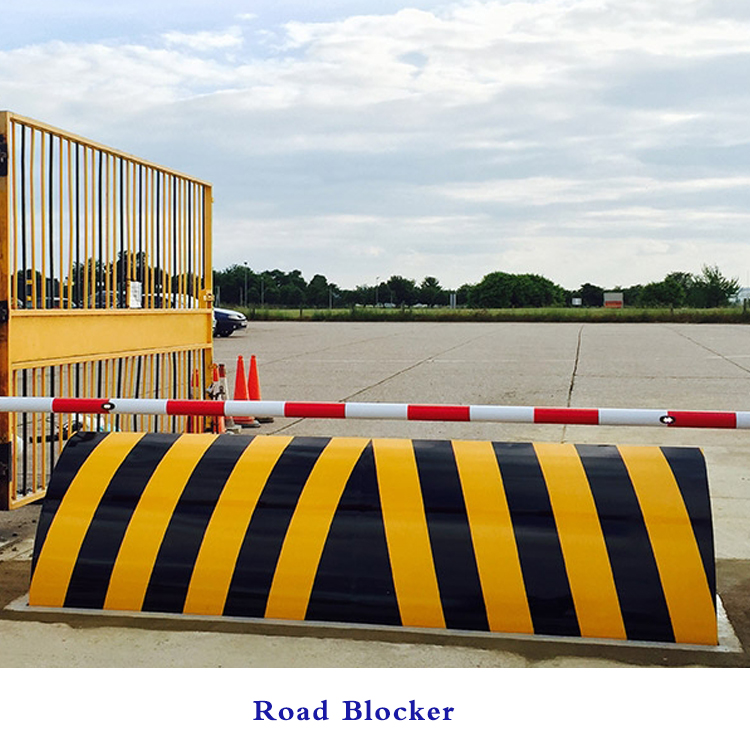

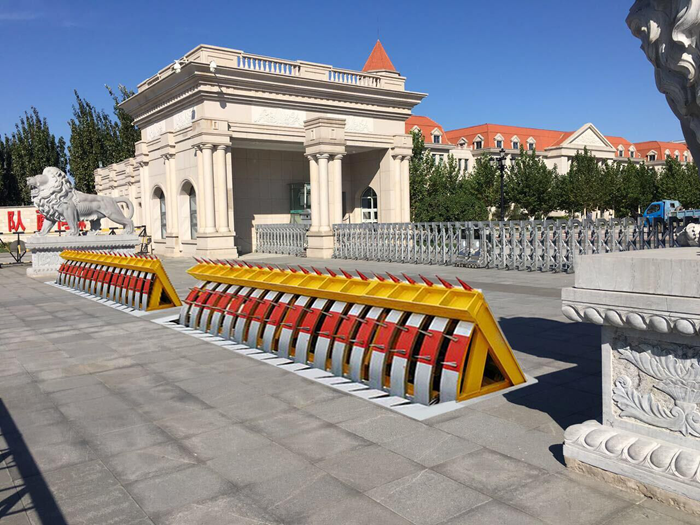

The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.
The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.
The Hydraulic Road Blocker can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)
Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
Advanced mature Hydraulic pressure technologies
Remote control system realize wireless control up&down within 30 meters range
Customized for different users requests
Controller display : LCD and LED
Swiping card system: built-in card reader to control bollards up&down
Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
Connected with Computer Management OR Charging Systems
1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,
the language is customized).
2, power supply voltage: 380V (control voltage 24V).
3. System Power: 3.7KW
4, pressure capacity: more than 120 tons of container trucks.
5, anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
5, protection level: IP68 (dustproof, waterproof)
5, open time: 3~6S (adjustable).
6, closing time: 3~6S (adjustable).
7, communication: RS485 ≤ 1200M.
8, the degree of elevation: 450mm-800mm.
9, working temperature: -45 ° C --- 75 ° C.
10, hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum can not exceed 70KGF.
11 Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.
12. Weight:2200kg-5500kg approx
Model | Dimensions | Flip height | Remark |
AX-RL03 | L3000*W1050*H600mm | 450-600mm | Size can be customized |
AX-RL04 | L4000*W1050*H600mm | 450-600mm | Size can be customized |
AX-RL05 | L5000*W1050*H600mm | 450-600mm | Size can be customized |
Thickness Customizable size: 20-30mm Increased customizable size: 400-800mm | |||
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
