- Product name:Road barrier gates
- Material:Galvanized Plate
- Length or arm:1 ~ 6 meters
- Size of housing:405 * 292 * 1019 mm
- Application:Parking Lot Boom Barrier
- OEM/ODM:Available
- Color:Orange, gold, blue, yellow, red
- Usage:For car parking access control
- Pass speed:1.6s, 3s, 6s optional
- feature:Parking boom barrier
- Brand Name:Anxia
- Model Number:AX - 304 Road barrier gates
- Place of Origin:CN;GUA

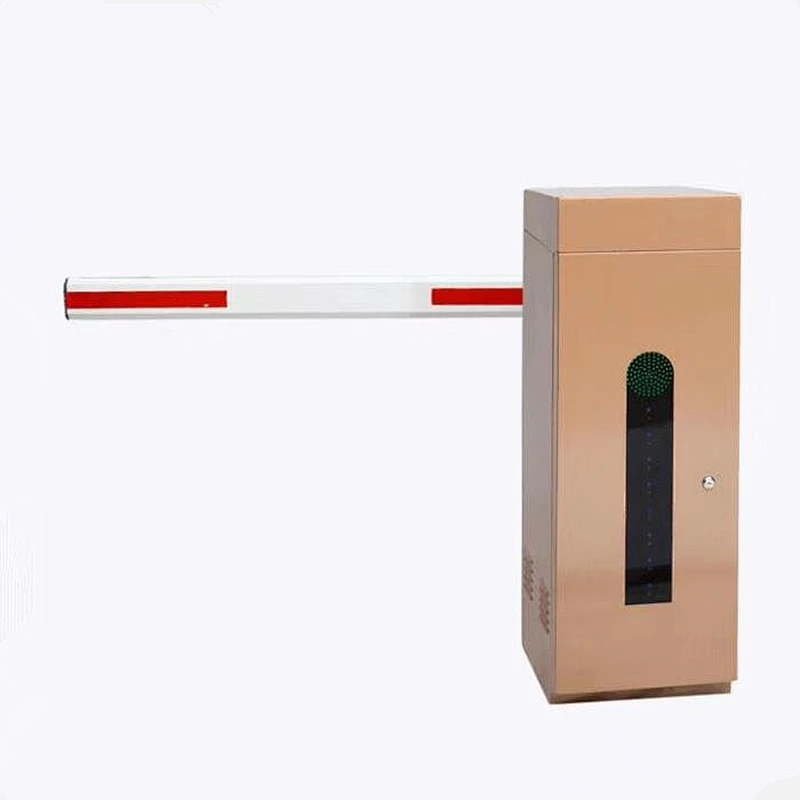

Quality Automatic Parking System Rising Arm Road Barrier Gates Malaysia Price
A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 15 year experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after after-sales service.
Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.
With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.
10 Million MTBF 100% Duty Cycle Auto Parking Barrier Gate This Parking Gate Barrier provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc. Thanks to DC motor, solar panel can be backup power supply.
Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Feature:
1. Speed is adjustable. 1.5 second motor, speed can be 1.5s ec to 3s ed ; And 3 second motor, speed can be 3s to 6s. Open & close speed can be different.
2. Auto bounce back function. Built-in sensor can detect when arm hits obstacle.
3. Auto slow down function. Barrier arm will auto slow down when it will fully close or open.
4. Intelligent limited sensor. Limited sensor can check open & close position automatically. No need adjust it by hand.
5. Position memory function. The motor can remember limited position, so it will move back to right position even we turn motor handle to avoid motor stuck.
6. Lower working temperature. No thermal protection even we don’t add fan to cool motor.
7. Longer working life. It can open and close 3million times.
Description

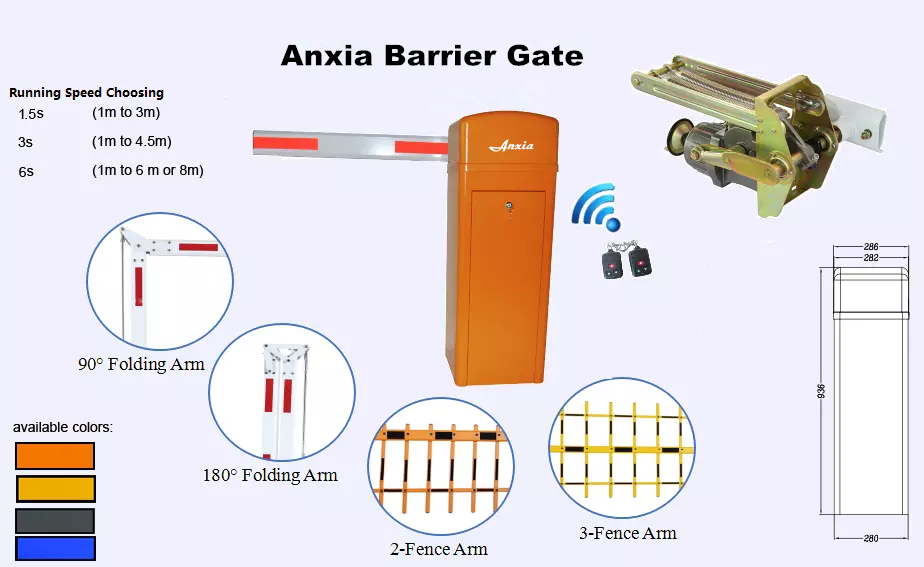

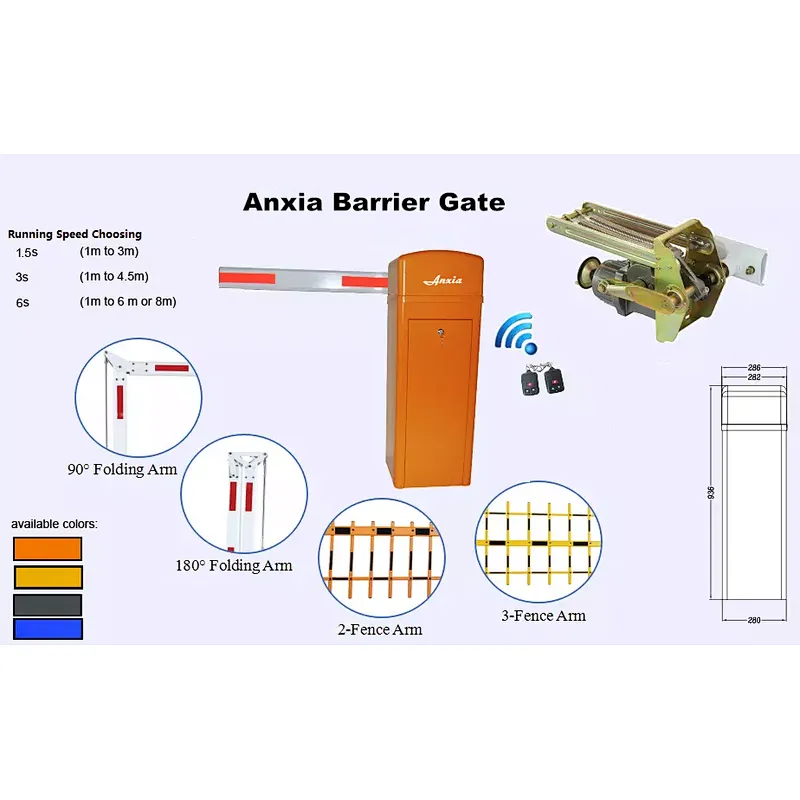

1) Open/close time: 0.9~6 sec. adjustable
2) Max. 6m straight arm with rubber bar
Max. 5m folding arm with rubber bar
Max. 4.5m fence arm with rubber bar
3) Inclusive of arm, 2 remoters, and"push button"which opens/closes barrier
4) Exclusive of LED light bar, boom bracket and anti-collision mechanism: need to buy extrally
5) Optional housing color: yellow (default),orange, white, red and blue

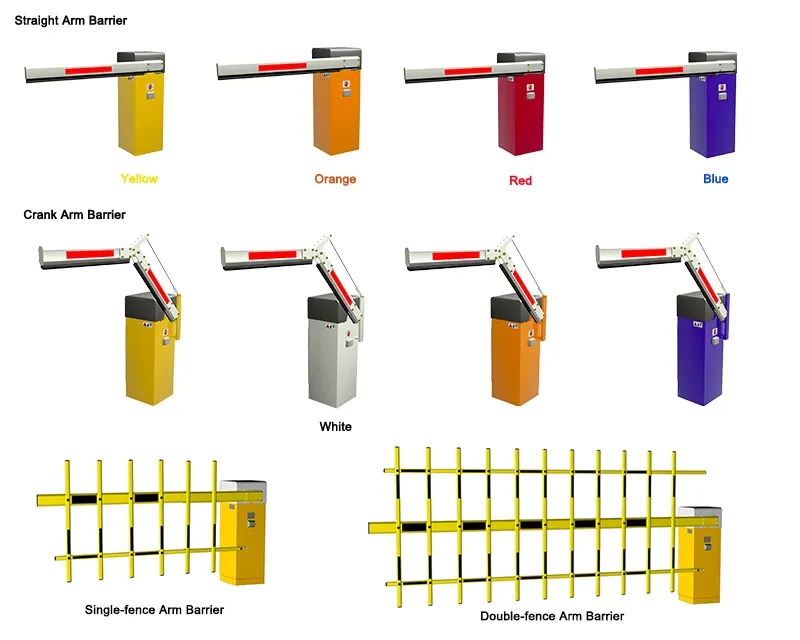

6) Easily change different boom type (straight/crank/fence) without replacing any parts
7) Boom direction is exchangeable without replacing any parts
Product parameter:
| Voltage | DC 24V |
| Motor power consumption | 60W |
| Temperature | -30~75℃ |
| Humidity | ≤90% |
| Boom length | Customize according to on spot |
| Open/close time | 1.5s~6s |
| The height of boom support | 890mm |
| Remote control distance | ≤30m |
| IP | IP54 |
| Input interface | +12V relay signal or≥100MS pulse signal |
| Remote control frequency | 430.5MHz |
Product pictures:

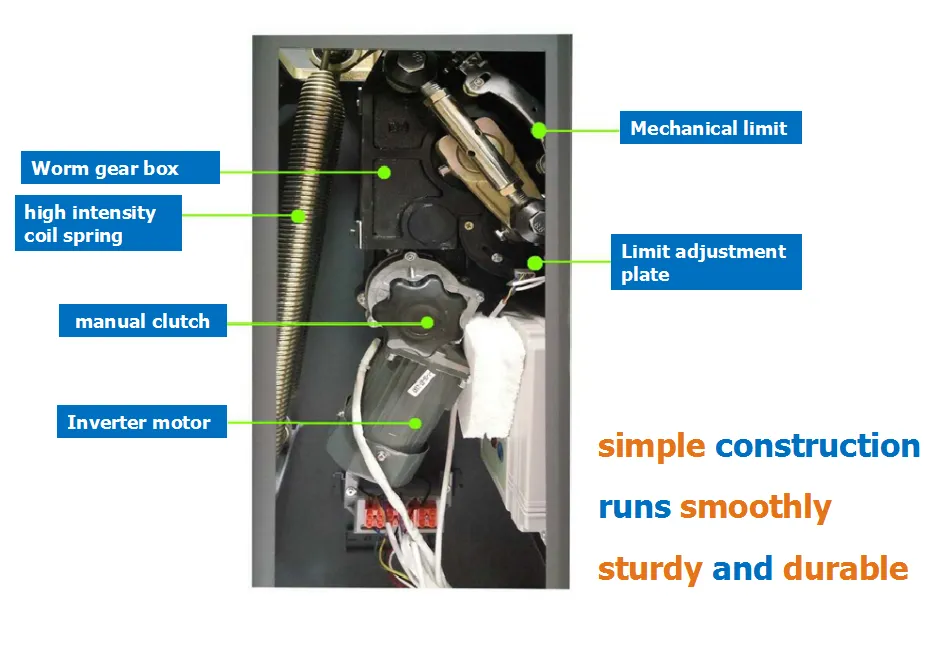

Interior Structure:
56 Hours Aging Test Ensures Quality
All barriers will be executed aging test for 56 hours, automatically open and close without hanging boom every 10 sec. The qualified barriers will be moved to warehouse for keeping stock. If an order is coming, just hang boom to barrier and keep testing before delivery. This ensure both good quality and fast lead time.

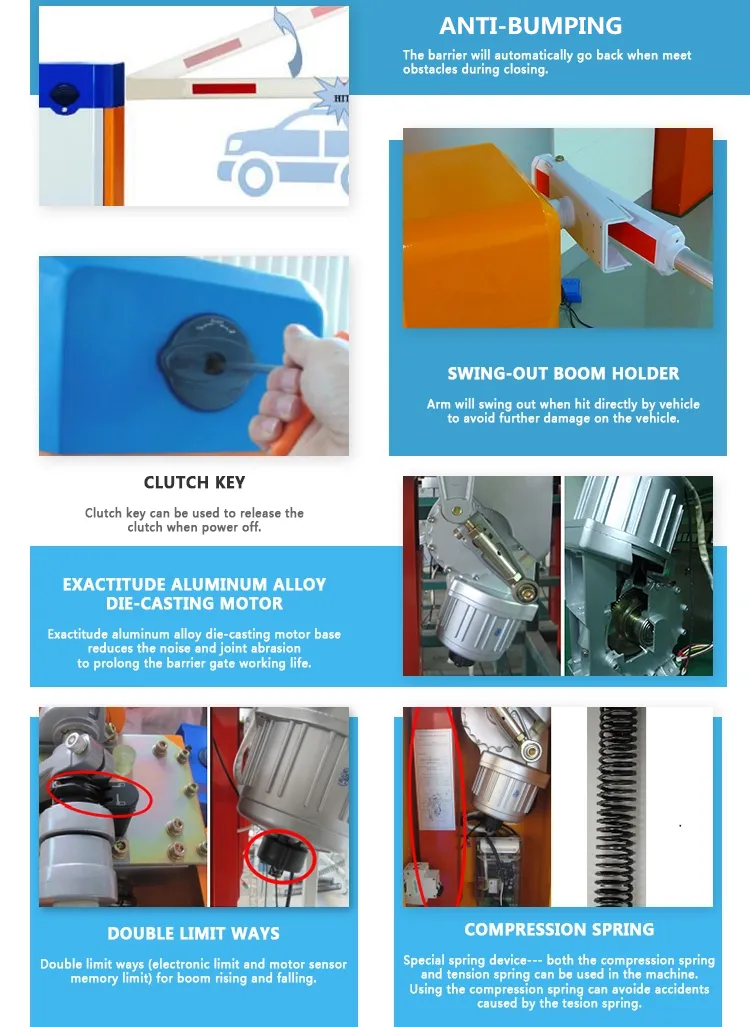

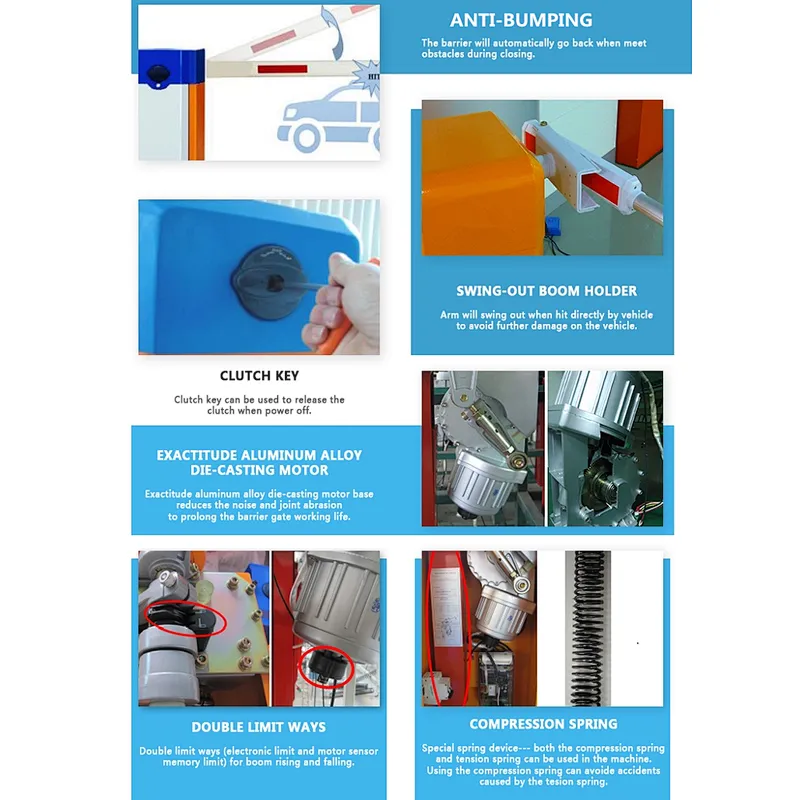

More Features
1. Quite smooth moving with Max. 6m boom
2. 0.9~6 sec. speed adjustable
3. Different types of boom is changed without replacing any parts
4. Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake
5. Simplified design, easy installation and maintenance reduces your labor cost
6. Boom open up fully or close down in case of power failure
7. Alarm when boom swing-off (Optional)
8. Safety of Vehicle--- Anti-hit by Loop Detector (Optional)
9. Safety of Vehicle--- Anti-hit by IR photocell (Optional)
10. Safety of Vehicle--- Anti-hit by"Opening Priority"
11. Automatically lock boom when power off
12. Closing Priority
13. Automatically close in given time (Programmable)
14. Automatically close or open by loop detector (Optional)
15. Heavy-duty and simple-design housing
16. Anti-condensation in cold climate
17. Transparent plastic covers on control board
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
