- Place of Origin:CN;GUA
- Brand Name:Anxia
- Model Number:AX-7583
- Material:304 Stainless steel
- Power voltage:AC220±10%,50Hz
- Drive voltage:DC24V 20W
- Dimension:(Customized Optional):1200*300*980m
- Communication port:RS485
- Feature1:fingerprint flap barrier
- Feature2:door flap

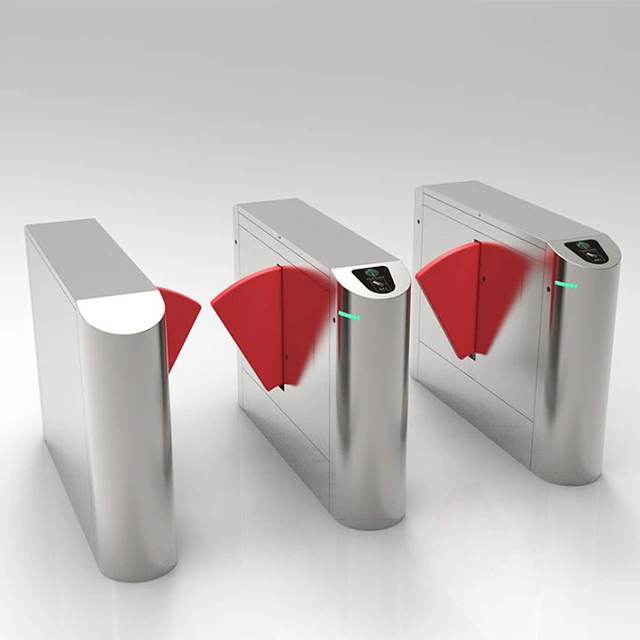

- Feature3:qr code flap barrier
- Feature4:ethernet flap gate
- Feature5:flap barrier gate

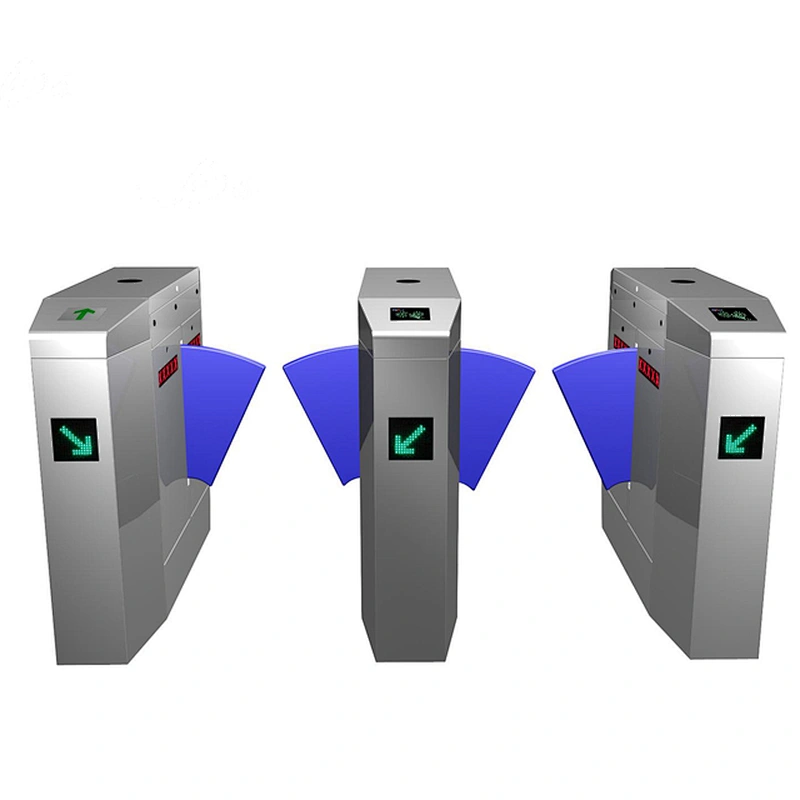

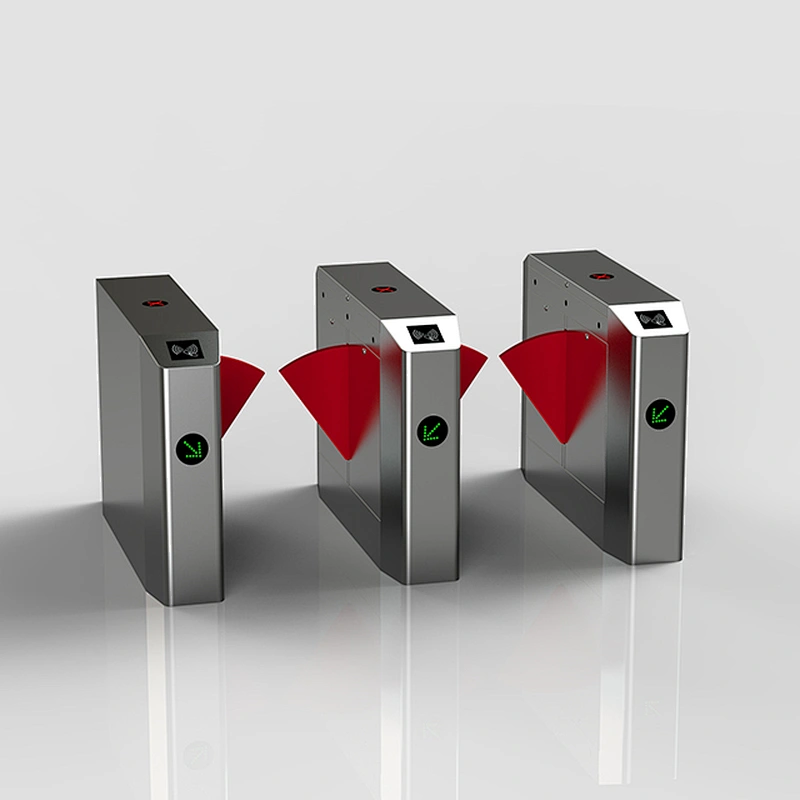

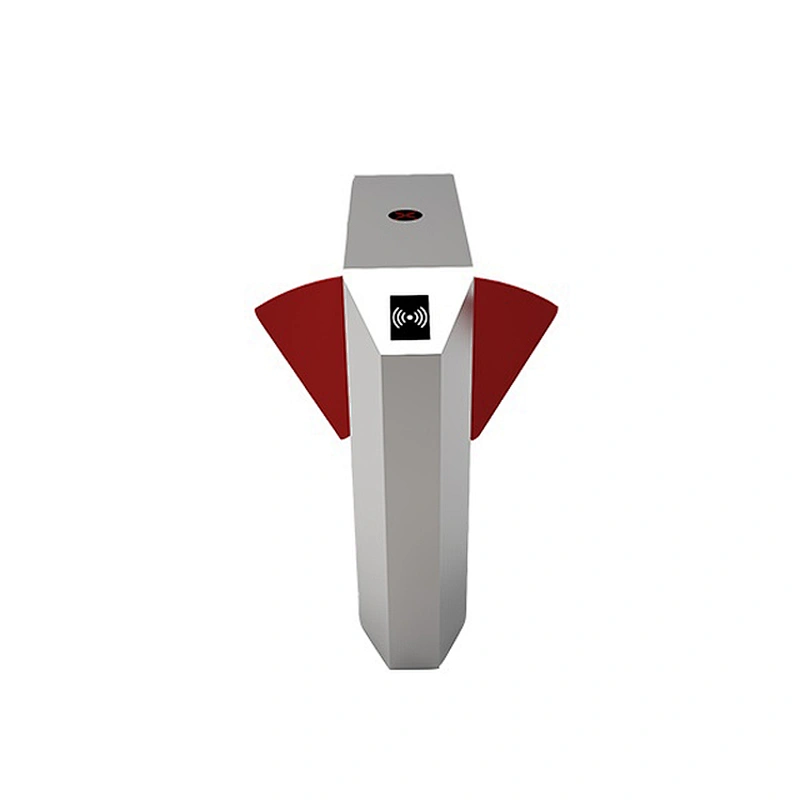

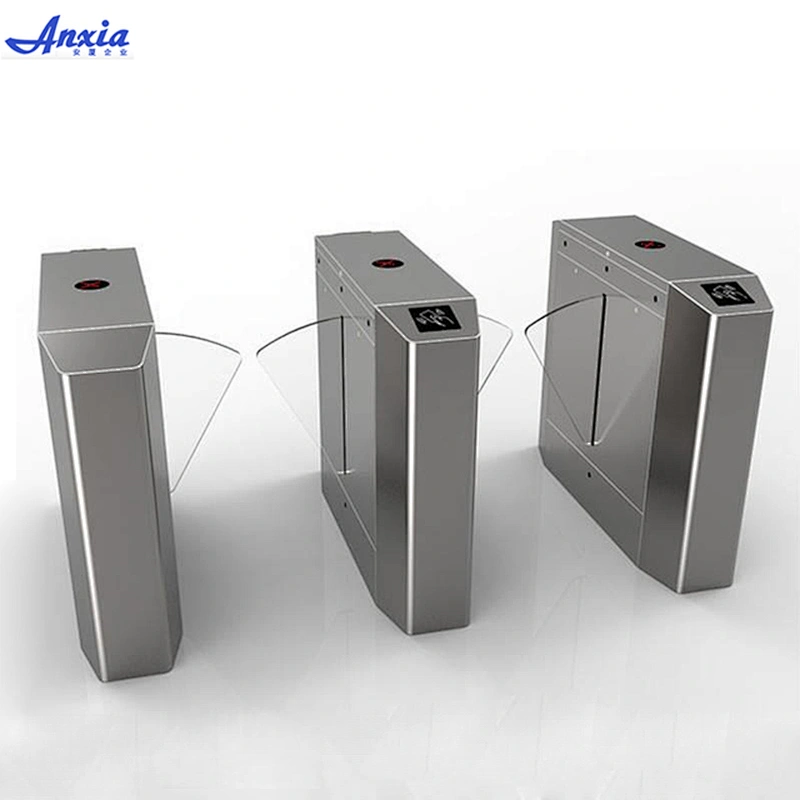

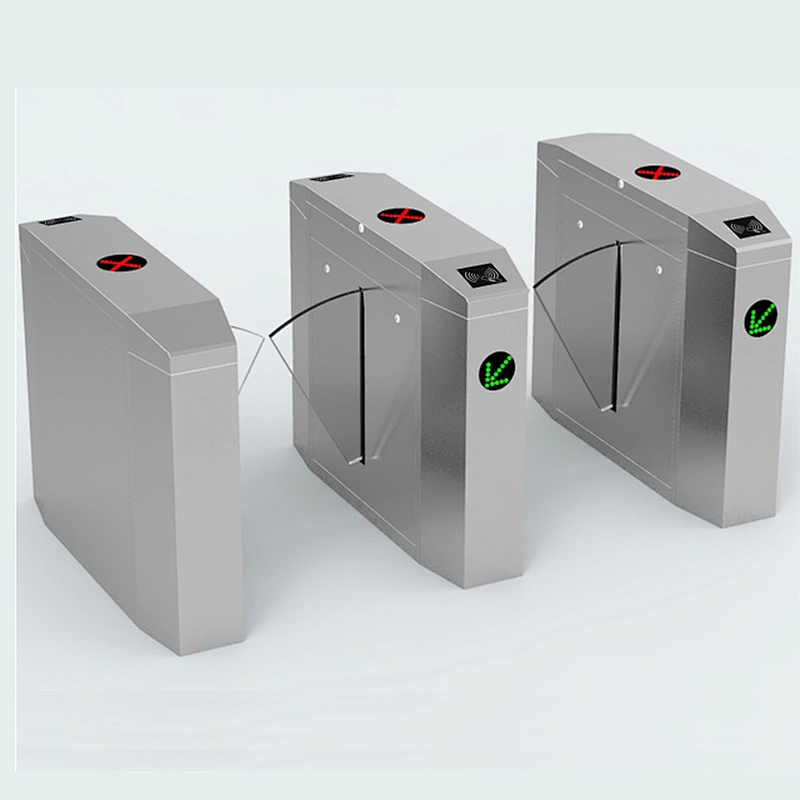

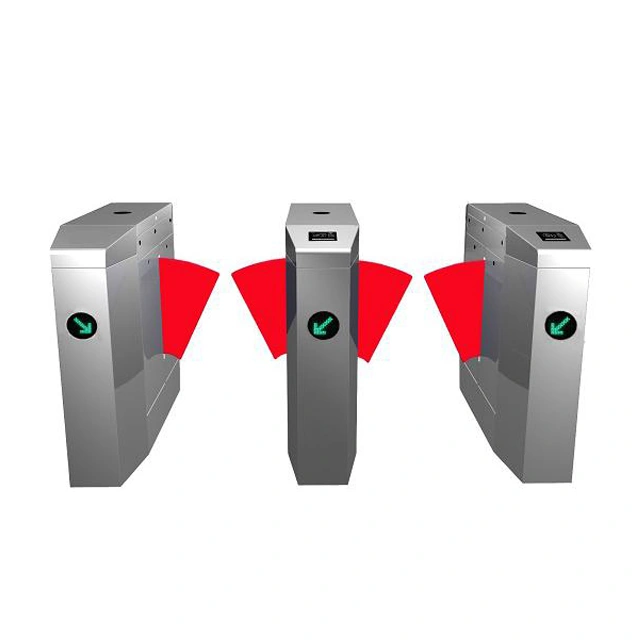

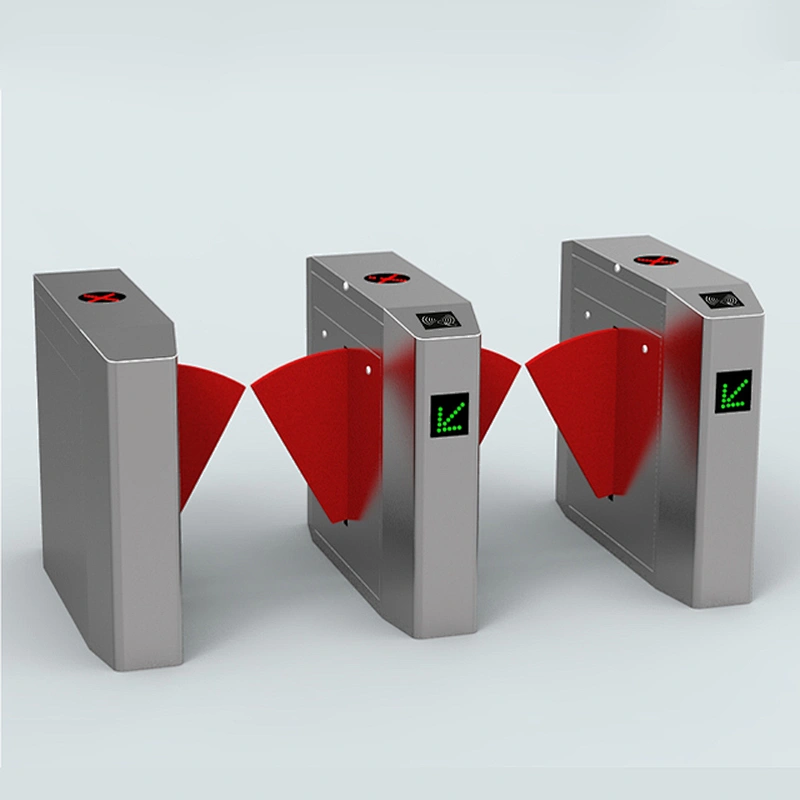

Retractable flap electronic gate barrier 1.5mm thickness 304 stainless steel card reader access control flap barrier gate
Product application
1.Flap gate are compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3.Flap gate is ideal for indoor and outdoor settings.

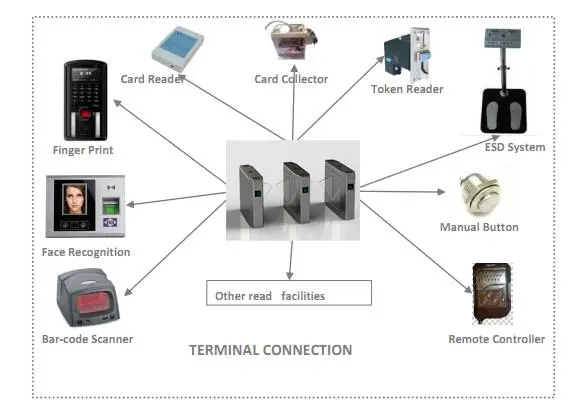

4.It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and face recognition device).
5.In case of emergency, the Flap gate will open when power off.
6.It is suitable for all kinds of places
Features:
SUS 304 stainless steel casework ensure long-lasting durability
High quality electrical
Barriers retract automatically during emergencies
Barriers retract automatically during power outage with battery installed
All smooth finish. No exposed screws
Ergonomic design makes card and fingerprint authentication fast & simple for users
Can be integrated with both card reader and fingerprint device.
LCD on the flap barrier control board, easy operation.
PRODUCT SPECIFICATION:
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature | -28℃~60℃ |
| Working humidity | 5%~80% |
| Working environment | Indoor/outdoor (if sheltered) |
| Speed of throughput | RFID – Maximum 42/ minute |
| Fingerprint – Maximum 35/ minute | |
| Face – Maximum 11/ minute | |
| Vein – Maximum 23/ minute | |
| Lane width(mm) | 600 |
| Footprint(mm*mm) | 840*870 |
| Dimensions(mm) | L=870,W=300,H=1000 |
| Dimension with packing(mm) | L=1000,W=430,H=1110 |
| Net weight(kg) | 58 |
| LED indicator | Yes |
| Cabinet material | SUS304 Stainless Steel |
| Lid material | SUS304 Stainless Steel |
| Barrier material | Acrylic |
| Barrier movement | Retracting |
| Emergency mode | Yes |
| Security level | Medium |
| MCBF | 2 million |

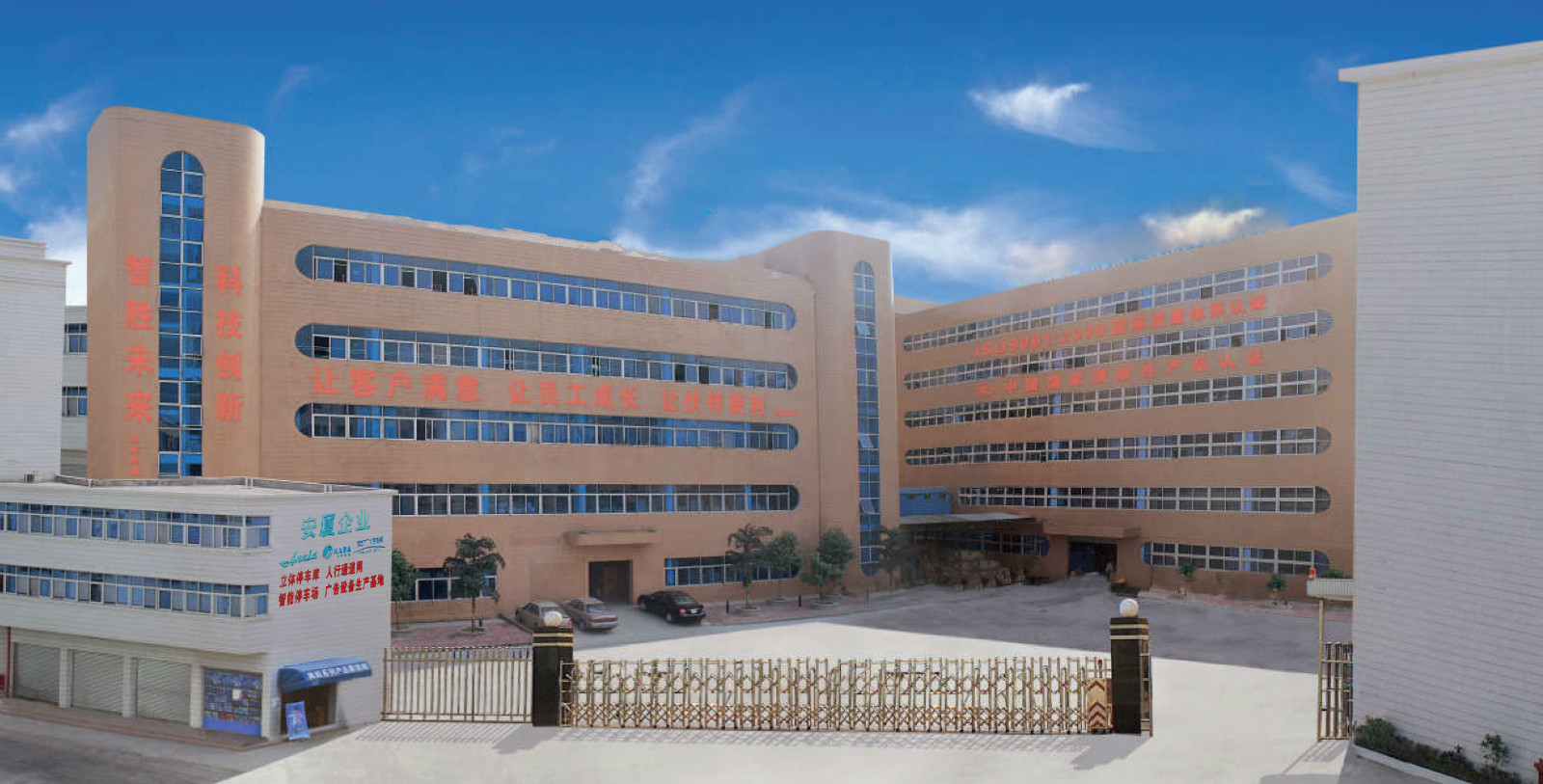

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Certificate of Honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
