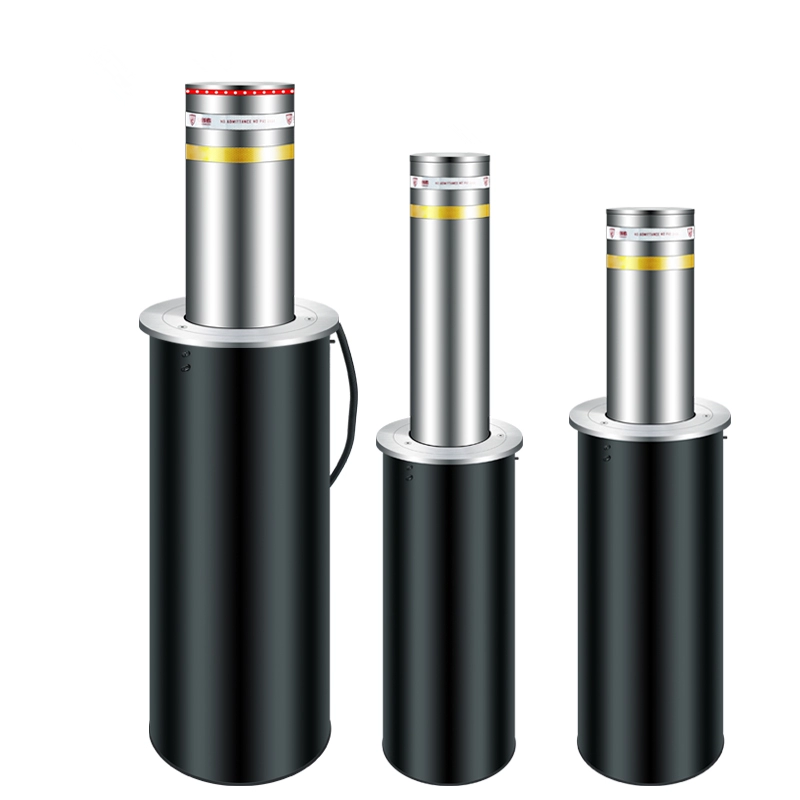

Cheap Traffic Safety Car Breakaway 304 Stainless Steel Manual Static Retractable Parking Bollards
Product Description

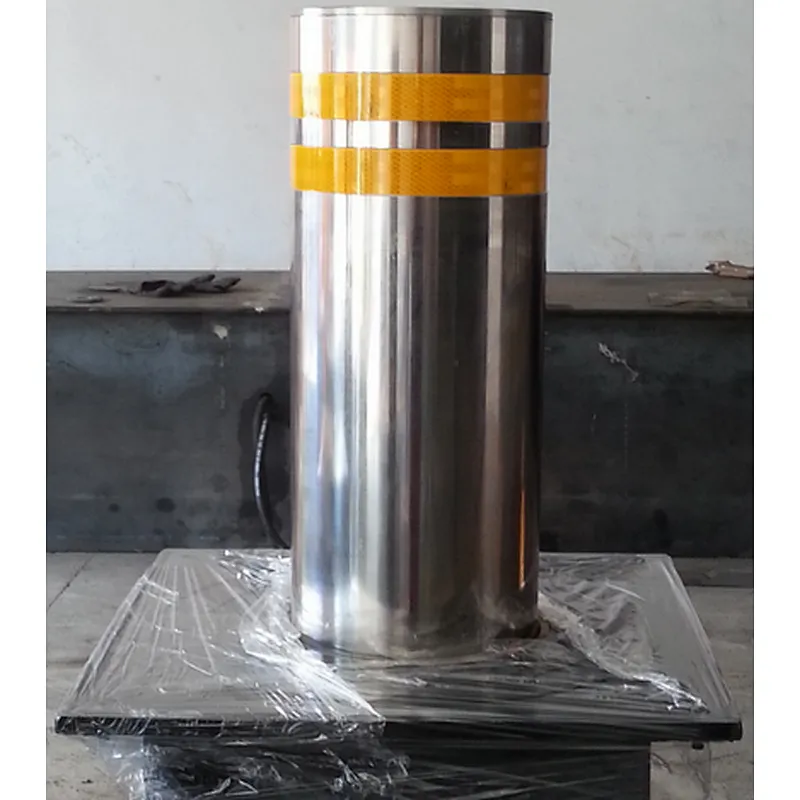

Steel Powder coated Silver The Retractable Bollard has been designed to control access to a site with security, guaranteeing pedestrian access whilst blocking the area to road traffic.
Vehicle Barriers and Bollards
Parking Gates and Bollards limit vehicle access are a complete parking arm solution for any parking lot, parking garage or parking area system. Vehicle gates have fast opening times betweeen of 1.3 seconds to 4 seconds. Arms can be custom width, but are usually 10' to 22’ which accommodates most standard road widths for most vehicles. This parking barrier arm is offered in cabinets with four color options: white, orange, light grey, and dark grey. Built for outdoor weather conditions, there is a standard height for cars and small trucks and a high cabinet for cars, small trucks up to semi-trucks for tall access. All Parking Gate barriers come with a control unit with programmable I/O, selectable auto-open on power failure feature, multiple open/close speeds, and an integrated 2-channel detector module, and remote control or desktop management.
Bollards can be crash rated for anti-terrorist attacks, and automated with access control where the bollard retracts into the ground to allow drive-overs. Fixe bollards can also be crash-rated and remain as a permanent block for vehicles and trucks of all sizes. Combing bollards and vehicle barrier arms can compliment one another and provide maximum security for any facility.

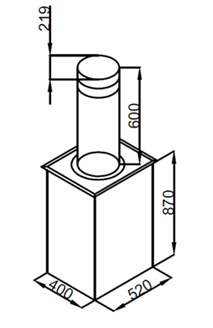

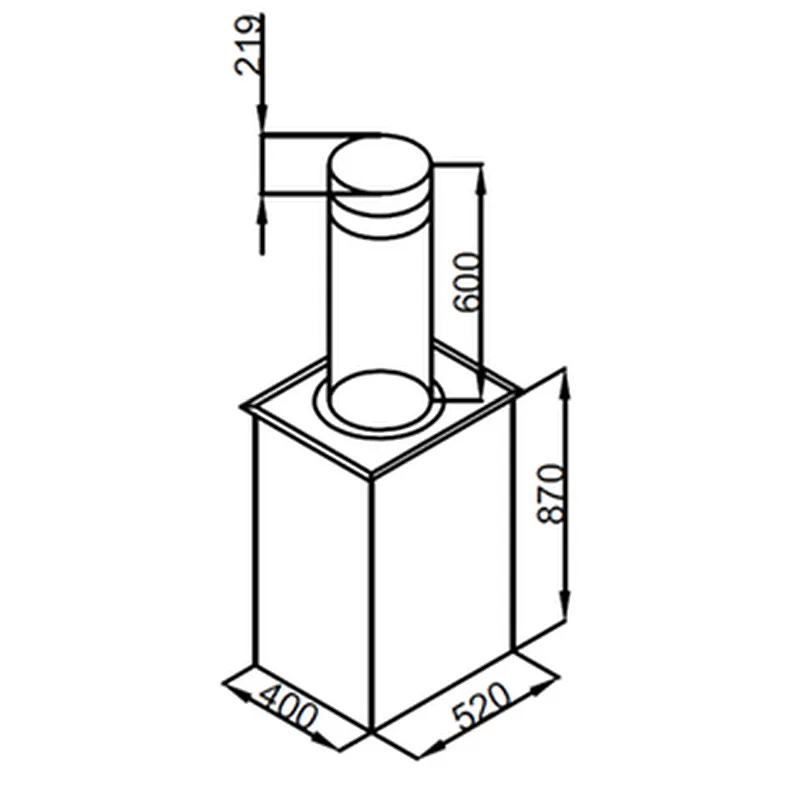

Product Details
Column material: SUS304 stainless steel
Column thickness: 6MM (optional)
Column diameter: 219MM
Rising height: 600MM
Rising speed: 4S, falling speed 3S
Drive mode: one-piece drive
Input voltage: AC220V/AC380V
Movement power: 350W
Control mode: manual control with key
Ambient temperature: -30~70 degrees; soaking in water can work normally
Protection level: movement IP68; waterproof level: diving level
Cabinet size: 360*360*772MM
Column weight: 105kg (6MM thick weight)

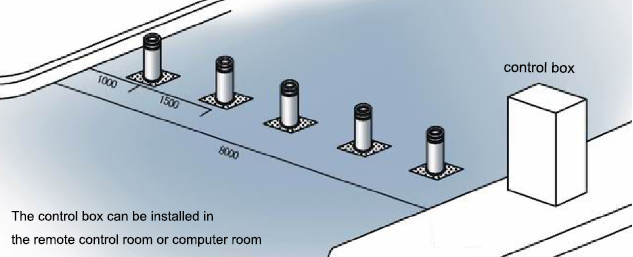

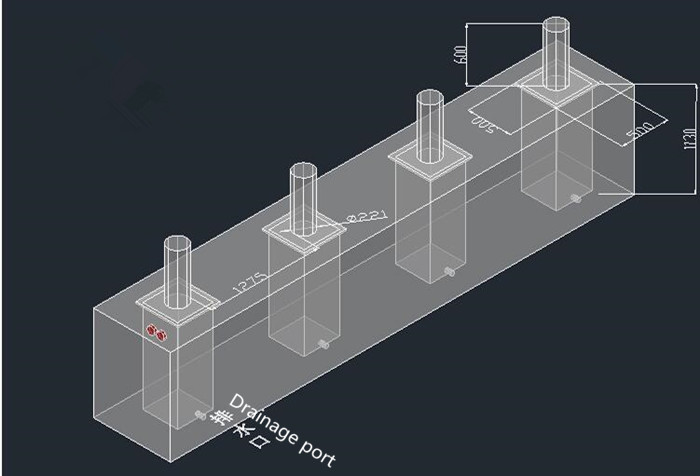

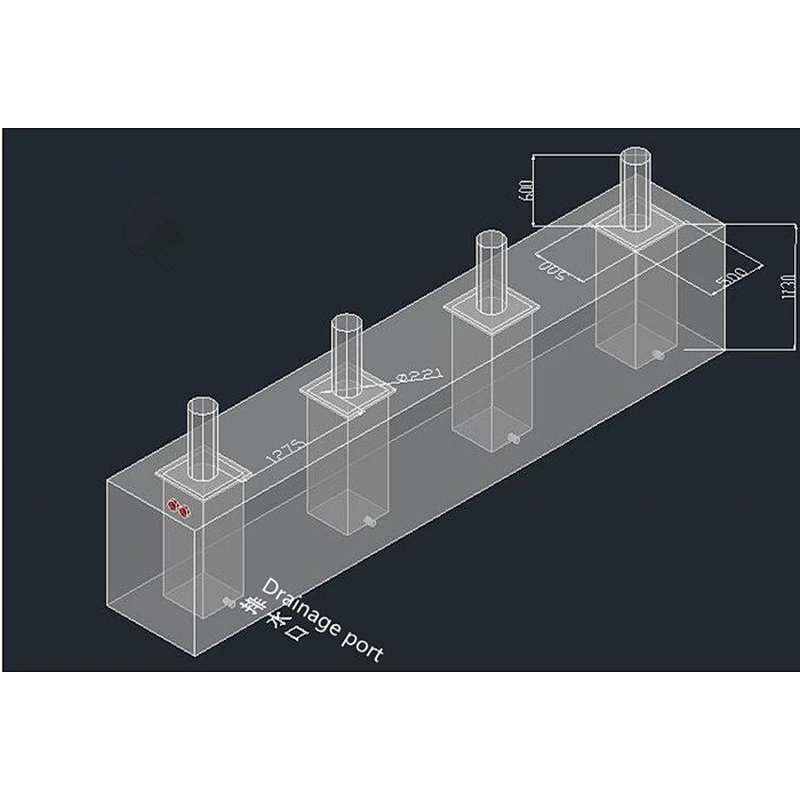

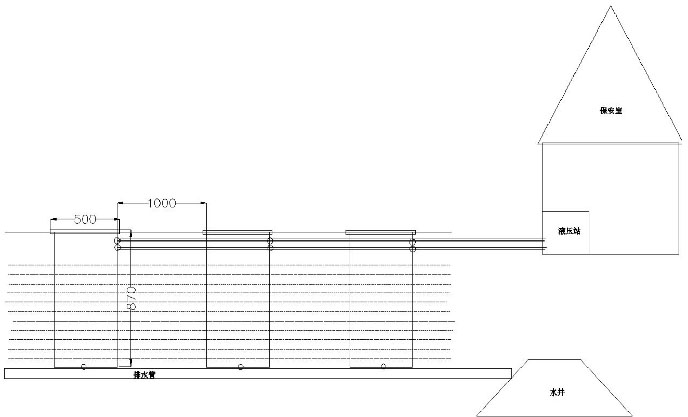

Installation size: cylinder center distance 1.2-1.5M, pre-buried depth: 800MM

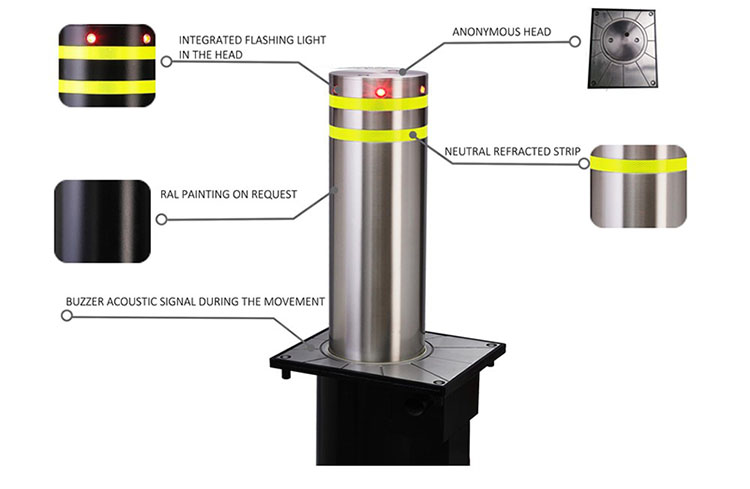

Warning method: 360 degree visual LED warning light (standard)
Power failure emergency: reserve battery, power failure can be remotely dropped
External devices: traffic lights/voice prompts (optional)
1 set bollard with 2 RC

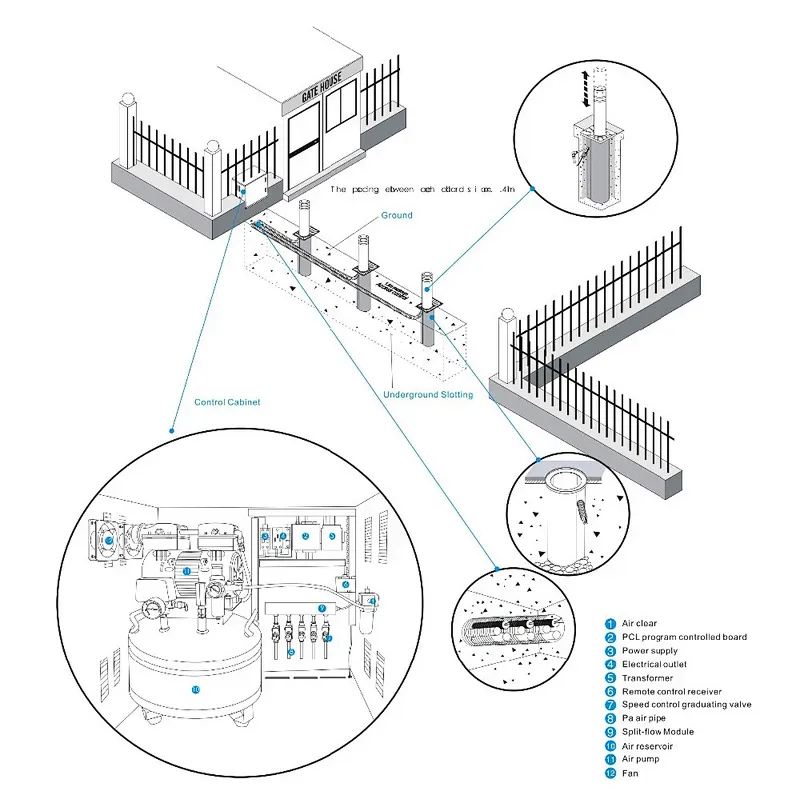

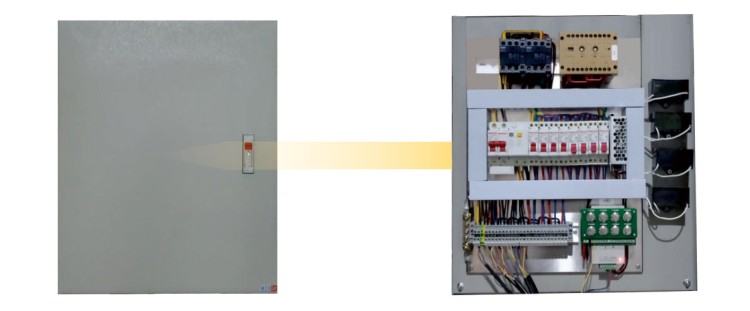

Control System
1. The control system is a multi-functional integrated digital programming system independently developed by our company. One controller can control 1-8 lifting columns at the same time. It can also be controlled separately. 1.3.5 Lift 2.4.6 does not move. Or 1.2. 3 lifting. 4.5.6 does not move. There are 3 working mode controllers (this function is the first in the industry). Specifications: 400x300x140 (depending on the quantity)7.5KG
2. Reserved with card reader open and ground sense detection signal interface, can be compatible with any opening signal. Working voltage 220v. Control voltage 24V. Separate installation with ground column.
3. Power failure emergency: built-in reserve battery, remote control cylinder can be lowered once after power failure.
4.One system can control 8sets bollards
RC
Wireless remote control, receiving distance of about 30 meters

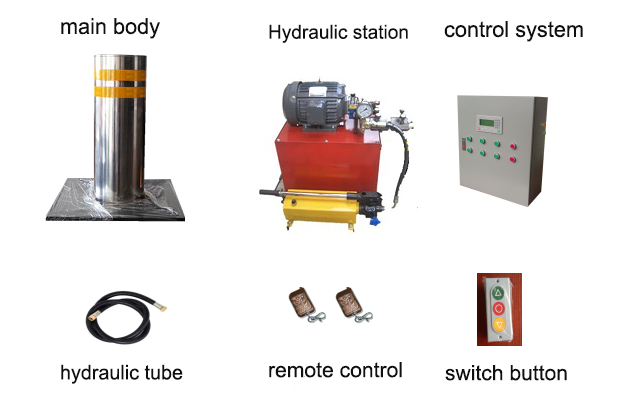

Accessories:
Shenzhen Anxia Heavy Industrial Co., Ltd. was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
