- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:AX-157 2 220v Swing Gate Control Unit
- Material:304 Stainless Steel 220v Swing Gate Control Unit
- Gross weight:85kg
- Size:1380*320*980mm
- Power supply:220V
- Flap colour:Red, blue, black, transparent color or OEM/ODM
- Feature 1:Speed Gate
- Feature 2:Entry Security 220v Swing Gate Control Unit
- Feature 3:Pedestrian Access Control
- Feature 4:Flap Barrier Turnstiles
- Warranty 5:one year

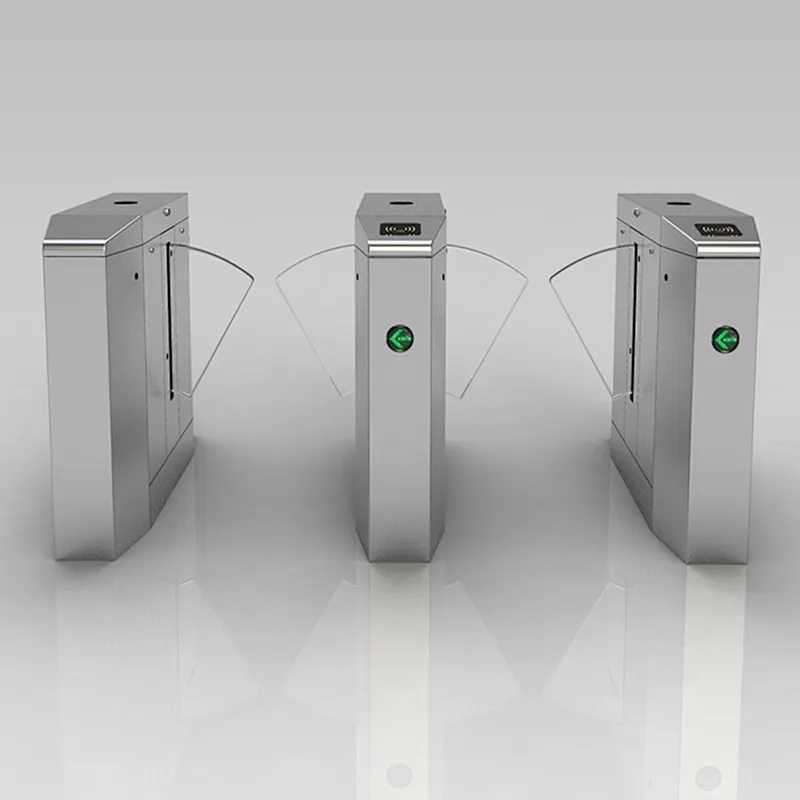

High Quality Access Control Automatic Door Subway Entrance and Exit 220v Swing Gate Control Unit
PRODUCT INFORMATION | |
| Model | BS-YZ04 |
| Brand | BESTER SMART |

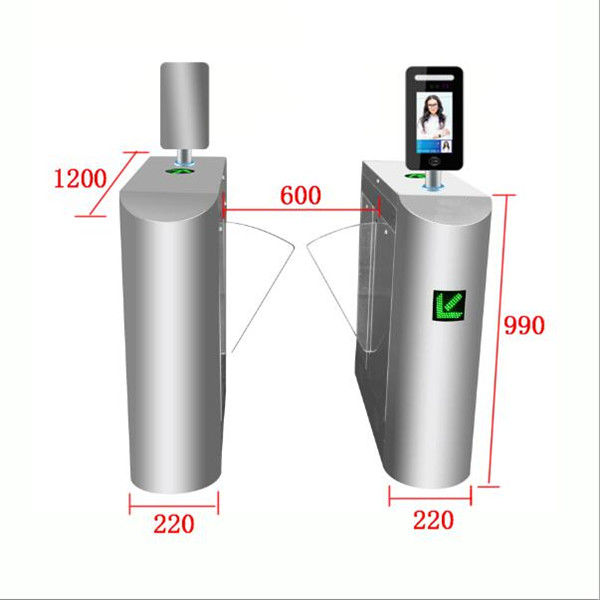

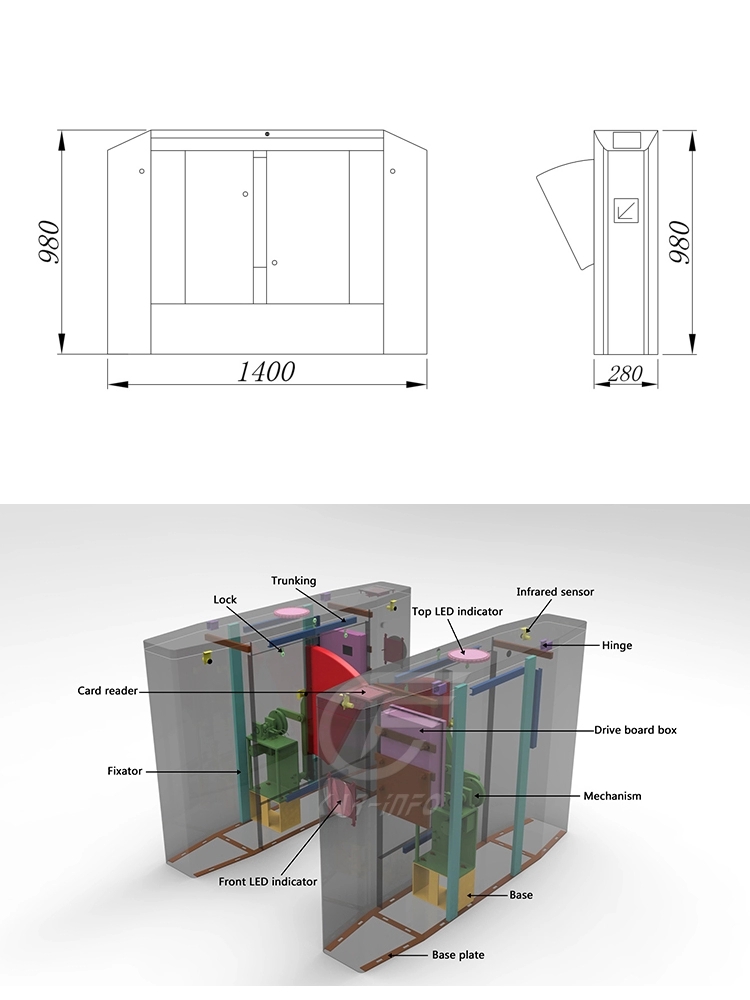

| Size | 1400*300*1000(mm) |
| Arm length | 280mm(norm) |
| Material | SUS304 thickness(1.5mm) |
| Input Voltage | AC220±10%V,50HZ |
| Moter's power | 24V/40W |
| Failure-free operation | 5 million/time |
| Weight | 140kg(two sets) |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.8s |
| Relative humidity | ≤90% |
| Operating temperature | -15℃-60℃ |
| FWD DS | five pairs of choice |
| Working environment | indoor and outdoor |

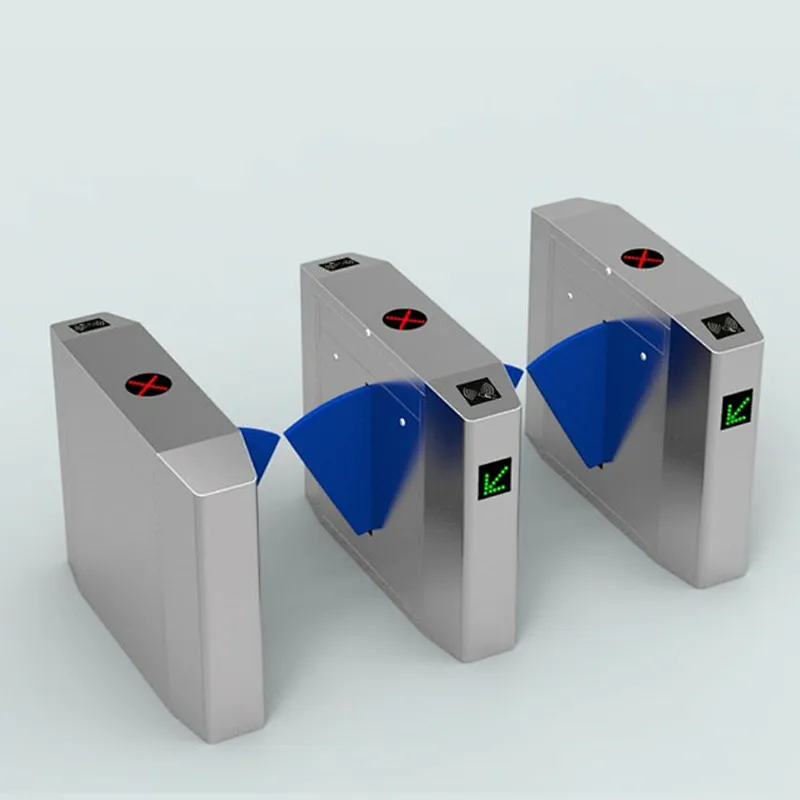

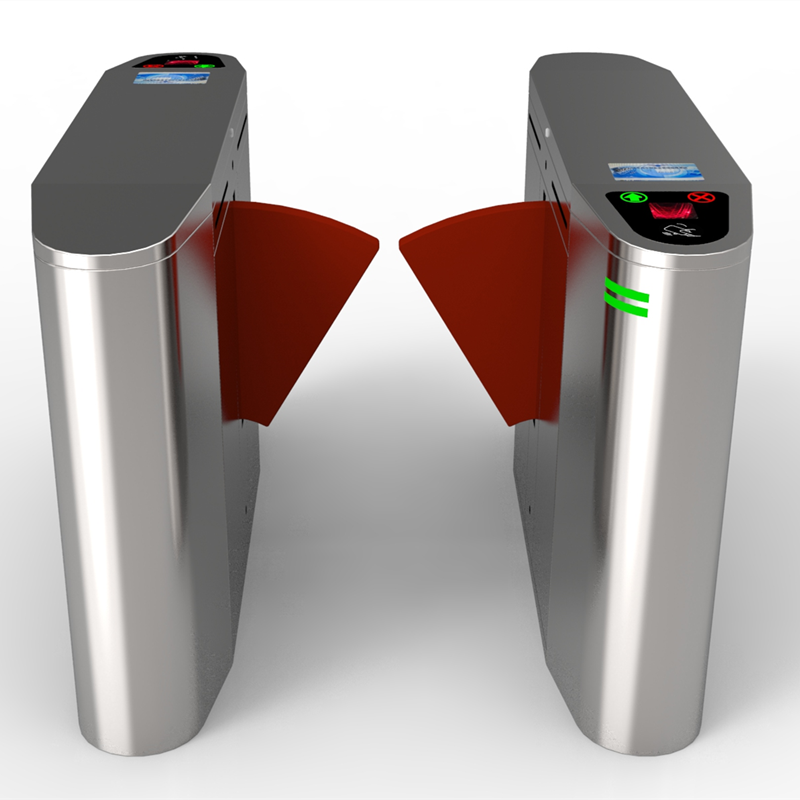

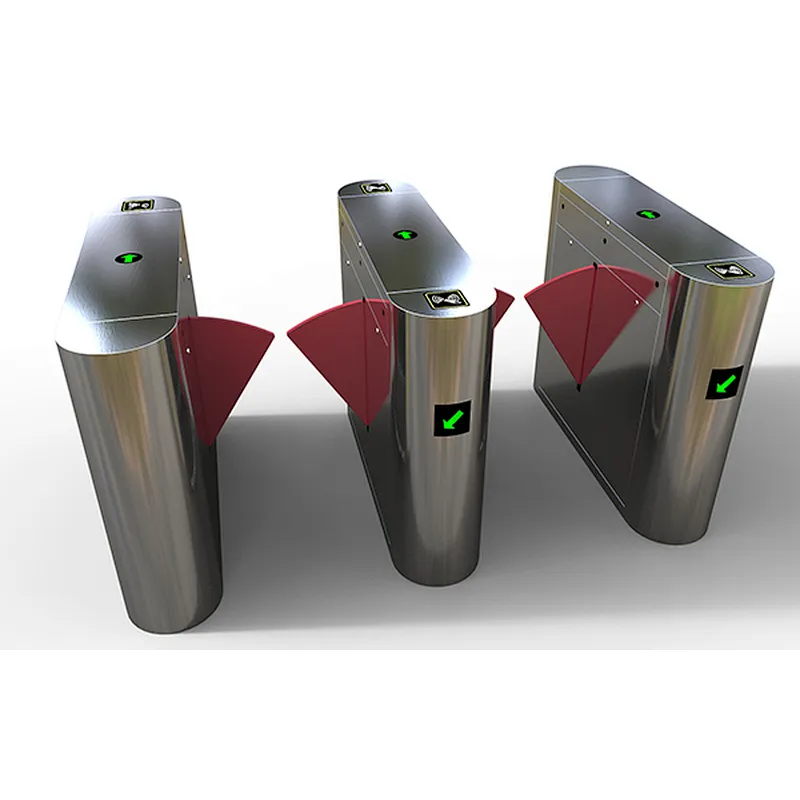

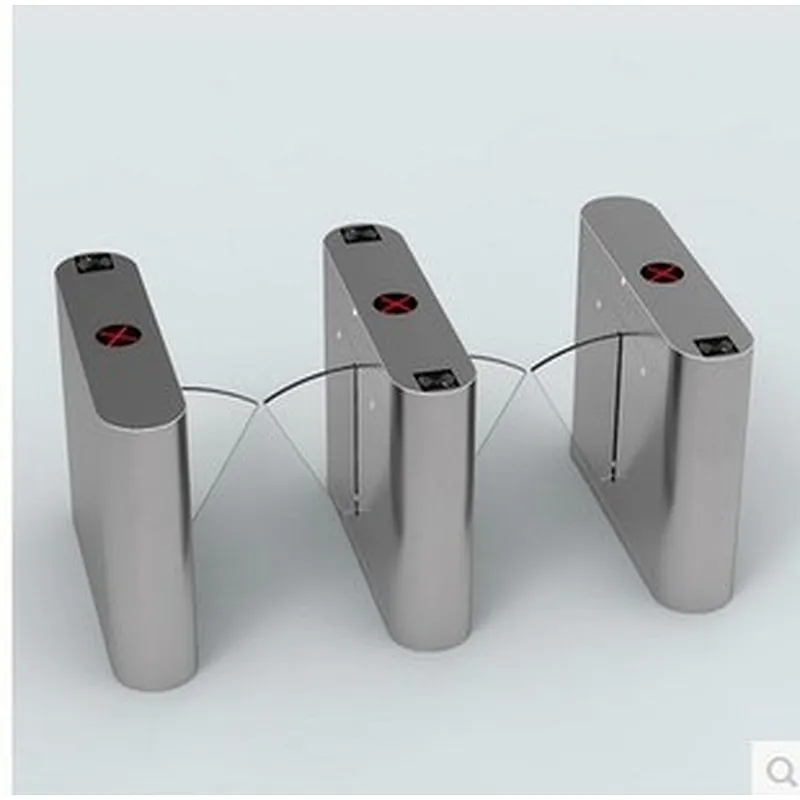

Flap Barrier (speed gate) is used for people access control in public passages.
The mechanical part of the flap barrier contains an emergency control device, which allows automatic opening of the two wings in case of power failure; when power supply is resumed, the two wings will be reset automatically. Omnitec offers a wide range of flap barrier solutions which has pleasing esthetics to suite the taste of our prestigious customers with different configurations. Our flap barriers are made out of high quality 304 stainless steel materials with brushed finish, they can be installed in all building conditions and are capable of providing a complete access management solution for the control entry & exit passages of the buildings.
Besides, we do provide complete integrated access solutions to control these flap barriers with customized visitors & members management software which can be centrally controlled & monitored or of standalone type.

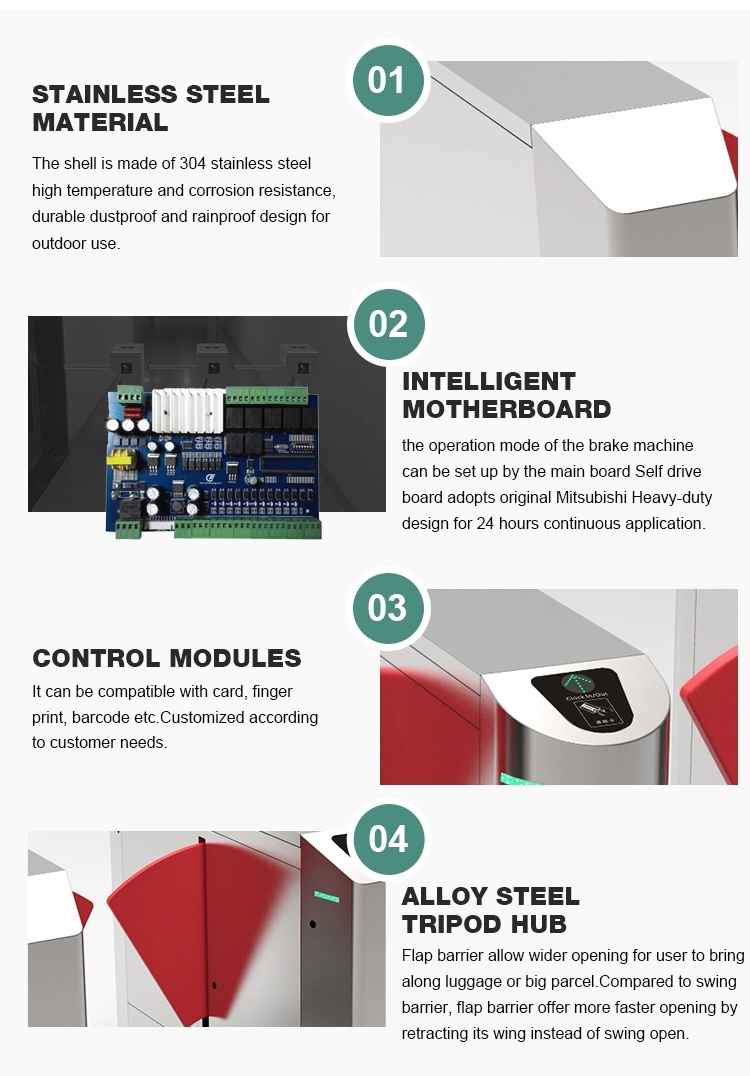

Some of the key features and functions include
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments)

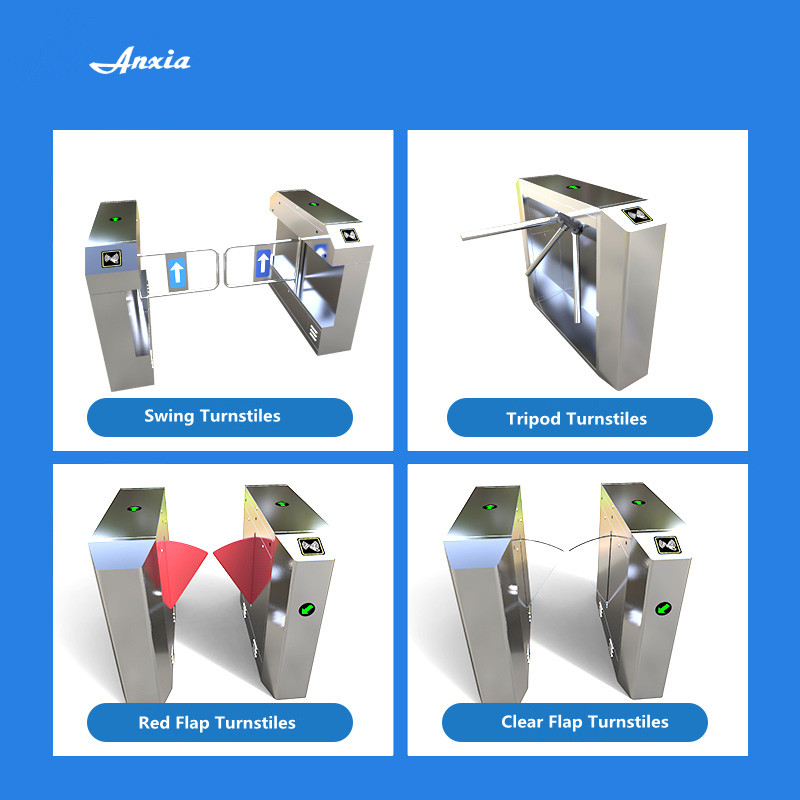

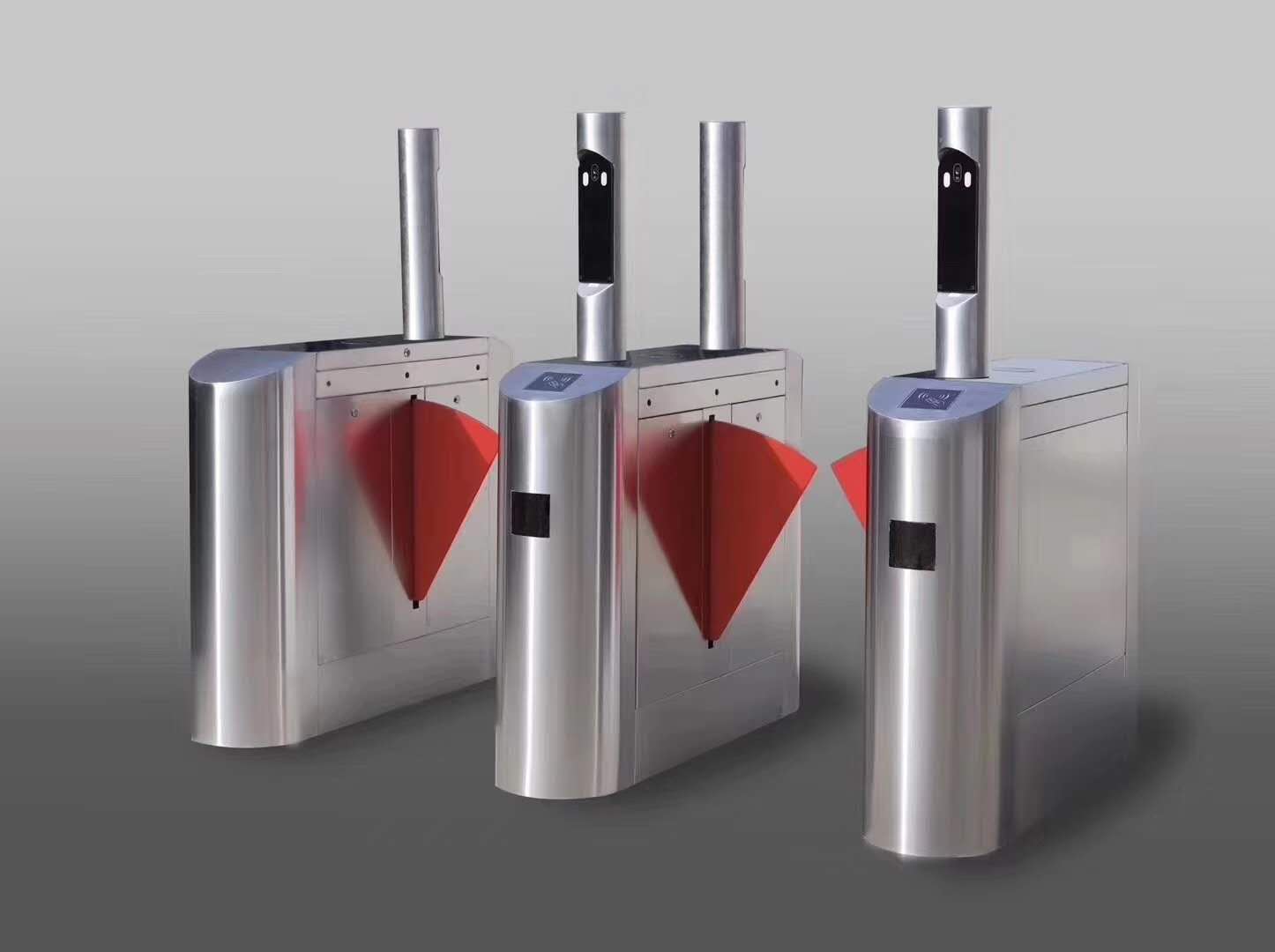

More products:

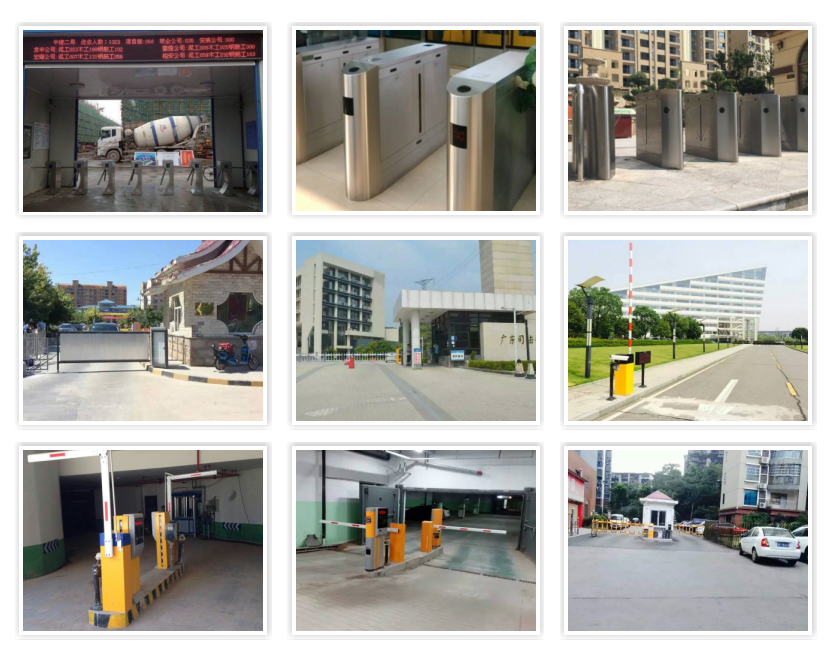

Our Clients:
Certificate of Honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
