High Quality Turnstile Intelligent Pedestrian Security QR Code Flap Barrier for Metro Station
Product pictures:

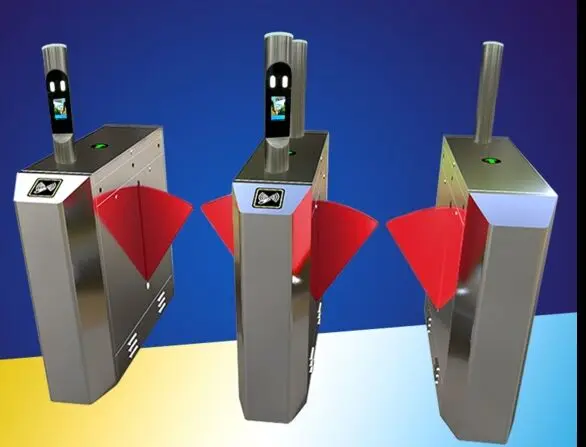

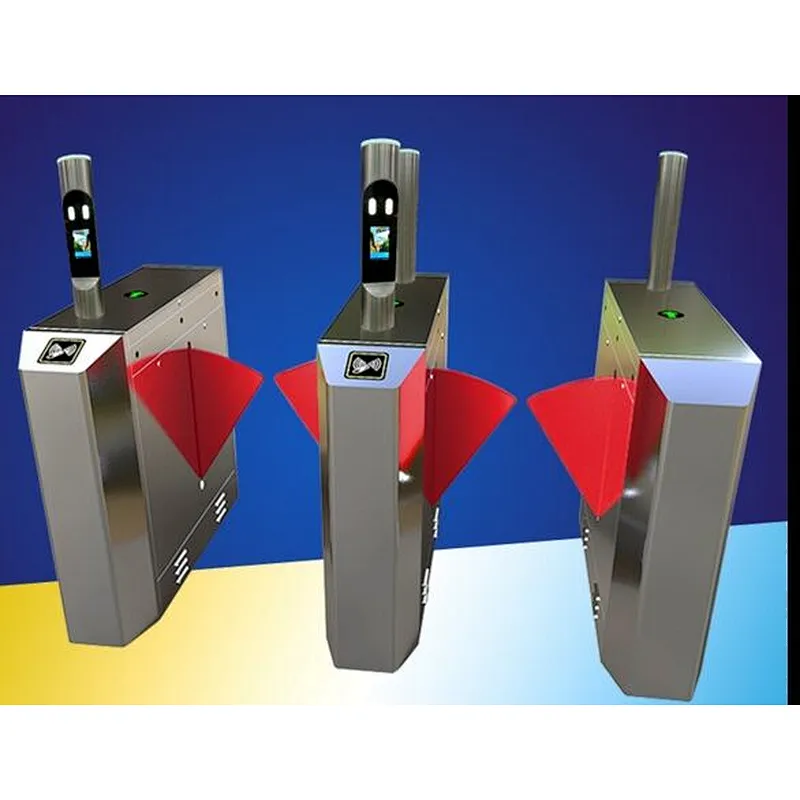

This is an optical turnstile with a stainless steel cabinet. Its smooth and silent acrylic wings retract into the cabinets when a valid ID is presented. Access control software, proximity card/fingerprint/facial recognition reader can be ordered installed in these turnstiles which make them a one-step solution. Or they can connect to any existing access control system.

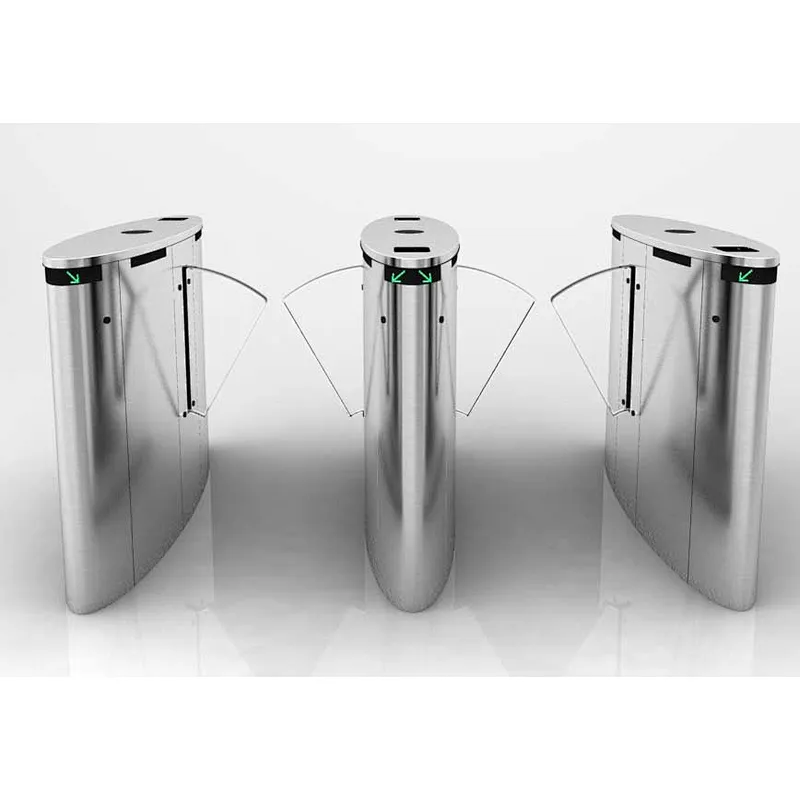

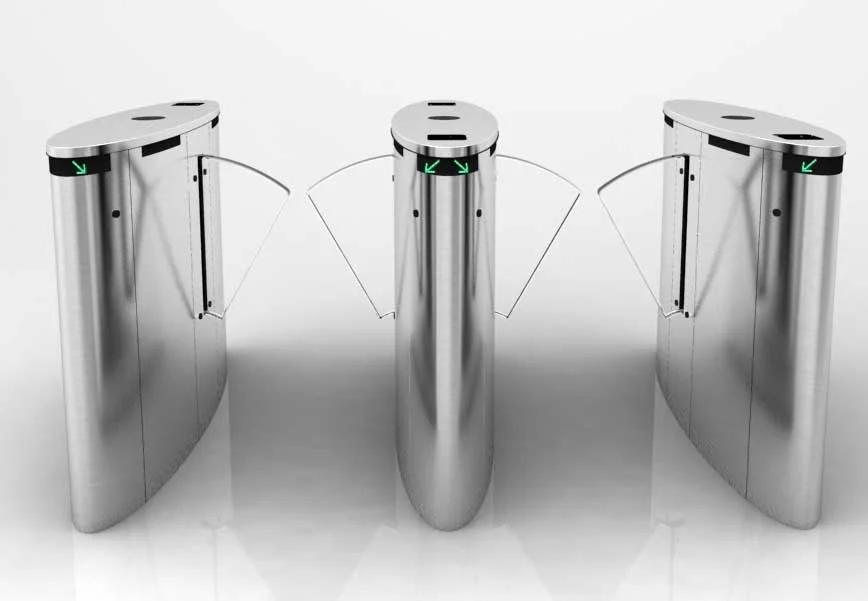

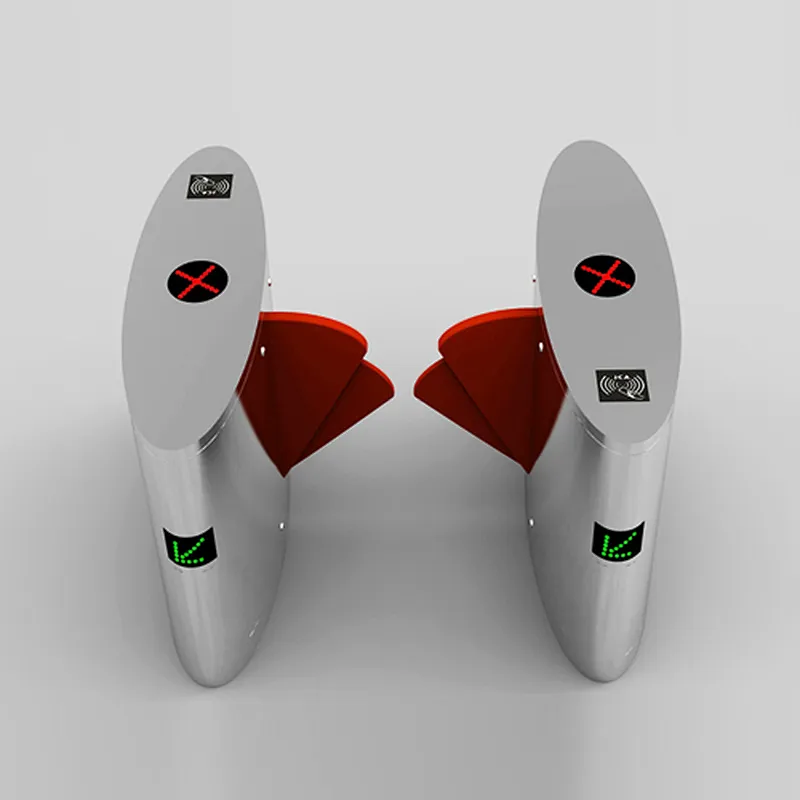

Each lane is defined by two elliptical cabinets with angel door wings that retract into the units.
Ideal for ADA, 900 mm, or 35.43"wide, and standard passage, 500 mm, or 19.68"wide, it features a rounded-end stainless cabinet, with light indicators on the cabinet lid.An advanced sensor system prevents the angel door wings from closing when a person or object is located in the safety zone.
- Single lane or multiple lane configurations available
- Red/green indicator lights in the top lid of cabinet
- Integrates with access control systems
- Fail-safe, and links to any fire alarm system
Product details:
Features:
Product Parameter | |
Product name | Barrier turnstile |
Model | AX-Y002 |
Size | 1200 * 280 * 990 (mm) |
Arm length | 600 mm (Normal size) |
Thickness of the case | 1.5 mm on top, 1.2 mm |
Power supply | AC 198V ~ 248V 50Hz±4 %, output: AC24V, DC 12V |
Flap opening/closing time | 0.7 s |
Operating temperature | -25 ~ +70℃ |
Operating humidity | ≤90% |
Weight | 140kg ( 2 sets) |
Life span | 10 years (Non-consumables) |
Traffic speed | 35-35 person/minute |
Construction | 304# stainless steel on cover |
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Team:
Our Factory:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
