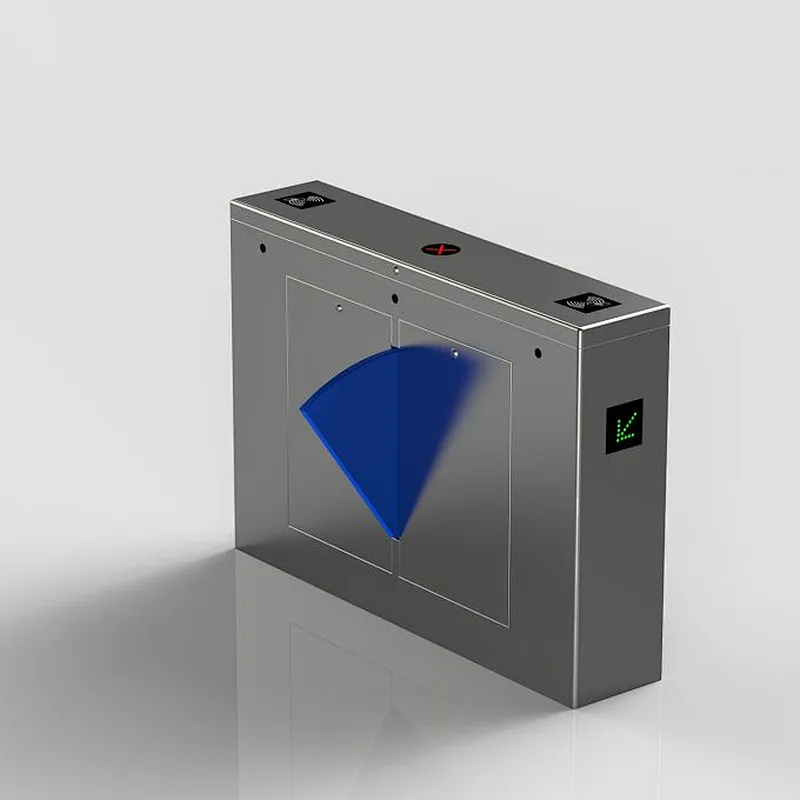

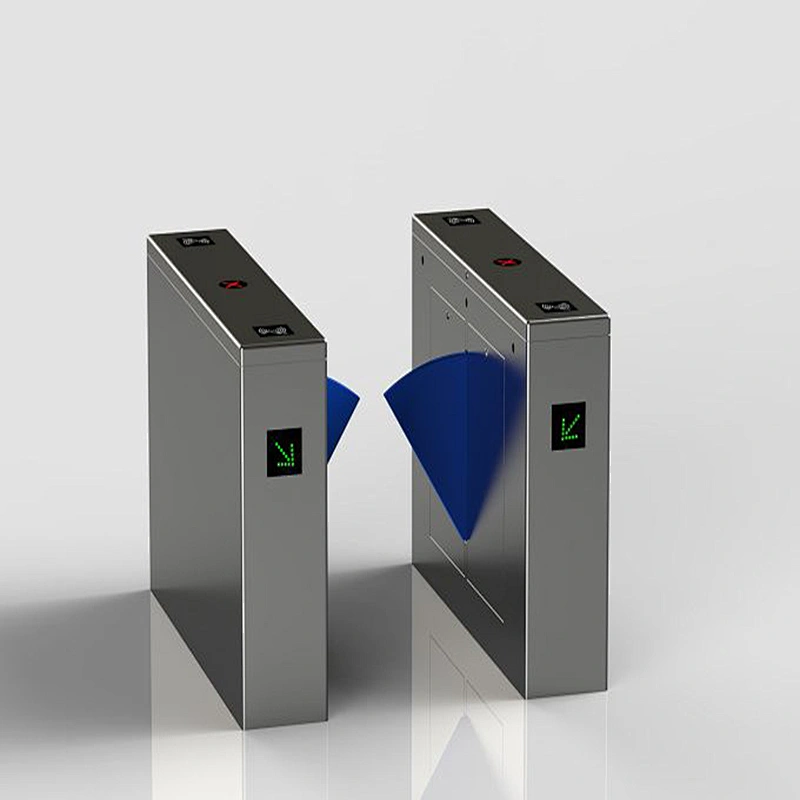

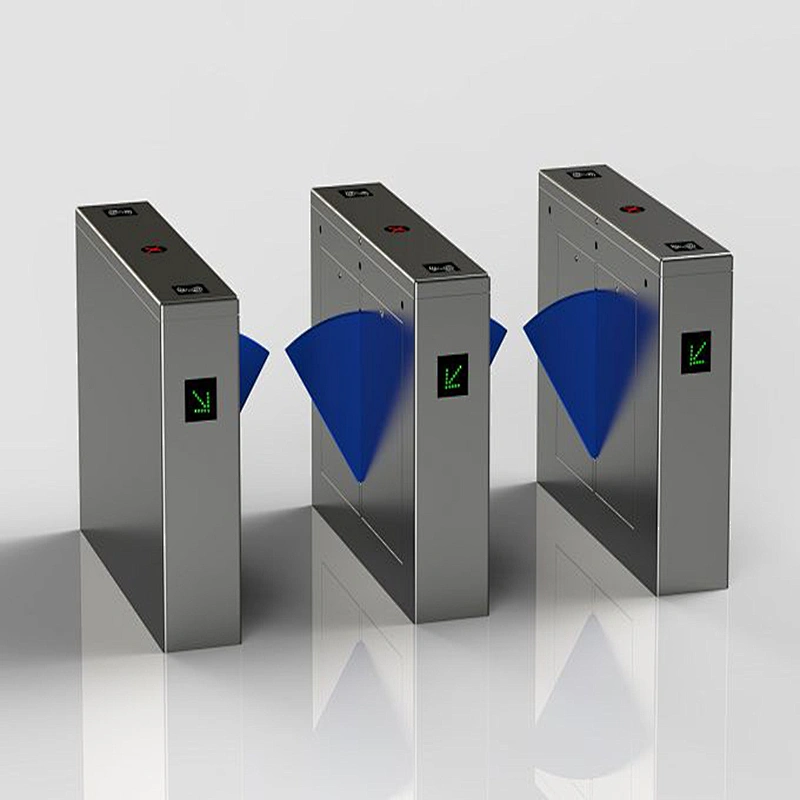

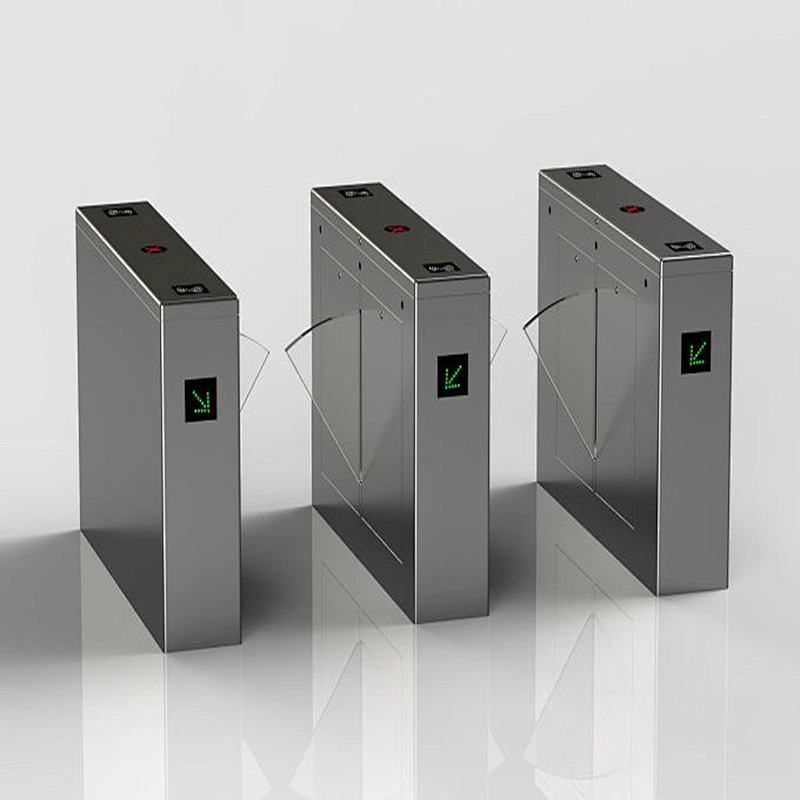

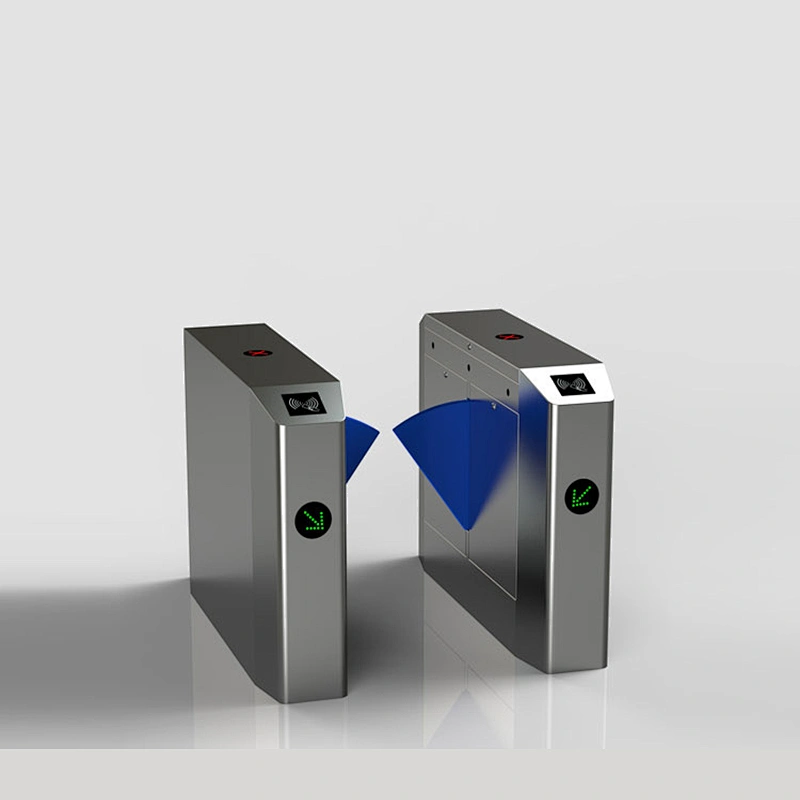

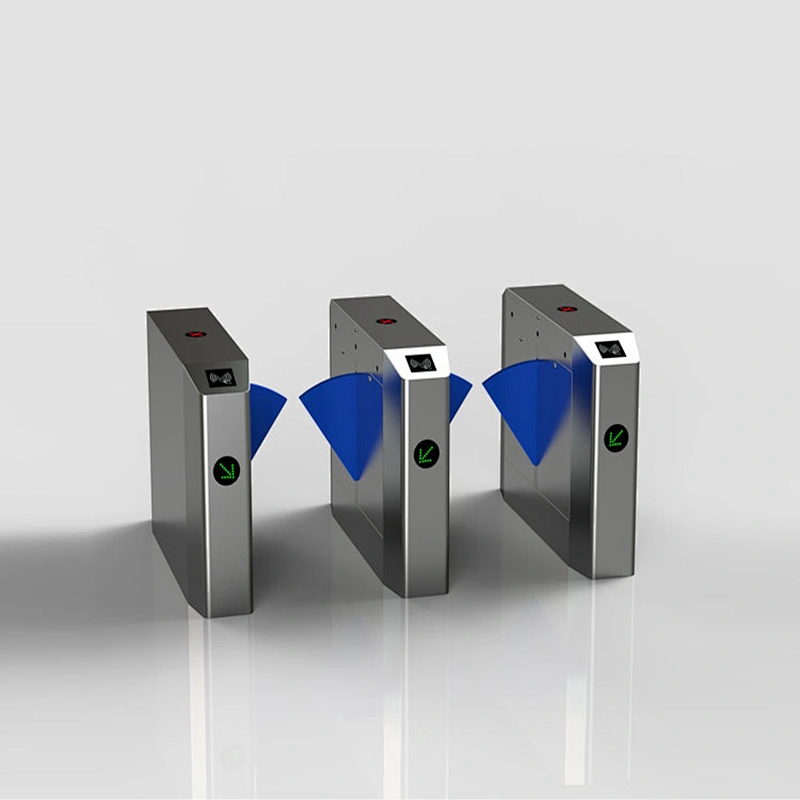

High Security Flap Ticket Turnstile Barrier Gate With Card Reader

Automatic flap barrier for access control
1.Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2.DC Motor: 100w/24v
3.Temperature: -15 °-60°
4.Humidity:<95%, without concretion
5.Passage Width: <=600mm
6.Passing Speed: 30 persons/min (Normal open),20 persons/min (Normal close)
7.Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
8.Communication Interface: RS485 (Distance: <=1200m)
9.Flap barrier Arm Open and Close Time Length: 1s
10.Passage Width: 600mm (Our standard) <=900mm (each unit)
11. Material: Housing - 304 stainless steel

Features and specifications:
1.Unique incomplete wheel transmission.
2.Running stable, little noise and no mechanical impact
3.Self-checking-power-on function, if power on, flap barrier will auto get to be held.
4.Flap barrier will auto alarm when some unauthorized person gets in.
5.Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
6.If power off, arm will open automatically while power on late.
7.It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
8.It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
9.Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10.Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
11.Optional:
1)Counter and counter display
2)Access controller or card reader
3)Key by-pass

Package:
1.Size:1550x350x1060mm
2.Gross Weight: 110KG
3.Package: Export packing, plywood box

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.

Our Team:

Our Factory:

Certificate of honor:

Exhibition:

Q1: Do you have English language system?

A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.

Q2: Can we connect your access control system with our system?

A:  Yes, we provide SDK and Software development service with connection port.

Q3: Are your turnstile/barrier gates waterproof?

A: Yes, our turnstile/barrier gates have water proof feature.

Q4: Do you have CE and ISO9001 certificate?

A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.

Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q6: How about your warranty?

A: Our products have one year warranty.
