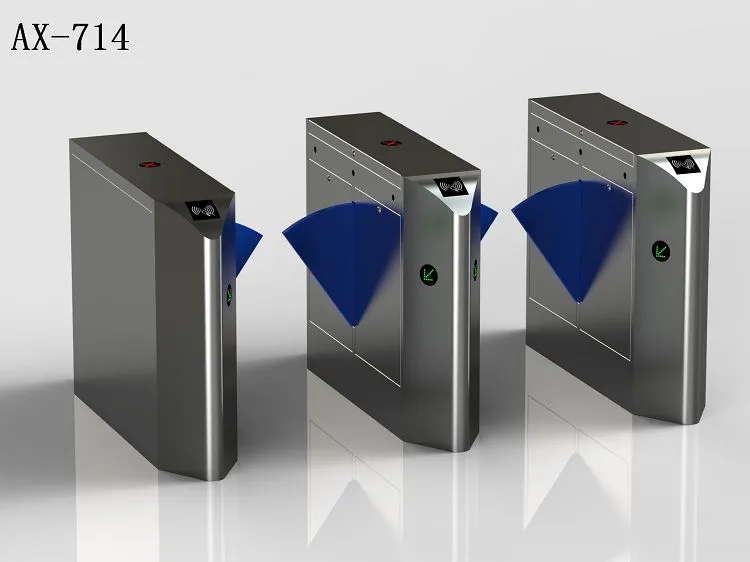

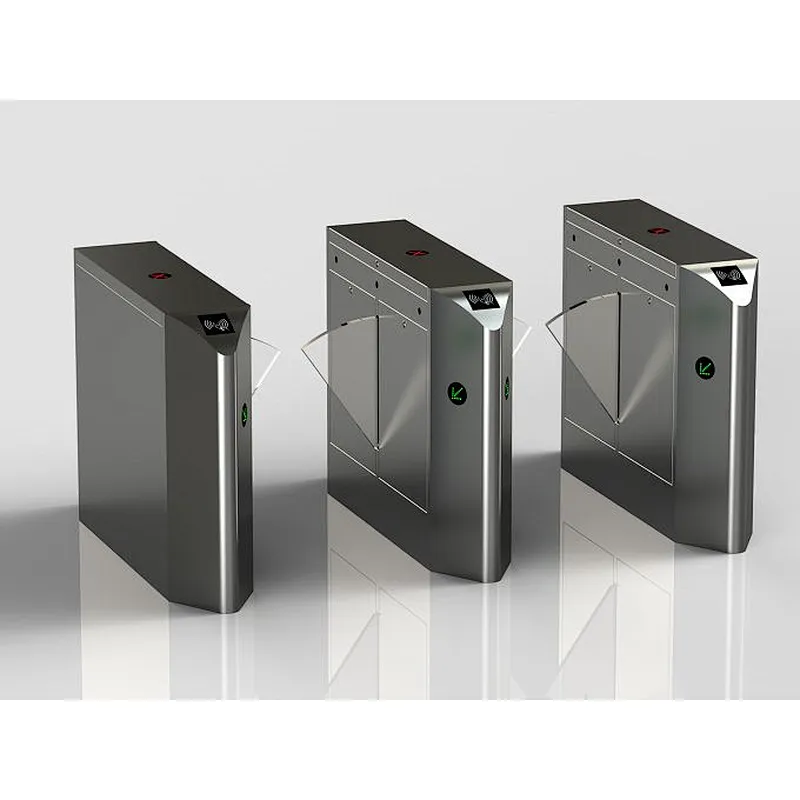

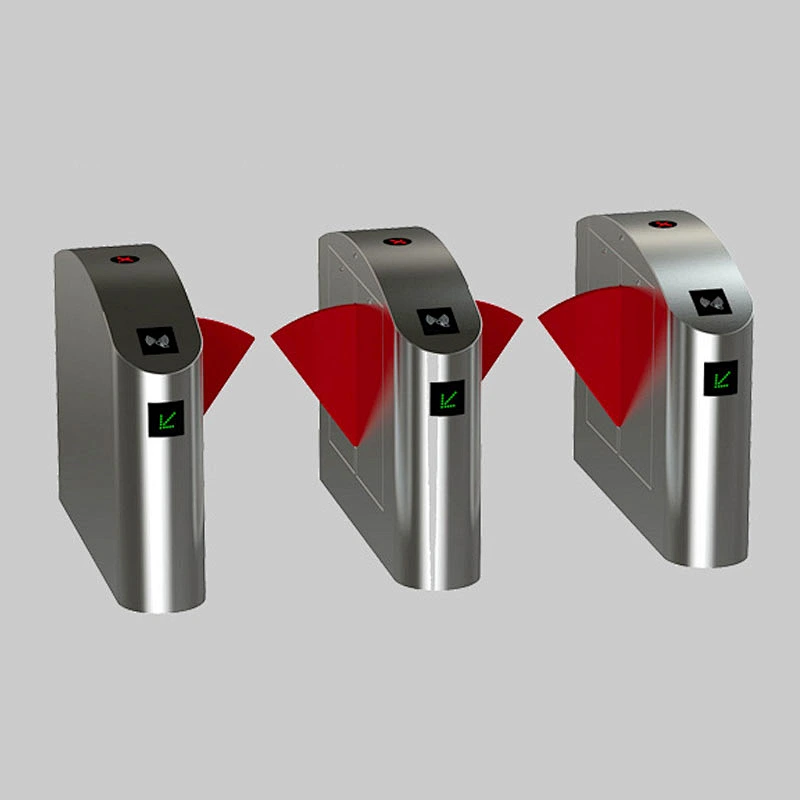

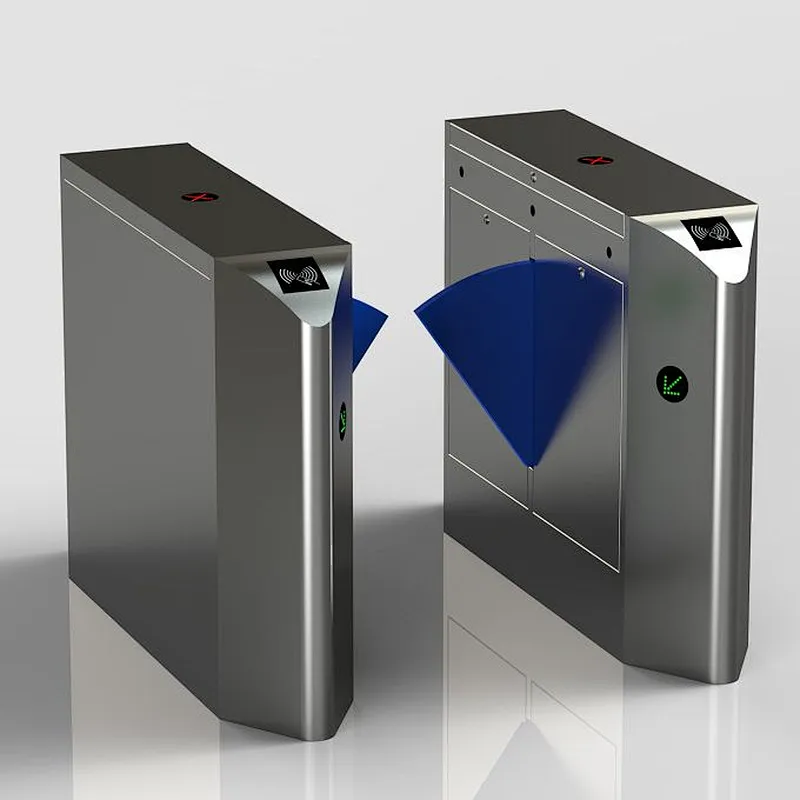

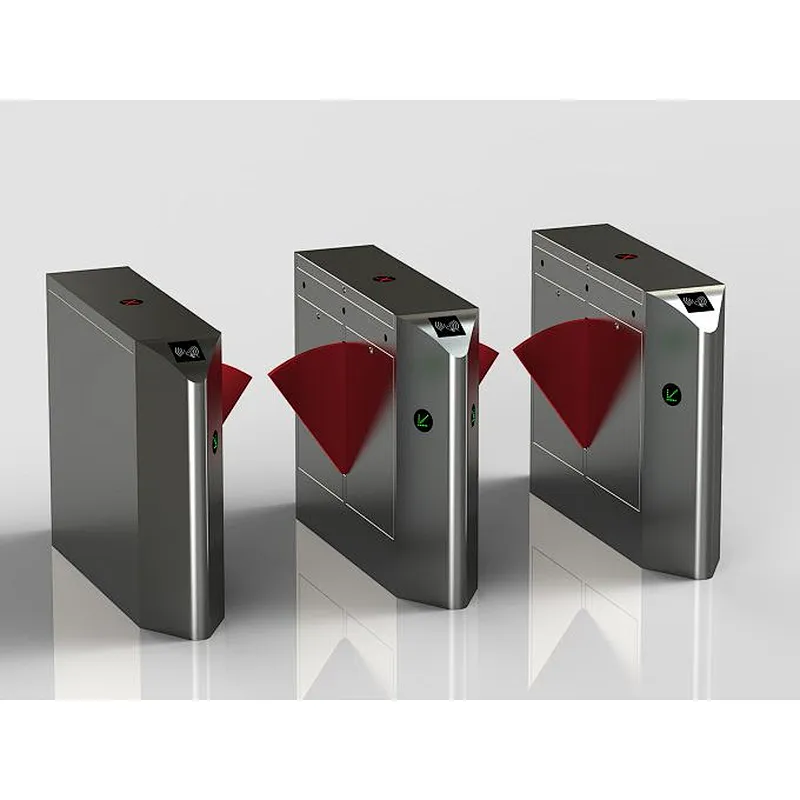

Automatic Crowd Security Access Control FlapTurnstile With ID Card Reader And Face Recognition

Product application
1.Flap gate are compact and cost-effective entrance solutions.
2.The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
3.Flap gate is ideal for indoor and outdoor settings.

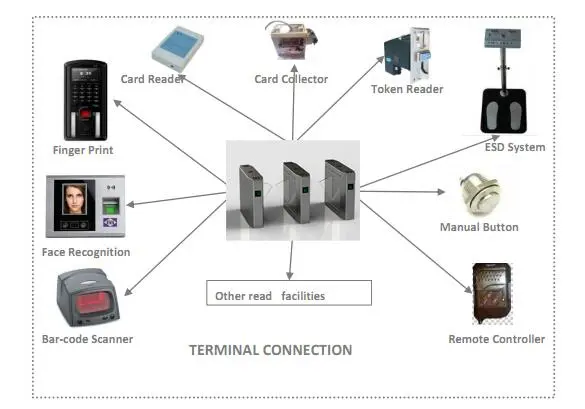

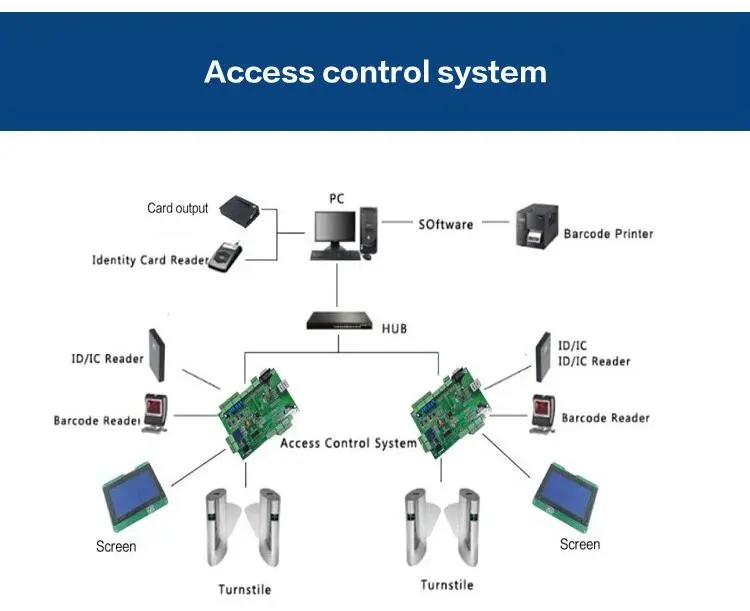

4.It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and face recognition device).
5.In case of emergency, the Flap gate will open when power off.

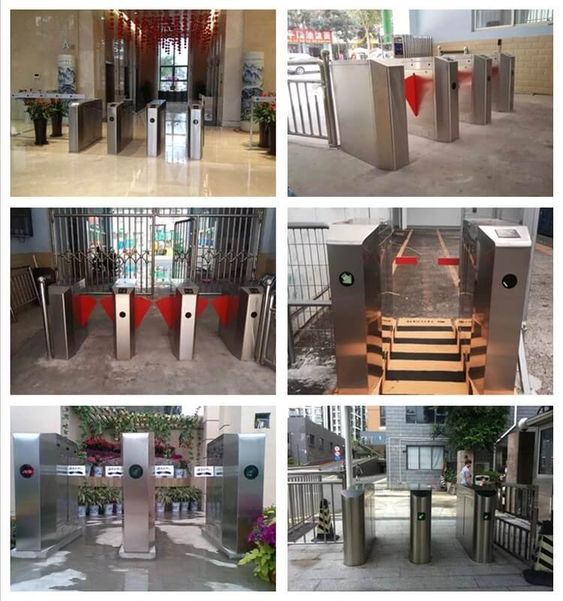

6.It is suitable for all kinds of places

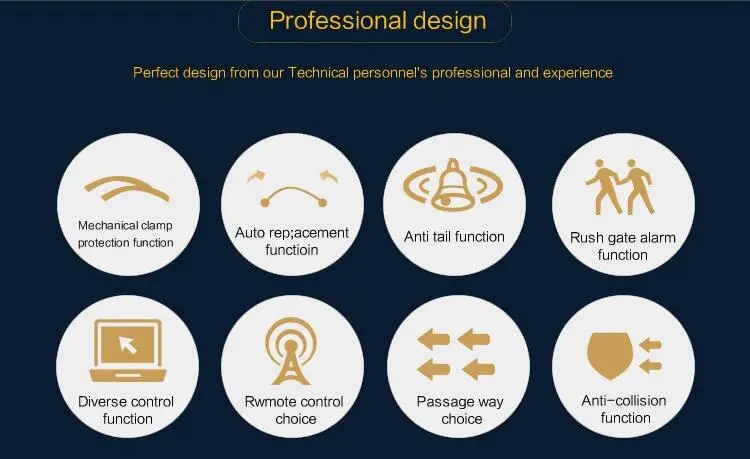

Features:
1.Problem self-recovery and corrective measure ability, convenient maintain and adjust
2.Motherboard with high clean sound read chips which could broadcast in light of user's requirement
3.Human base model indication function, real time displaying, improve the passing rate and convenient maintain
4.Automatic counting indicating passenger's number
5.Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time
6.Anti pinch function with UPS to satisfy firefighter requires, ensure user's safe
7.Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
8.Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.
9.Super combination capacity, adjustable model on site, adjustable speed of barrier slide, Open signal with memory or with out set function

Technical parameters
Power voltage   AC220±10%,50Hz
Drive voltage     DC24V 20W
Dimension:(Customized Optional)  1200*300*980m
Communication port      RS485
(Operation condition)    -30°C~+70°C
Structure     Frame or 304  Stainless steel cover
Relative humidity    no more than 95%,None-condensation

Open direction Single and Double(optional)
Input signal       12v DC  level or 12v pulse>100ms
Gate opening and closing time 0.6s
Working Current     no more  than 2000mA
IP Degree   IP54
Length of the bar    260mm Width of passage    no more than 600mm
Pass speed       less than 30  person/minutes

Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.

Our Team:

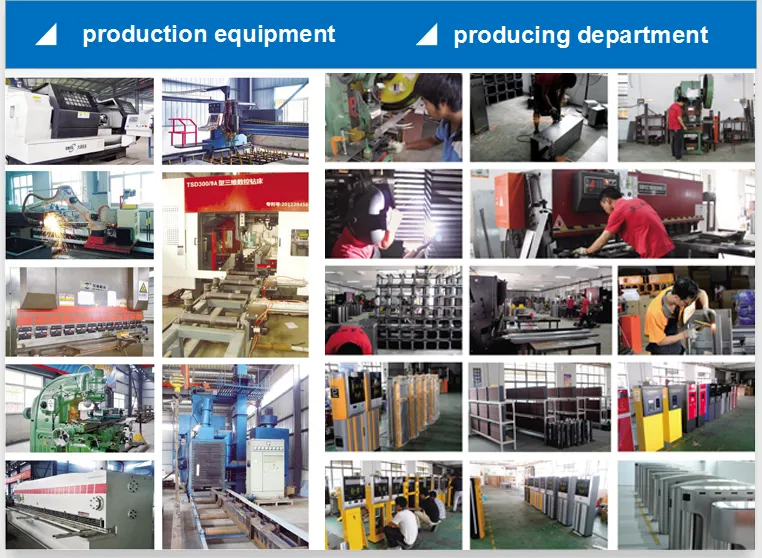

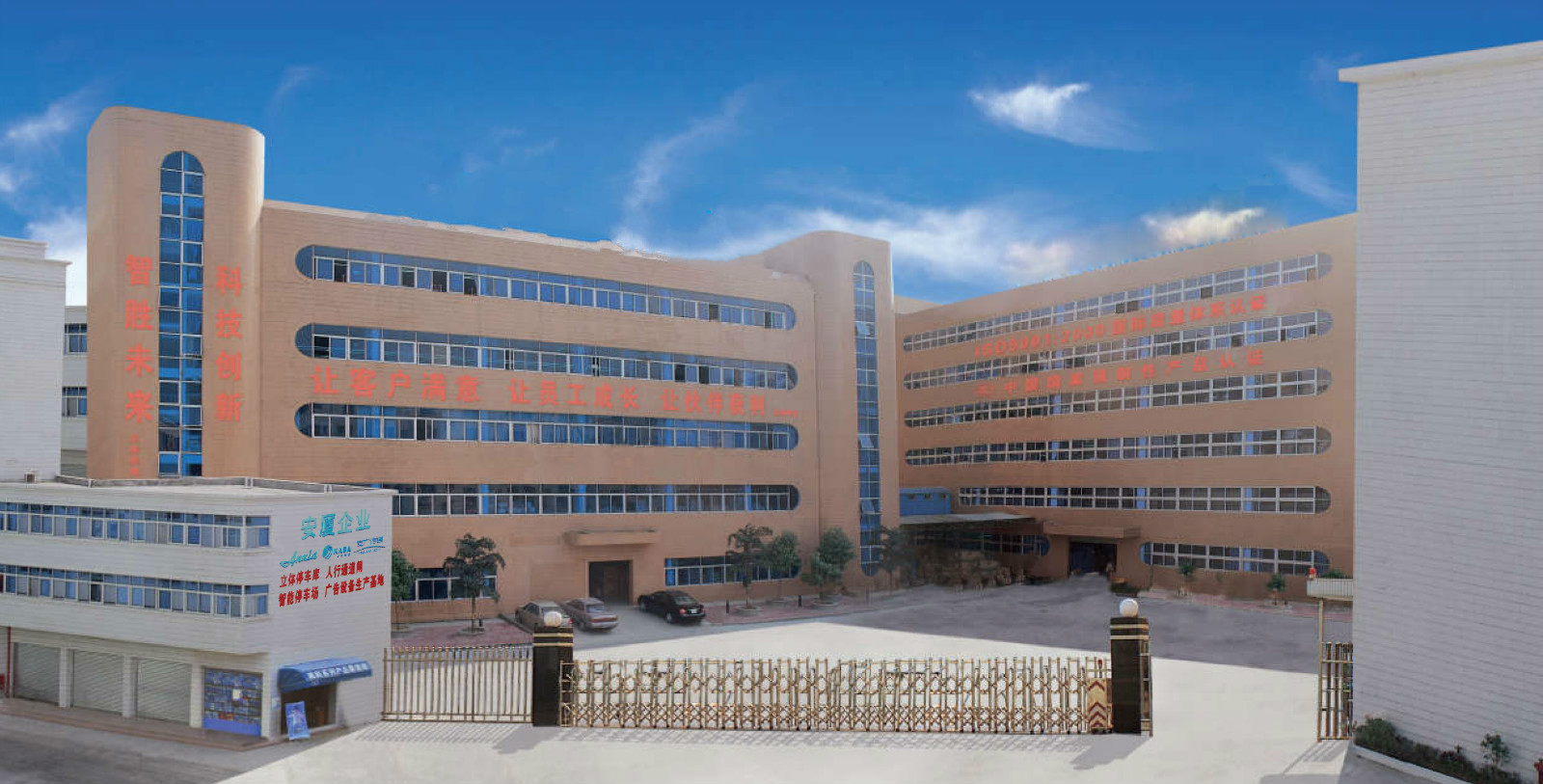

Our Factory:

Certificate of honor:

Exhibition:

Q1: Do you have English language system?

A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.

Q2: Can we connect your access control system with our system?

A:  Yes, we provide SDK and Software development service with connection port.

Q3: Are your turnstile/barrier gates waterproof?

A: Yes, our turnstile/barrier gates have water proof feature.

Q4: Do you have CE and ISO9001 certificate?

A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.

Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q6: How about your warranty?

A: Our products have one year warranty.
