- Place of Origin:China
- Brand Name:Anxia
- Model Number:AXSP
- Product Name:Vehicle Loop Detector
- Material:Stainless Steel
- Color:grey
- Size:400*290*1600 mm
- Certification:CE
- Application:parking lot
- Life span:over 5 years
- Language:Customizable

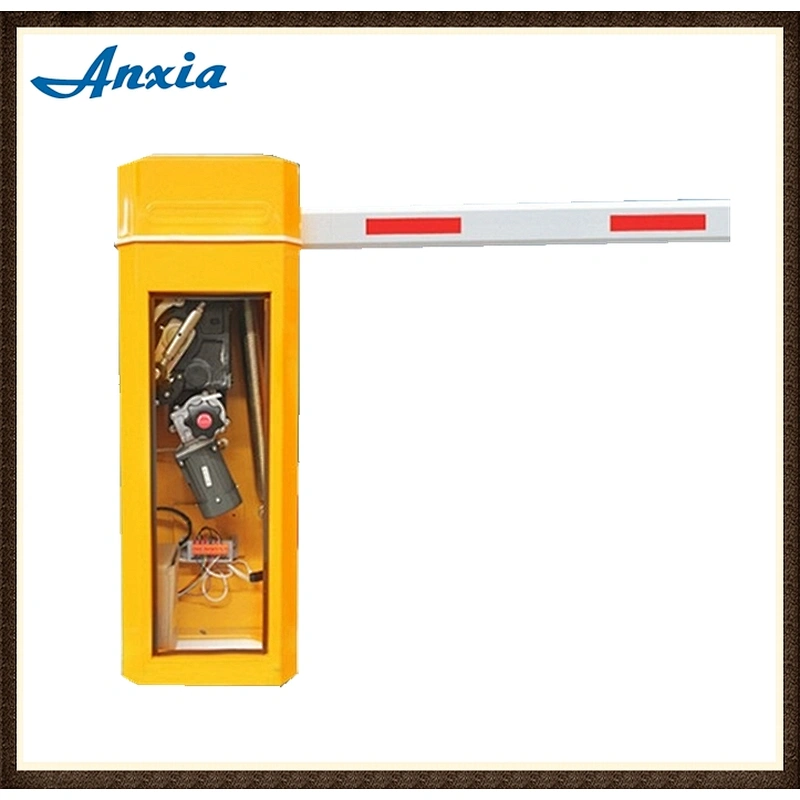

- Keyword:Boom Barrier
- Transit speed:100ms

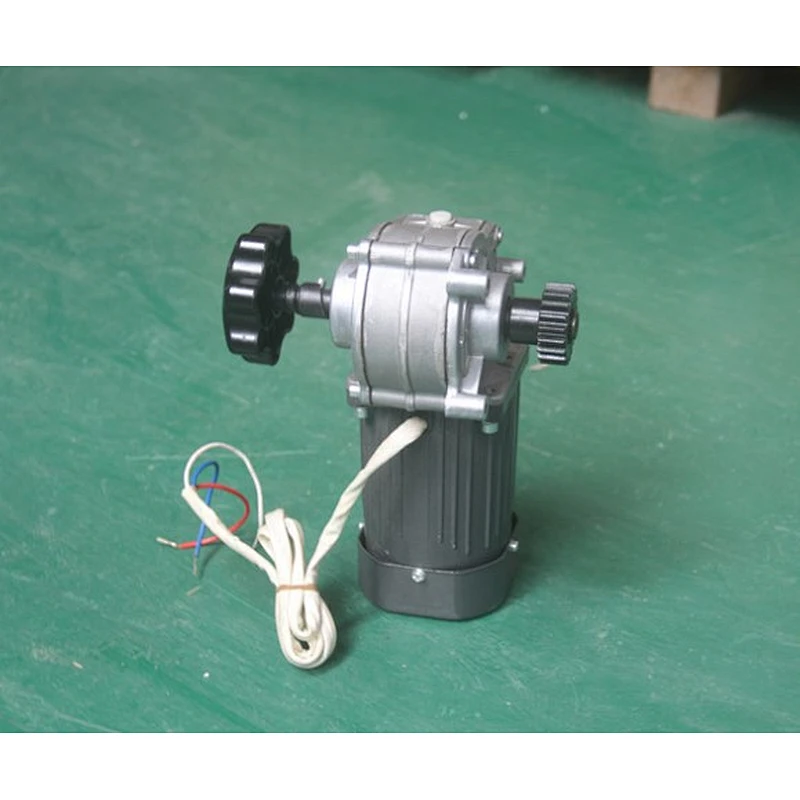

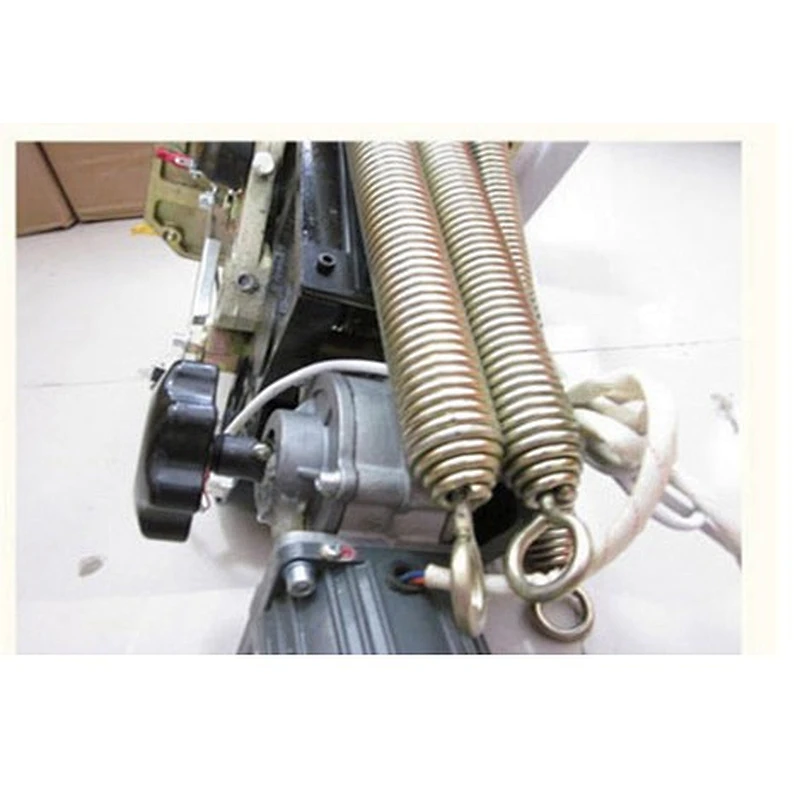

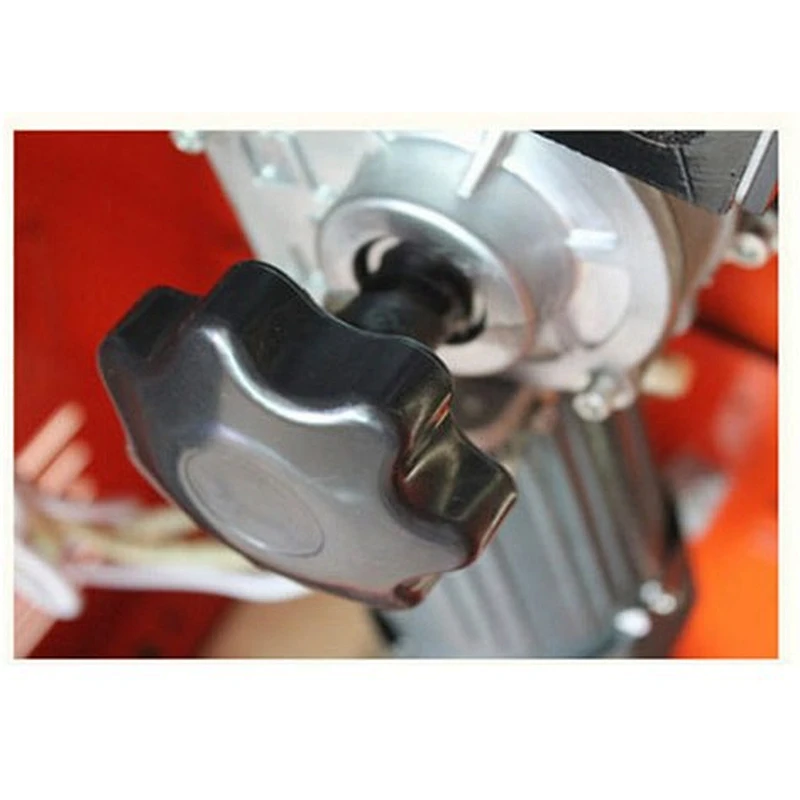

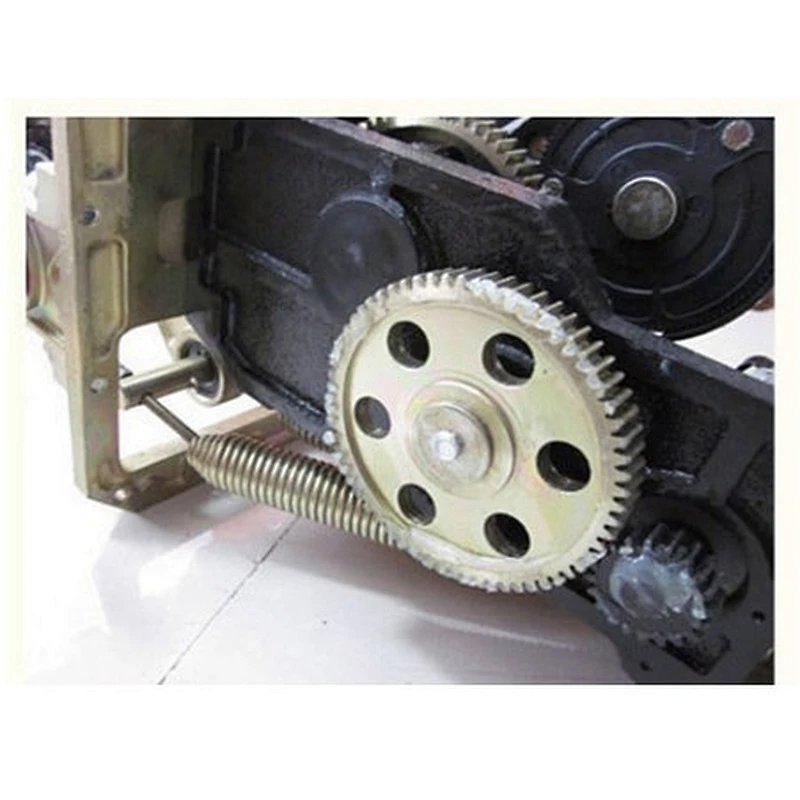

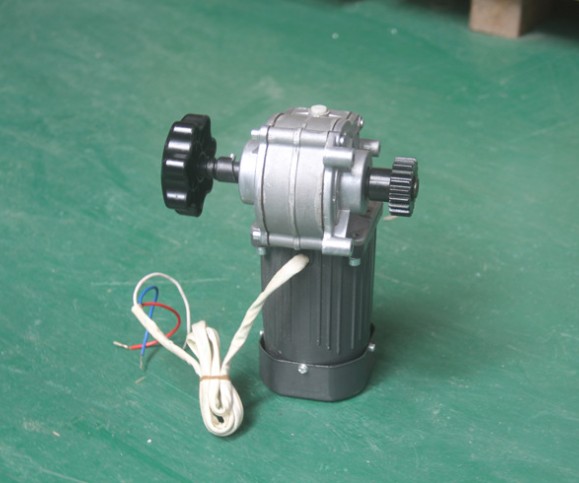

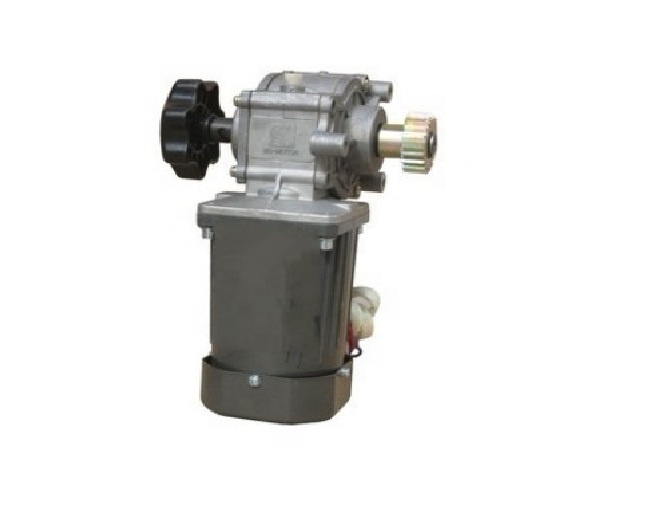

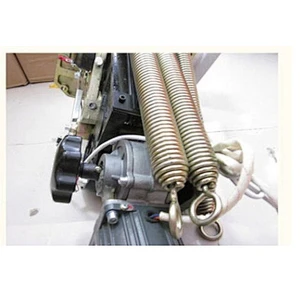

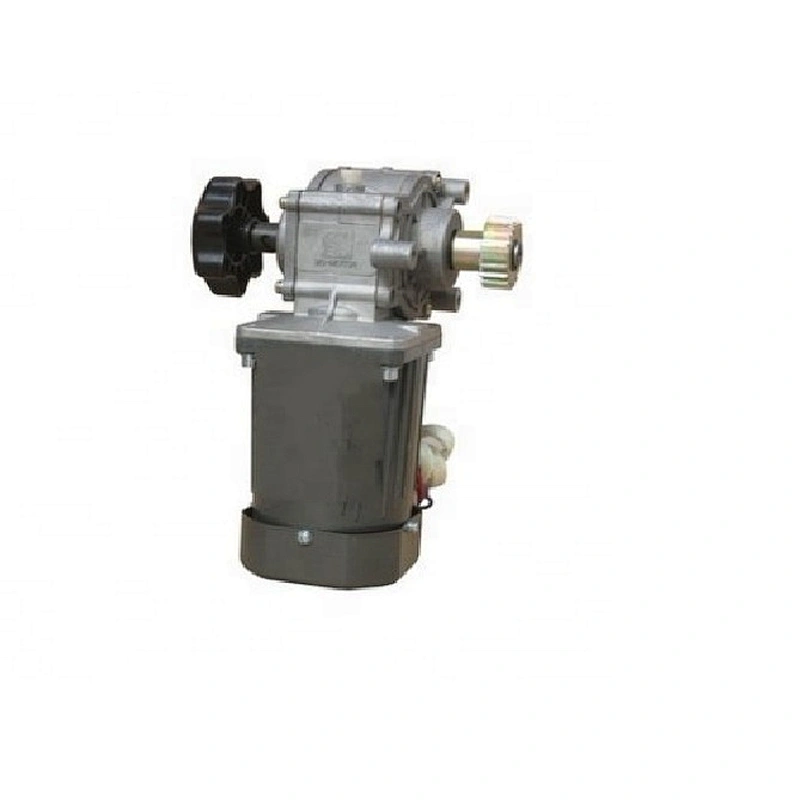

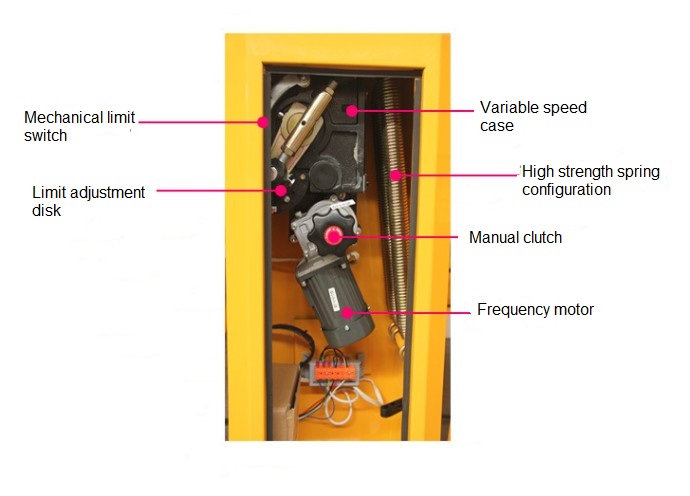

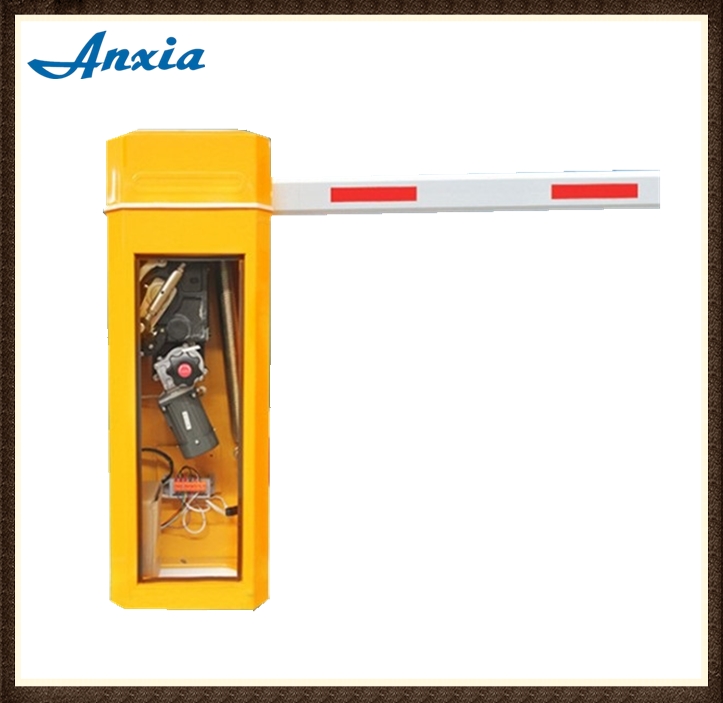

Customized Parking Boom Barrier Accessories Control Mechanism Module
| Supply voltage: | 220V AC , 110V AC,24VDC/AC,12V DC/AC ( See the label on the detector) | |||||||||||||||||||
| Loop Quantity | 1 | |||||||||||||||||||
| Voltage tolerance AC | +10% / -15% | |||||||||||||||||||
| Voltage tolerance DC | ±15% | |||||||||||||||||||
| Power Consumption | 4.5VA | |||||||||||||||||||
| Output relays | 240V/5A | |||||||||||||||||||
| Operating temperature | -20°C to +70°C | |||||||||||||||||||
| Storage temperature | -40°C to +85°C | |||||||||||||||||||
| Frequency range | 20 kHz to 170 kHz | |||||||||||||||||||
| Reaction time | 100ms | |||||||||||||||||||
| Signal holding time | Unlimited | |||||||||||||||||||
| Sensitivity | Adjustable in 3 increments | |||||||||||||||||||
| Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. The ideal is 100μH to 300μH | |||||||||||||||||||
| Loop connection wiring | Maximum length of 20 meters, twisted at least 20 times per meter | |||||||||||||||||||
| Size of Housing | 78x40x108 mm (L x W x H | |||||||||||||||||||
| 1) Standard industrial guide installation |
| 2) Strong anti-jamming ability and stability |
| 3) Variety of output interface adapted to a different scene |
| 4) High-temperature stability |
5) Reset Switch: The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ; |
6) Selectable Pulse Time: This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ; |
7) Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ; |
8) Sensitivity Boost: This feature sets the undetected level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ; |
9) Switch Selectable Sensibility: 4 sensitivity setting are available on the switches to allow flexibility in configuration ; |
10) Switch Selectable Frequency: 4 frequency settings are available to prevent cross-talk between adjacent loops ; |
11) Filter Option: This option is used to provide a delay between the detection of the vehicle and switching of the output relay. This relay is normally used to prevent false detection of small or fast moving objects ; |
12) Permanent Presence Option: This feature ensures the detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods. |
Shenzhen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest companies in Shenzhen security system industry for over 10 years, our team is committed to providing high-quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience in international trading since 2010, and our products sell well in southeast Asia, middle east, eastern Europe, over 40 countries all over the world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relationship with you.
Q1: Do you have the English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you a copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
