- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:AX-S009 Tubular Swing Barrier Gate
- Product name:Tubular Swing Barrier Gate
- Type:Single motor fast speed swing gate
- Application:Subway, supermarket, office, school
- Size:L1020 * W168 * H450mm
- Channel width:900-910mm
- Life span:5,000,000 cycles
- Housing thickness:1.5 mm
- Traffic speed:About 35 persons/minute
- Temperature:-30℃ ~ 60℃
- Warranty:1 year

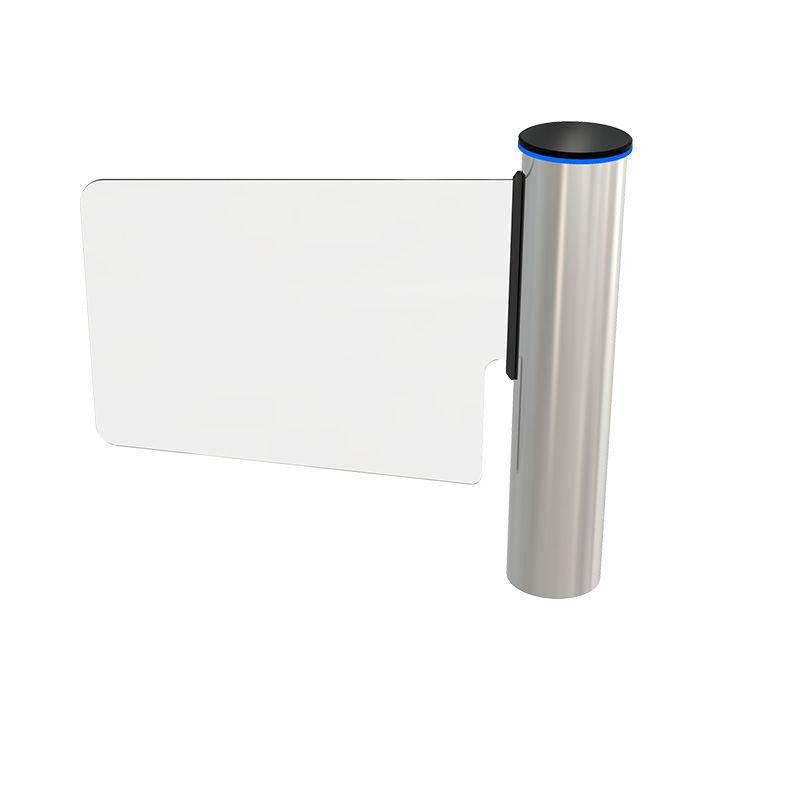

OEM New 304 Stainless Steel Supermarket Telescopic Tubular Swing Barrier Gate Design

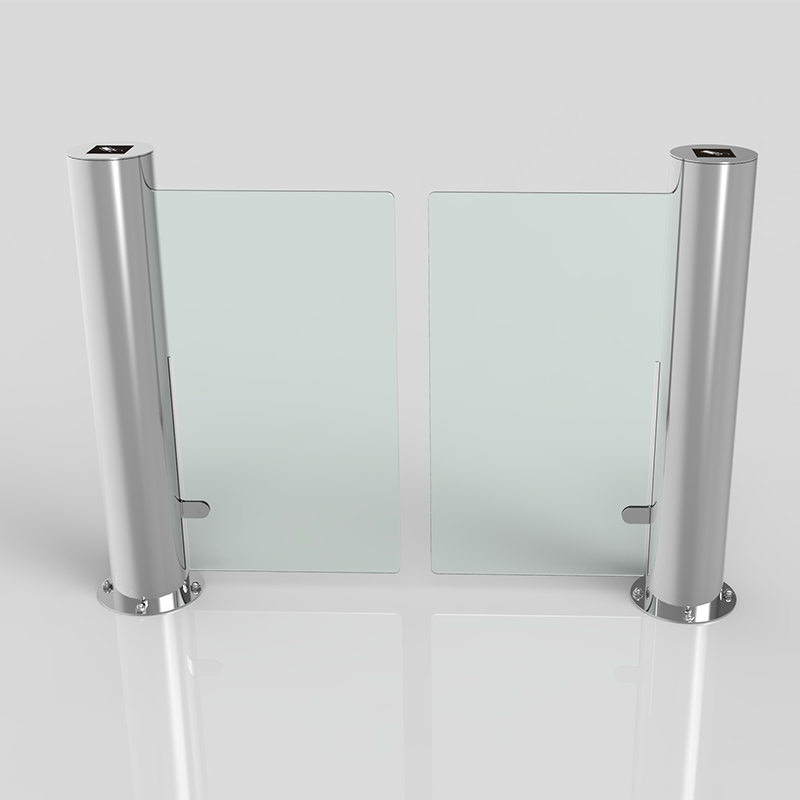

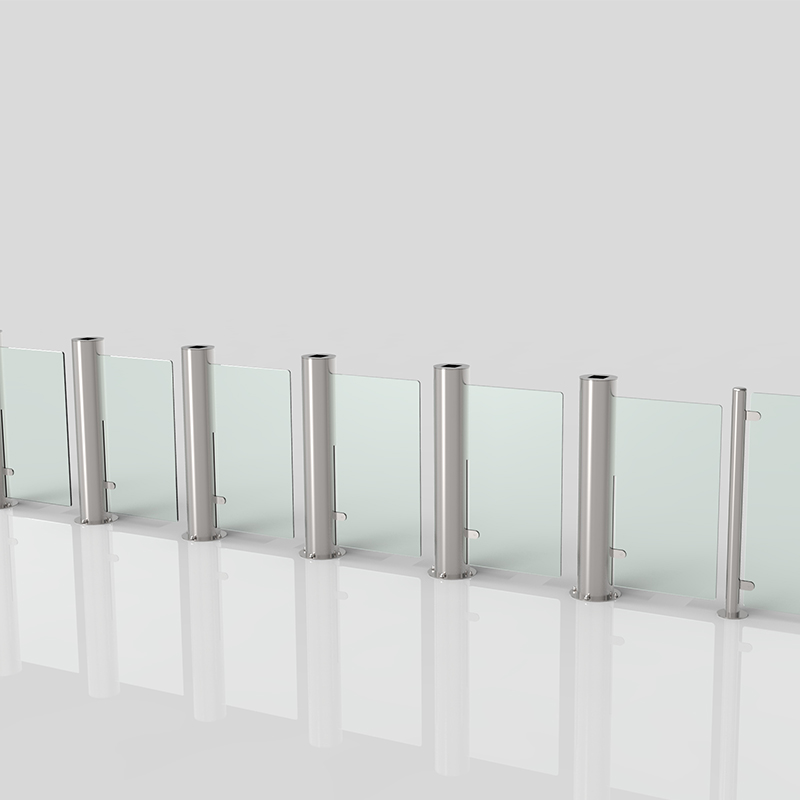

Product pictures:
Product details:
The Fastlane Passgate 300 is a bi-directional, single swing glass barrier, motorised entrance gate that has been designed to provide an extra wide lane to a turnstile installation; suitable for all users, including people with reduced mobility and wheelchair users, as well as facilitating the movement of goods deliveries.
The Passgate 300 provides a range of lane widths up to 1000mm with glass barrier height options using a single swing barrier. It is designed to operate with either manual control using a momentary push button, remote control accessory or using Access Control; readers are typically mounted on posts. The Passgate 300 also benefits from Fastlane Connect Ethernet communications for control, configuration and diagnostics. The enclosure is supplied using stainless steel with a brushed finish with Black Quartz Corian upper surfaces, the glass barrier is either 10mm toughened glass or 12mm laminated toughened glass subject to barrier height option.
Length: 240 x 965
Lane width options: 600, 700, 1000
Barrier height options: 965, 1200, 1500, 1800
IP connectivity: Yes
Locking brake option: Yes
Features:
| Description | Parameters |
| Lane Width | 900-910mm |
| IP | IP54 |
| Pass Speed | 30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Max Power Consumption | 200W |
| Opening time | 0.5S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 5,000,000 cycles |
| Outside packing | 145x110x36cm |
| Working Environment | -20°C~+60°C |
| Gross Weight | 85KGS |
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
