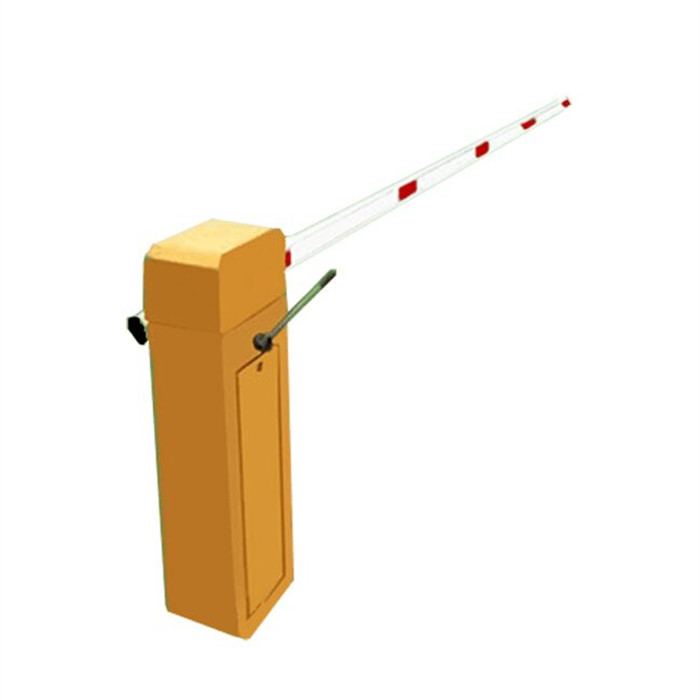

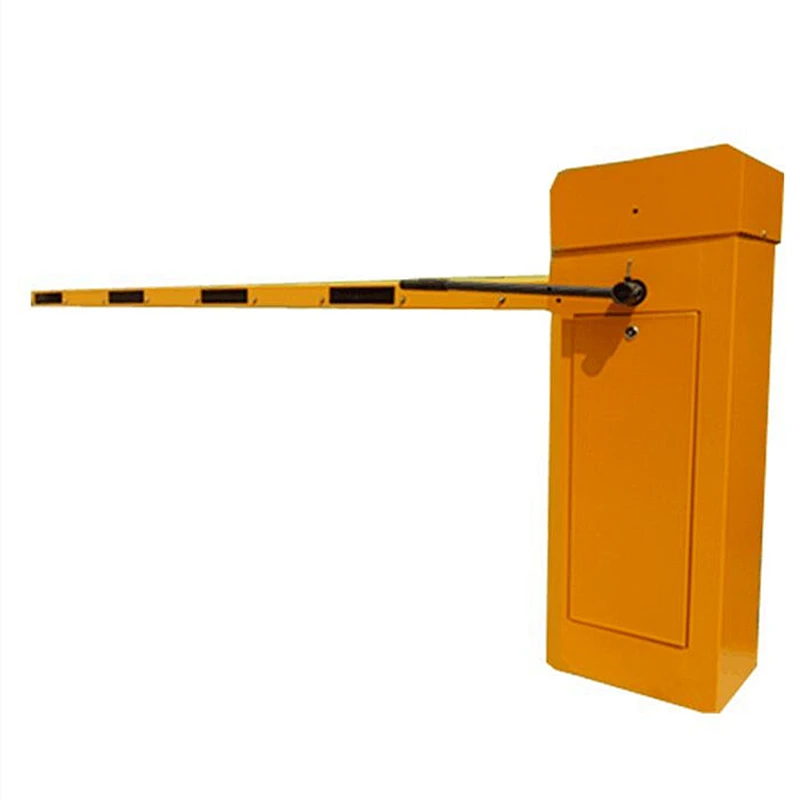

Light Duty Manual Boom Barrier Gate with Cradle Arm Length 6m

 A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 15 year experiences on designing, producing and installing boom barriers. The result is a superior boom barrier with best after after-sales service.
Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span.
With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.

10 Million MTBF 100% Duty Cycle Auto Parking Barrier Gate This Parking Gate Barrier provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc. Thanks to DC motor, solar panel can be backup power supply.

Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.

Light Duty Manual Barrier with cradle Arm length
The AX-818 is a manually handle operated barrier gate for light commercial applications.

Not as heavily constructed as the AX-307  series these units are great for light duty applications in parking garages, loading docks or other traffic control uses in protected areas.

The AX-818 is shipped with a 1-6m arm which can be field cut to size, or we will cut to you specification at the factory before shipping. Units are internally spring-balanced with no counterweight system.

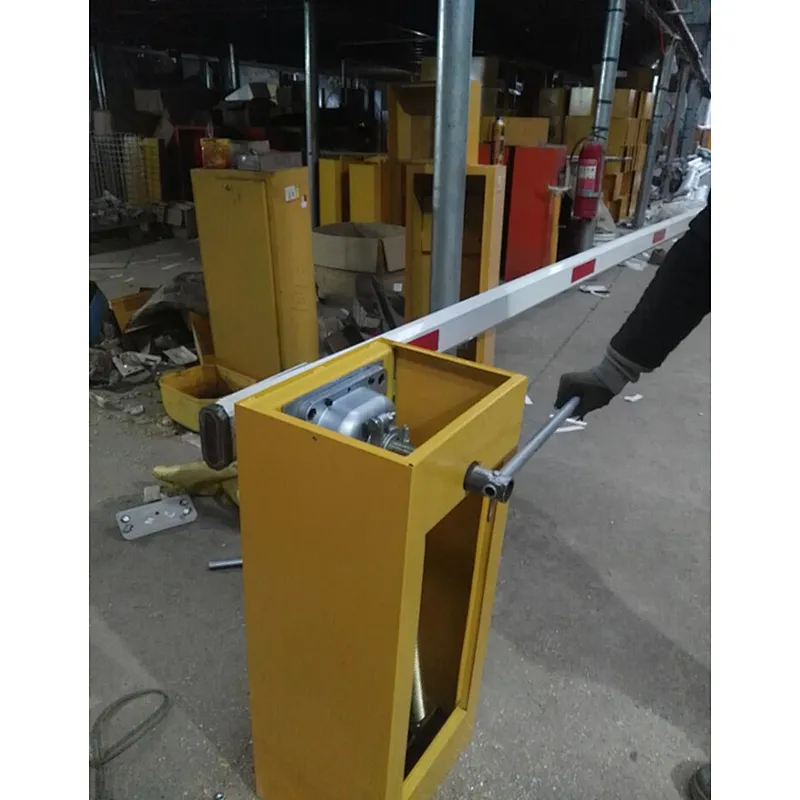

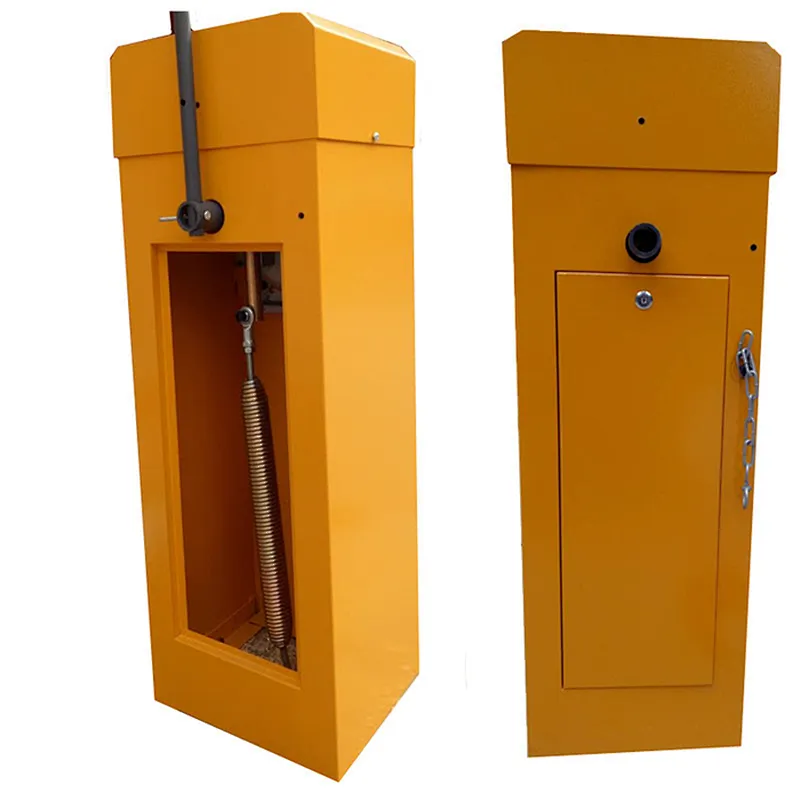

The spring tension holds the arm upright until pushed down. The easy access door allows the spring be to changed or adjusted to accommodate different arm sizes.

An adjustable tip support cradle is included for extra support.

Economical manual boom barrier gates, trouble-free operation, no electricity required

Manual boom barrier gate characteristics:

Generally used in places where the frequency is not high and the power supply is not convenient. Compared with electric boom barrier gates, the price is much cheaper.

1. The main machine adopts nonlinear lever transmission structure, the lifting rod and the falling rod are stable, the structure is simple, compact, strong and rigid, and the operation is stable and the noise is low.

2, High-quality surface spray, long-term outdoor work does not fade, does not rust.

3, the built-in spring balance mechanism of the gate, provides an accurate balance system for the automatic railing, manual and easy.

This boom barrier gate is operated manually, you can operate the landing gear with only one finger, and the design and weight of the machine is reasonable.

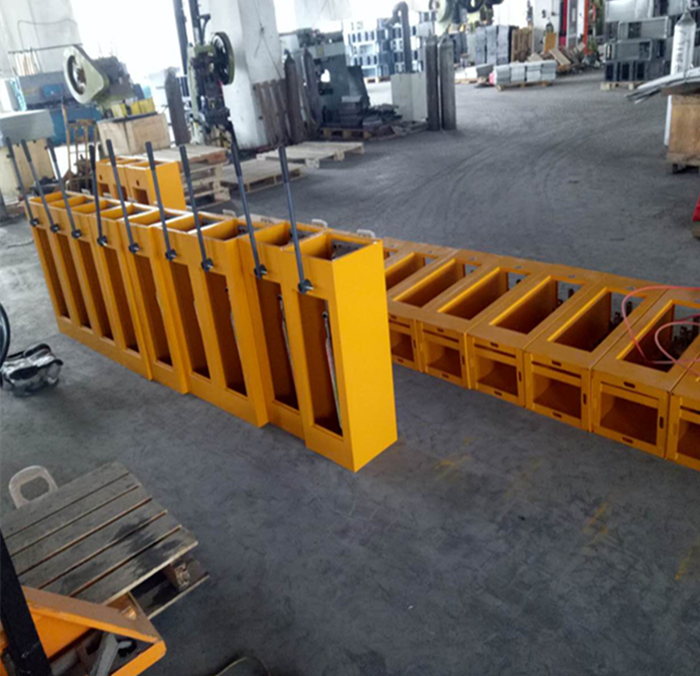

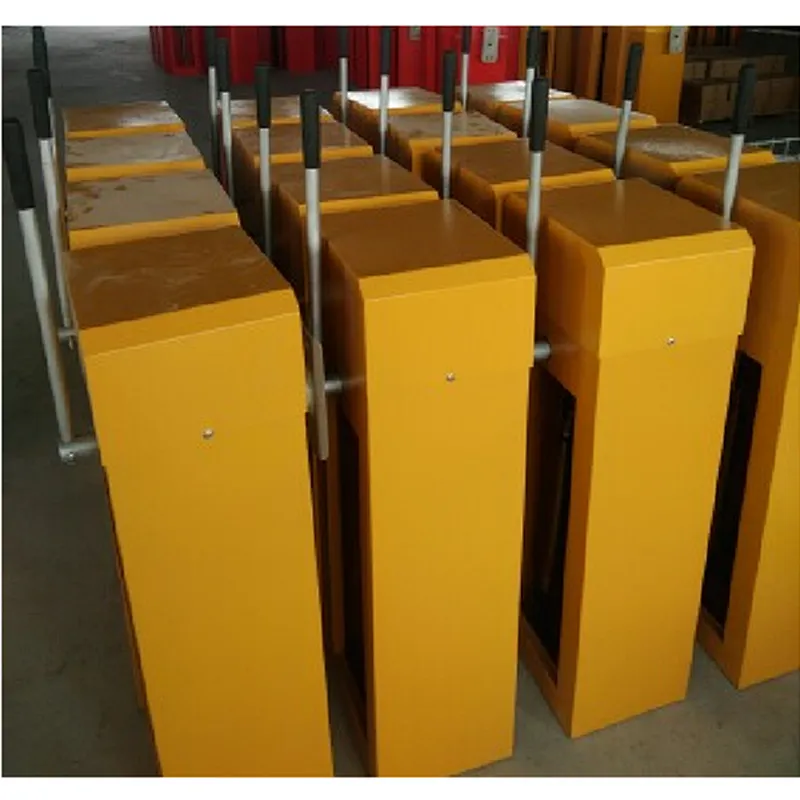

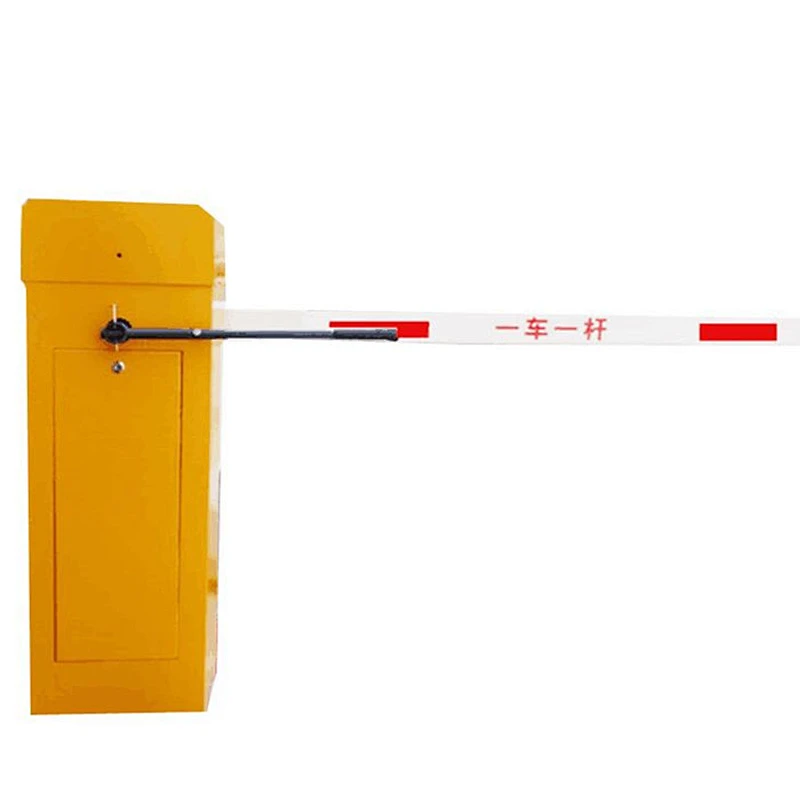

Product pictures:

Specifications:

Arm Length 6m as measured from the pivot point.
Arm constructed of extruded aluminum powder coated white
Arm easily field cut to size
Height adjustable cradle included
Spring adjustment for different arm lengths or smaller springs for shorter arms
Heavy gauge sheet metal cabinet with baked on enamel finish
Interior 1.5” X 1.5” angle iron framing
Reinforced 1.5” X 1.5” angle iron base with pre-drilled holes for direct bolt down to any surface
Internal spring counterbalancing for easy arm lifting and lowering
Heavy duty bearings and spindle shaft for long life
Light weight for portability – bolt to a movable surface.

Dimensions:
Cabinet: Width (handle side) 13.5”, depth 11.0”, height 42”, height to centerline of arm 33”
Arm:  width 1.5”, height 4.0”, length to 18 ft max

Our Clients:

 Our Clients:

Certificate of honor:

Exhibition:

Q1: Do you have English language system?

A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.

Q2: Can we connect your access control system with our system?

A:  Yes, we provide SDK and Software development service with connection port.

Q3: Are your turnstile/barrier gates waterproof?

A: Yes, our turnstile/barrier gates have water proof feature.

Q4: Do you have CE and ISO9001 certificate?

A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.

Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.

Q6: How about your warranty?

A: Our products have one year warranty.
