- Place of Origin:CN;GUA
- Brand Name:Anxia
- Product name:Retractable Bollard
- Material:304 Stainless Steel
- Surface treatment:Spray finishing
- Thickness:6 Mm (Customized)
- Usage:Access control

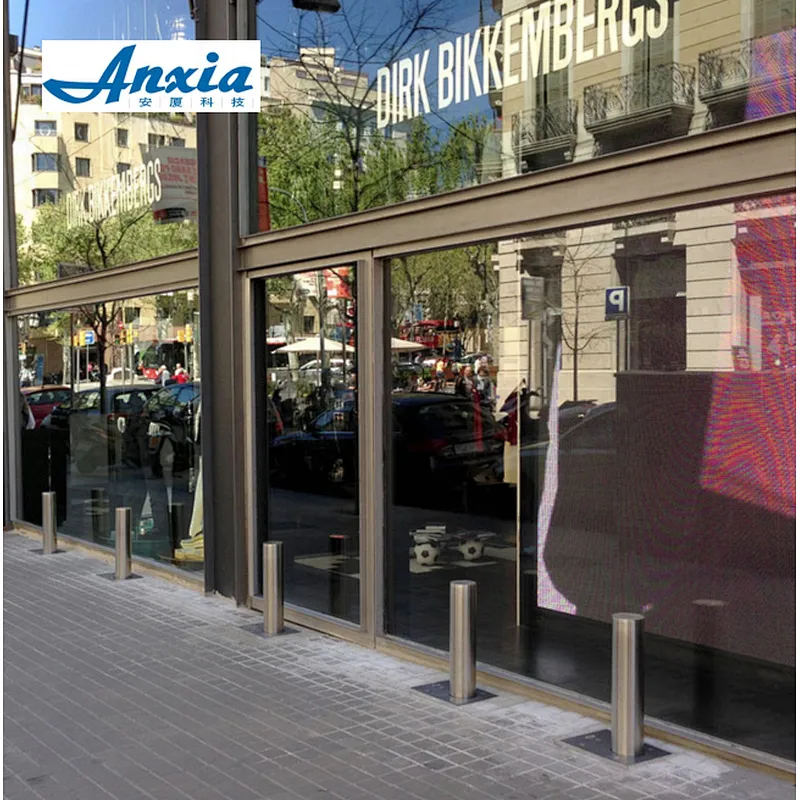

High security stainless steel car parking automatic remote control rising bollard

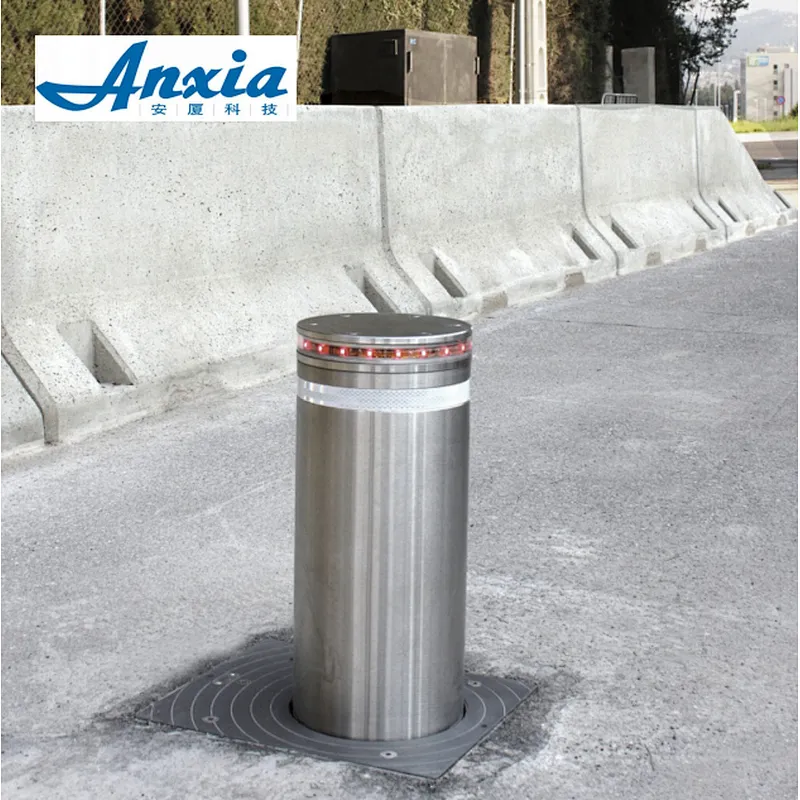

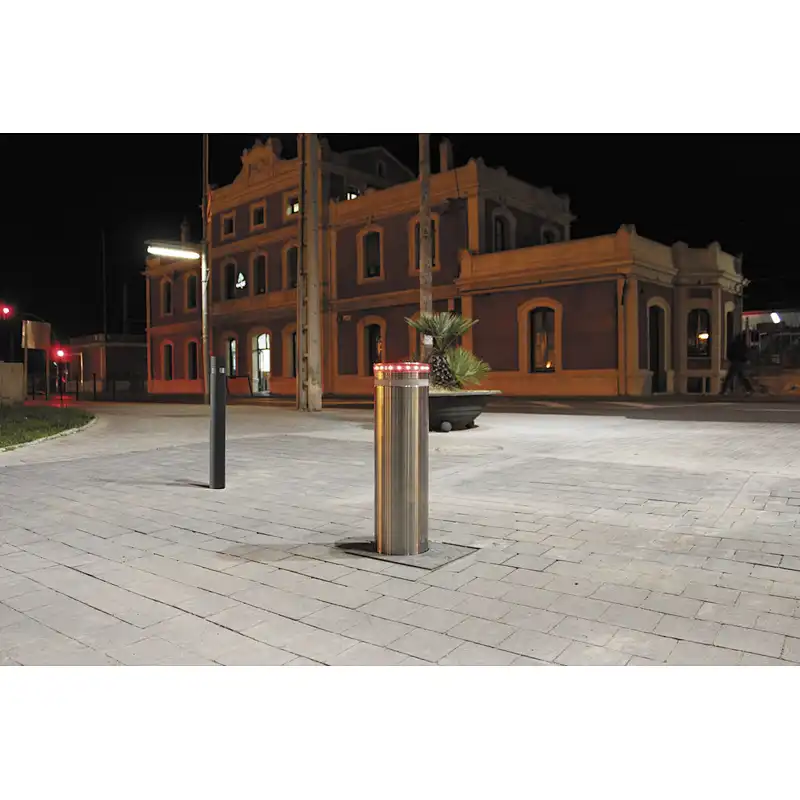

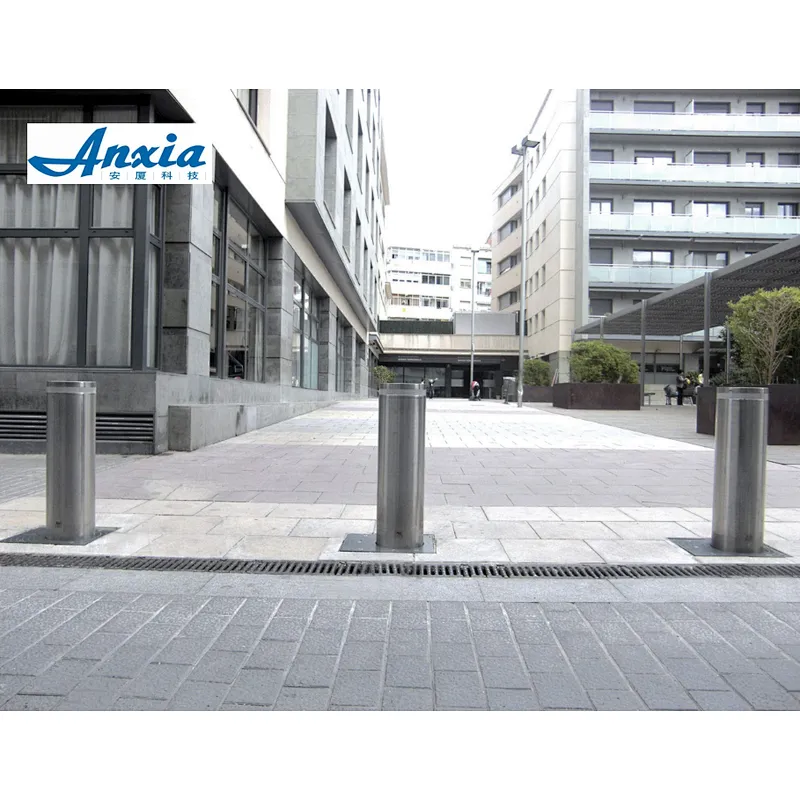

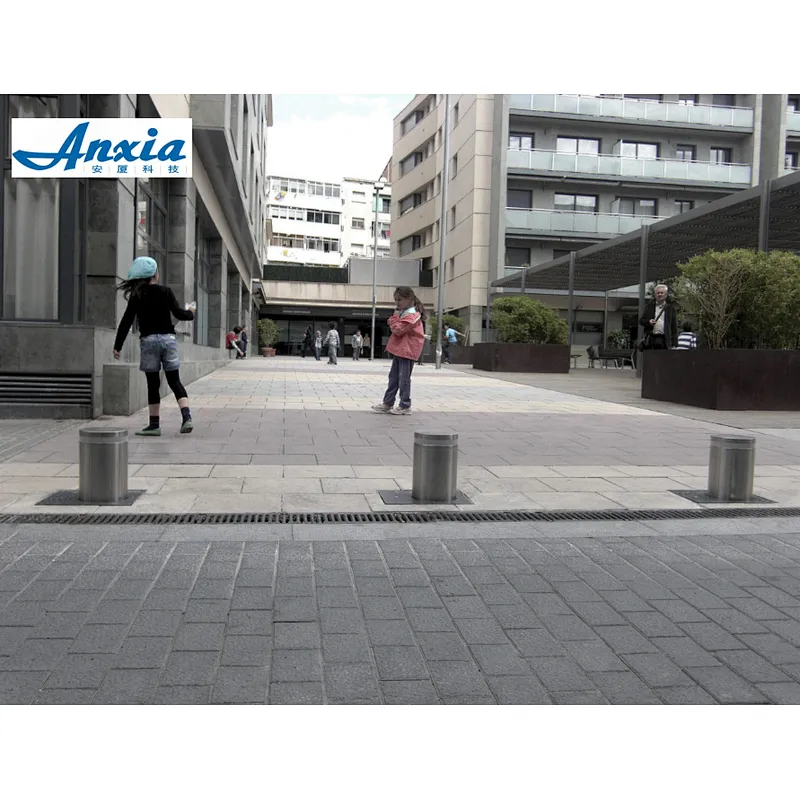

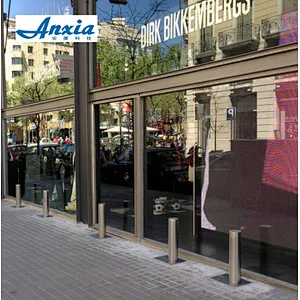

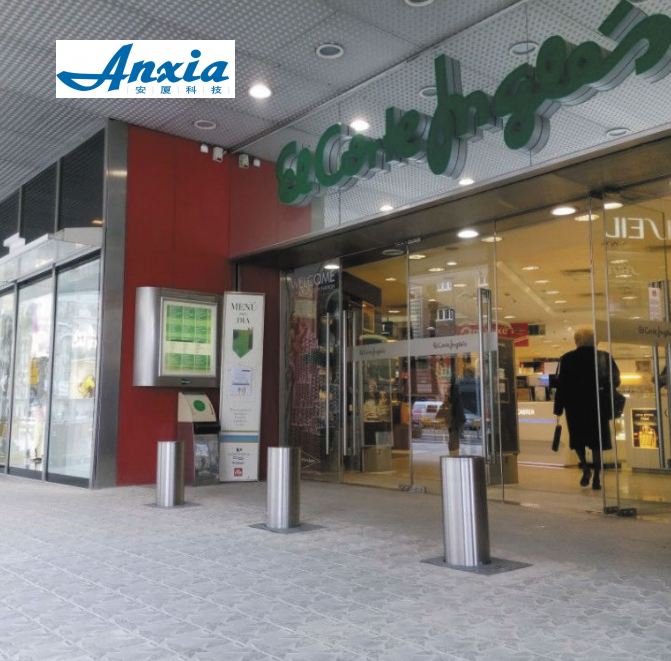

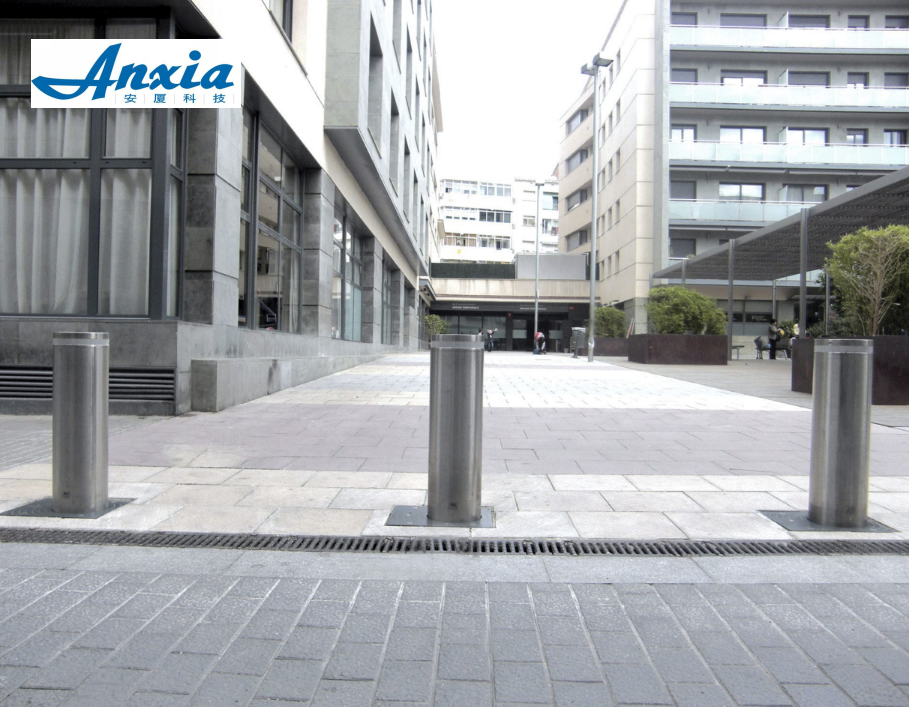

Product Pictures:

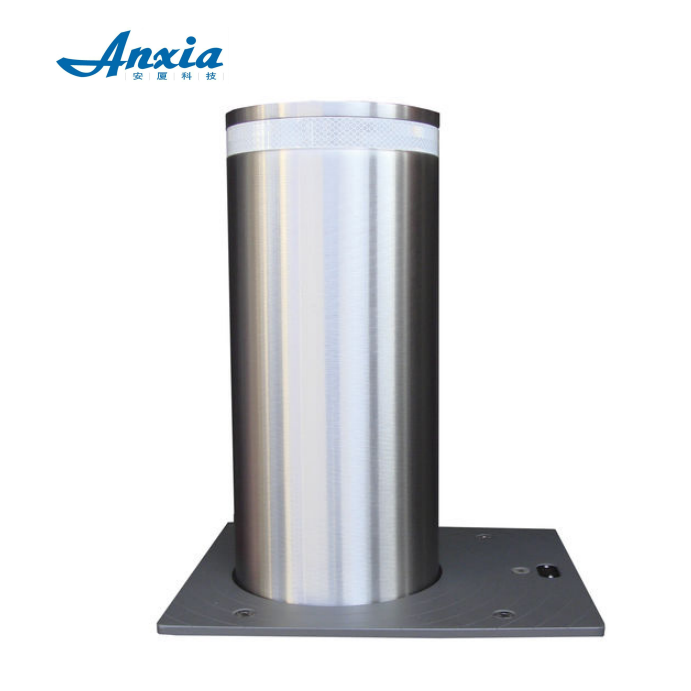

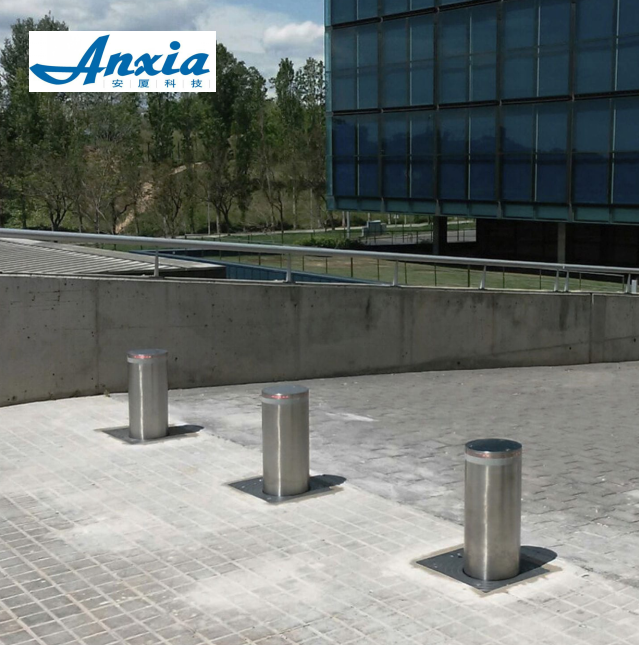

Automatic bollard:
This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Features:
Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system
Housing with durable and stainless Galvanization
Optimization of frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability

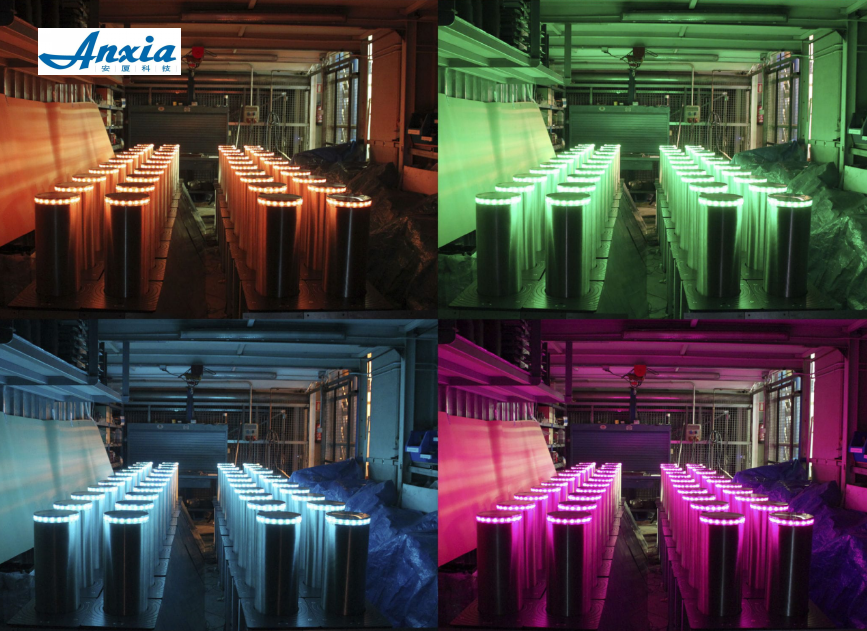

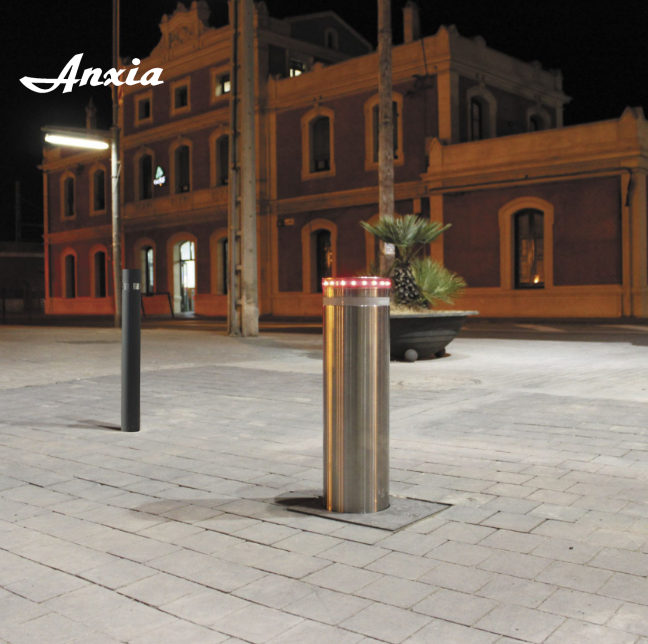

With a reflective band and a low energy consumption LED light at night
Parameters:
| Product name | Electric automatic bollard |
| Control system | Electric-hydraulic operated |
| Maximum weight of passing cars | ≤8 T |
| Power supply | 220 V (control voltage: 24V) |
| System power | 1.5kW / 2.2kW |
| Rising time | ≤ 4 s (adjustable) |
| Dropping time | ≤ 2 s (adjustable) |
| Working temperature | -35°C ~75°C |
| Material | #304 stainless steel |
| Diameter of pillar | 219mm (168mm, 275mm, 324mm are also available) |
| Thickness of housing | 6mm(8mm, 10 mm are also available) |
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
