- Place of Origin:Guangdong, China
- Brand Name:Anxia

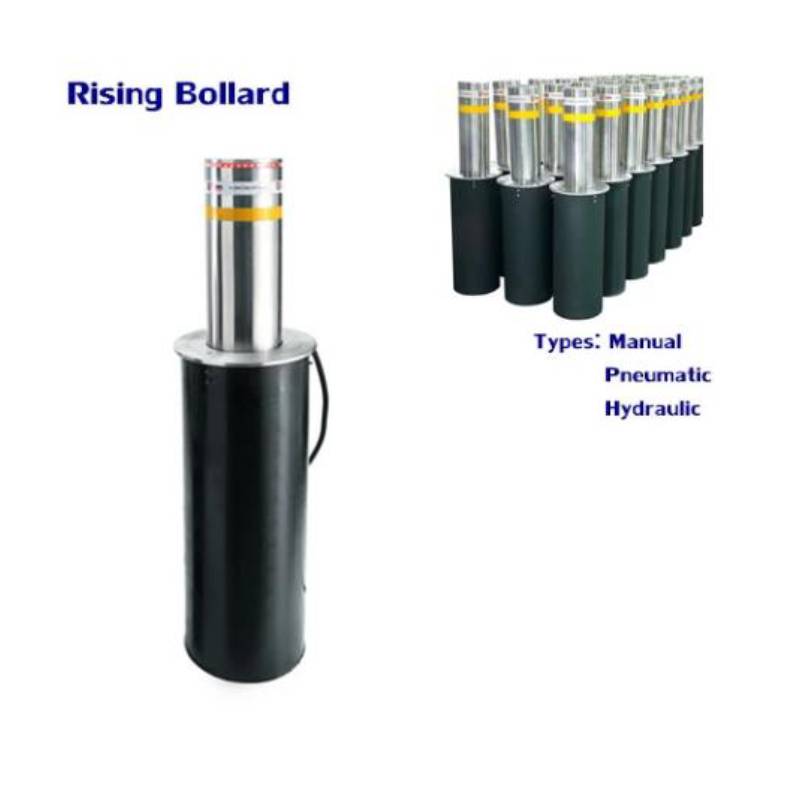

- Product name:Rising Bollards
- Material:304 Stainless Steel
- Surface treatment:Spray finishing
- Housing Thcikness:6 mm

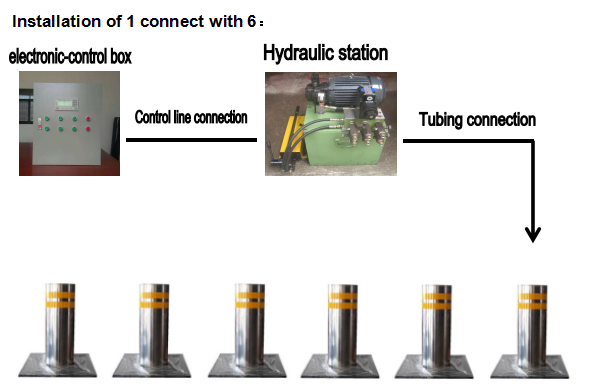

- Controller:1 controller from maximum 8 bollards

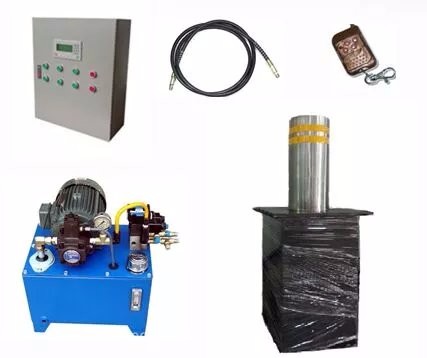

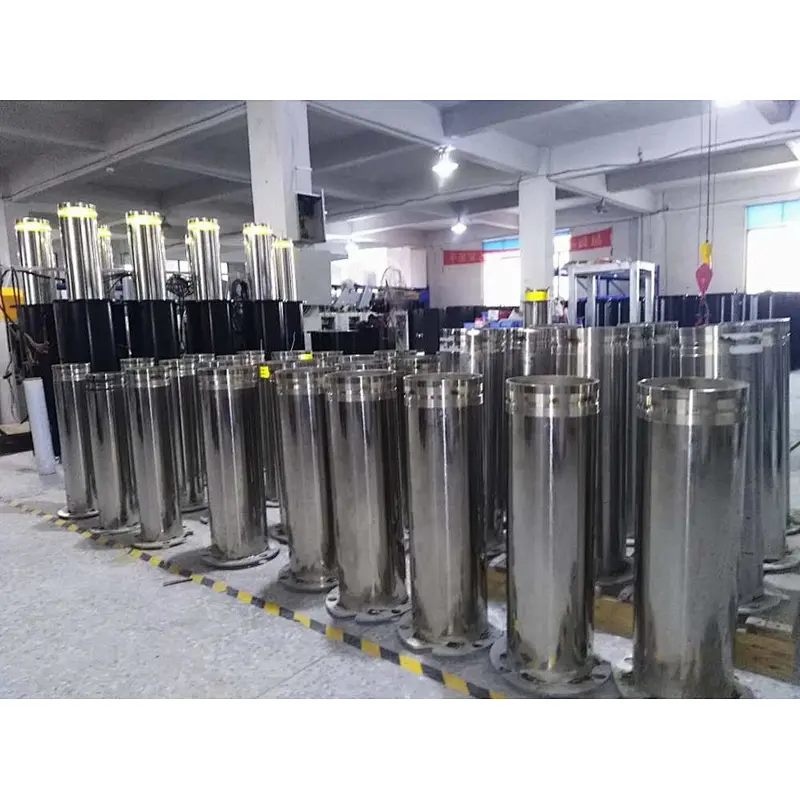

Product Pictures:

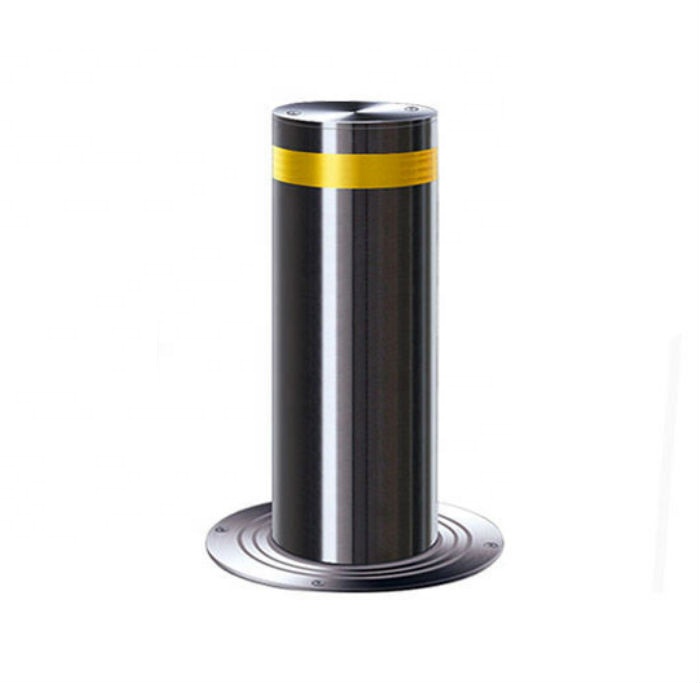

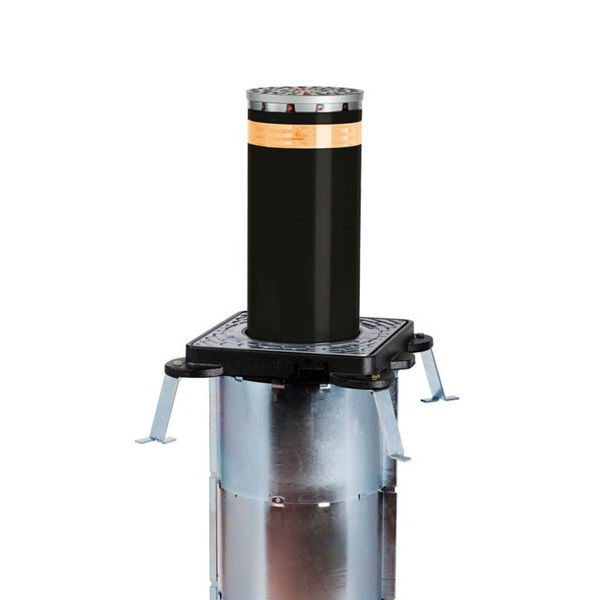

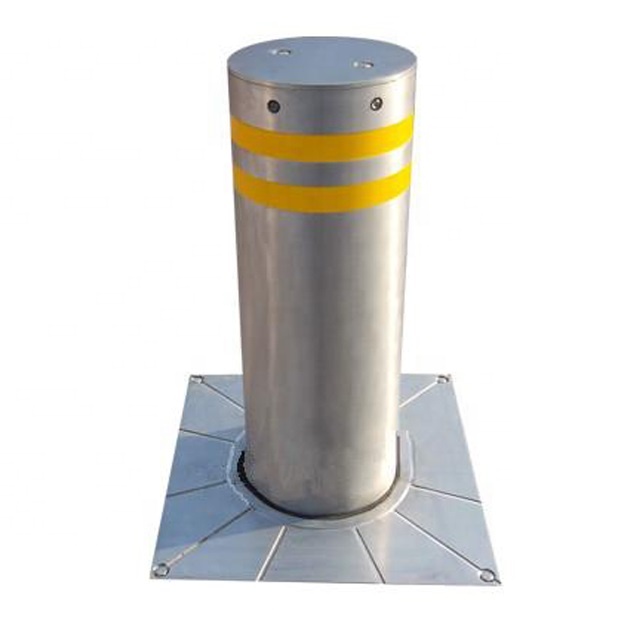

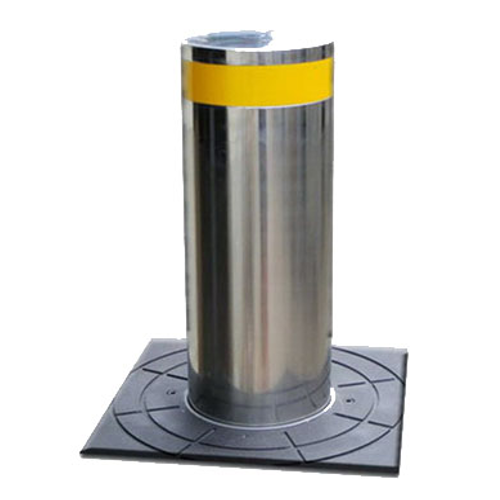

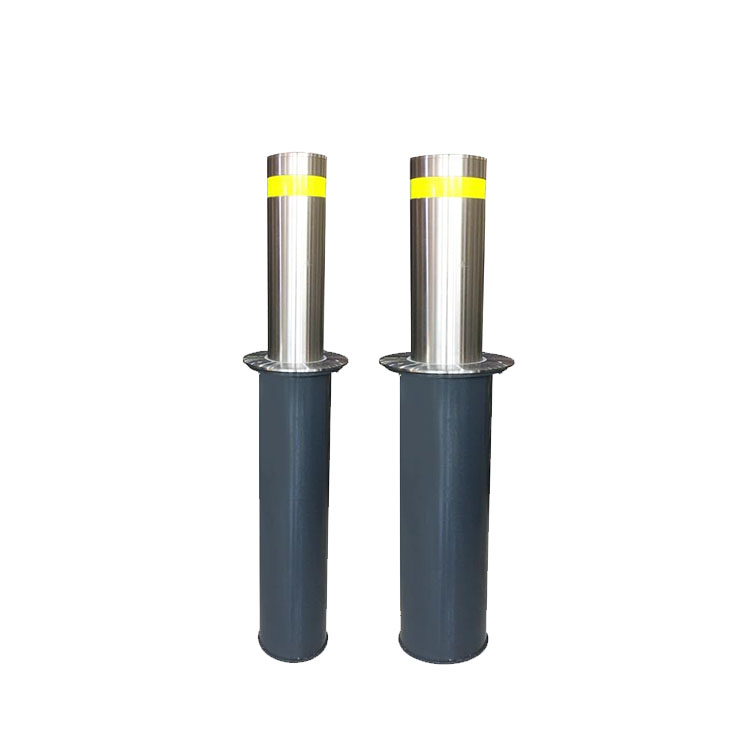

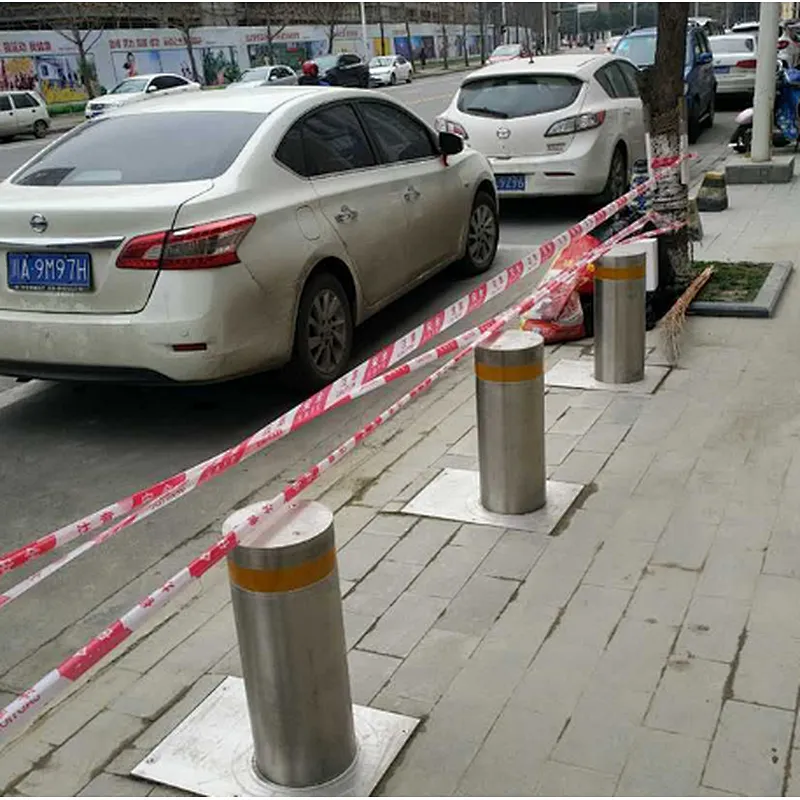

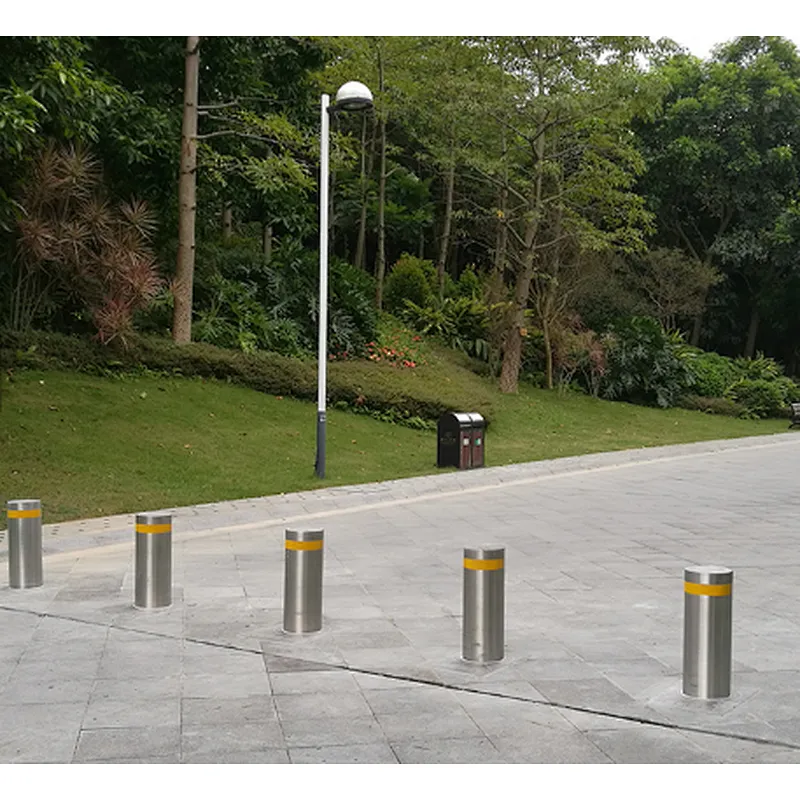

Automatic bollard:

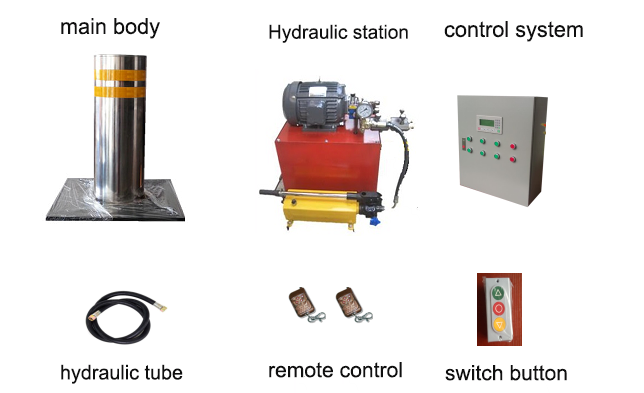

This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.

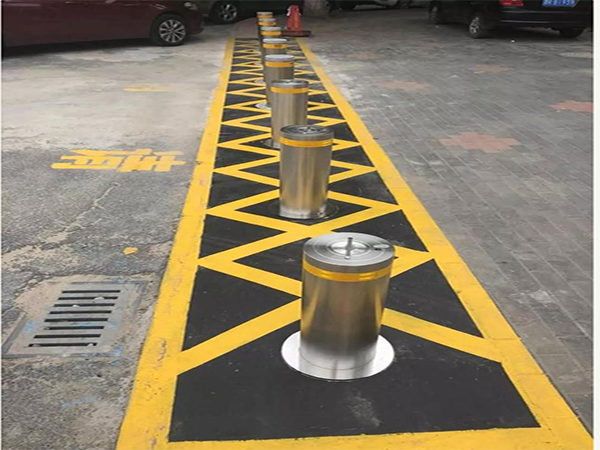

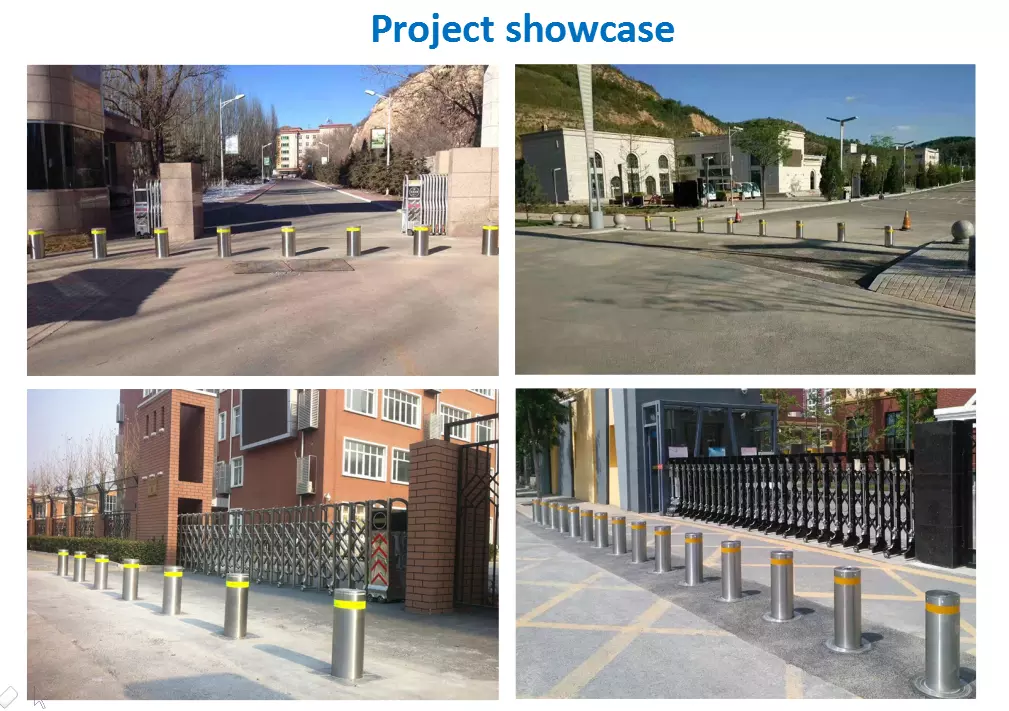

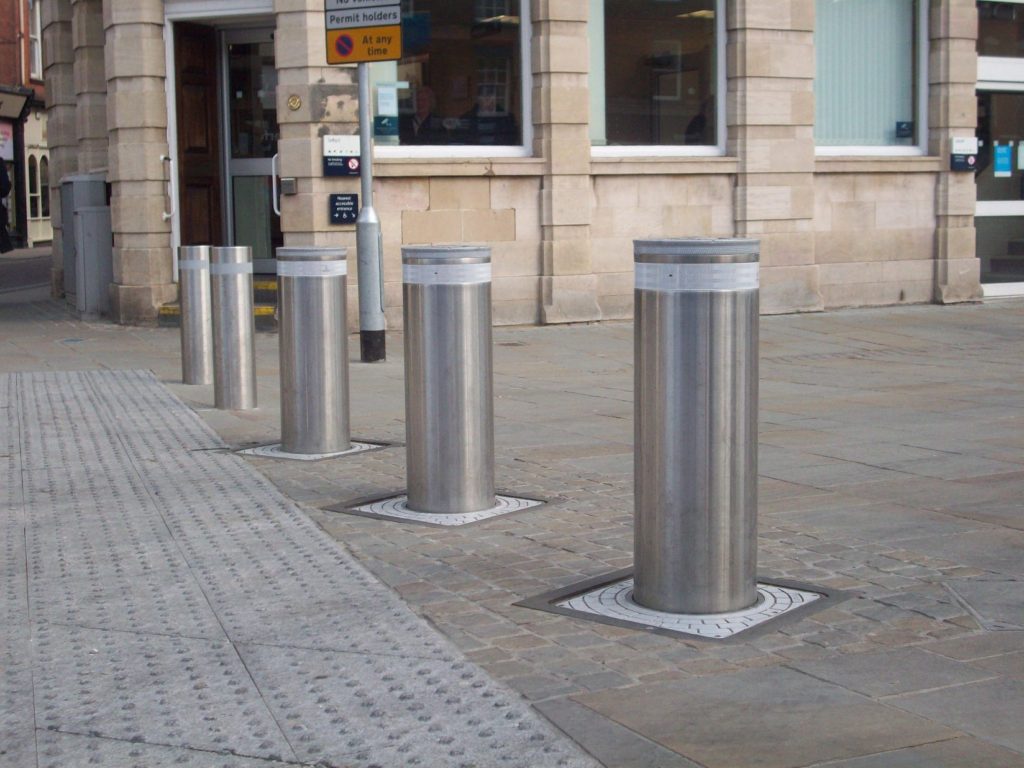

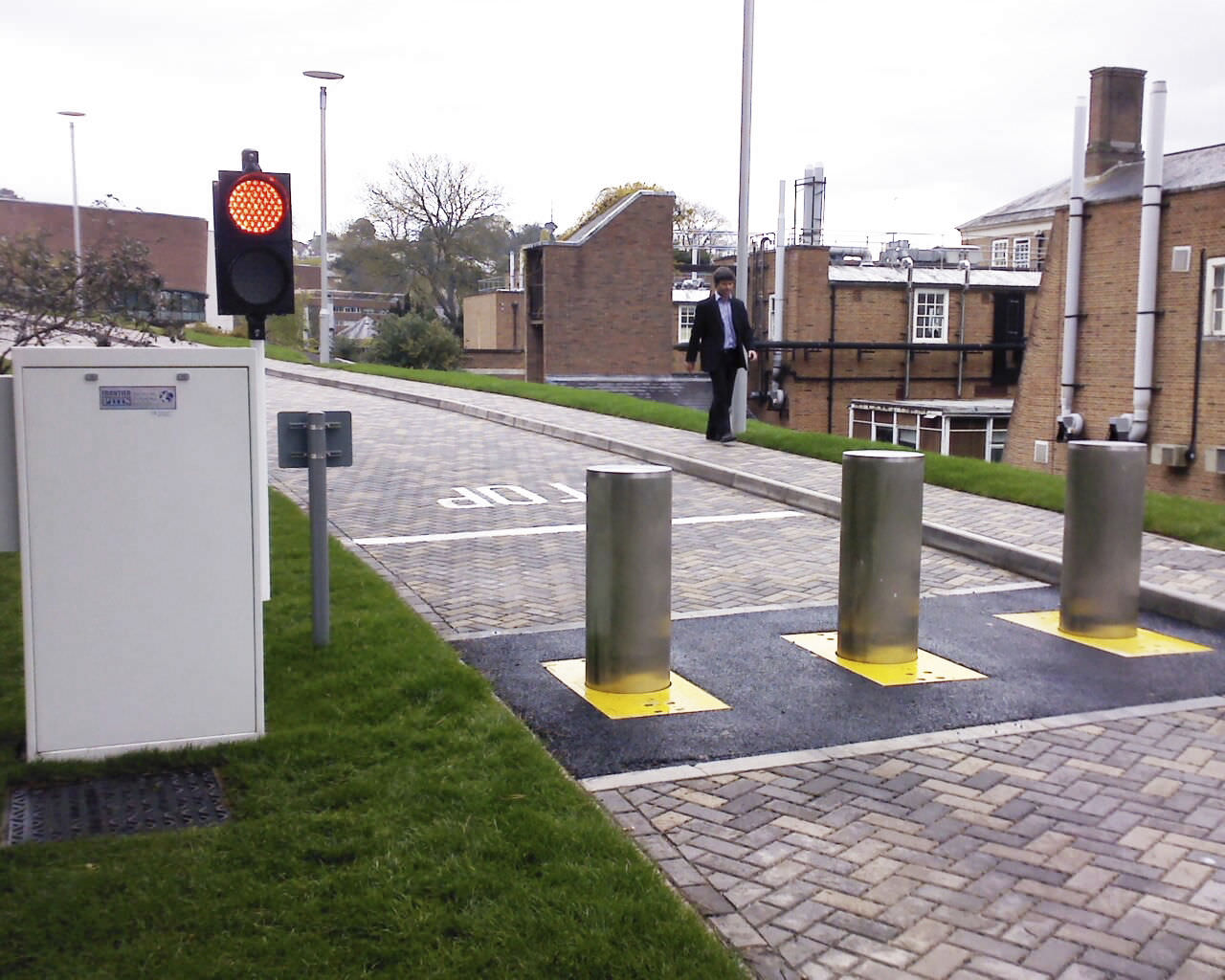

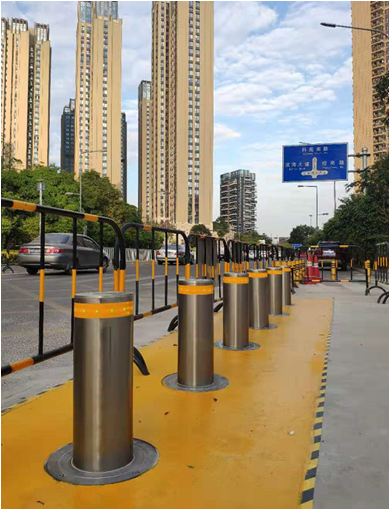

The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Features:

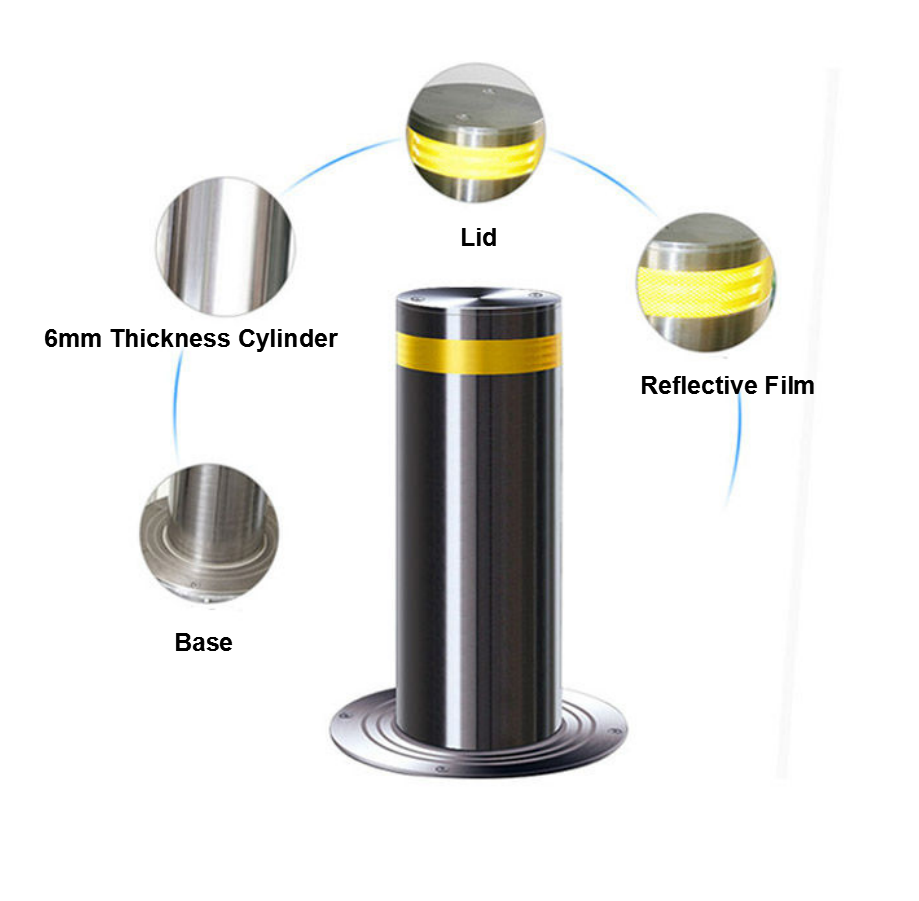

Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system

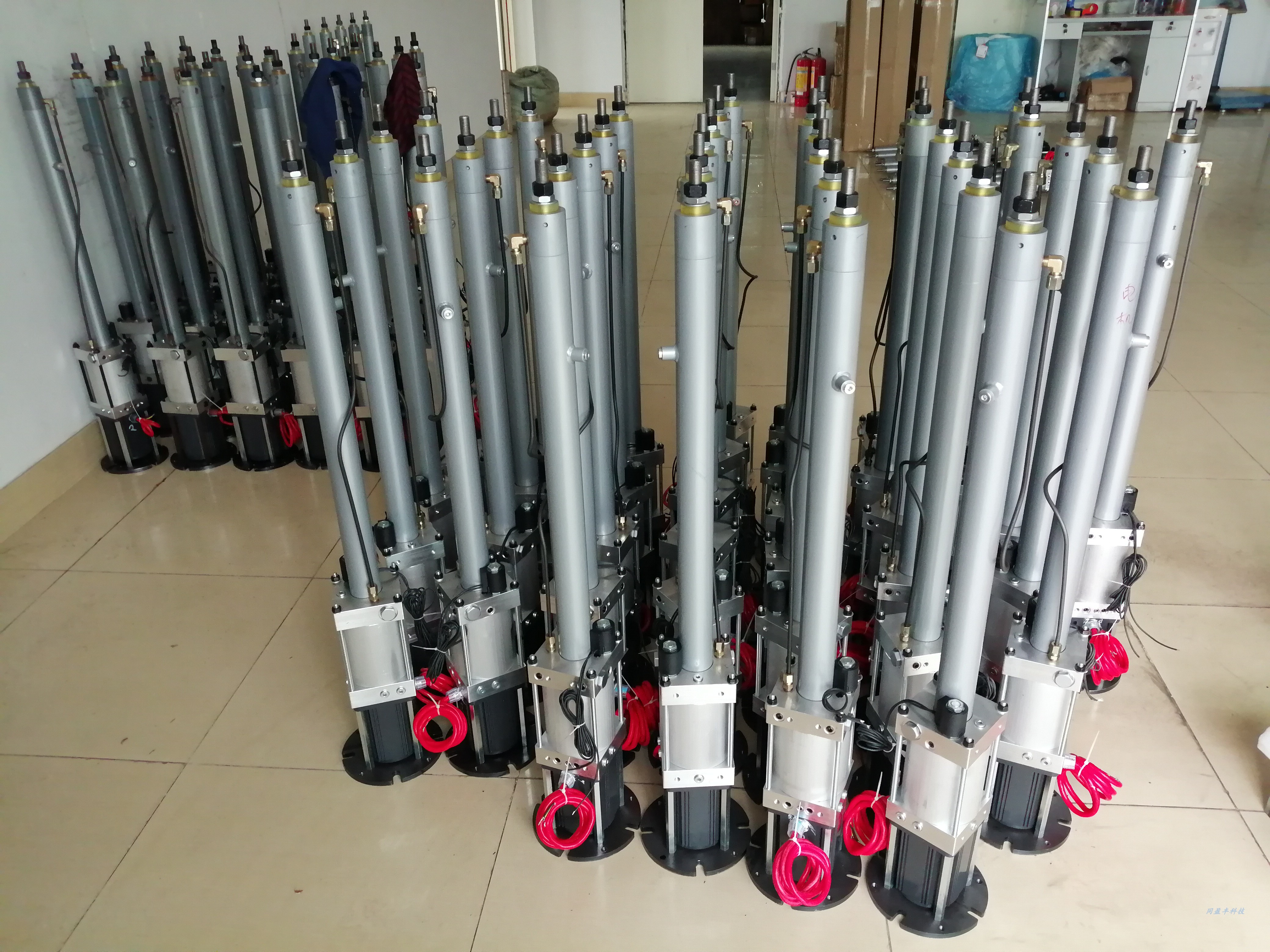

Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system
Housing with durable and stainless Galvanization
Optimization of frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability

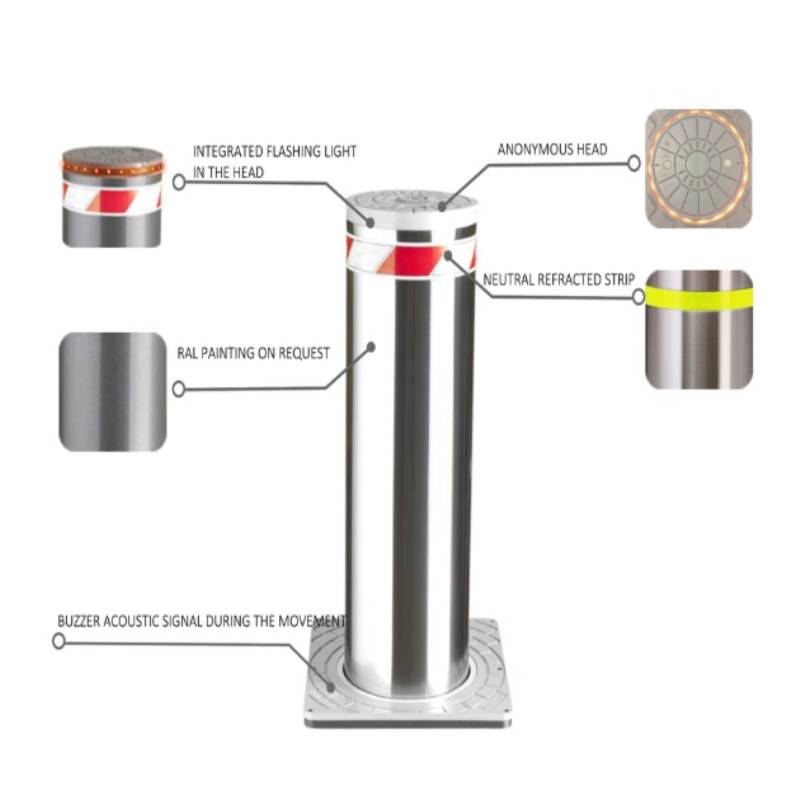

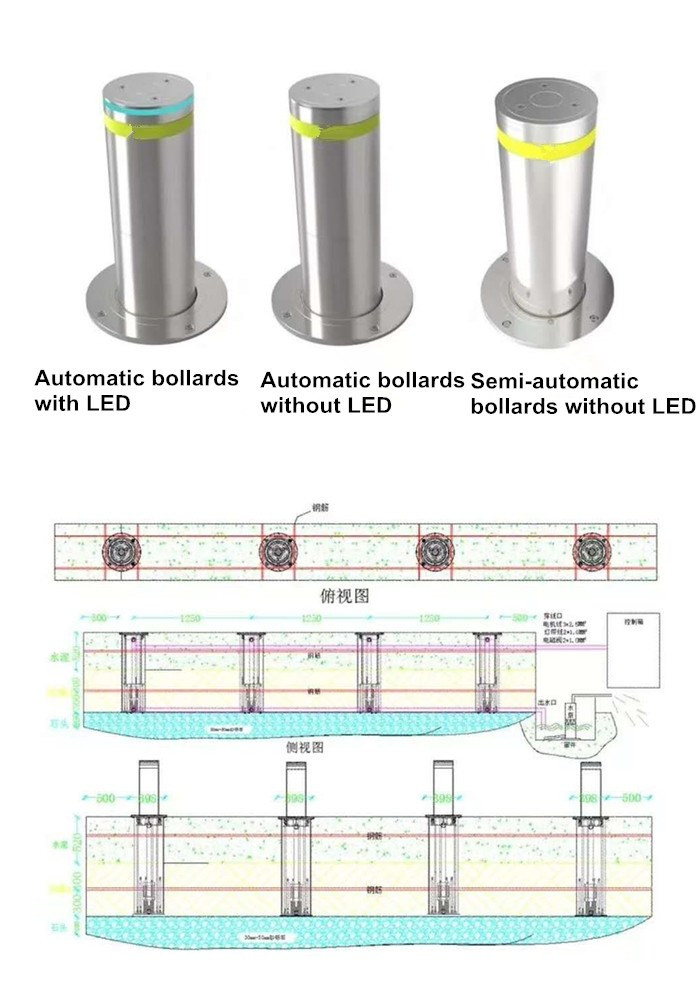

With a reflective band and a low energy consumption LED light at night
Parameters:
| Product name | Electric automatic bollard |
| Control system | Electric-hydraulic operated |
| Maximum weight of passing cars | ≤8 T |
| Power supply | 220 V (control voltage: 24V) |
| System power | 1.5kW / 2.2kW |
| Rising time | ≤ 4 s (adjustable) |
| Dropping time | ≤ 2 s (adjustable) |
| Working temperature | -35°C ~75°C |
| Material | #304 stainless steel |

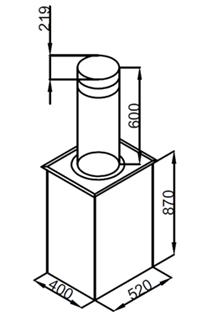

| Diameter of pillar | 219mm (168mm, 275mm, 324mm are also available) |
| Thickness of housing | 6mm(8mm, 10 mm are also available) |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample order by low charging than order.
Q: What is your terms of payment ?
A: 100%TT in advance, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us as below.
