- Place of Origin:CN;GUA
- Brand Name:Anxia
- Product name:Retractable Bollard
- Material:304 Stainless Steel
- Surface treatment:Spray finishing
- Housing Thcikness:6 mm
- Controller:1 controller from maximum 8 bollards
- Impact Resistance:More than 60,000 joules
- Bearing Capacity:More than 40 ton
- Surface finish:Drawing/ polishing/ painting
- Thickness:6 mm
- Weight:150kg

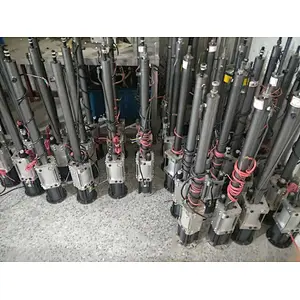

Anti-terrorist car block Full Automatic electric parking rising bollards

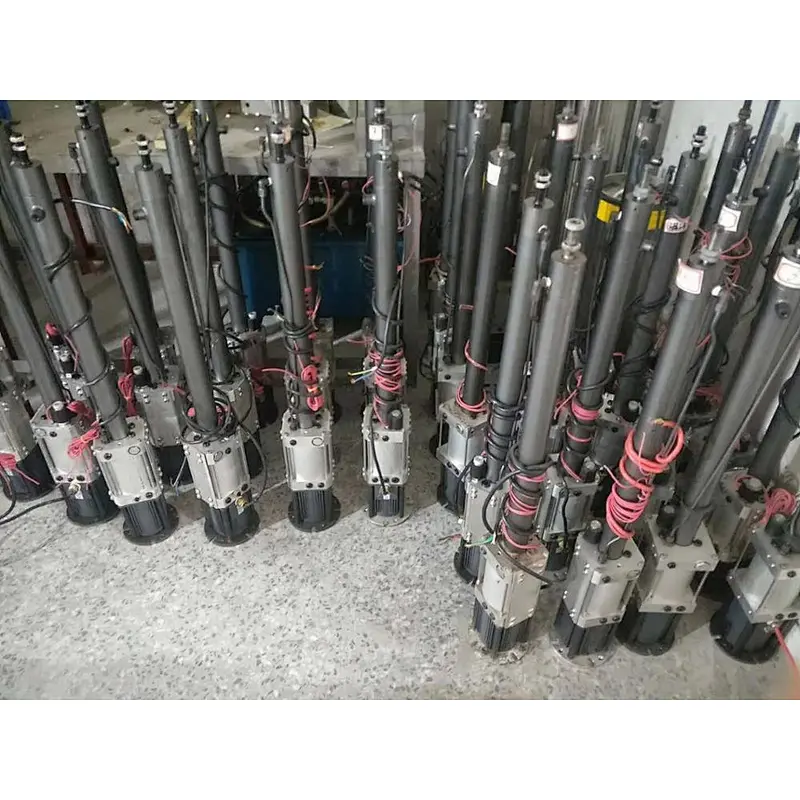

Product Pictures:

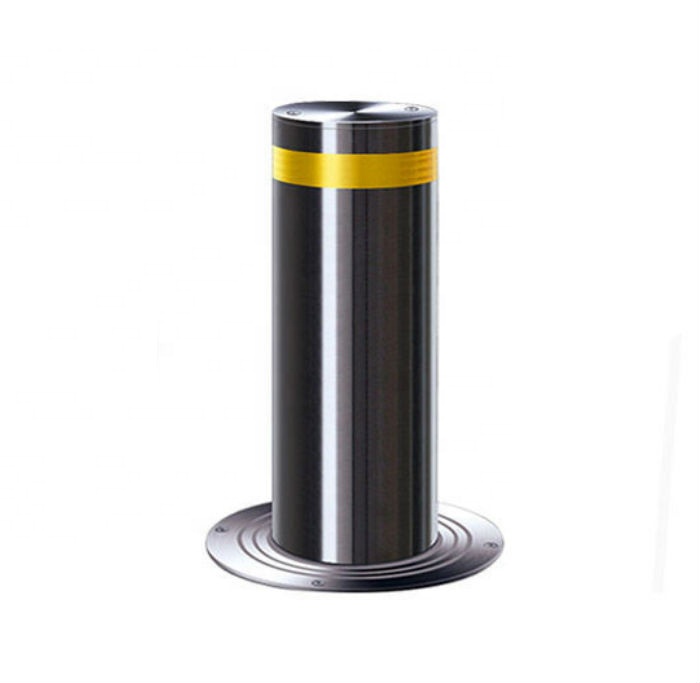

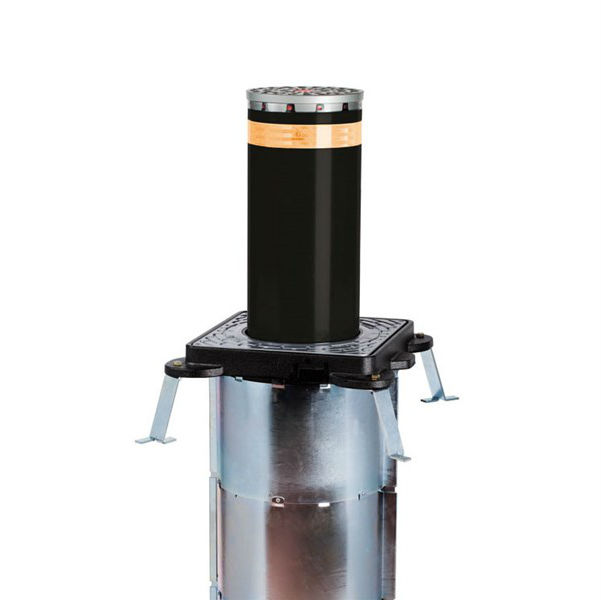

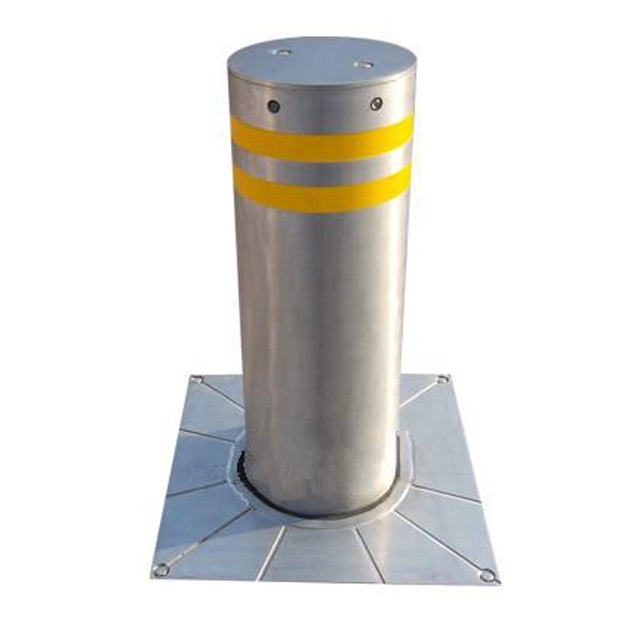

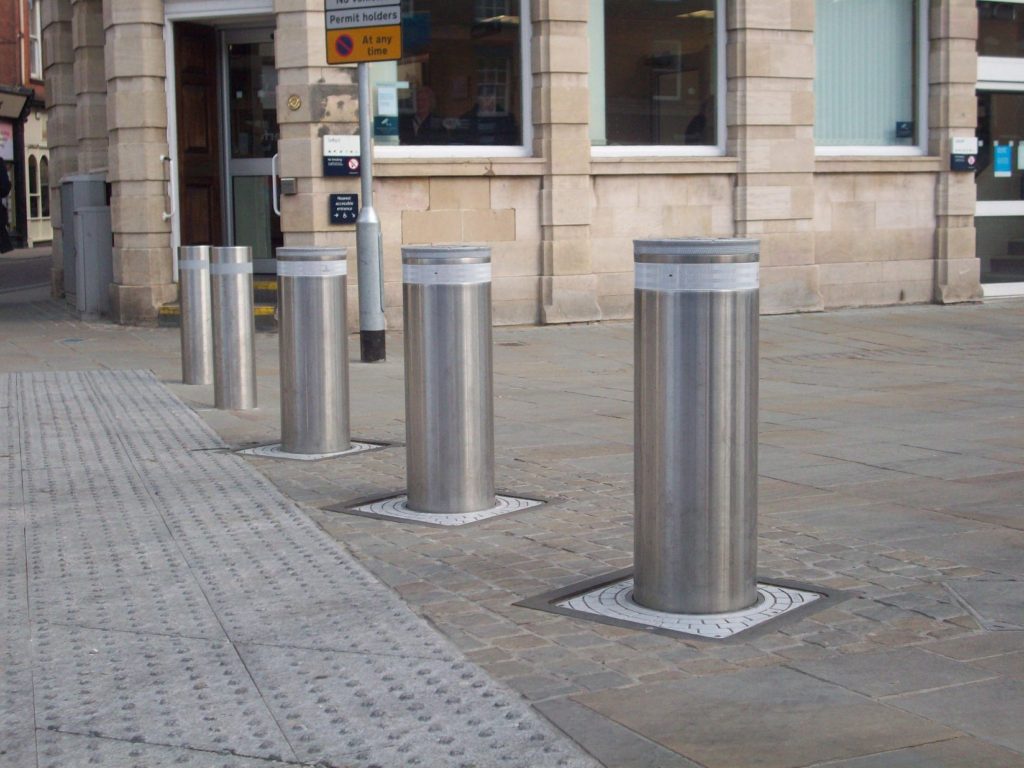

Automatic bollard:

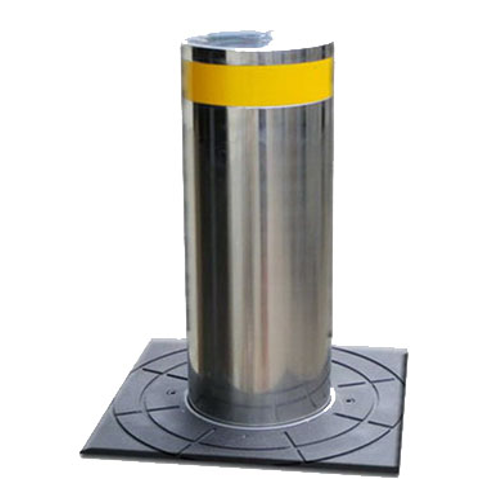

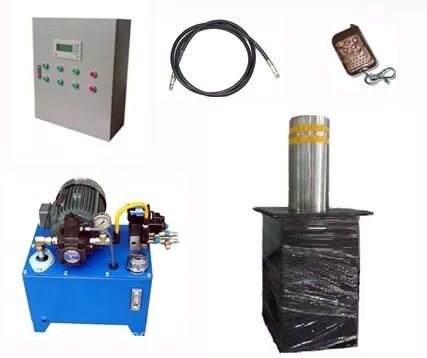

This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.

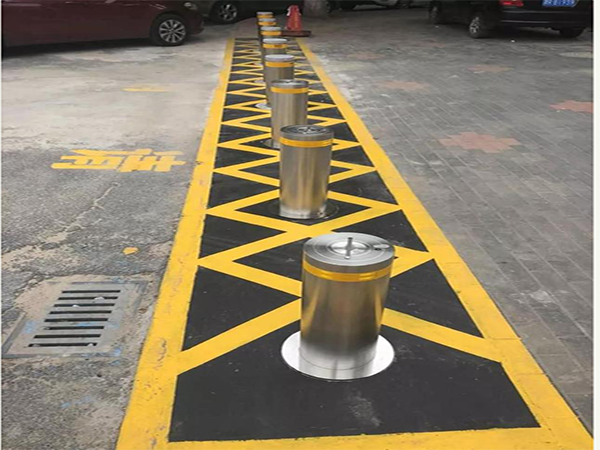

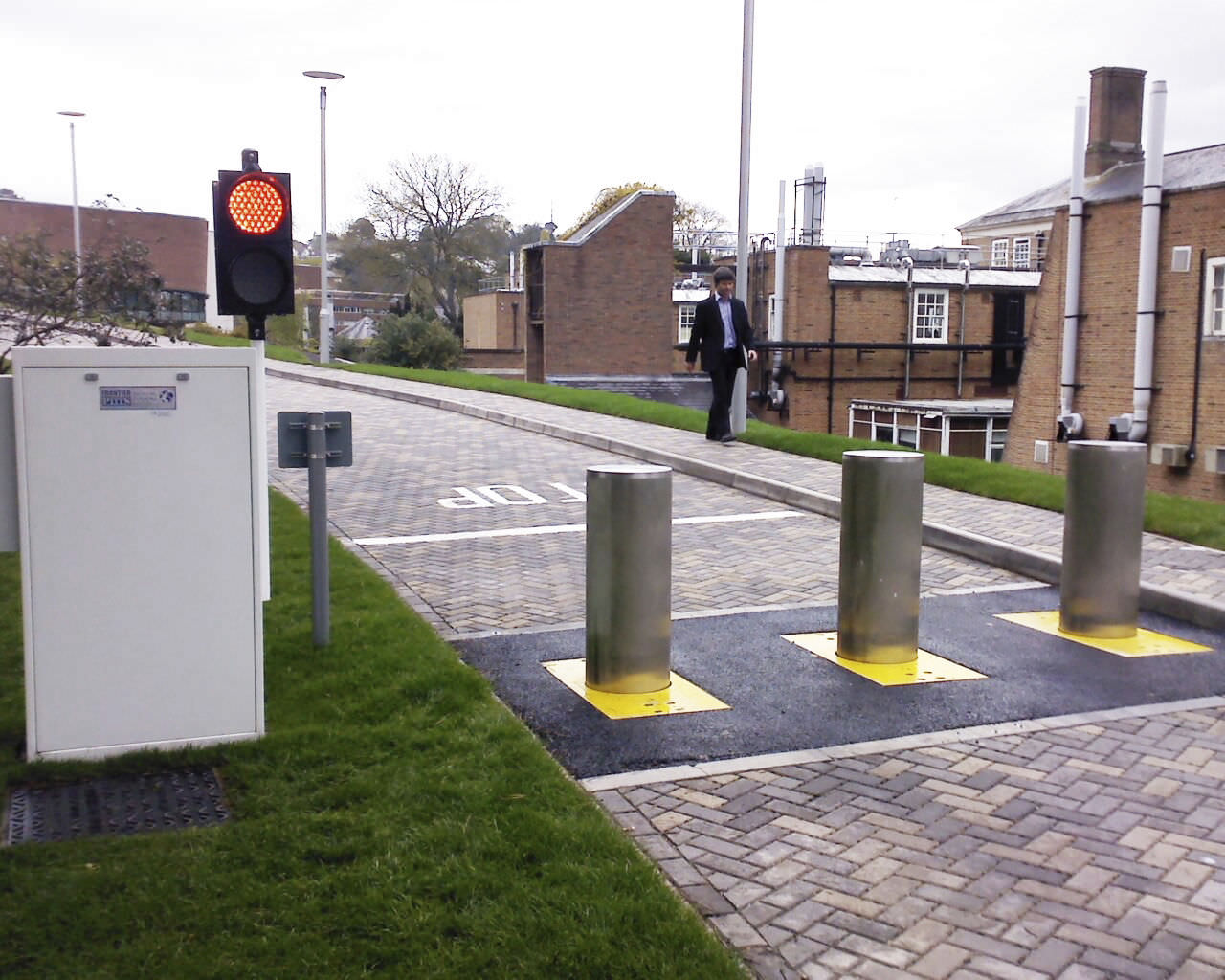

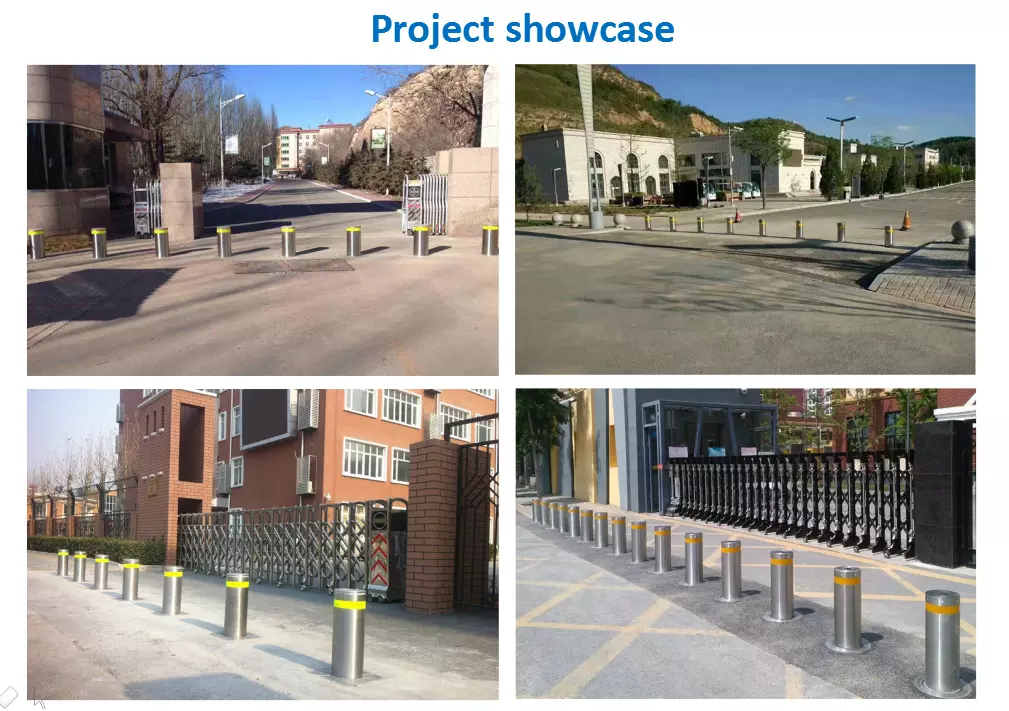

The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Features:

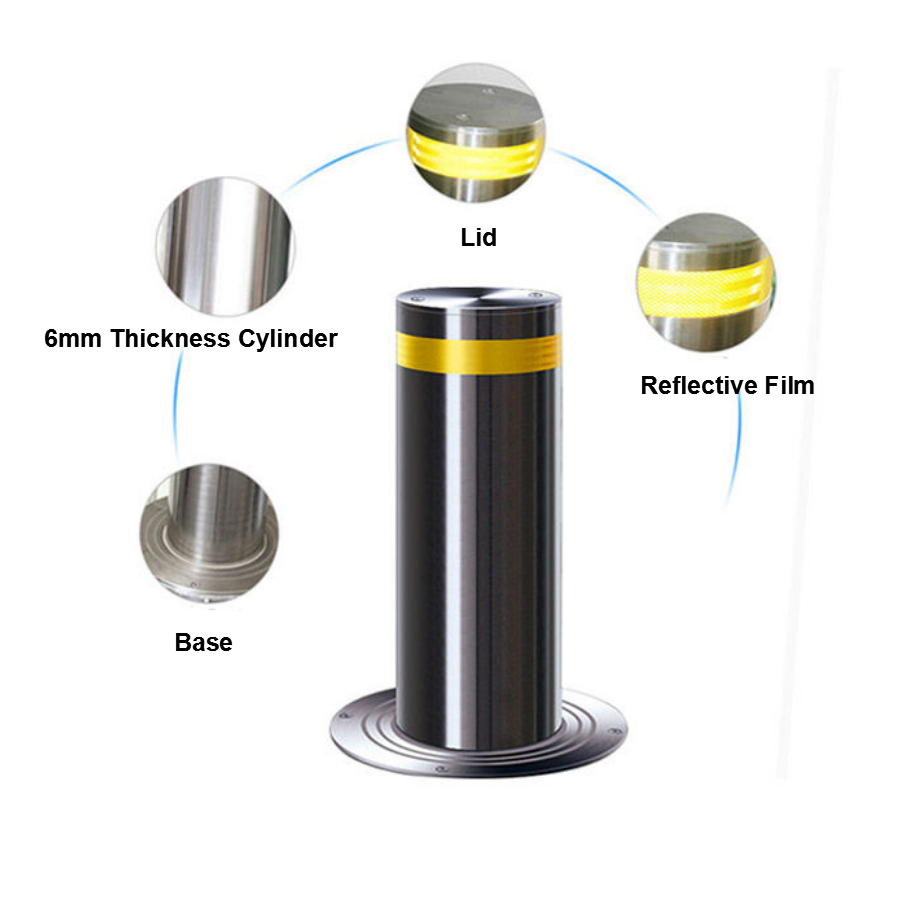

Different thickness of steel is available (default 6 mm)
Different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Lowering down the bollard by handle valve, in case of power failure or fault of automatic system
Raising up the bollard by handle pump, in case of power failure or fault of automatic system

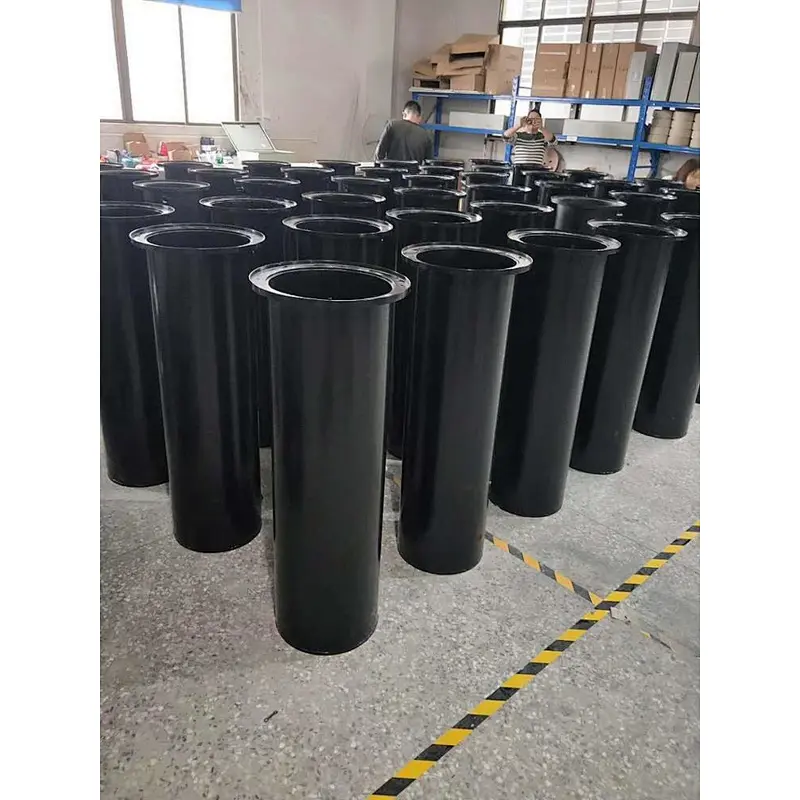

Housing with durable and stainless Galvanization
Optimization of frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability

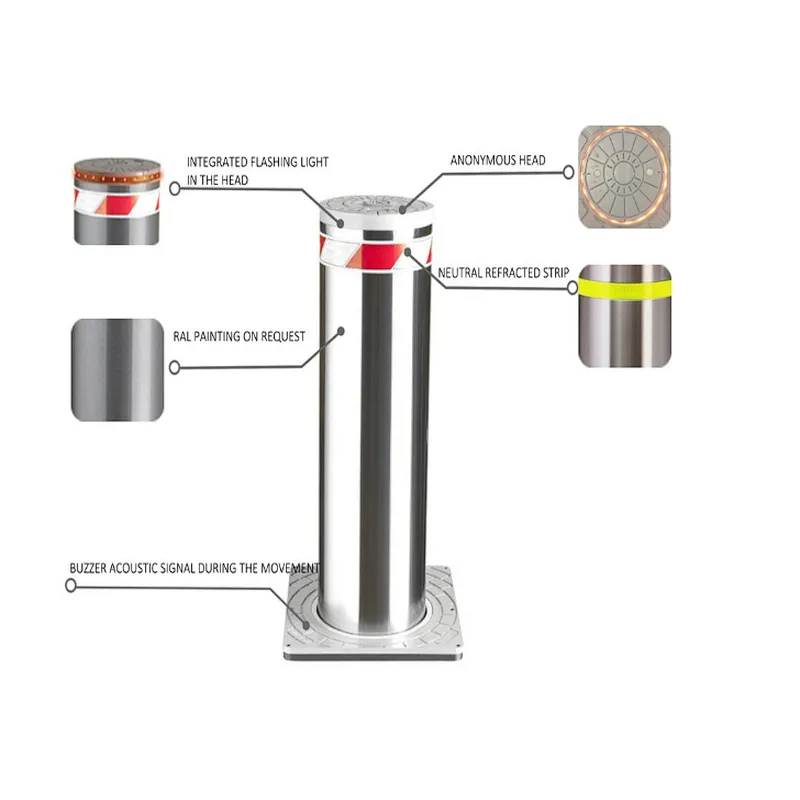

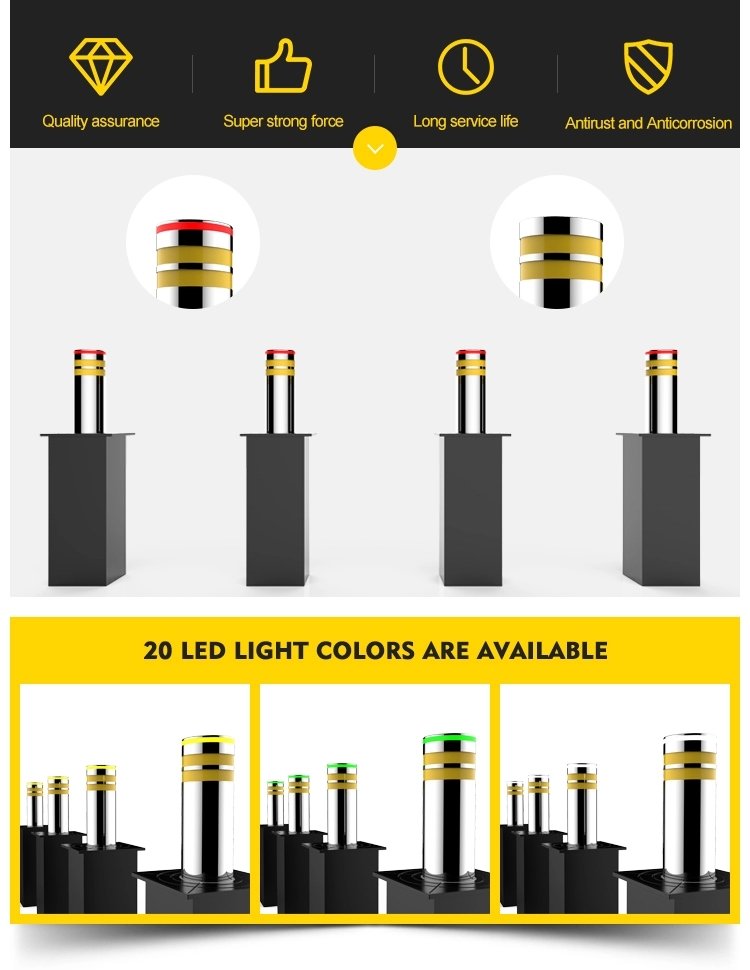

With a reflective band and a low energy consumption LED light at night
Parameters:
| Product name | Electric automatic bollard |
| Control system | Electric-hydraulic operated |
| Maximum weight of passing cars | ≤8 T |
| Power supply | 220 V (control voltage: 24V) |
| System power | 1.5kW / 2.2kW |
| Rising time | ≤ 4 s (adjustable) |
| Dropping time | ≤ 2 s (adjustable) |
| Working temperature | -35°C ~75°C |
| Material | #304 stainless steel |
| Diameter of pillar | 219mm (168mm, 275mm, 324mm are also available) |
| Thickness of housing | 6mm(8mm, 10 mm are also available) |
