- Type:Carport, Long Range 20 m UHF RFID Reader
- Place of Origin:Guangdong, China
- Brand Name:Anxia
- Model Number:KB-969
- Warranty:1 Years, 1 year
- Product Name:UHF reader parking system
- Language:Customizable
- OEM/ODM:OK
- Life span:Over 5 years
- Application:to record employee attendance
- Material:Plastic & metal
- Use for:UHF RFID Reader to Record Employee Attendance
- Feature:Long Range 20 m
433mhz Long Read RFID Tag for Parking Access Control System
Product pictures:

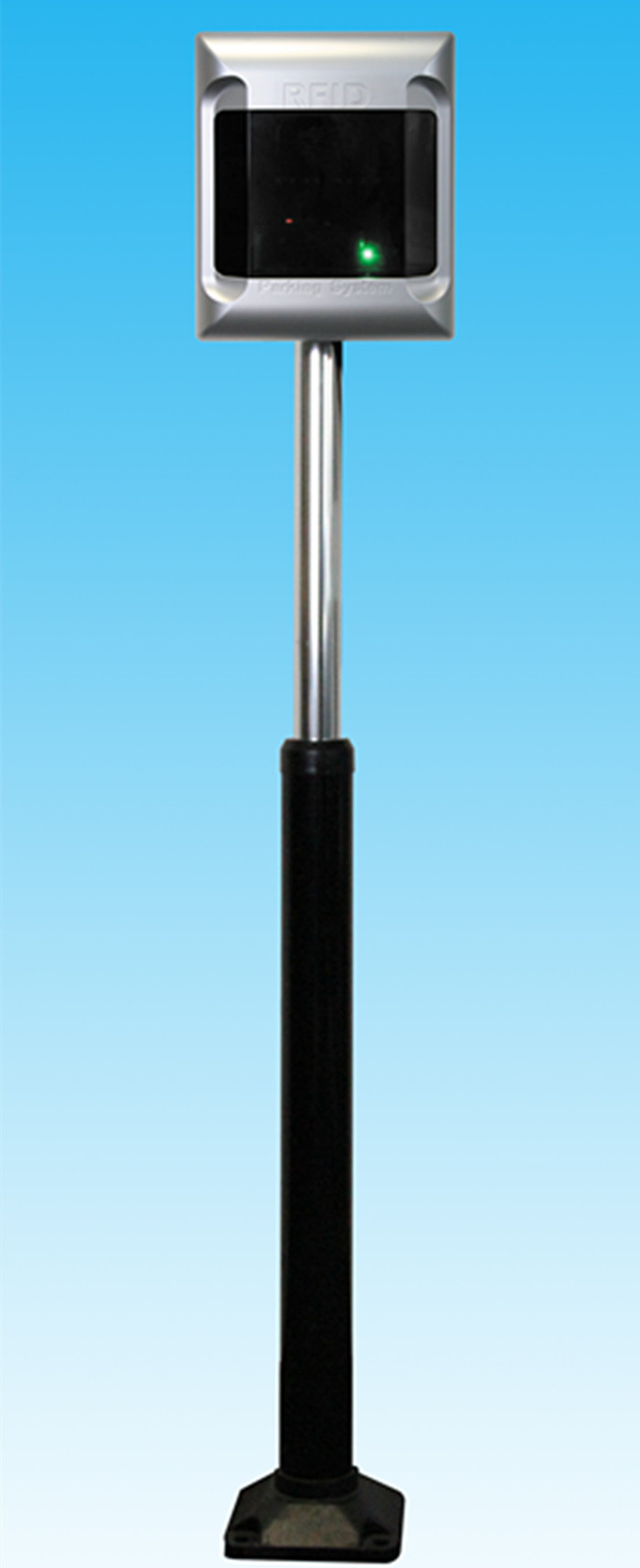

3 - 20 Meters Long Range UHF Reader For parking lot access control system

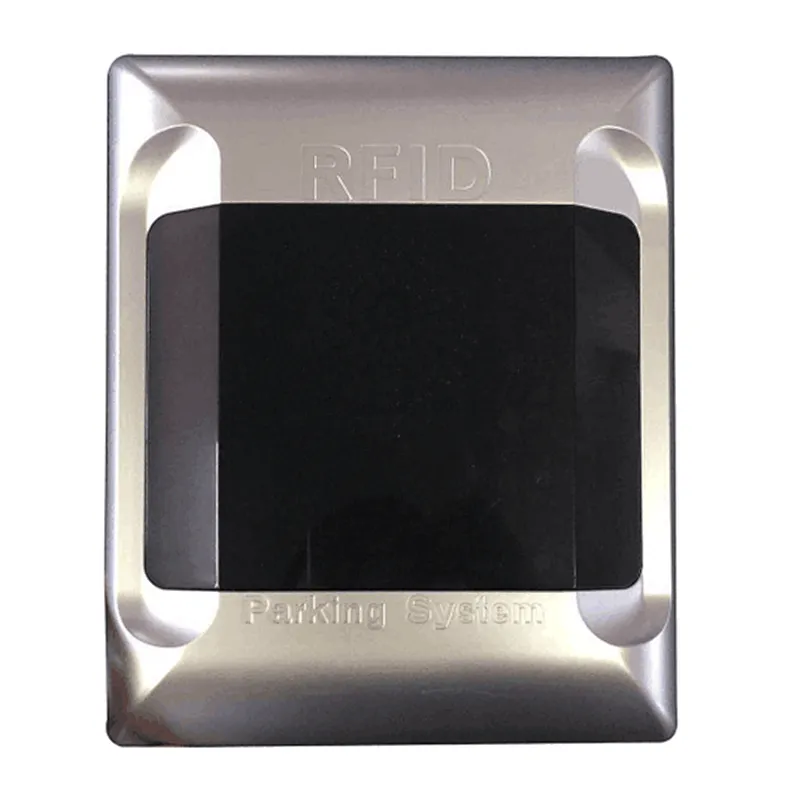

UHF Reader is a high performance RFID integrated reader developed by Anxia Technology, which is for park lot access control, it supports tag read/write operation with very high identification rate and speed. It can be widely applied in many RFID systems such as access control, anti-counterfeit and industrial production process control system. This Reader uses RFID Cards or Stickers which can be read from 15 meters away and granted access permission to such as garages, parking lots or gated communities. RFID long-range card reader is compatible with multiple protocols and can read multiple tag formats. The reader is waterproof and suitable for mutiple RFID applications, such as transport management, vehicle management, car parking system, and production process control.
Brief Information:
1: Reading is more than 15-20M.
2: Variety of communication interfaces
3: Compatible with 6B and 6C protocol
Remark: Its effective depends on antenna, tag and environment.
Parameters:
| Working Frequency | 433MHz |
| Reading | 20m Maximum, 15m recommended |
| Support protocol | ISO-18000-6B or ISO-18000-6C(EPC G2) |
| Antenna Gain | 12dbi |
| Voltage | 12VDC ± 10% |
| Current | <400mA |
| Power consumption | <5W |
| Communications interface | Wiegand26bit RS232 RS485 |
| Operating Temperature | -40 °C ~ +85 °C |
| Operating humidity | 10% ~ 90% |
| Package weight | 7.0Kg |
| Product size | 450 x 450 x 50 mm |
Long read card with 433mhz for parking system
Specifications
1.: 1 ~ 20 meters
2.Wiegand 26 and RS485 interface
3.protection water proof
4. optical excitation range:120 degree
Main Features
Optical excitation, CDMA, sleep/wake up, wireless communications, CPU automatic recognition and so on cutting-edge high-tech crystal
High Reading speed, card can be read in 10-40 km/h without vehicle stop
Long range reading , 3-25 m(adjustable)
With good directivity, optical excitation range can be up to 120°
Advanced CDMA communication technology is used and no interference between adjacent lane
No need to stop and no need to open the window to read card
Reading direction can be adjusted discretionarily
Output mode, Wiegand 26 and RS485
Technical Parameters
Power Supply: DC 12V/3A
Working Frequency: 433MHZ
Infrared Frequency: 38KHZ
Reading :3-25 meters maximum
Response Time: 0.1 seconds
Reading Speed: 0.5 seconds
Reading Time Interval 0.5-0.8 seconds
Operating Temperature: -30 °C ~ +70 °C
Long-range Card
Reading Range: 3 ~ 25 meters
In hand or vehicle-mounted auto reading, dual reading mode
Access control cards can be affixed to the back of the card for “One-Card System”
Passwords, license plates and other coded information can be stored
Battery: CR3240 button cell
Battery Life: 505,000 (handheld)
Working Mode: read-write in real time (with CDMA module)
About Us :
Shenzhen Anxia Technology Co., Ltd.
Established in 2008, is a large-scale high-tech private enterprise integrating research & development, production,sale,with over 12 years experience .
We supply a complete set of solutions, for example,
1.PMS (Parking Management System)
2.PGS (Parking Guidance System)
3.Barrier Gate,Ticket Machine
4.Other Security Equipments :Parking card dispenser machine, Vehicle loop sensor, RFID reader,
Parking access controller, Barrier gate, Ticket machine, Parking LED display and so on .
A letter to customers
Dear friend,
Welcome to visit here .
This is Sammy from China Anxia.
Tenet is professional in Parking System & Equipment ,with more than 12 years experience.
Mob./Wechat/Whatsapp/Skype:: +86 188 9858 9685
Shen Anxia Heavy Industrials was founded in 2008, which is a professional manufacturer dedicated in the R&D, large-scale production on security system products, such as turnstile gates, barrier gates and car plate recognition systems. As one of the biggest comanies in Shenzhen security system industry for over 10 years, our team is committed to provide high quality products and services. Our products include intelligent parking lot system, automatic access control system, intelligent turnstile system and so on. We have experience on international trading since 2010, and our products sell well in southeast Asia, middle east, east Europe, over 40 countries all over ther world. Feel free to contact us if you have projects to do with security systems. We'd love to build a long term cooperative relation with you.
Our Clients:
Our Clients:
Certificate of honor:
Exhibition:
Q1: Do you have English language system?
A: We can sell you with hardware only. Also, if you want with system as well, we have our system supports English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have water proof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificate, and we can send you copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A:Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
